TYPE-C /DP portable display control board, support 2560*1600@60Hz, support EDP 30PIN or 40PIN LCD panel

Supplier: Shenzhen Caison Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Alex chao
Price: $18.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

type:	Portable Display Controller Board, LCD Controller Board	brand:	Colorful algae
Display size:	3.5 inch-110 inch	port:	Hongkong
Supply capacity:	10000 pieces per month	payment terms:	L/C, Western Union, T/T
Packaging Details:	Bubble bag + carton	Origin:	Guangdong, China

Product Description

TYPE-C /DP portable display control board, support 2560*1600@60Hz, support EDP 30PIN or 40PIN LCD panel

general instructions

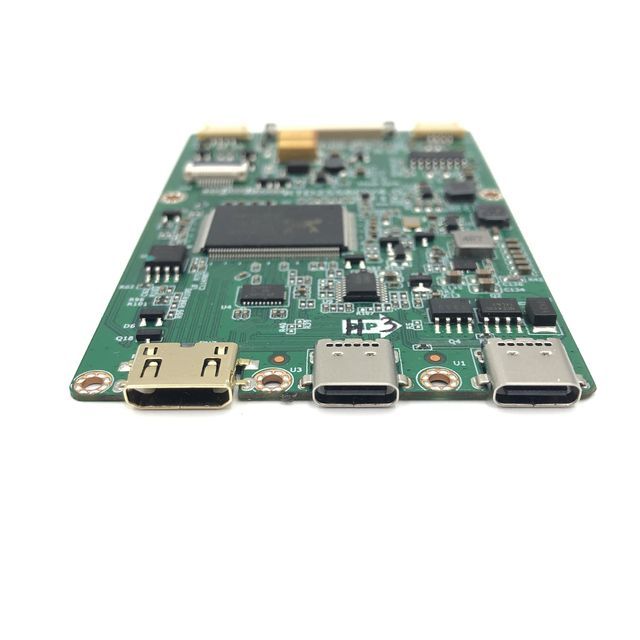

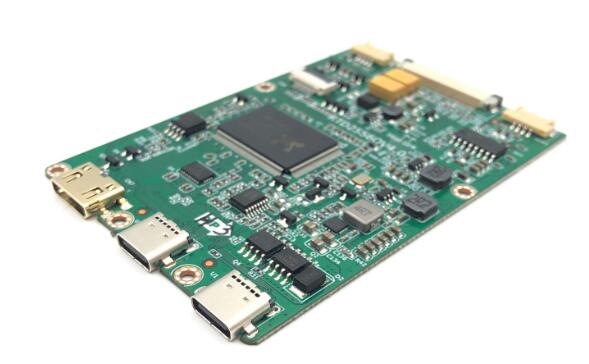

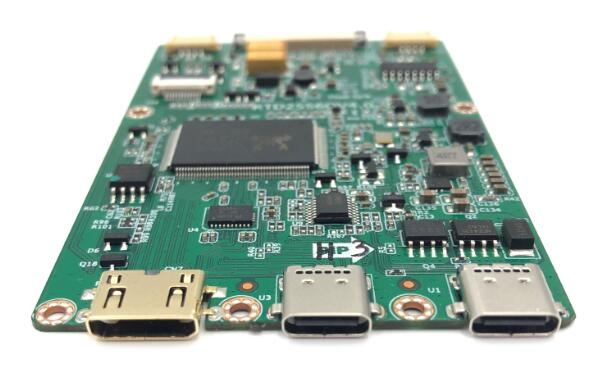

RTD2556QV4.0 LCD driver board, with TYPE-C interface, can support the highest resolution 2560×1600@60Hz, and can drive EDP interface panel.
RTD2556QV4.0 can support MINI, TYPE-C, PD power input. (Type-C signal interface (two-way interface, can supply power to the motherboard and reverse charge the device) Type-C signal interface supports data
Transmission, forward and reverse connection, external charging and image display. Mobile terminal devices that support the Almighty Type-C interface, such as Huawei mobile phones (Mate10/Mate10 Pro/P20/P20 Pro/Mate20), Smartisan mobile phones
(R1/JmGO 2pro), Apple Macbook, Huawei matebook and other Type-C interface laptops and touch screens (mobile phones and laptops) that input Type-C signals and can be controlled through screen touch operations).
The Type-C power supply interface supports the PD standard fast charging protocol, and can adapt the PD power supply to the Type-C signal interface to connect to the all-round Type-C device to realize the fast charging function. )

NOTE: The specifications of this board include descriptions of all features.
Therefore, our customers can choose the features they need to produce the boards. But the specification can be introduced generally.

Specification

market area	worldwide
On-Screen Display Language	(Chinese, English, French, Spanish, Portuguese, Russian, Arabic) (option)
chipset	RTD2556-CG
Support LCD panel	panel type	electronic data processing
		interface	30 PIN/0.5 or 40PIN/0.5 EDP interface
	Support LCD panel	solve	2560×1600@60Hz
strength	DC input Require	DP power supply: 5V/9V/12V/15V/20V
		to LCD panel	3.3V
		manage	Low power consumption mode. Standby≤0.25W
		Audio output	2*1.5W@4Ω

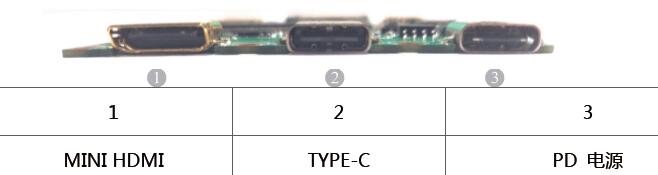

terminal (input)	enter	1 x MINI terminal
	video input	TYPE-C	1 x TYPE-C terminal
	audio input	DP	1 x TYPE-C terminal
terminal (output)	to panel	EDP 30PIN or 40PIN
terminal (output)	extensions	speaker output	1×Speaker interface
