60inch1371mm*789mm ten points IR touch panel infrared touch screen support XP WIN7/8/10 android system and USB rconnection

Product details
Payment Terms:L/C,T/T,Western Union,Paypal;Port:HongKong;
Supply Ability:10000 Piece/Pieces per Month;Model Number:CS---600A-1;
Place of Origin:Guangdong China (Mainland);Packaging Detail:Bubble bag + carton;
Brand Name:caisonlcd;
Product Description



1.Overview

>(Paper)Aluminum Series are designed for small size (26-85 inch)display,the thickness is only 11mm,it includes 3 mm toughened glass.
> The greatest free drive project in this business,support multiple operating systems,plug and play,convenience customers.
> Stable product performance, strong light resistance, can work under direct sunlight.
> Superdense tube design, support 10 points real touch and a variety of gesture recognition, easy to zoom, rotate, flip, drag and drop action, fast and smooth writing

2.Specification


Standard Size

26”-85”

Border Width

19mm

Touch Points

maximum support 10 points

Thickness

11mm

Shell

Aluminum6063

Color

Black(wire drawing technology)

Cable Length

USB:1.7m

Waterproof Level

Non-waterproof

Certification

RoHS, CE, FCC

Glass

Thickness

3mm,4mm,5mm(selection)

Material

Standard:toughened glass(surface hardness 7H);

Customized:AR,AG glass

Luminousness

toughened glass≥86%,AR glass≥92%,AG glass≥80%







3.Electrical

Output Resolution

32767*32767

Touch Precision

2.8mm(Centre area 5.5mm)

The Smallest Touch Objects

>5mm

Touch Depth

<3mm

Output Type

Touch Coordinate Output

Calibrate

Not Require Recalibration(Can provide screen adjustment software, auxiliary calibration)

Response Speed

<15ms

Multi-points Recognition

More than 10mm between touch points

Consumption

<2W,Typical 1.2W(DC5V Power)

Plug and Play

Without any driver(USB Product)

Scanning Frequency

60Hz

Interface

USB2.0,HID(Plug and Play)

USB2.0

Terminal Type

A-type USB

Communication Interface

USB-D+,USB-D-

Transmission Speed

12Mbps

Power Supply

USB

ESD

Contact discharge 4KV, air discharge 8KV

Supply Voltage

DC+5V±5%

Operating Current

<200mA

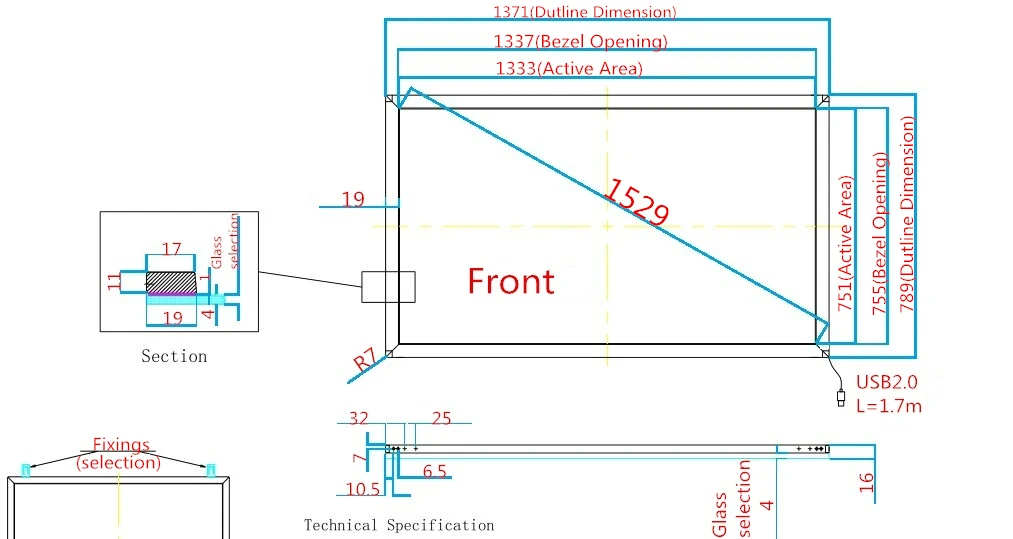

Product pictures and size

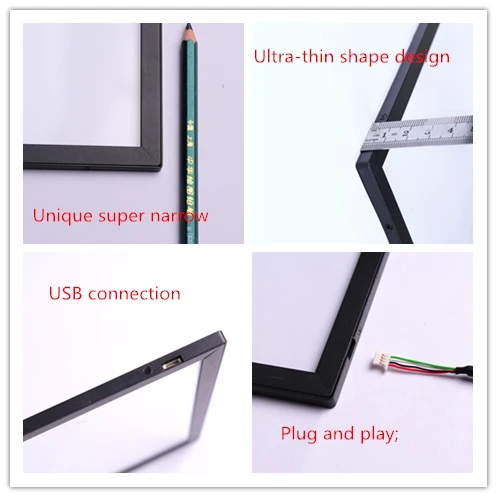

Advantage of the products





About the packin

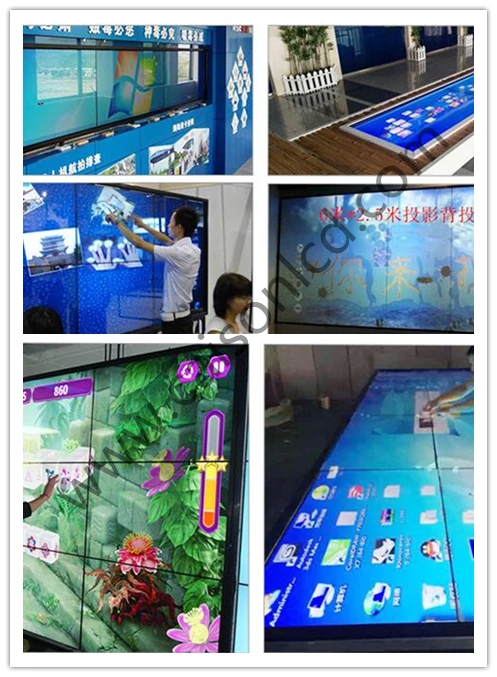

Application
