M12*P0.5 VCM Voice Coil Actuator Motor
- 35.00 1 - 499 pieces
- 20.00 500 - 999 pieces
- 18.00 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

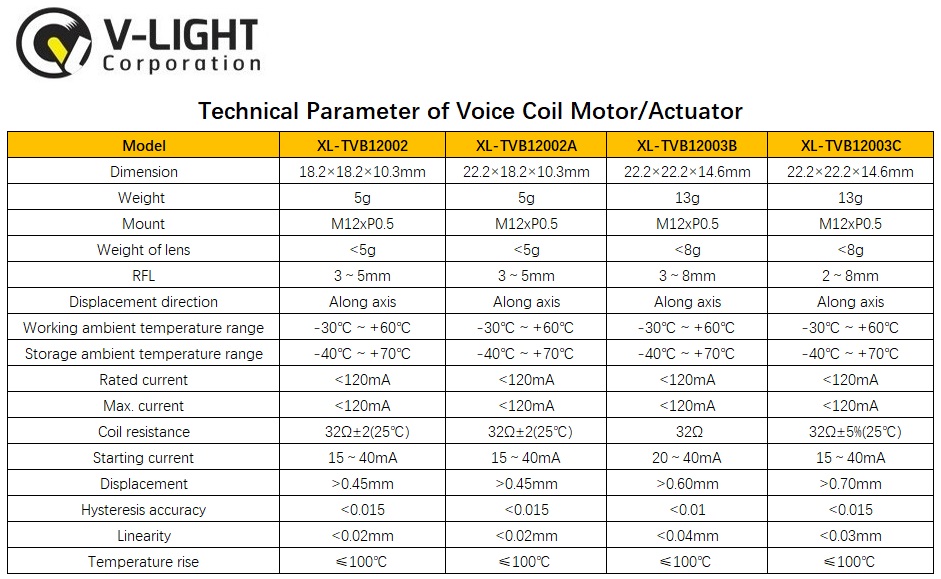

| Coil resistance: | 32Ω±2 (at 25℃) | brand: | Voice coil motor/actuator |
| Packaging details: | 40 pieces per pallet, ## pieces per box (## pallets). | aspect: | 22.2*22.2*14.6mm |
| Package preview: | Adaptive lens weight: | Maximum 8 grams | |
| application: | Facial recognition, access control, medical equipment | weight: | 13 grams |
| Back focal length (RFL): | 3~8mm | payment terms: | Western Union, T/T, MoneyGram, Paypal,, Credit Card |
| type: | M12xP0.5 | Rated current: | <120mA |
| Storage temperature: | -40℃~+70℃ | Operating temperature: | -30℃~+60℃ |
| brand: | visible light communication | Supply capacity: | 20,000 pieces per month |
| Adaptive lens size: | M12*P0.5 | Displacement direction: | along the slope |
| Origin: | Guangdong, China |
Product Description
product name | Thrust voice coil motor |
Material | polycarbonate, stainless steel |
Function | The main principle of the voice coil motor is to control the tension position of the spring by changing the DC current of the coil in the motor in a permanent magnetic field, thereby driving up and down motion. Mainly used for small strokes, high speeds, High acceleration movement, suitable for small spaces. The camera uses VCM to achieve autofocus function, and the lens position can be adjusted through VCM to display clear images. |
pack | ## pieces per plastic pallet, ## pieces per carton (## pallets). |

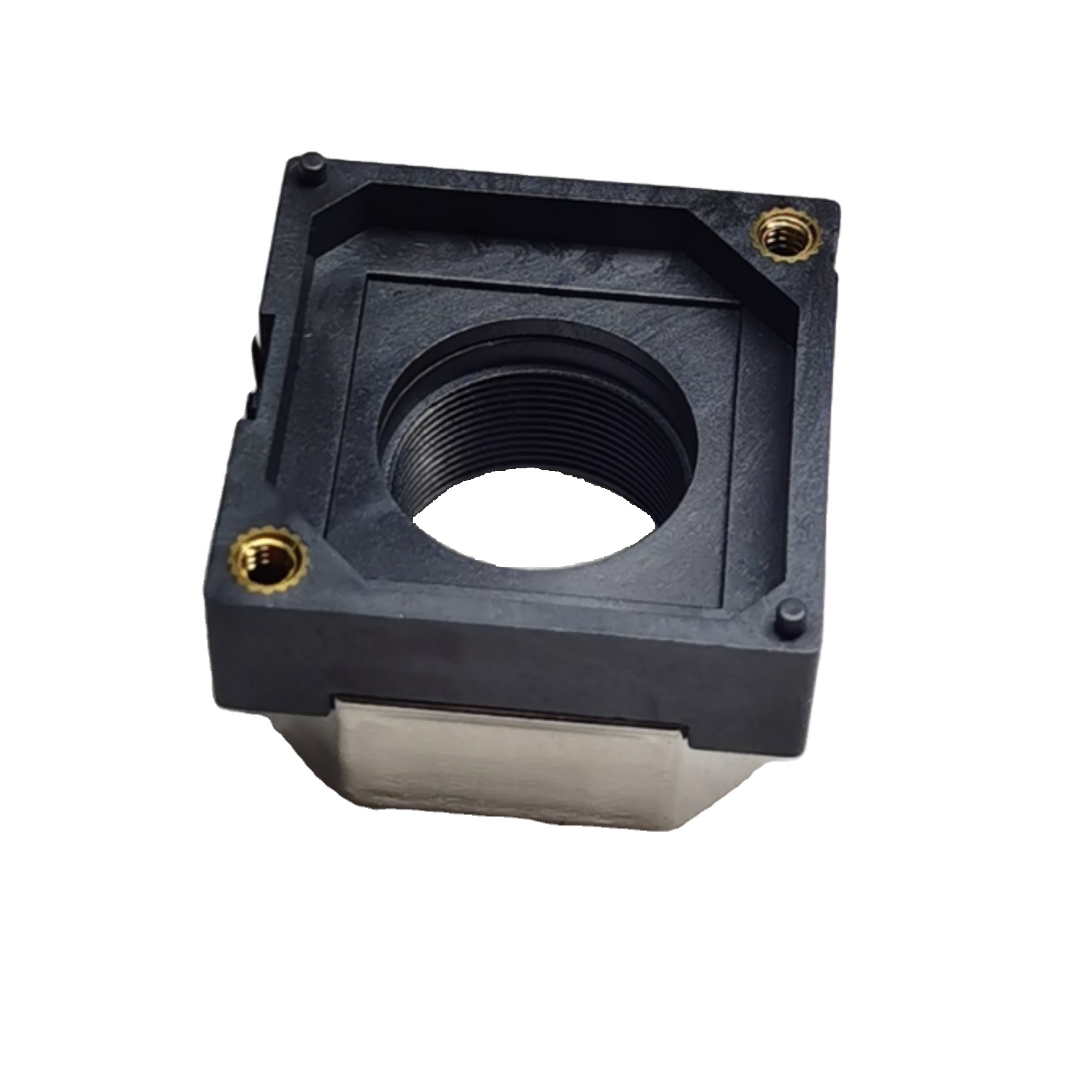

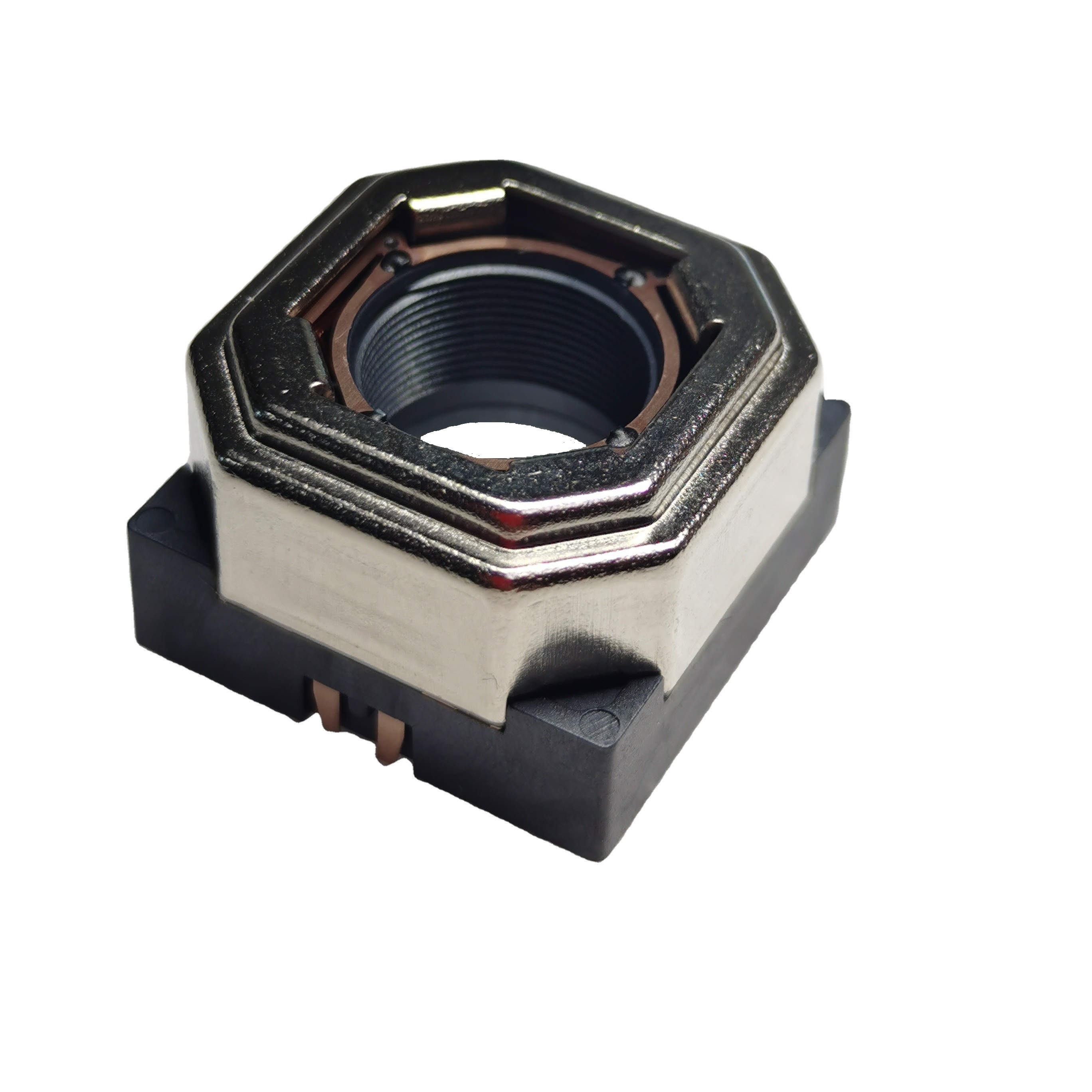

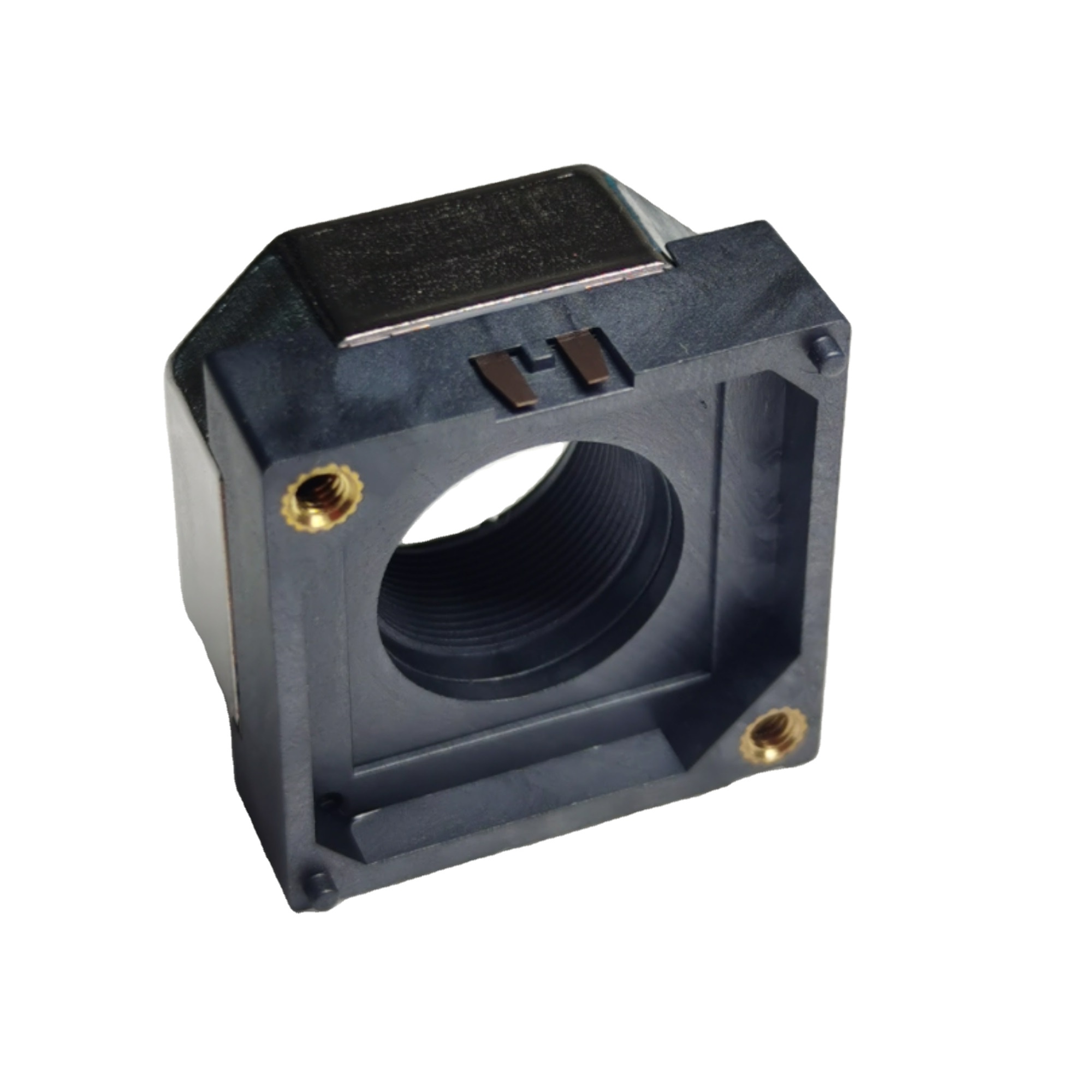

detailed picture

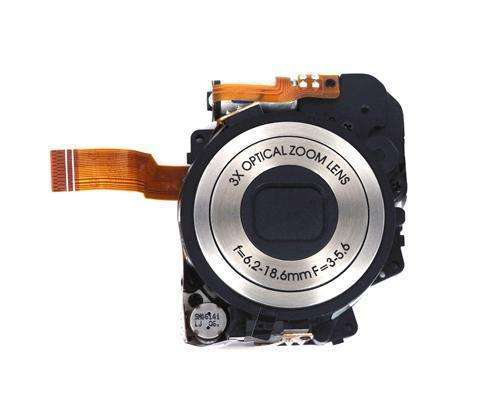

Product Usage
digital camera
digital camera
digital camera
