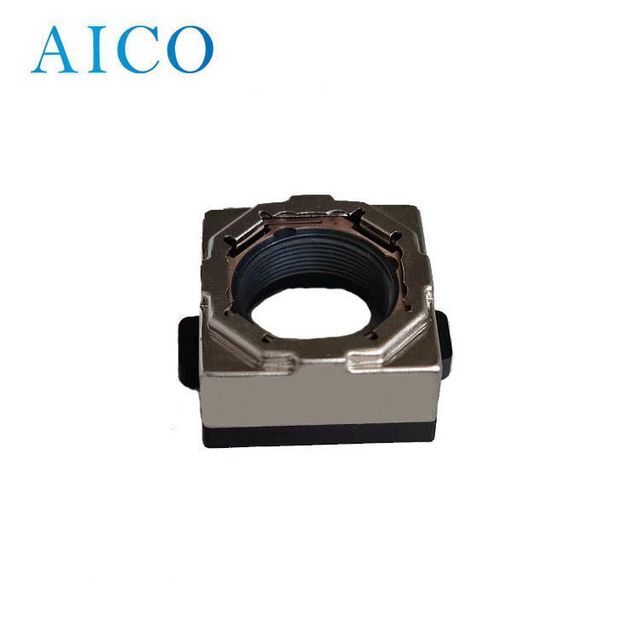

M12 VCM M12*p0.5 s mount lens voice coil bracket actuator motor for auto focus driver m12xp0.5 m12x0.5mm camera lens auto focus

Supplier: Hangzhou Ai Ke Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Ms Melody Zheng
Price: $31.00 / 1 - 299 pieces
$20.00 / 300 - 2999 pieces
$14.40 / 3000 - 19999 pieces
$7.70 / >=20000 pieces
Min. Order: 1 piece

Click here to contact

Product details

VCM unit weight:	≤5g (nominal without lens)	brand:	Aike
powered by:	0mA~180mA	Card:	Autofocus voice coil motor
Lens unit quality:	≤8g	type:	Autofocus voice coil motor
DC:	ACVCM181210	Insulation resistance:	1MΩ or more at DC 50V, between case and contact
working direction:	along the optical axis	payment terms:	Letter of Credit, Western Union, T/T, MoneyGram, PayPal
Supply capacity:	100000pcs/month M12 Lens Voice Coil VCM Motor	interface:	M12
Operating temperature:	-30℃~70℃ 10%~90%RH	Rated current (stroke=0.60mm):	150 mA
Panel size:	8.0x18.0x10.0mm (without terminal)	Lens diameter:	M12*p0.5mm
Rated stroke:	≥350μm	application:	M12 lens
Rated current (stroke=0.35mm):	100mA	Absolute Maximum Current:	0mA - 180mA
Packaging Details:	Standard export packaging	place of origin; place of origin:	Zhejiang, China
VCM size:	18.0x18.0x10.0mm (without terminal)

M12 VCM M12*p0.5 s mount lens voice coil bracket actuator motor for auto focus driver m12xp0.5 m12x0.5mm camera lens auto focus

Specification

VCM size:	18.0x18.0x10.0mm (without terminal)
Lens diameter:	M12*p0.5mm
Rated current (stroke=0.35mm) Optical axis: +Z	100mA
Rated current (stroke=0.60mm) Optical axis: +Z	150 mA
Absolute Maximum Current:	0mA - 180mA
Insulation resistance:	1MΩ or more at DC 50V, between case and contact
working direction:	along the optical axis
VCM unit weight:	≤5g (nominal without lens)
Lens unit quality:	≤8g
Rated stroke:	≥350μm
Terminating resistor:	28±3Ω
Sensitivity:	3~9μm/mA
Lag:	±10 microns
Dynamic Tilt:	≤21′
Linearity:	≤10µm
Starting current:	35~55mA
Torque:	20-150 gf.cm
Operating environment:	-30℃~70℃ 10%~90%RH
Storage environment:	-40~85℃ 10~90% relative humidity
Model:	ACVCM181210

These specifications specify the general requirements and performance of autofocus voice coil motors. These specifications may be changed for improvement upon mutual agreement.

All parts of this product, including glue and solder, are RoHS compliant.
