Product Details

Display mode:	clever	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
type:	Driver board	interface:	LVDS mipi EDP interface
Display size:	custom	Origin:	Guangdong, China
operating system:	android	application:	digital equipment
Interface Type:	EDP lvds mipi hdm1	brand:	client
port:	Shenzhen/Hong Kong	Packaging Details:	Bubble bag + carton
solve:	2k/4K/8K	product name:	Android board RK3588 YF-022A
memory:	4GB/8GB/16GB 64-bit LPDDR4/LPDDR4x	Supply capacity:	10000 pieces per month
thing:	YF-022A

Product Description

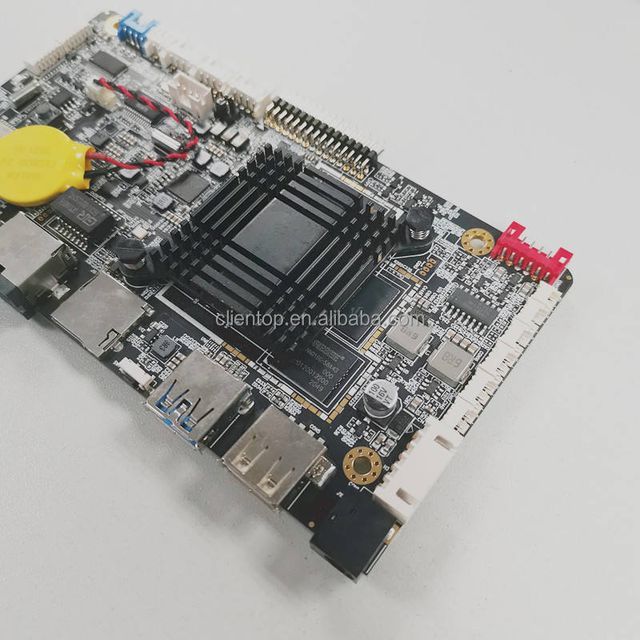

Motherboard 2K/4k/8K LVDS mipi EDP pin play driver Android board RK3588 YF-022A for digital signage

feature

◆ High integration. Integrated USB/LVDS/Gigabit Ethernet/WIFI6/BT5.2/eDP expansion/microphone and other functions, simplifying the overall design and making the overall design more beautiful.

◆8K@60fpsH.265/VP9/AVS28K@60fpsH.264/AVC/MVC4K@60fps AV1 and other video encoding and LVDS/eDP/MIPI signal LCD display.

◆ Support HDMI input/output

◆ Self-contained power amplifier. Support dual-channel 8R/5W power amplifier.

◆ Abundant interfaces. Support USB (2 USB3.0)/serial port/GPIO/ADC interface expansion, which can meet the mainstream peripherals in the market.

◆ Fully functional. Support horizontal and vertical playback, video split screen, scrolling subtitles, timing switching, USB data import and other functions.

◆ Easy management: Humanized playlist making software, easy to manage and control advertising playback.

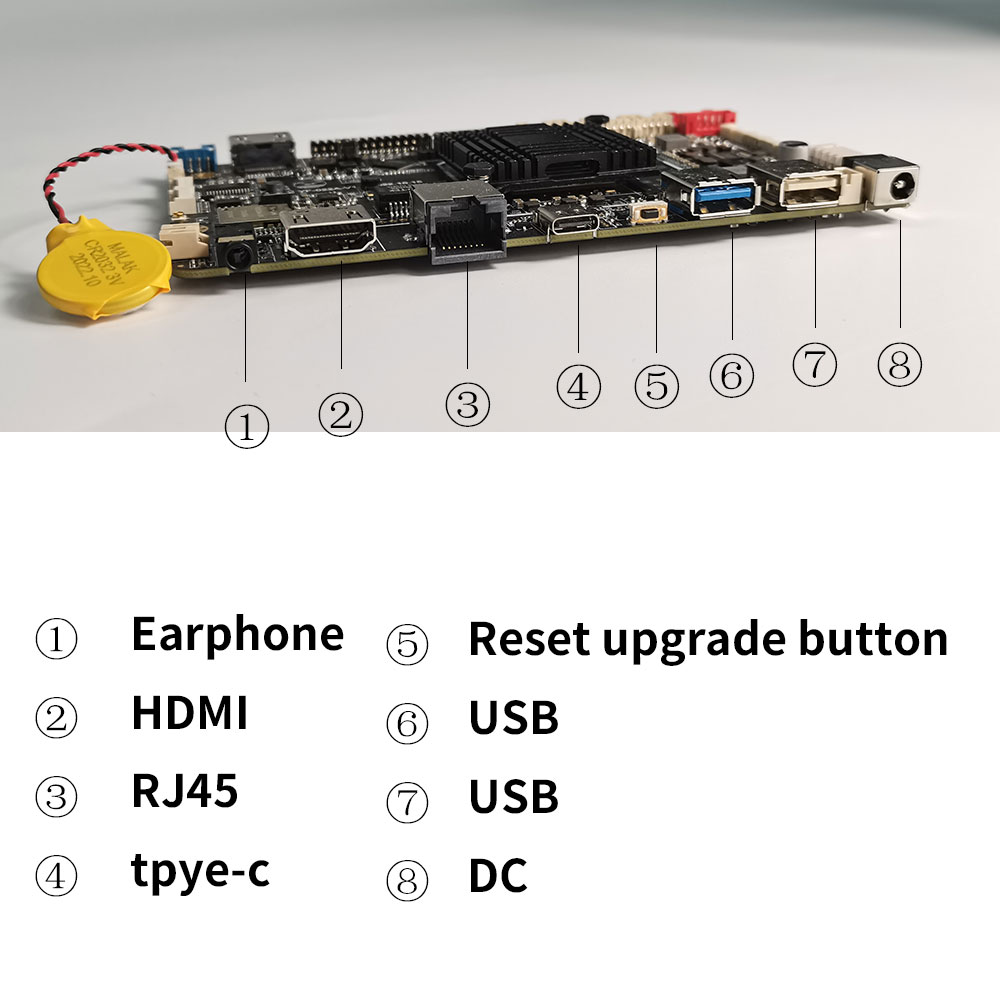

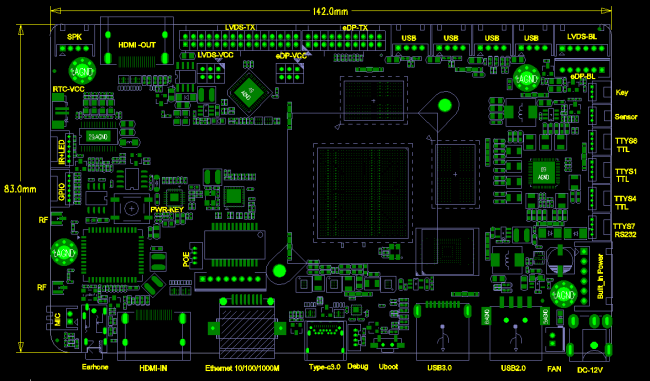

Appearance and interface

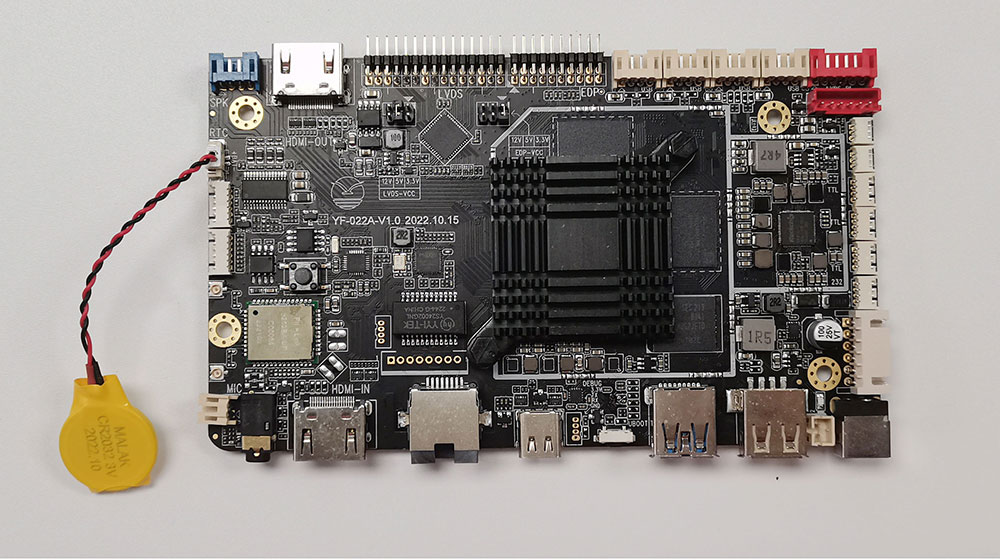

front

step back

Specification

CPU	4×cortex-A76+4×cortex-A55
graphics processor	ARM Mali-G610 MP4 Quad Core GPU
memory	4GB/8GB/16GB 64-bit LPDDR4/LPDDR4x
built-in memory	32GB/64GB/128GB eMMC
operating system	Android 12.0
TYPE-C	global function
network support	Gigabit Ethernet, support WiFi/BT5.2, wireless peripheral expansion
USB2.0 interface	4 built-in socket USB/1 external USB
USB 3.0	1
ethernet	1 100/1000M
HDMI2.1 output	HDMI2.1 (8K@60fps or 4K@120fps)
HDMI input	Up to 3840*2160 30HZ
EDP output	Up to 7680x4320@60Hz
LVDS	Up to 1920*1080
Mipi	Up to 2560*1440

application

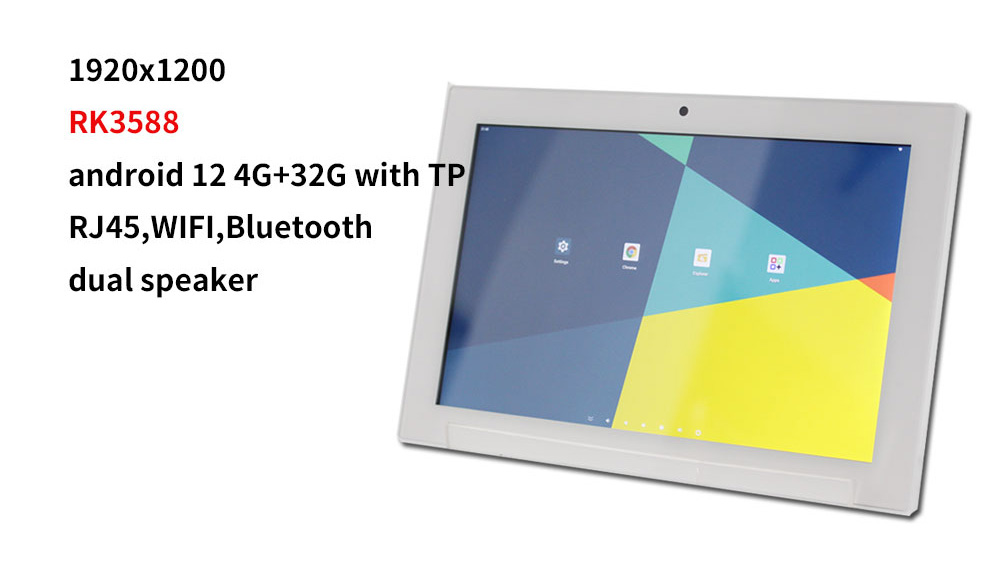

Tablet PC for Business Applications

High performance and long service life
