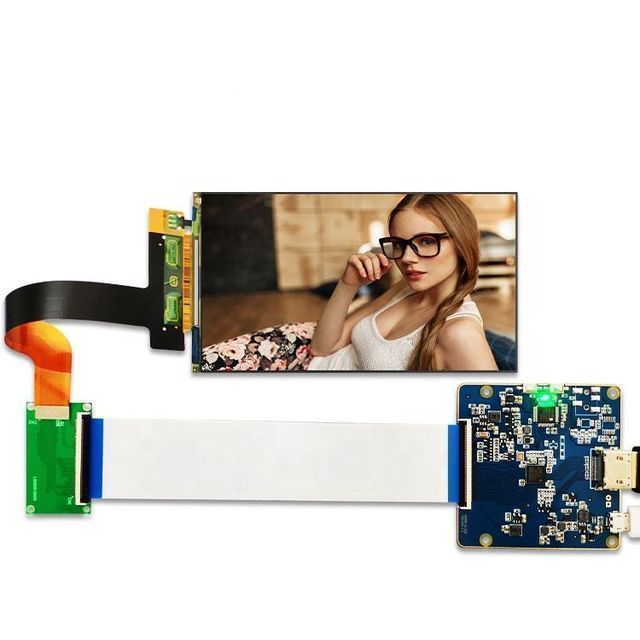

50 pin connector LCD control panel 2560*1440 2K 5.5 inch LCD screen 1440P IPS screen Mipi DSI interface

general characteristics

screen size

5.5 inches

type

CG-silicon, liquid crystal module

number of pixels

1440(RGB)*2560 [Quadruple HD]

configuration

RGB vertical stripes

Effective area (mm)

68.04(H)*120.96(V) mm

Dimensions (mm)

70.94(H)*128.49(V)*1.45(D) mm

brightness

450 Cd/m² (typical)

contrast

1300:1 (Typical) (TM)

view directions

symmetry

Response time

35 (Max)(Tr+Td)

Viewing angle

80/80/80/80 (typical value) (CR≥10)

light source

WLED [8S2P] , without driver

support color

16.7 million 72% (CIE1931)

for

Virtual Reality / 3D Printer

refresh rate

60 Hz

touch screen

No

operating mode

New Mode 2, Normally Black Display, Transmissive

voltage

1.8/5.75/-5.75V (Typical) (IOVCC/VSP/VSN)

signal type

50-pin MIPI (2 lanes, 4 data lanes), connector

environment

Working temperature: -20 ~ 60 °C; Storage temperature: -30 ~ 70 °C
