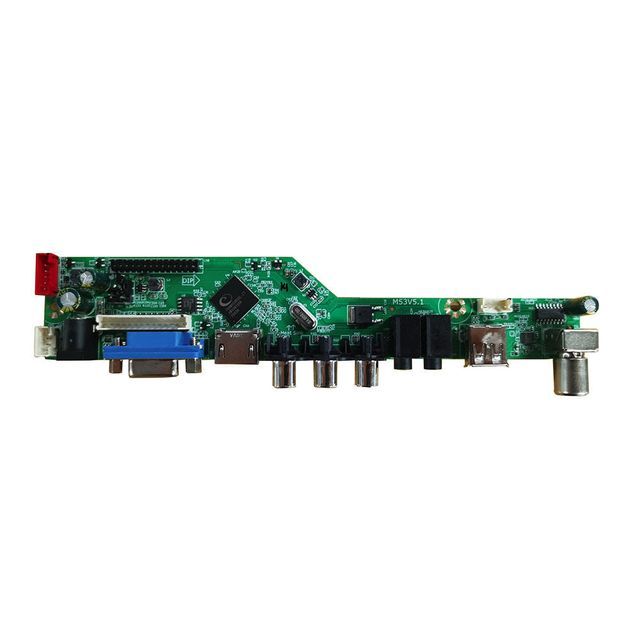

1920*1080 Full HD Universal LCD LED TV Controller LCD Panel Advertising Control Board
- 5.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| solve: | Up to 1920*1080@60Hz | Video system: | PAL/SECAM, NTSC (option) |
| input interface: | CVBS, PC RGB, HD Mi, USB, TV signal, PC Audio | Output Interface: | earphone |
| type: | LCD controller | port: | Xiamen/Shenzhen |
| channel: | 200 | chipset: | TSUMV53RUUL-Z1 |
| Packaging Details: | carton | payment terms: | L/C, Western Union, T/T, MoneyGram, Escrow |
| Display size: | multiple sizes | aspect: | 188.5x36mm |
| Origin: | China | Audio output: | 2*2W@8ohm |
| Panel interface: | Dual LVDS 30pin |
Product Description
product | Multifunctional LCD LED TV/Monitor Controller Board |
solve | Up to 1920*1080@60Hz |
panel interface | LVDS 30pin |
input interface | CVBS, PC-RGB, HDMI, TV signal, USB, PC audio |
Output Interface | earphone |
introduce
This AD board is a multi-purpose LCD controller designed to support full HD LCD panels for global markets.
It can support PC-RGB, HD MI, AV, USB, VGA, TV signal input, and can also output with earphones.
Remote control and other accessories are optional.
Product Usage
Supplied complete with controller board, remote control, OSD/keyboard board with wires, backlight board with wires and LVDS cables.
