CDMA 850MHz 2g Cell Phone Signal Booster Cell Phone Signal Amplifier

Supplier: Finder Electronics Co., Ltd.
Region: Fujian, China
Contact: Mr Victor Du
Price: $11.00 /set
Min. Order: 1 set

Click here to contact

Product details

frequency:	Uplink 824-849MHz; Downlink 869-894MHz	Coverage area:	200m2 depending on the area
Gain (dB):	Up Gp>=55, down Gp>=60	payment terms:	L/C, Western Union, T/T, MoneyGram, Secure Payment
port:	Xiamen or Shenzhen	Packaging Details:	Box
Passband Ripple:	≤3dB	network:	CDMA
Supply capacity:	10000 sets per month	power supply:	AC110 ~ 220V 45 ~ 55Hz
Origin:	China	model:	CDMA800D
Input/Output Impedance:	50Ω/N connector	brand:	Blank
type:	2g signal booster	Transmission delay:	≤0.5μs
Ambient temperature:	-10oC ~ 60oC

CDMA 850MHz 2g Cell Phone Signal Booster Cell Phone Signal Amplifier

Model: CDMA800D

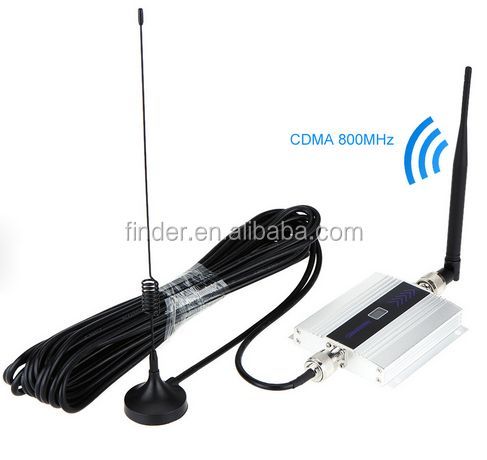

A set includes:

1x CDMA800D Signal Booster/Repeater with Power Adapter (or Cigarette Power Adapter)

1x Indoor Rubber Antenna

1x Outdoor Suction Cup Antenna with 10m coaxial cable and N type connector

Cell phone signal repeaters provide the ultimate solution for any indoor area where cellular communication is not working due to signal leaks (but outdoor signal is fine). The repeater device is easy to install and operate, and has a built-in indoor antenna without interference. It can also improve the indoor electromagnetic environment,

Extend phone battery life and reduce phone radiation.

High gain, easy installation and operation.

Full-duplex, single-port design.

Adopt ALC technology with automatic stabilization function.

LED light operation and signal status indicators are provided.

Linear power, stable control of intermodulation and dispersion.

* Coverage depends on conditions in the area and external signal strength.

Frequency Range:

	Uplink: 824-849MHz, Downlink: 869-894MHz
Gain (dB):	Uplink ≥ 60dB, Downlink ≥ 55dB
Output power (po):	≥13dBm
Passband Ripple:	≤3dB
Noise Figure:	≤4dB
Transmission delay:	≤0.5μs
Ambient temperature:	-10oC ~ 60oC
power supply:	AC110 ~ 220V 45 ~ 55Hz
size:	143x100x22 mm
reliability:	Reach GB6993-86 standard
Function:	a) Power LED indicates
	b) Output power LED indication
