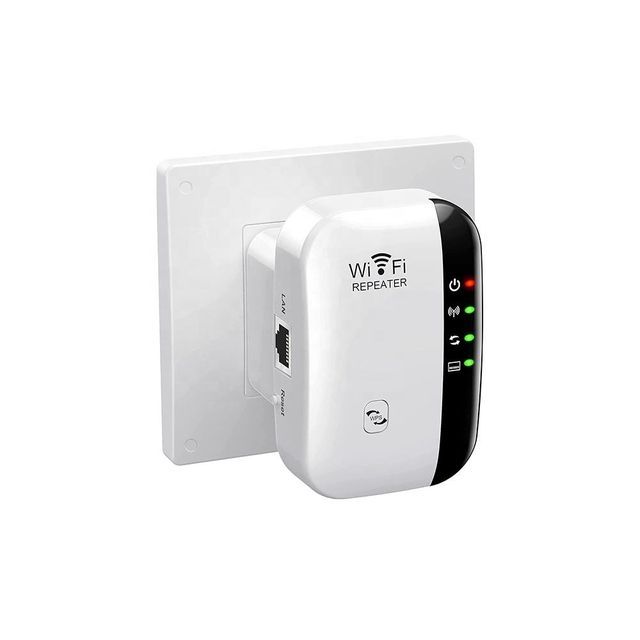

Wireless Wi-Fi Repeater Wi-Fi Signal Booster Long Range Wifi Router Wi-Fi Router Repeater 300Mbps Wi-Fi Booster Access Point

Wireless Wifi Repeater Wifi Signal Amplifier Long Range Wifi Extender Router Wi-Fi Repeater 300Mbps Wi-fi Booster Access Point

feature:
IEEE 802.11n/g/b compliant WLAN access point/client.
110~230 volt socket.
WLAN clients must support at least the WPA encryption standard.
WLAN access points and WLAN clients with automatic IP address assignment (DHCP).
IPv4 based protocol/address resolution protocol forwarding.
The network name (SSID) of the WLAN access point must be set to "visible".

Specification:
wireless
Standard IEEE802.11b, IEEE 802.11g, IEEE 802.11n
Modulation 802.11b: DSSS/BPSK/QPSK/CCK
802.11g: OFDM/DSSS/BPSK/QPSK/CCK
802.11n: OFDM/DSSS/BPSK/QPSK/CCK
Speed ​​802.11b: 11Mbps
802.11g: 54Mbps
802.11n: 300Mbps
Channel 11: (Ch.1-11) - United States
13: (Chapter 1-13) - Europe
14: (Chapter 1-14) - Japan
Frequency band 2.412~2.462GHz - United States
2.412~2.472GHz - European ETSI
2.412~2.484GHz-Japan
Power 802.11b: 17dBm ± 1.5dBm
802.11g: 14dBm±1.5dBm
802.11n: 14dBm±1.5dBm
Sensitivity 802.11b: -83dBm / 802.11g: -70dBm / 802.11n: -68dBm
Antenna 2 x 3dBi integrated antenna

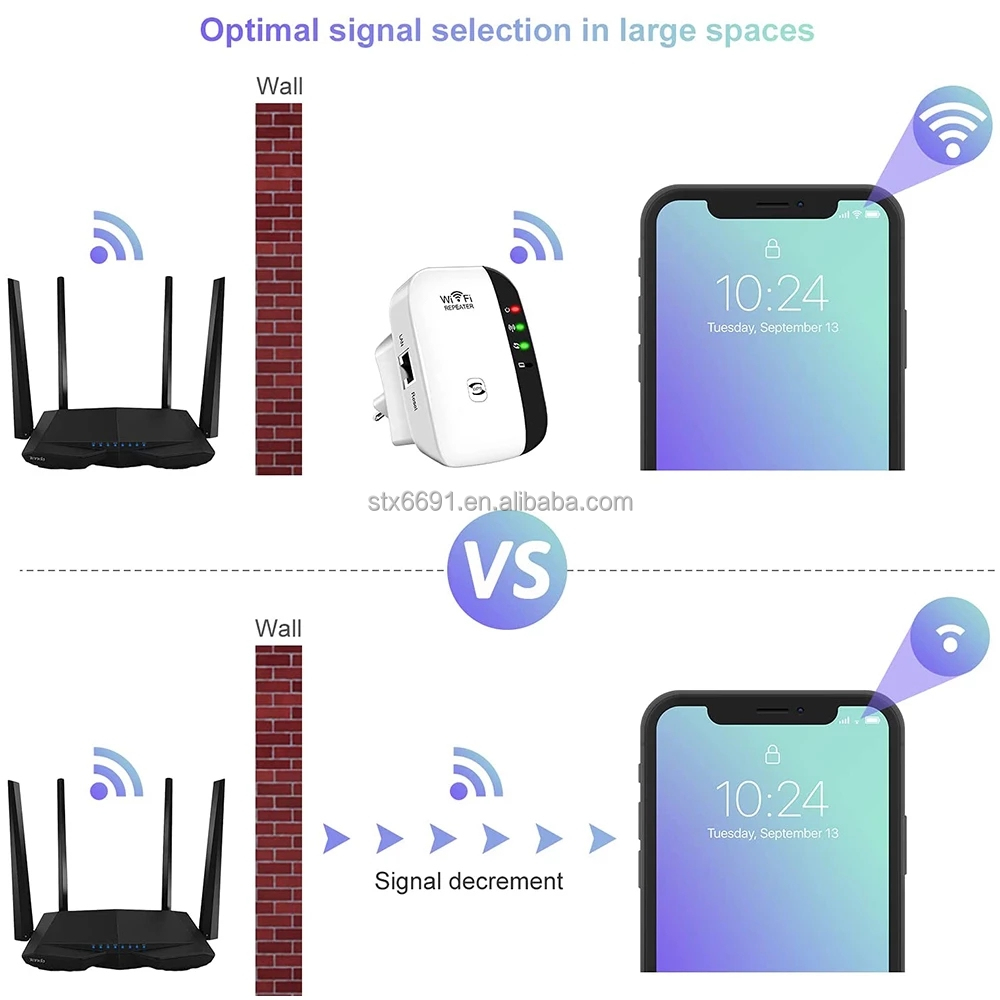

Distance: 300m outdoors, 100m indoors (depending on actual environment changes)
Security 64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS

software
Standard version of RFC768 User Datagram Protocol (UDP)
RFC791 Internet Protocol (IP)
RFC792 Internet Control Message Protocol
RFC793 Transmission Control Protocol (TCP)
Bandwidth: 20MHz, 40MHz, automatic (optional)
Wireless modes: 11n only, 11 b/g/n mixed, 11 b/g mixed, 11g only, 11b only (optional)

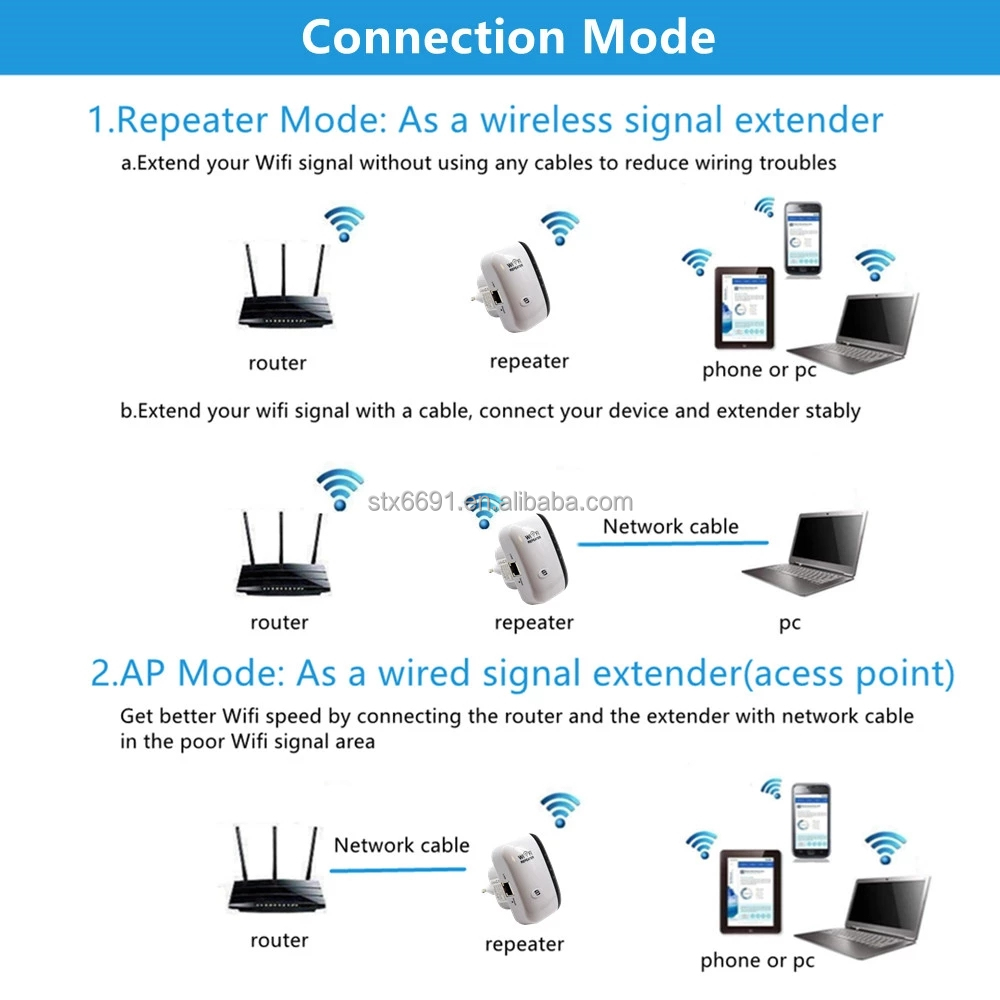

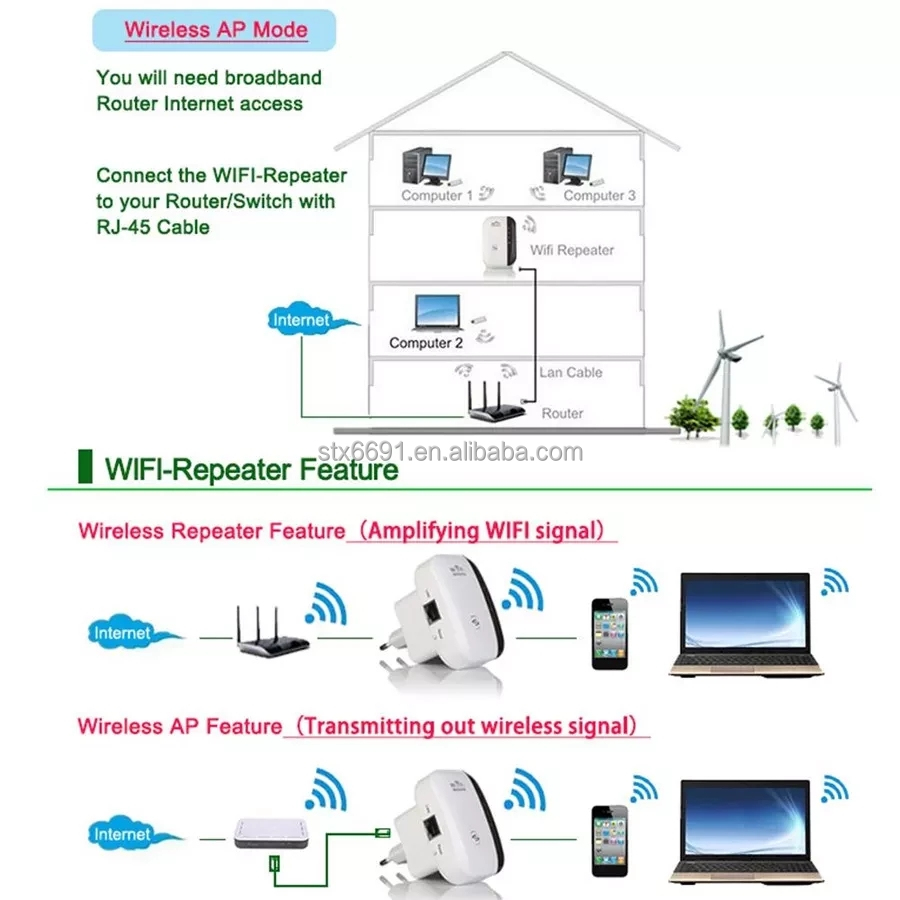

Mode AP mode/Repeater mode
Wireless Security Wireless MAC Address Filtering
Wireless security feature switch
64/128/152 bit WEP
WPA-PSK/WPA2-PSK, WPA/WPA2
Function IP bandwidth control (router mode support)
DNS relay (supported in router mode)
VPN passthrough (supported in router mode)
Static router (router mode support)
DHCP server (router mode supported)
DHCP settings server list (router mode support)
Static IP address allocation (supported in router mode)

Safety
Set IP and MAC address binding to prevent ARP attacks (supported in router mode)
IP address filtering (supported in router mode)
Name filtering (supported in router mode)
MAC address filtering (supported in router mode)
System tool traffic statistics
System log

hardware

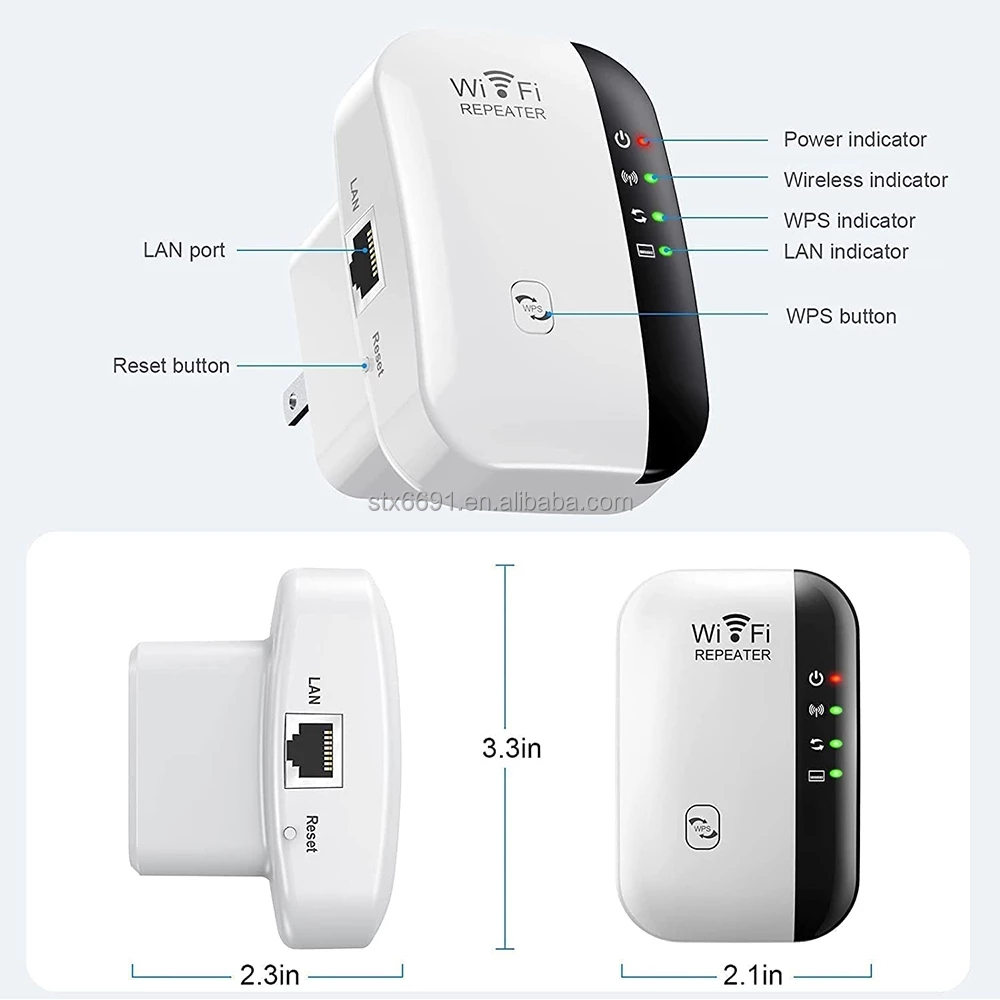

Port 1 RJ45 jack

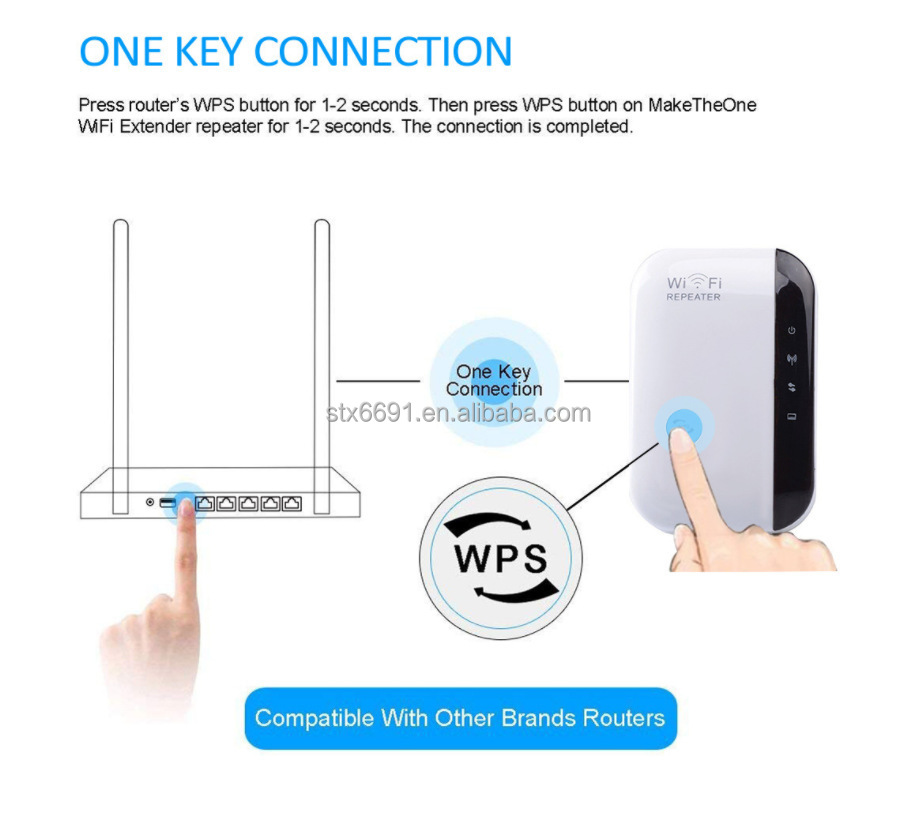

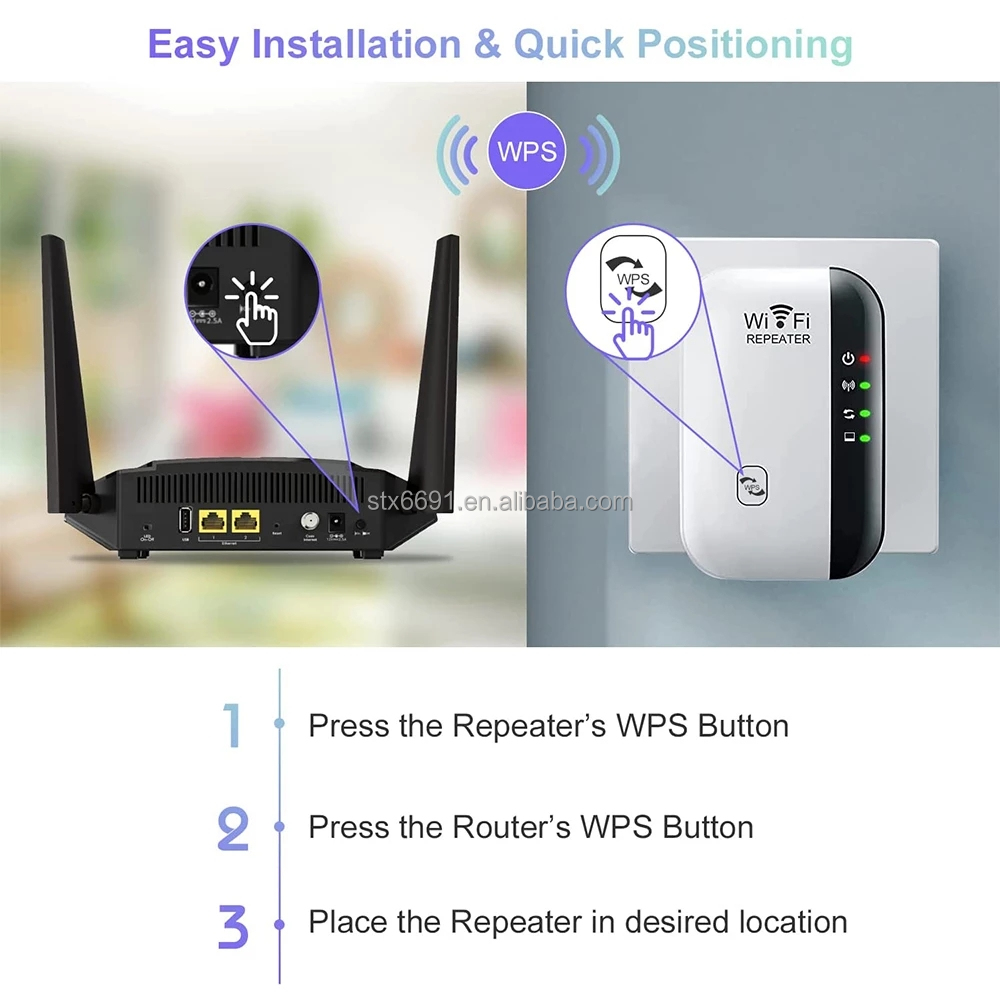

Button reset WPS
LED 1*LAN, 1*WLAN, 1*Power, 1*WPS
Chipset RTL8196E
Flash memory 16Mbps
Memory 128Mbps
Power supply internal DC5V/1A

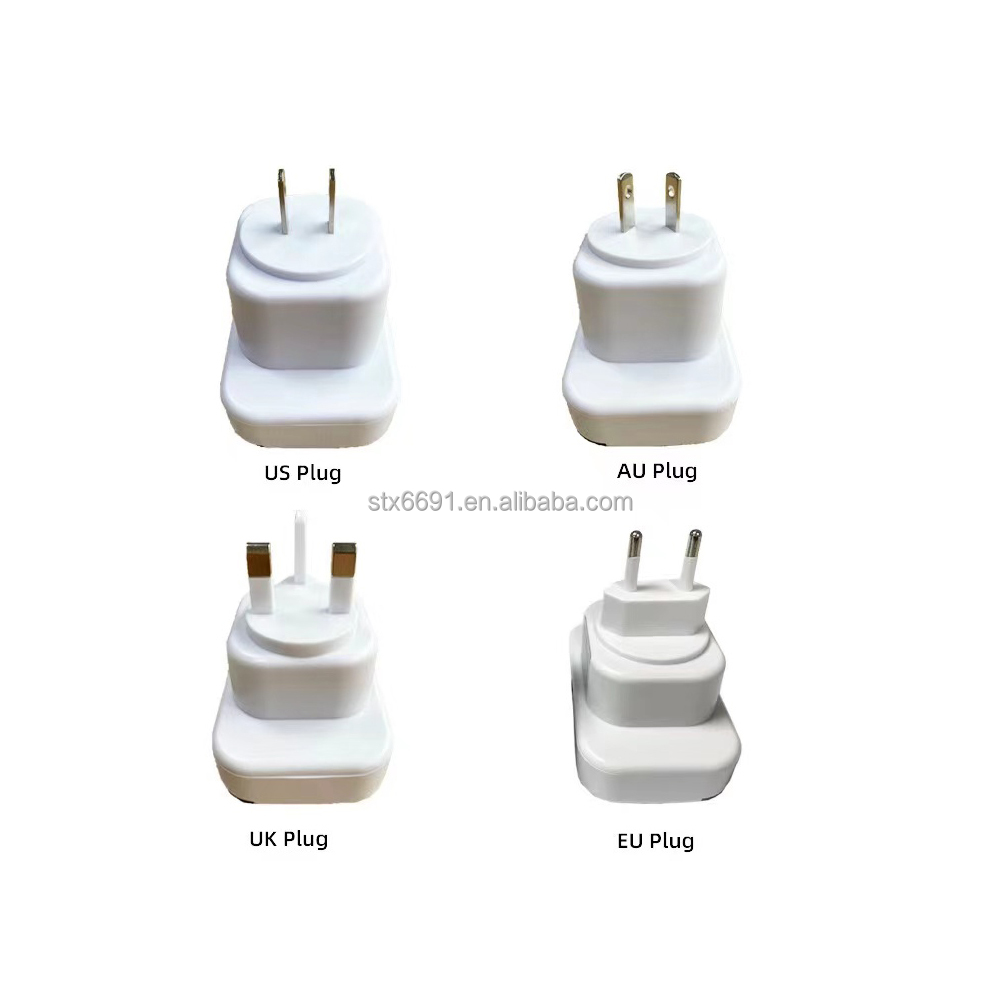

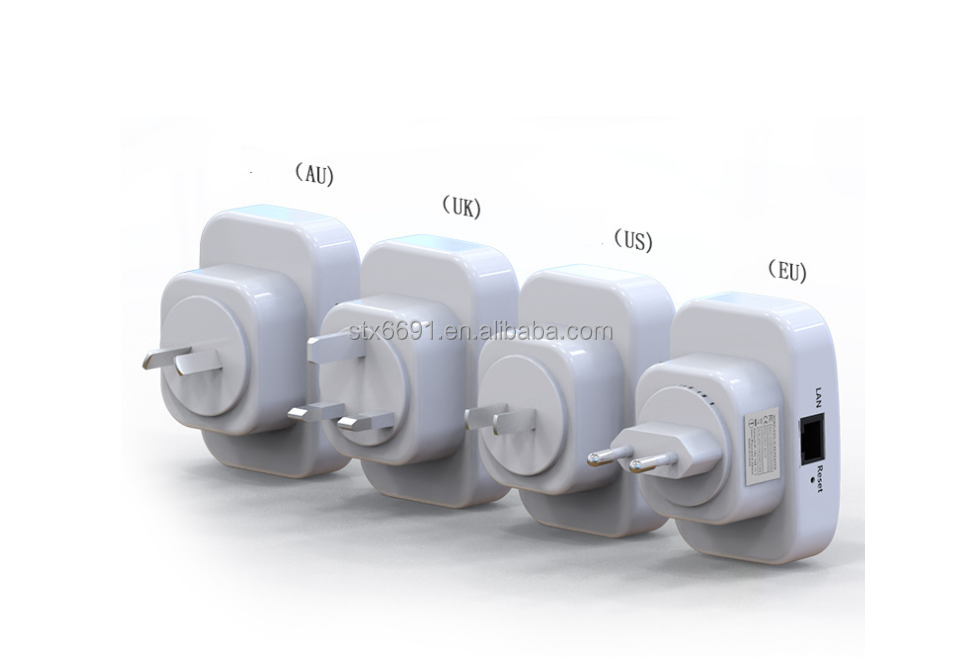

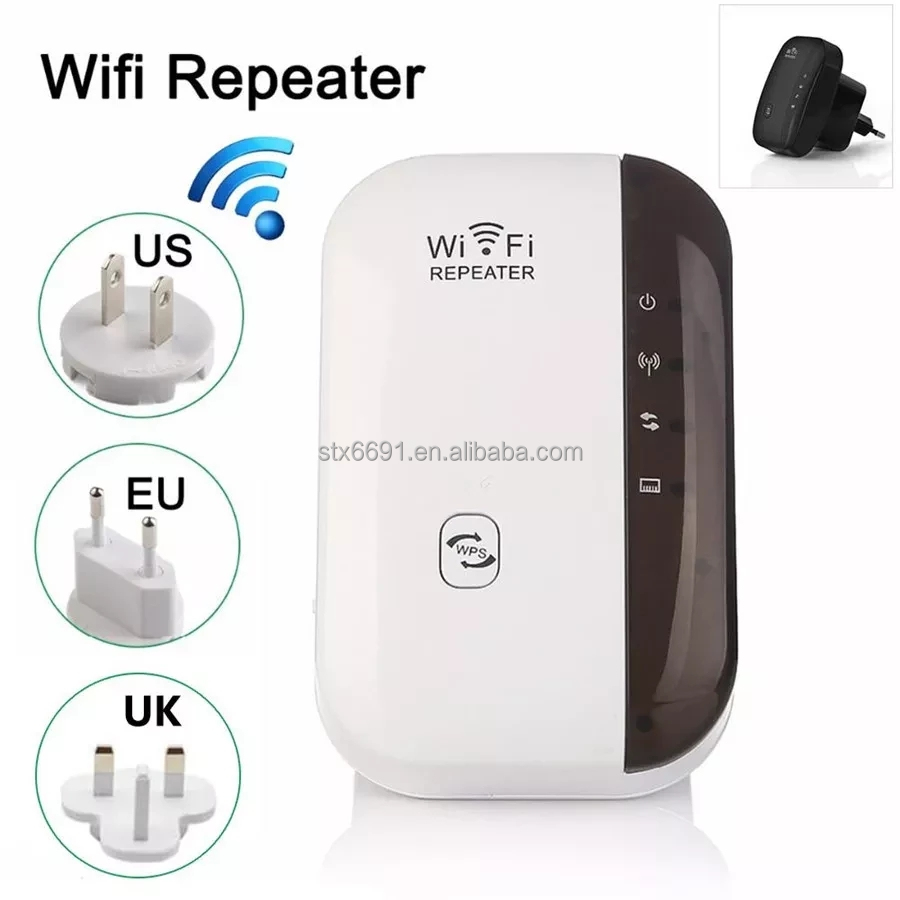

Power plug EU.US.UK.AU plug (optional)
Power consumption 2.3W
Rated voltage/frequency/current 100-240 VAC 50/60Hz, 0.1A Max.,

environmental
Working temperature 0~40 degrees Celsius
Storage temperature -10~70 degrees Celsius
Relative humidity 10% ~ 90% (non-condensing)

product information:

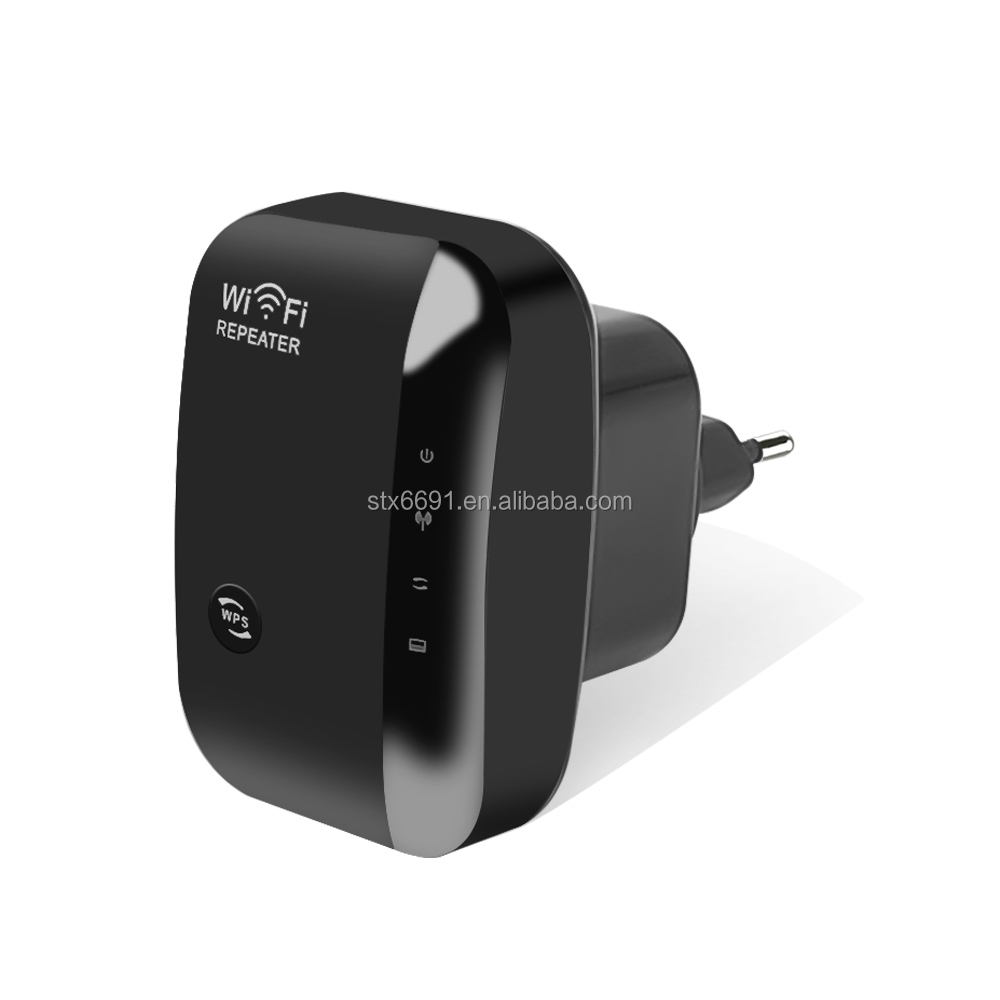

Colors: White, Black

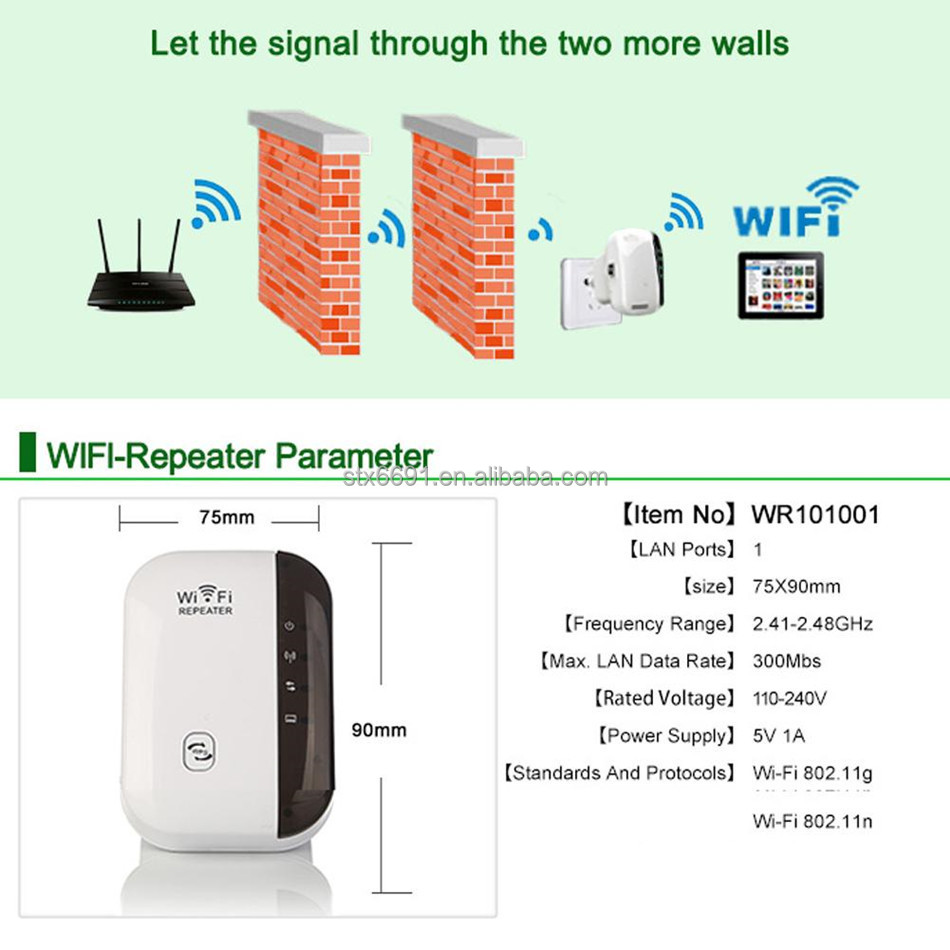

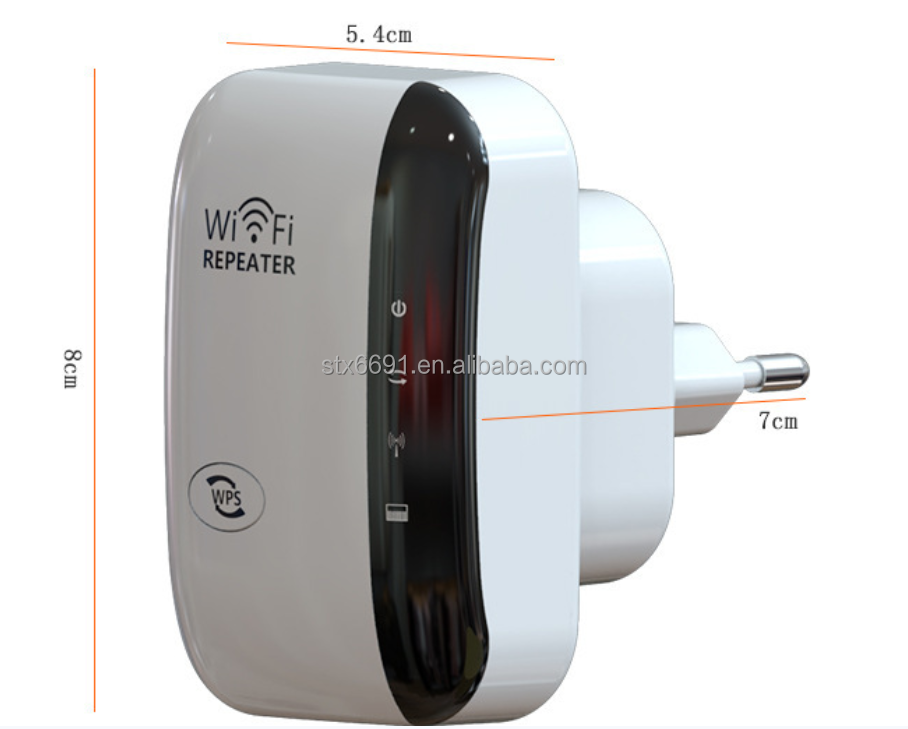

Product dimensions are approx. 9.5*8cm/3.74*3.15in
Product weight is approximately 150g/3.8oz

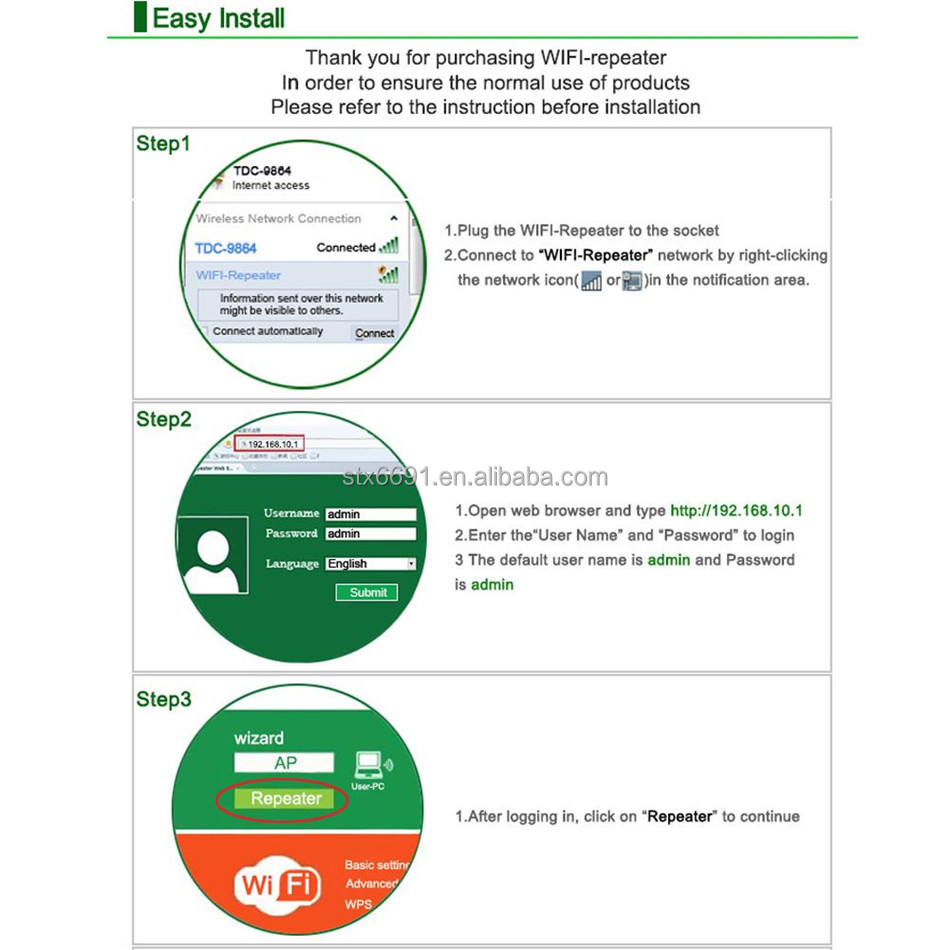

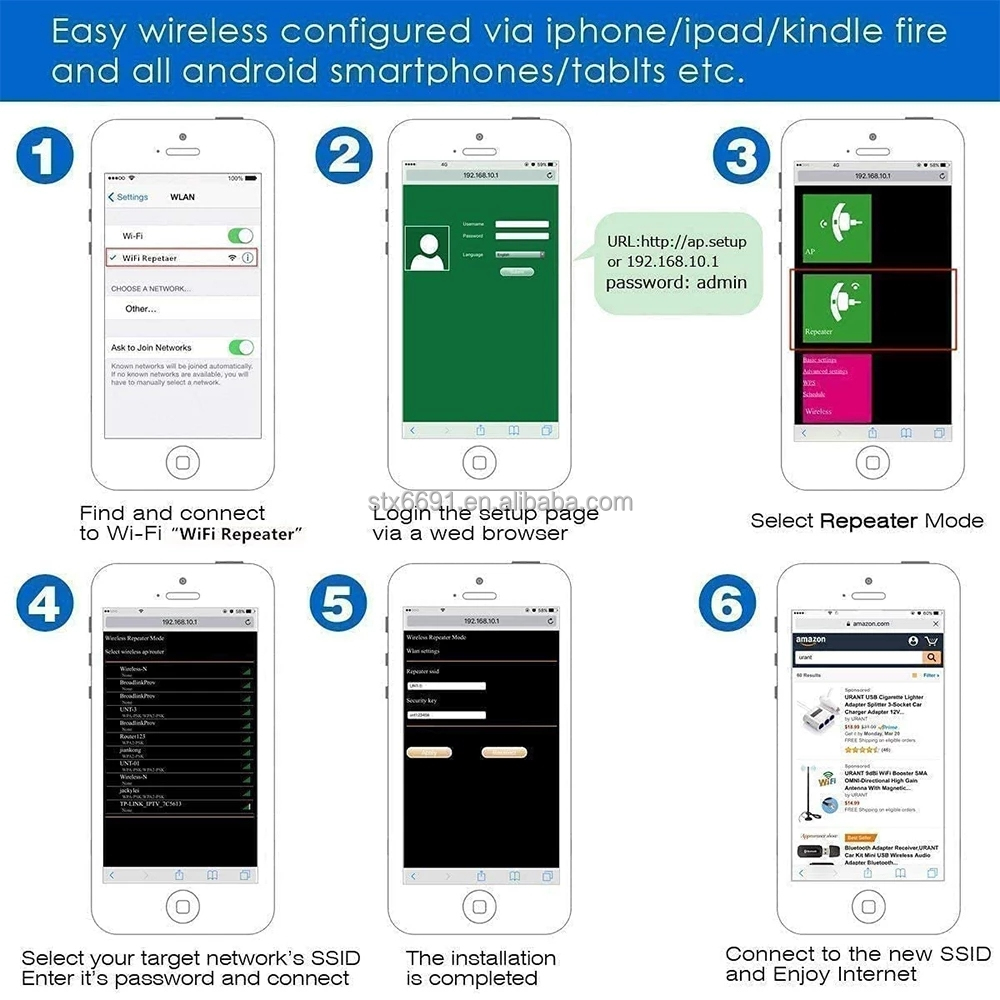

Note: Once you cannot download 192.168.1.1, please check whether the WiFi repeater complies with the factory default settings. If you are still not sure what the reason is, you can reset the WiFi repeater. Just press the reset button for 10 seconds and then reset try.

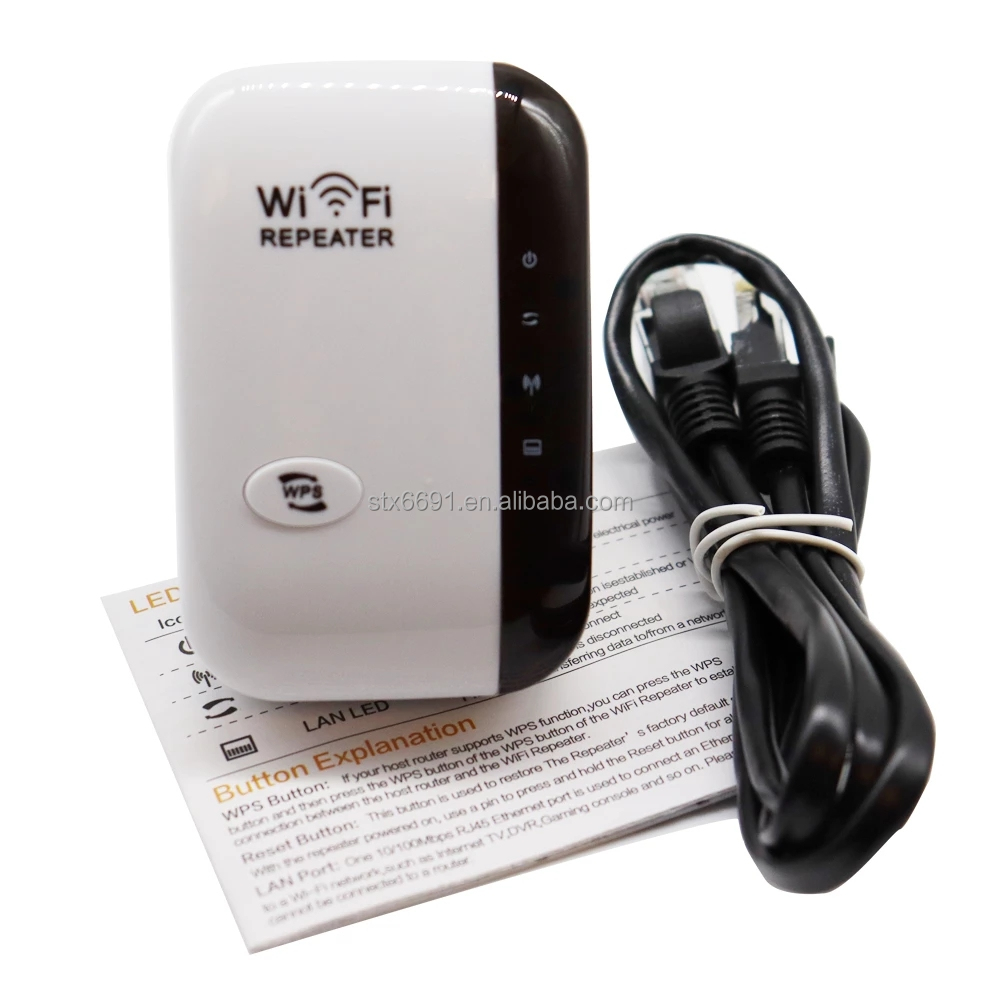

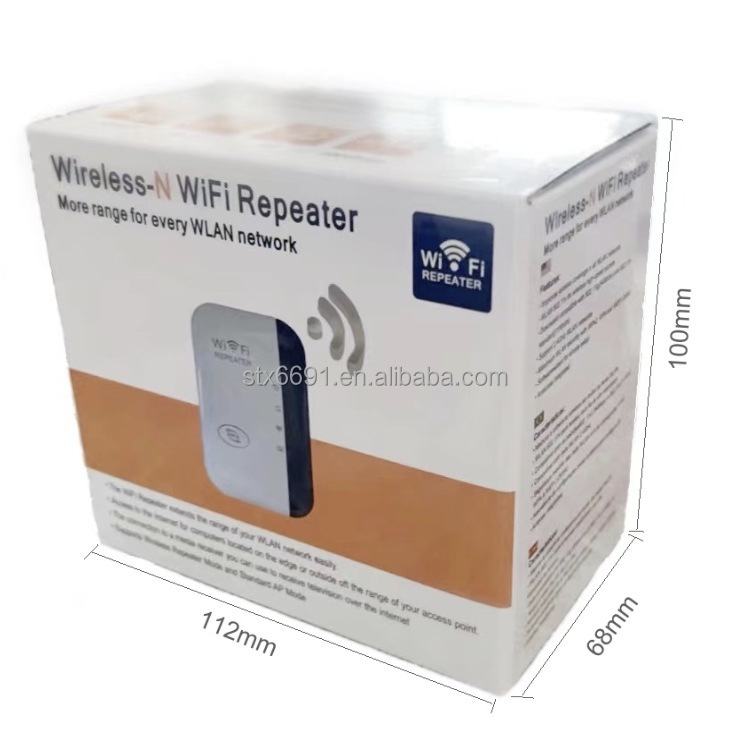

Package Contents:
1*Wireless-N repeater
1*RJ-45 network cable
1 *Quick Installation Guide
