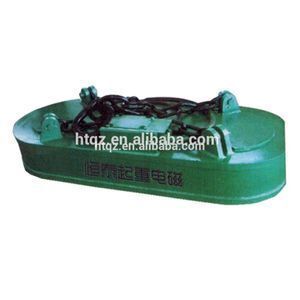

Crane Lifting Magnet for Handling Steel Plate
- 3000.00 set

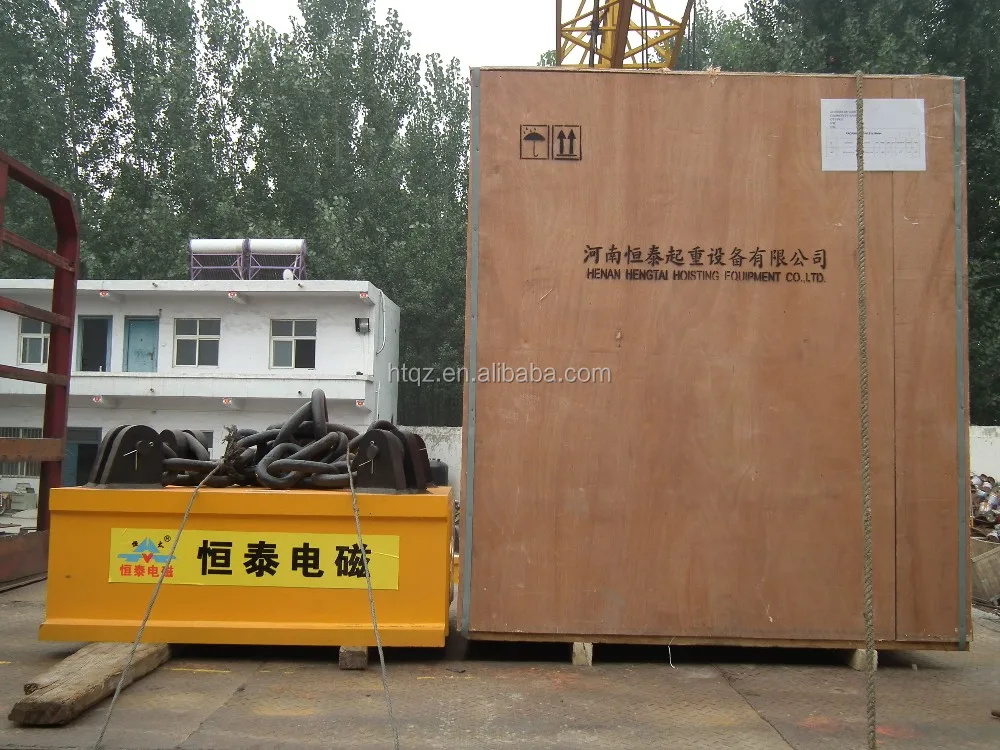

| Packaging Detail: | Crane Lifting Magnet for Handling Steel Plate packaged with wooden case; | Product Name: | Crane Lifting Magnet for Handling Steel Plate; |

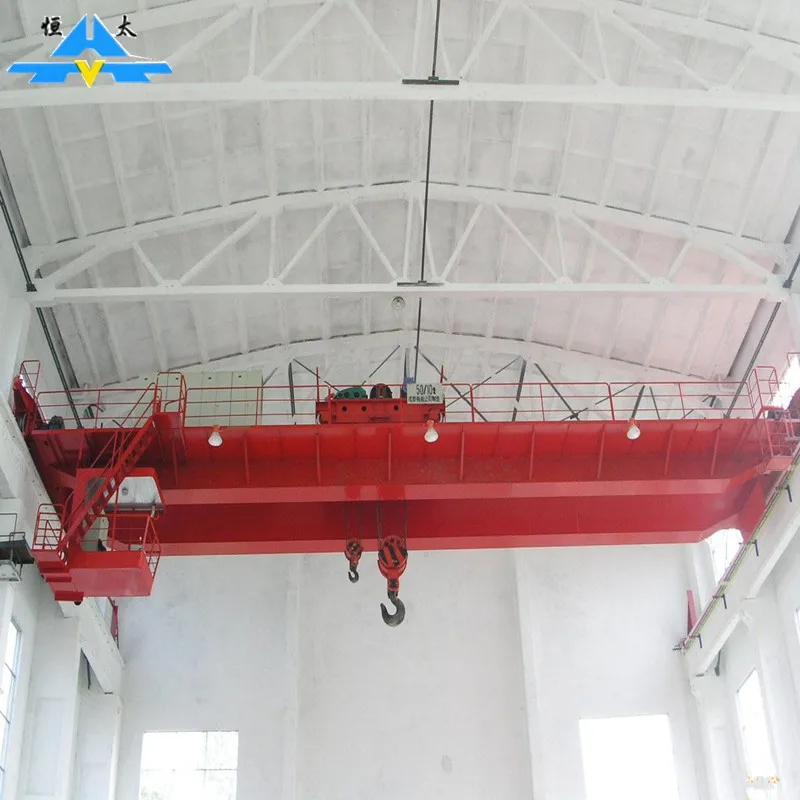

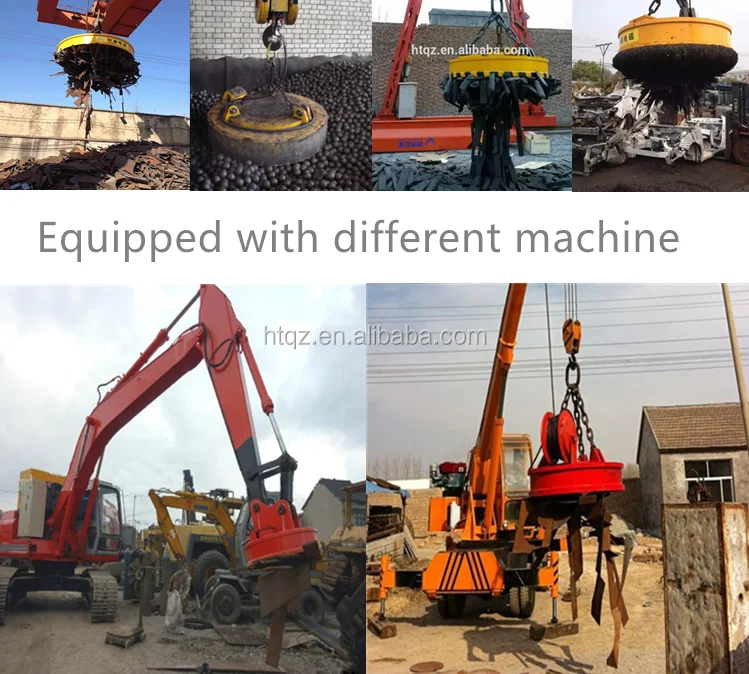

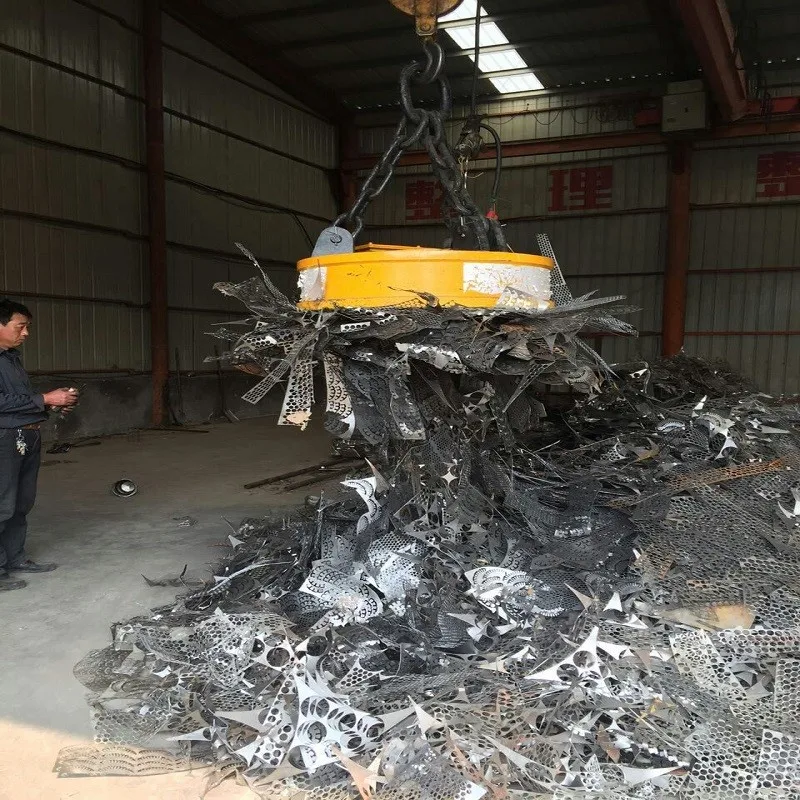

| Match equipment: | overhead crane, excavator, forklift and others; | Application: | for lifting steel scrap, steel ball, steel ingots; |
| Model No: | MW5; | Shape: | Round; |
| Features: | Electromagnetic Magnet; | Capacity: | 1-50 Ton; |
| Supply Ability: | 100 Set/Sets per Month Crane Lifting Magnet for Handling Steel Plate; | Voltage: | 380V, DC-220V, optioanl; |
| Place of Origin: | Henan China (Mainland); | Material: | Super Strong NdFeB Material; |
| Using area: | Steel Mill; | Payment Terms: | L/C,T/T,Crane Lifting Magnet for Handling Steel Plate; |
| Port: | any main port in China; |
Crane Lifting Magnet for Handling Steel Plate
Crane Lifting Magnet for Handling Steel Plate
Crane Lifting Magnet for Handling Steel Plate is a kind of electromagnetism principle. By energizing the inner coil to generate magnetic force, the workpiece touching the surface of the panel is absorbed by the magnetic conductive panel. The principle of demagnetization and the removal of the workpiece is achieved by the power loss of the coil. The production of a machine tool accessory product.
| Model | MW5-110L/1-75 | MW5-130L/1-75 | MW5-150L/1-75 | MW5-165L/1-75 | MW5-180L/1-75 | MW5-210L/1-75 | MW5-240L/1-75 | MW5-250L/1-75 | |

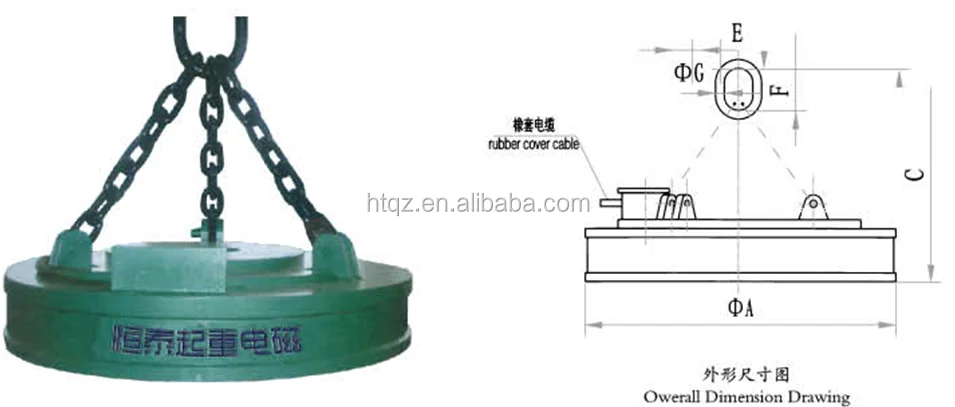

| Overall dimension (mm) | A | 1100 | 1300 | 1500 | 1650 | 1800 | 2100 | 2400 | 2500 |
| B | 1270 | 1290 | 1360 | 1690 | 1650 | 1900 | 2100 | 2260 | |
| C | 220 | 250 | 350 | 370 | 370 | 400 | 450 | 450 | |
| D | 150 | 175 | 210 | 230 | 230 | 250 | 280 | 280 | |
| E | 45 | 50 | 60 | 75 | 75 | 80 | 90 | 90 | |
| Weight (kg) | 1500 | 2280 | 3175 | 3840 | 4690 | 7810 | 10115 | 11100 | |
| Constant voltage control mode | Current in cold state (A) | 27.6 | 40.7 | 51.4 | 55.6 | 73.9 | 98.5 | 117.6 | 185 |
Consumption power in cold state (KW) | 6.07 | 8.95 | 11.3 | 12.2 | 16.3 | 21.7 | 25.9 | 40.3 | |
Lifting capacity for impact ball (kg) | 6500 | 8500 | 11000 | 12500 | 14500 | 21000 | -- | -- | |
| Lifting capacity for packed pig irons (kg) | 1000/800 | 1400/1100 | 1900/1500 | 2300/1800 | 2750/2100 | 3500/2800 | 4800/3800 | 5600/4500 | |
Lifting capacity for packed steel cuttings (kg) | 450/400 | 700/600 | 1100/900 | 1300/1100 | 1600/1350 | 2200/1850 | 2850/2250 | 3500/2650 | |
Main components of whole set

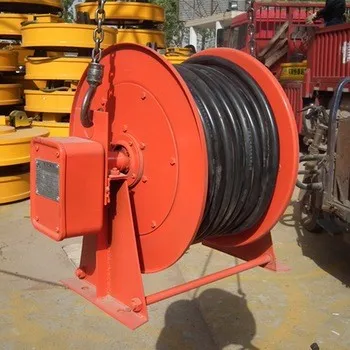

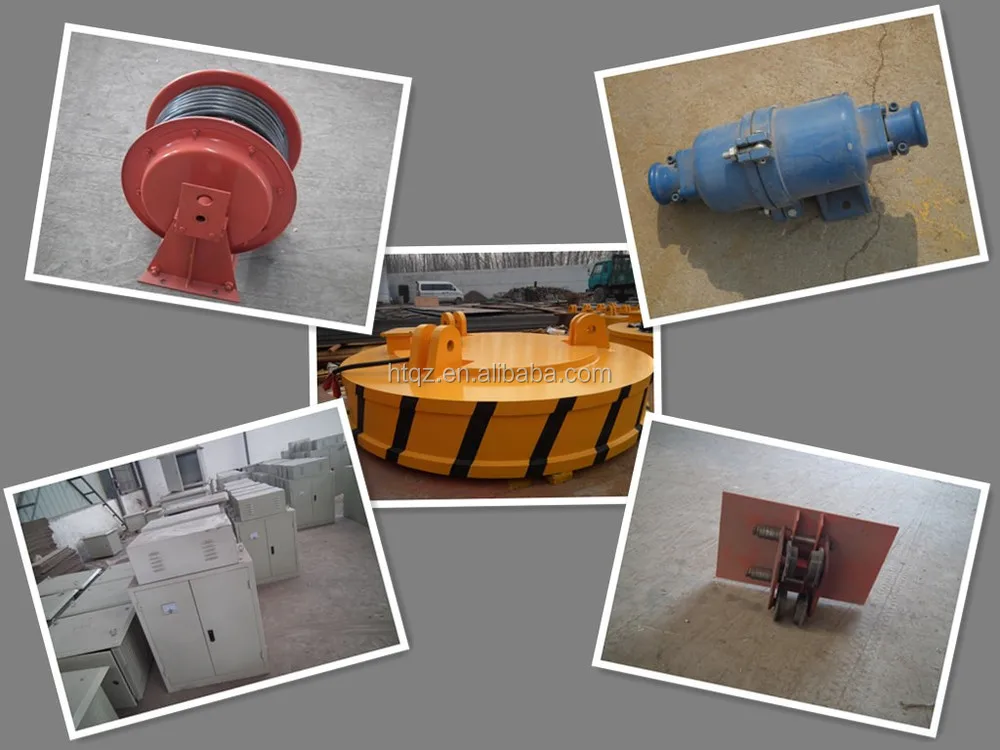

- Whole set: Electro-magnet chuck,rectifier,cable drum jigger,cable connector,wireless remote control.
- Complete close structure: use fully sealed structure, high humidity proof.
- Great suction, low energy consumption:optimal design by the computer ,seasonably structured,light weight,great suction,low energy consumption.
- Long service life: magnet exciting coil by the special craft processing, improving the electrical performance and mechanical property. Thermal rating of Insulation material reach C grade.
- Energy efficiency: usually use constant voltage, also choose strong excitation control (DC-290V/220V) and constant current power.It can improve lifting force, save energy and improve economic performance.
- Easy to install,operate and maintain

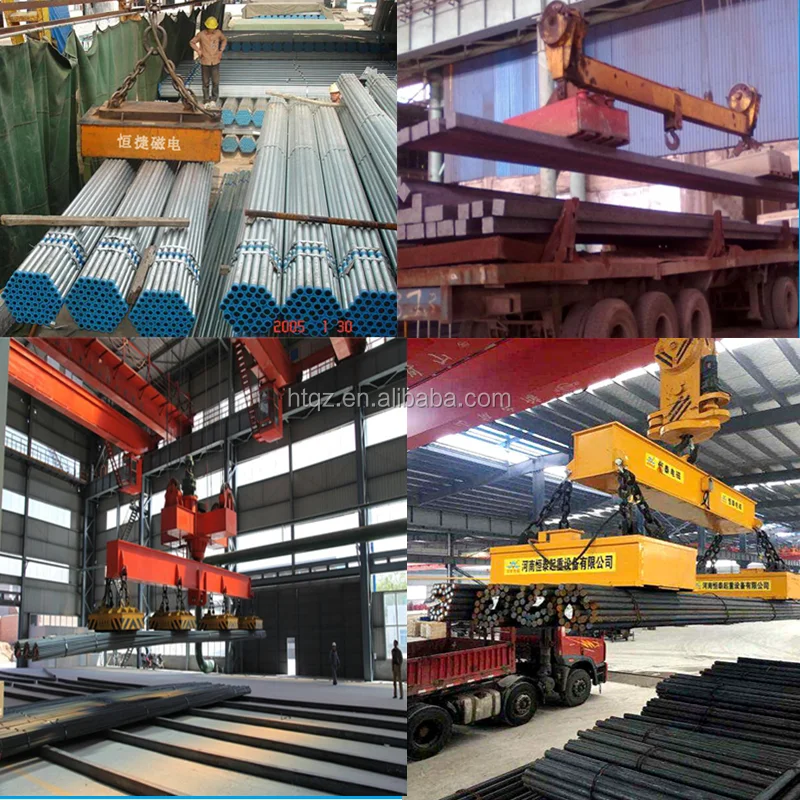

More Applications
