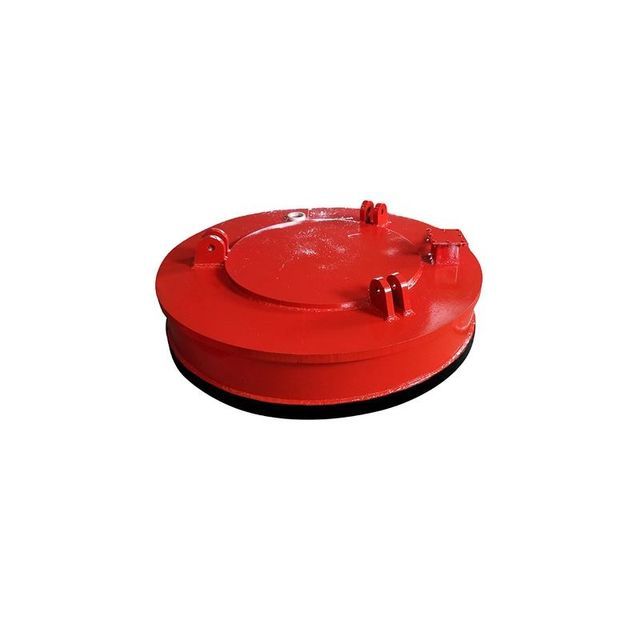

Eternalwin Black Scrap Metal Lifting Magnet Recycling Steel Trash Scrap Round Electromagnet

Supplier: Henan Eternalwin Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Candy Hu
Price: $5000.00 / 1 - 48 sets
$3500.00 / 49 - 99 sets
$1500.00 / 100 - 199 sets
$500.00 / >=200 sets
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	application:	industrial magnet
Supply capacity:	10000 sets per year	capacity:	0.5-30 tons
Material:	Stainless steel	Warranty:	1.5 years
Marketing Type:	New Products 2021	brand:	eternal win
Health status:	new	type:	high frequency
usage:	moving objective lens	Packaging Details:	Usually in wooden packaging for gantry cranes for sea containers or smaller containers for air shipment
product name:	Electromagnet lifting	Core component warranty:	1 year
Weight (kg):	1000 kg	Core components:	Engines, Motors, Pumps
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, or RMB/Cash	Video shipment inspection:	if
Showroom location:	not any	Origin:	Henan, China
color:	custom made	shape:	customer request
Certification:	EU/ISO	port:	Qingdao, Tianjin, Shanghai, Guangzhou, etc.
feature:	safety elevator

Product Description

lifting electromagnetIt is a special equipment for lifting attachments by using electric and magnetic physical quantities. It has become an indispensable equipment for lifting ferromagnetic materials in metallurgy, mining, machinery, transportation and other industries. It can also be used as an electromagnetic manipulator, magnetic centering, rod length fixing, etc. In some fields, due to the variety of attachment materials, the electromagnet structure, magnetic circuit and manufacturing process are also different, so there are many series of targeted products.

Product parameters

Model	Cold current (A)	Cold state power (KW)	Lifting capacity (kg)				Weight (kg)
			single steel ball	packaged steel ingot	Packaging Scrap
MW5-70L/1	15	3.3	2500	380/200	120/100	490
MW5-80L/1	18	3.96	3000	480/250	150/130	620
MW5-90L/1	26.6	5.85	4500	600/400	250/200	800
MW5-110L/1	35	7.7	6500	1000/800	450/400	1350
MW5-120L/1	45.5	10	7500	1300/1000	600/500	1700
MW5-130L/1	54	11.9	8500	1400/1100	700/600	2060
MW5-150L/1	71.2	15.6	11000	1900/1500	1100/900	2830
MW5-165L/1	75	16.5	12500	2300/1800	1300/1100	3200
MW5-180L/1	102.4	22.5	14500	2750/2100	1600/1350	4230
MW5-210L/1	129	28.4	21000	3500/2800	2200/1850	7000
MW5-240L/1	154	33.9	26000	4800/3800	2850/2250	9000

main feature

1. Fully sealed structure, good moisture-proof performance
2. Computerized design, reasonable structure, light weight, strong suction, low energy consumption
3. The excitation coil has been processed by a special process, which improves the electrical and mechanical properties, and the heat-resistant grade of the insulating material reaches Class C, with a long service life
4. The rated energization duration of ordinary electromagnets is increased from 50% to 80%, which improves the efficiency of electromagnets
5. Easy to install, operate and maintain
