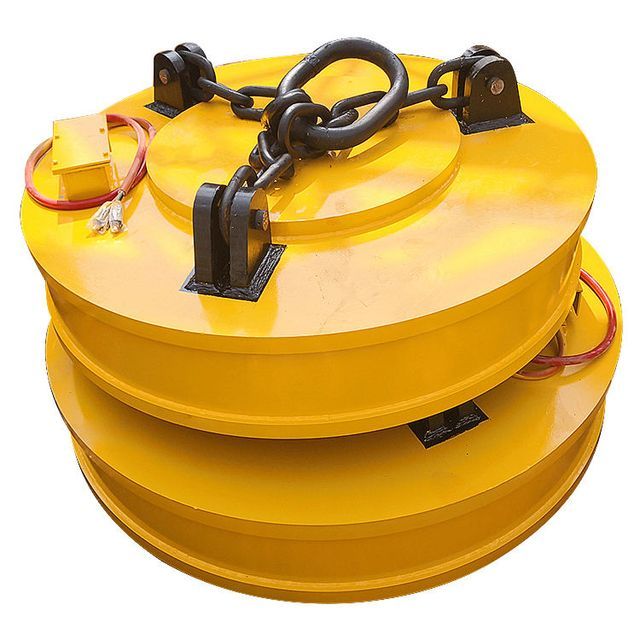

Round Oval Steel Scrap Lifting Solenoid

Supplier: Henan Sinoko Cranes Co., Ltd.
Region: Henan, China
Contact: Ms Vicky Guo
Price: $2512.32 / 1 - 4 sets
$2112.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

MOQ:	1 set	Material:	Steel + magnetic coil
Warranty:	1.5 years	control method:	remote control
Origin:	Henan, China	color:	Require
Health status:	new	Video outbound inspection:	if
Voltage:	Customer's local standard	Operating temperature:	normal and high availability
shape:	round and oval	Marketing Type:	New products in 2023
Weight (kg):	600 kg	Core component warranty:	1 year
feature:	Attractive, energy-efficient	brand:	Chinese crane
Core components:	PLC, gearbox, motor, gear, pump	Mechanical test report:	if
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	product name:	Round Oval Steel Scrap Lifting Solenoid
Showroom location:	Pakistan, Mexico, Kenya, Bangladesh, Malaysia	port:	Tianjin/Qingdao Port
Main electrical part:	Schneider brand	Supply capacity:	Annual output 30000 sets
Packaging Details:	Standard export seaworthy wooden box	Package preview:

Product Description

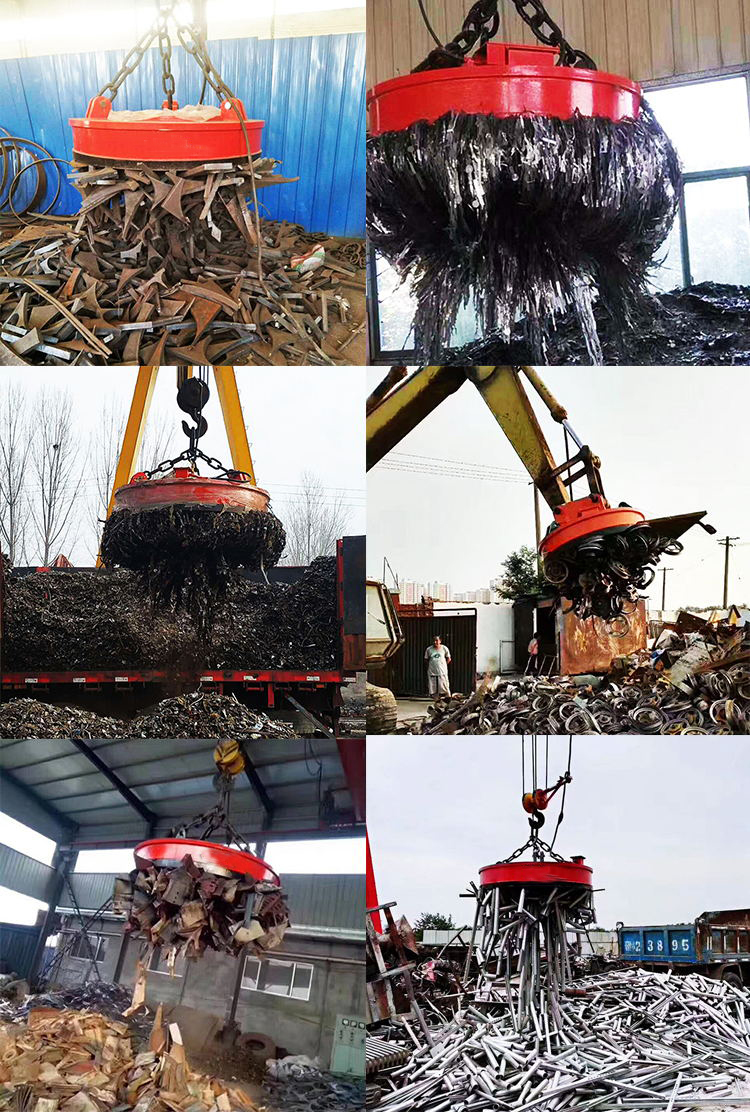

Scrap lifting electromagnetWidely used in different industrial fields, such as steelmaking, foundry, mining, machinery, transportation and other industries. It is suitable for processing cast iron ingots, steel balls, steel plates, steel pipes, steel bars and various types of scrap steel. The excitation method adopts constant voltage, strong excitation and over excitation.
From the appearance, there are round magnets, rectangular magnets, oval magnets, magnet hangers and so on. In terms of performance, there are electromagnets and permanent magnets. In terms of usage, there are magnets for cranes and magnets for excavators. According to different customer needs and the actual application of the magnet, there are many optional configurations, such as heat resistance, backup battery to prevent sudden power failure, single board release for steel plate handling...

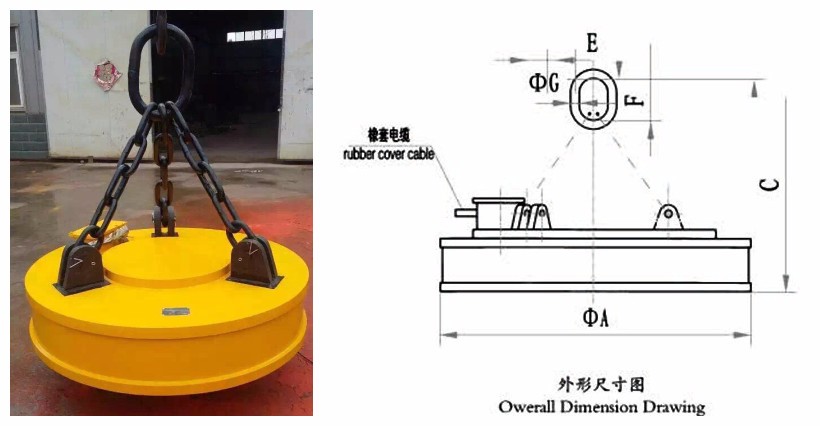

Specification

Mpudel	Diameter (mm)	Weight (kg)	Lifting capacity (tons)
MW5-50L/1	500	220	1.2
MW5-60L/1	600	340	2
MW5-70L/1	700	Chapter 490	2.5
MW5-80L/1	800	620	3
MW5-90L/1	900	800	4.5
MW5-110L/1	1100	1350	6.5
MW5-120L/1	1200	1700	7.5
MW5-130L/1	1300	year 2010	8.5
MW5-150L/1	1500	2830	11
MW5-165L/1	1650	3200	12.5
MW5-180L/1	1800	4230	14.5
MW5-210L/1	2100	7000	twenty one
MW5-240L/1	2400	9000	26
MW5-260L/1	2600	10100	30
MW5-280L/1	2800	12450	34
MW5-300L/1	3000	14980	39

advantage

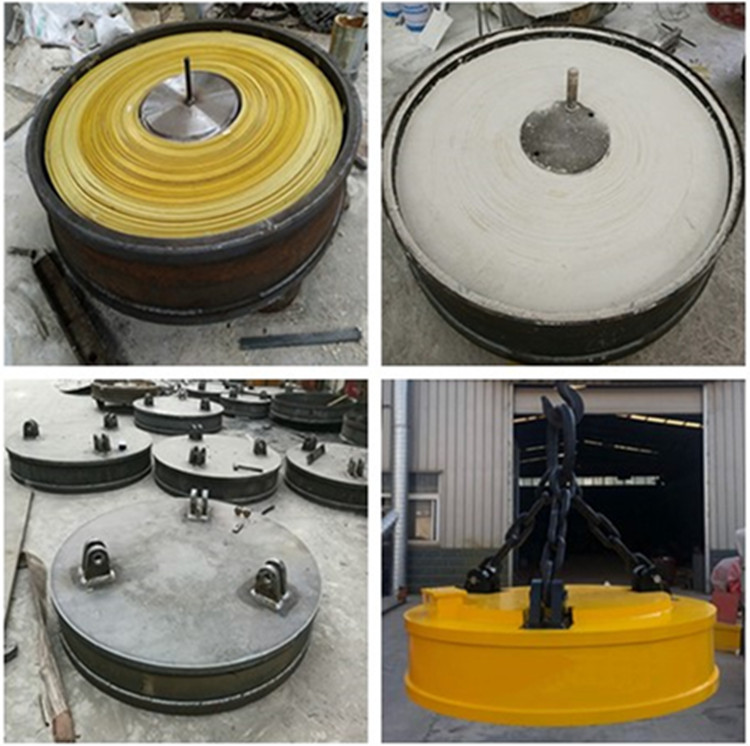

1. Magnet core: Q235A material, with the best magnetic permeability, to ensure the concentration of the magnetic field generated by each coil.

2. The magnet shell is made of Q345B steel plate with a thickness of 130-140mm, cut by an automatic cutting machine, without further processing and without defects. Ensure smoother and more convenient welding.

3. Fully enclosed structure, good moisture-proof performance.

4. The electromagnetic coil is processed by special process to improve electrical and mechanical properties. The material insulation grade can reach H grade.

5. According to different applications, the magnet can adopt appropriate structure and parameters to ensure the best performance of material absorption, and can widely meet various occasions.

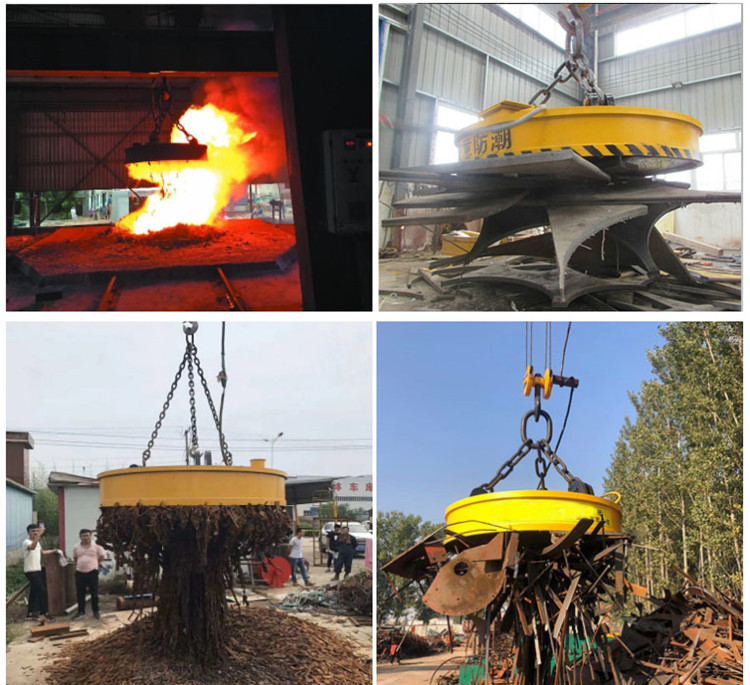

6. The heat-resistant magnet adopts a unique heat insulation method, max. The temperature can reach 700-800°C, which will expand the application range of magnets again.

7. Quickly connect switchboards, plug-in aviation sockets, and key electrical components are all from top international brands Schneider, ABB, and Siemens to ensure easy installation, operation, and maintenance.

Product Details
