SARY Industrial Small 12V DC Electric Holding Magnet Round Solenoid LY3530 Lifting Solenoid 25kg

Supplier: Guangzhou Sary Electronics Co., Ltd.
Region: Guangdong, China
Contact: Mr Wenzhao
Price: $6.20 / 1 - 99 pieces
$5.98 / 100 - 999 pieces
$5.58 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

place of origin; place of origin:	Guangdong, China	Retentivity:	25 kg
After warranty service:	online support	Service career:	500,000 times
installation method:	tighten	Warranty:	6 months
Weight (kg):	0.15 kg	Use voltage:	DC12V
Sales unit:	single product	Local service location:	not any
Video shipment inspection:	Not available	Core component warranty:	1 year
Core components:	motor	size:	L30mmW35mm
Material:	iron	Marketing Type:	New Products 2020
State of health:	new	Showroom location:	not any
Way of working:	power on hold	brand:	Surrey
Mechanical test report:	Not available	Gross weight per piece:	0.150 kg
Single package size:	13X8X6 cm

product display

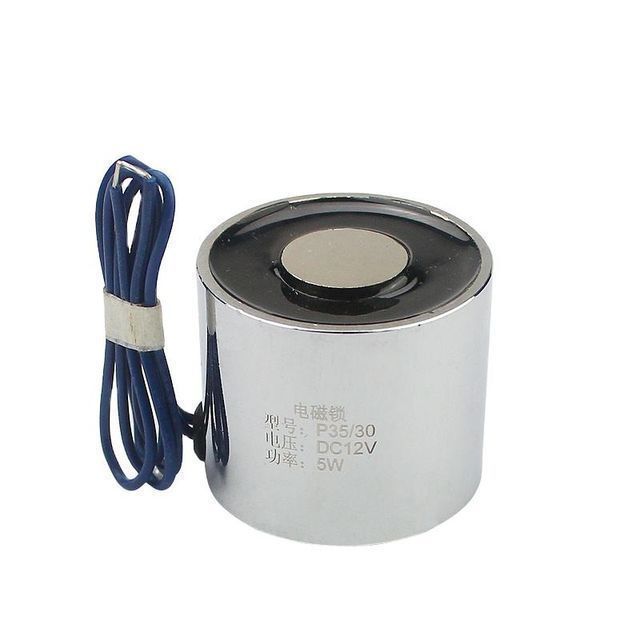

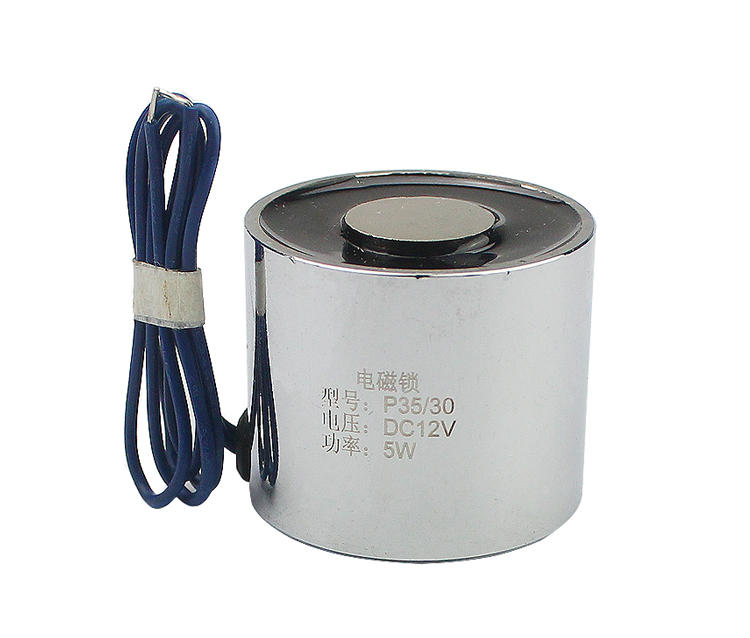

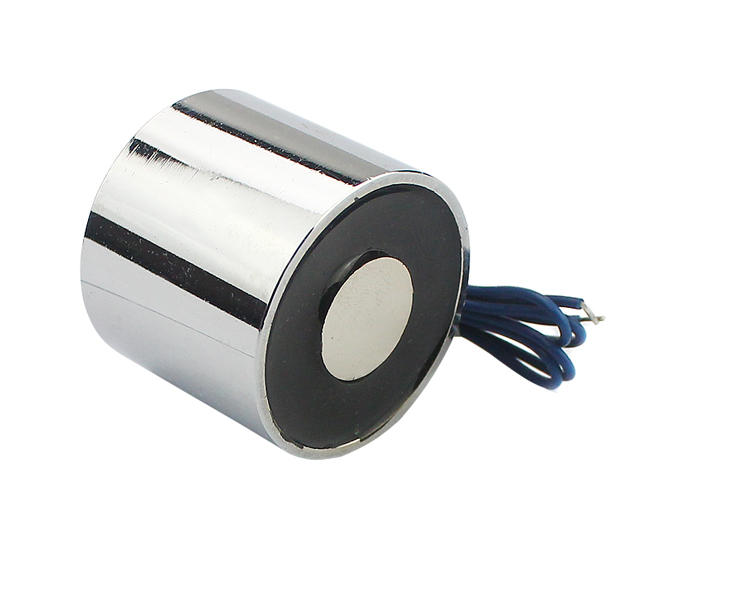

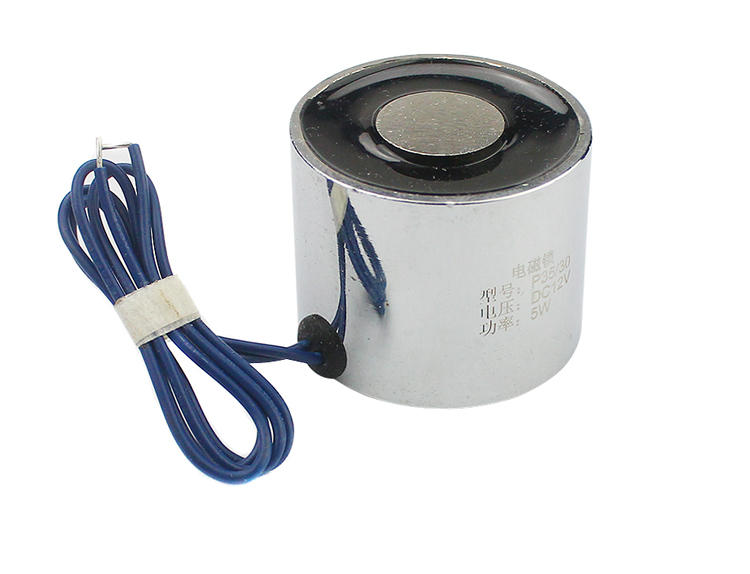

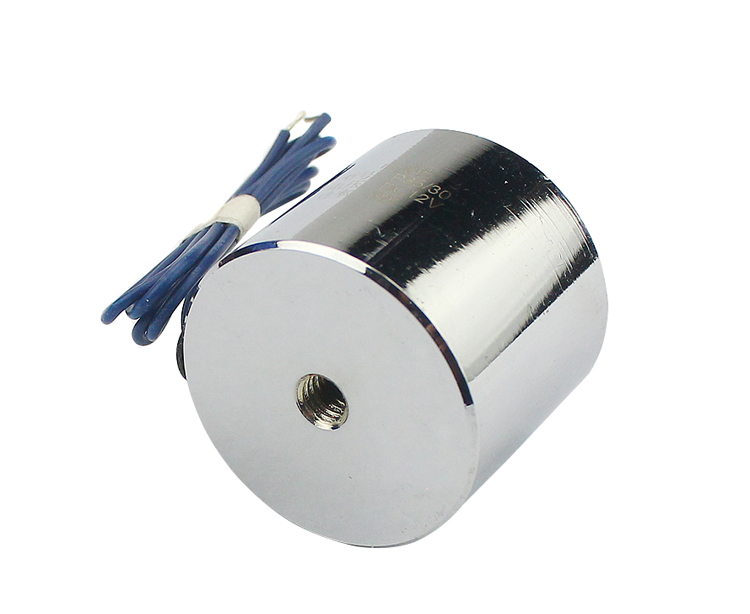

LY-3530 DC12V Small Lifting Electromagnet Suction 25kgs

Product number: LY-3530

Working voltage: DC12V Working current: 420mA Product power consumption: 5W Working mode: Power on and hold Holding force: 250N (25kgs) Product life: 500,000 times Product weight: 0.15KG

Why choose us

Electromagnet Instructions The normal use of the electromagnet must meet the following conditions to achieve the maximum suction value 1. The magnetically conductive object must be a good magnetically conductive material 2. Use the correct power supply and voltage 3. The surface of the magnetically conductive object must be kept flat and clean 4. Magnetically conductive The contact area of the object must be greater than or equal to the outer diameter of the electromagnet 5. The thickness of the magnetically conductive object must be greater than 8mm to achieve the standard suction force, pulling force - when the thickness decreases, the force will decrease. 6. There can be no distance between the contact object and the electromagnet, and no object can be isolated
