SARY Industrial Small 12V DC Electric Holding Magnet Round Solenoid LY4020 Lifting Solenoid 35kg
- 6.50 1 - 99 pieces
- 6.35 100 - 999 pieces
- 5.98 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Mechanical test report: | not available | Warranty: | 6 months |
| Service life: | 500,000 times | Single package size: | 13X8X6 cm |
| Retentivity: | 35 kg | Showroom location: | not any |
| Material: | iron | Core component warranty: | 1 year |
| installation method: | tighten | Way of working: | power on hold |
| Weight (kg): | 0.15kg | Video shipment inspection: | not available |
| Gross weight per piece: | 0.150 kg | Origin: | Guangdong, China |
| Local service location: | not any | brand: | Surrey |
| Health status: | new | After warranty service: | online support |
| size: | L20mmW40mm | Core components: | engine |
| Use voltage: | DC12V | Marketing Type: | New Products 2020 |
| Sales unit: | single product |
product display

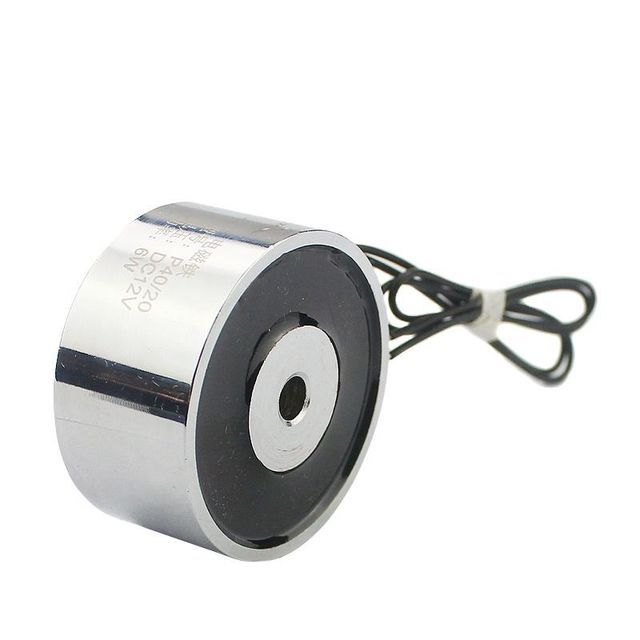

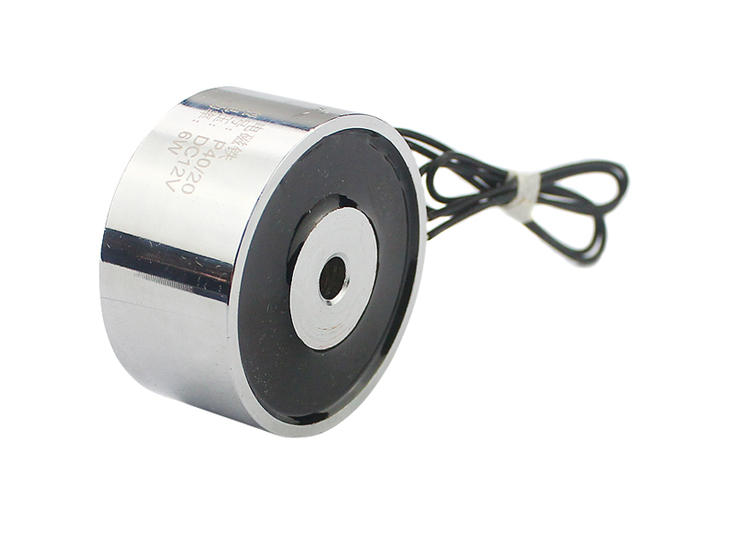

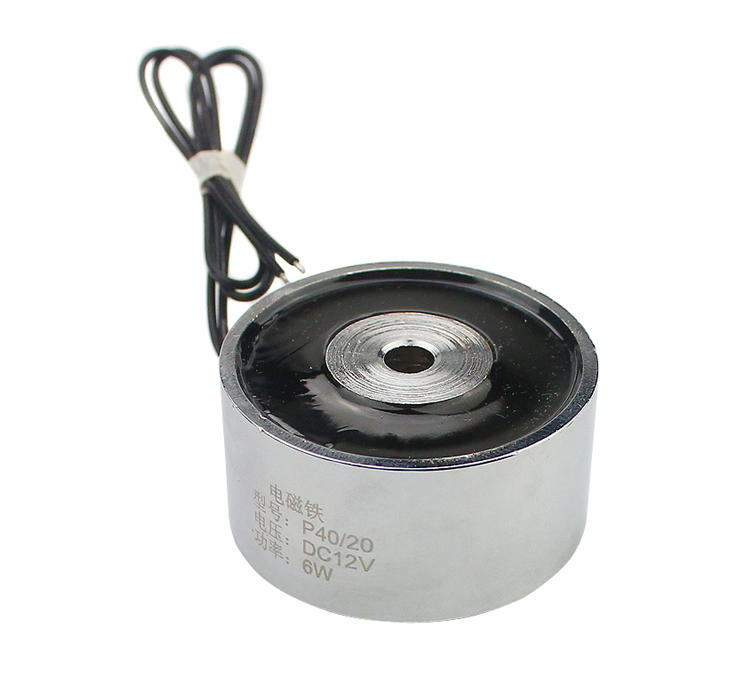

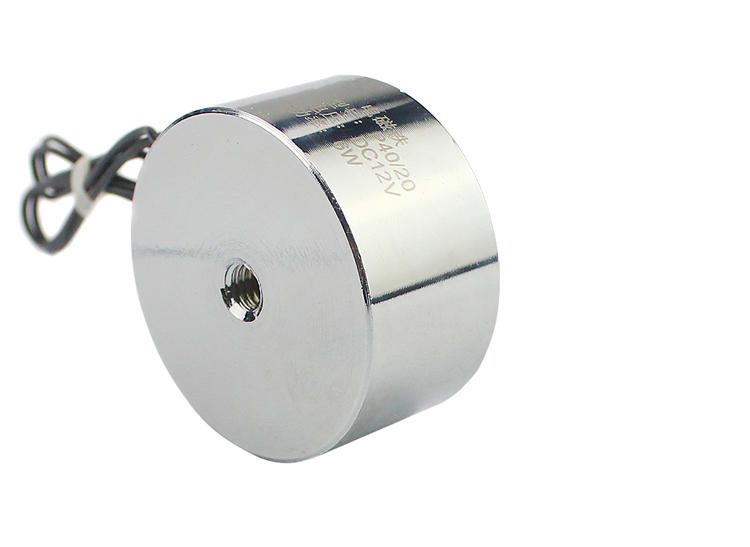

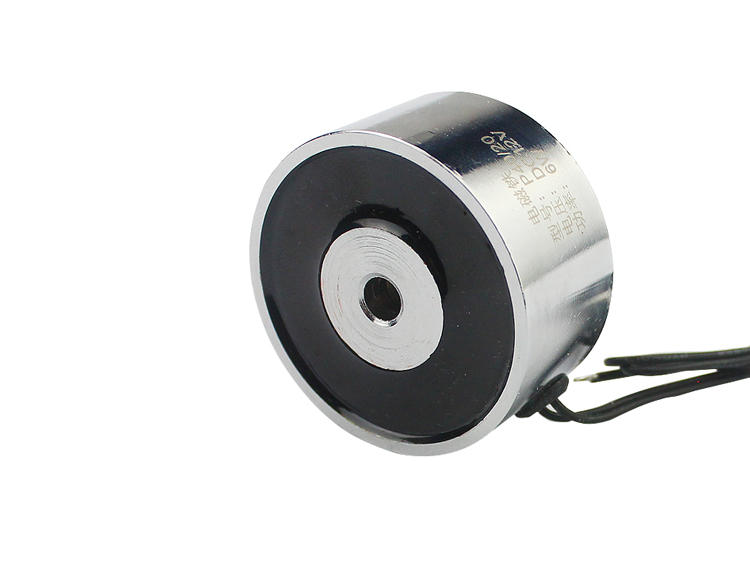

LY-4020 DC12V Small Lifting Electromagnet Suction 35kgs
Product number: LY-4020
Working voltage: DC12V Working current: 500mA Product power consumption: 6W Working mode: Power on and holding force: 350N (35kgs) Product life: 500,000 times Product weight: 0.14KG
Why choose us
Electromagnet Instructions
The normal use of the electromagnet must meet the following conditions to achieve the maximum suction value 1. The magnetically conductive object must be a good magnetically conductive material 2. Use the correct power supply and voltage 3. The surface of the magnetically conductive object must be kept flat and clean 4. Magnetically conductive The contact area of the object must be greater than or equal to the outer diameter of the electromagnet 5. The thickness of the magnetically conductive object must be greater than 8mm to achieve the standard suction force, pulling force - when the thickness decreases, the force will decrease. 6. There can be no distance between the contact object and the electromagnet, and no object can be isolated
SARY round suction cup electromagnet | ||||||||||||
Model | Height (H) | outer diameter (D) | Inner diameter (d) | Thread size (M) | thread depth | Retentivity | ||||||
LY-1809 | 8.6mm | 18mm | 8 mm | 3-M2 | 1.6mm | 1.2 kg | ||||||
LY-2015 | 15mm | 20mm | 8 mm | M3 | 6mm | 2.5 kg | ||||||
LY-2510 | 10mm | 25mm | 12mm | M4 | penetrate | 6 kg | ||||||
LY-2525 | 25mm | 25mm | 10mm | M6 | 10mm | 8 kg | ||||||
LY-2825 | 25mm | 28mm | 12mm | M6 | 8 mm | 10 kg | ||||||
LY-3530 | 30mm | 35mm | 15mm | M6 | 12mm | 25 kg | ||||||
LY-4020 | 20mm | 40mm | 25mm | M6 | 12mm | 35 kg | ||||||
LY-4027 | 27mm | 40mm | 19mm | M6 | 12mm | 38 kg | ||||||
LY-5042 | 42mm | 50mm | 25mm | M6 | 12mm | 55 kg | ||||||
