High-definition outdoor daylight view 15.6-inch high-definition high-brightness full-color LCD screen
-
Supplier: Shenzhen Tian Xian Wei Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Lai Ming Zhu -
Price: $110.00 / 1 - 999 pieces
$108.00 / 1000 - 2999 pieces
$106.00 / >=3000 pieces -
Min. Order: 1 piece
Product details
| brand: | TXWEI | Business policy 2: | No MOQ |
| Dimensions: | 350.66*216.25*3 mm | Package preview: | |
| Operating temperature: | 0+50℃ | Touch function: | No |
| brightness: | 300 cd/square meter | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Display size: | 15.6 inches | Interface Type: | Ethylenediaminetetraacetic acid |
| Packaging Details: | According to customer specified requirements | Origin: | Guangdong, China |
| Operating Policy 3: | long-term supply | Business policy 1: | always have samples |
| Supply capacity: | 30000 pieces per month | type: | LCD |
| port: | Shenzhen | Supplier type: | Processing |
Product Description
Model: TXW156002B0

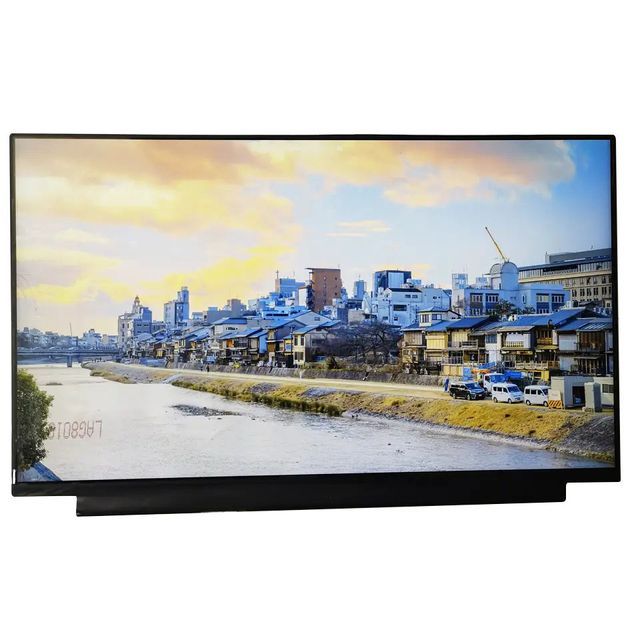

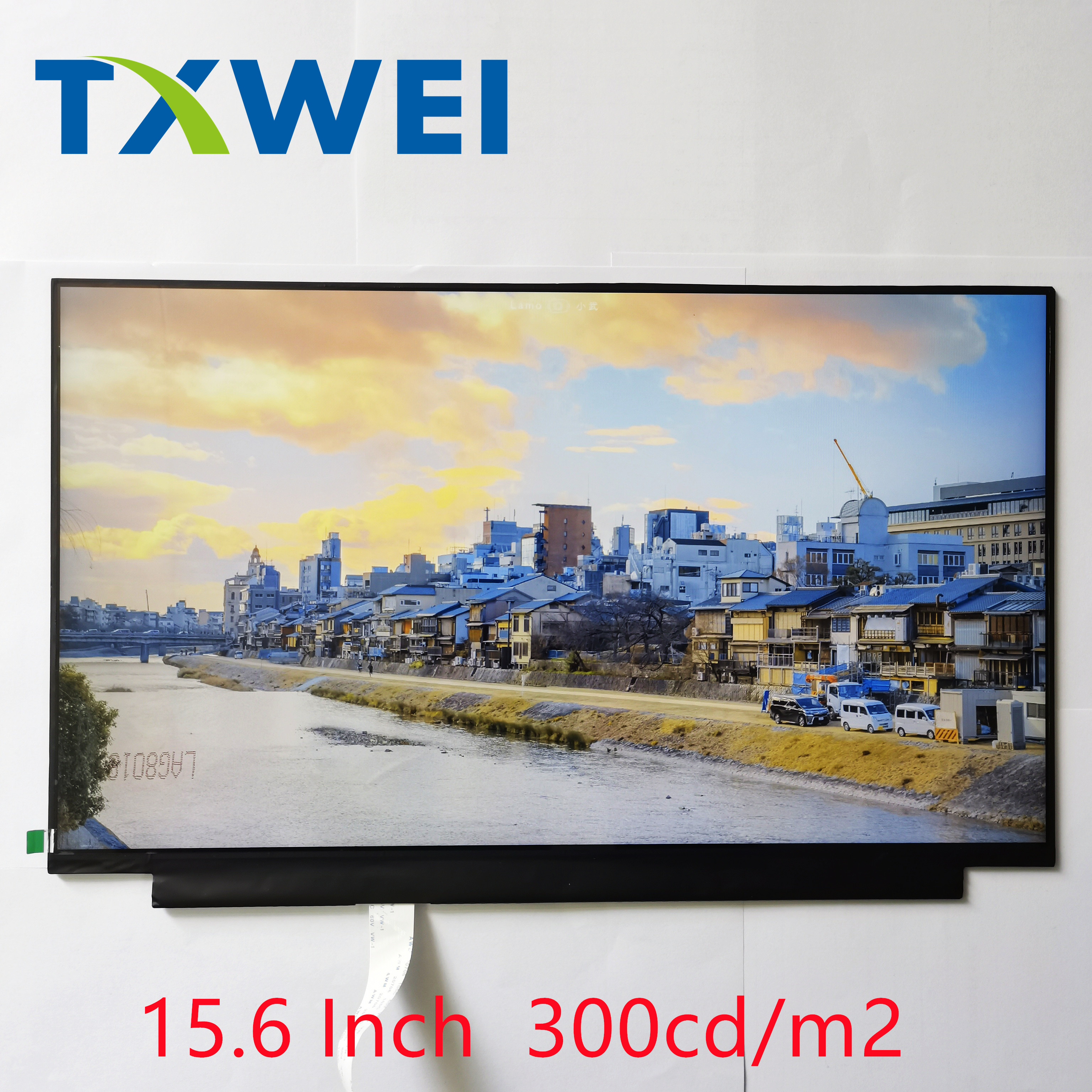

: 15.6-inch square full-color TFT LCD module
: IPS full viewing angle
: Brightness up to 300 cd/m2
: The resolution is 1920*1080
: HD highlight effect
: Good quality, long-term supply
thing | standard value | unit |
model | TXW156002B0 | |
size | 15.6 | inch |
LCD screen type | Ever Black | -- |
drive element | TFT active matrix | -- |
number of pixels | 1920*3RGB(horizontal)X1080(vertical) | point |
pixel arrangement | RGB stripes | -- |
Pixel pitch (width*height) | 0.17925*0.17925 | mm |
activity area | 344.16(horizontal)*193.59(vertical) | mm |

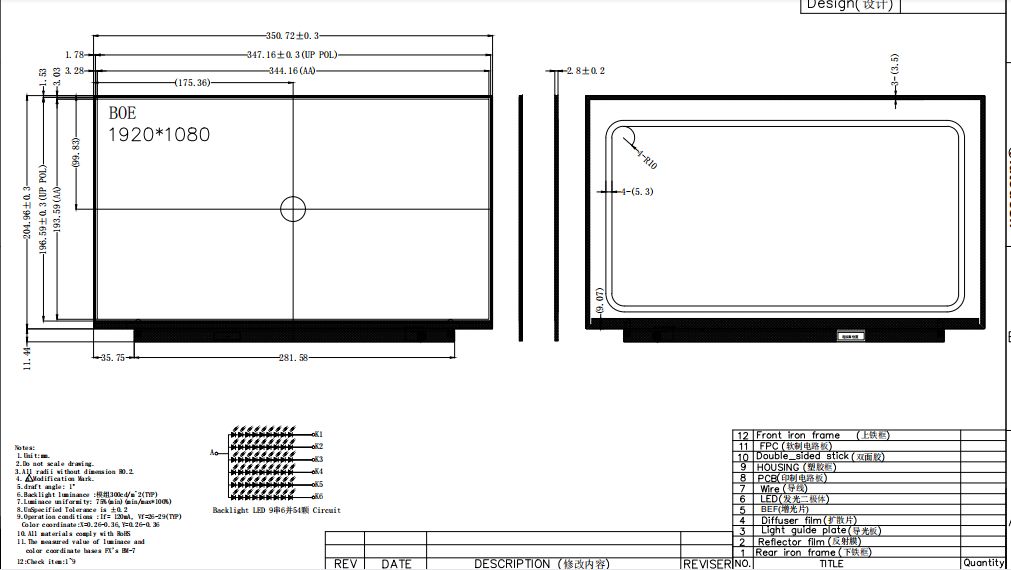

LCM mechanical dimensions (W*H*T) | 350.66*216.25*3 | mm |
viewing direction | All time | - |
LCD module driver chip | - | |
LCD module interface | Electronic Data Processing Interface | - |
LED backlight | 40 | pieces |
backlight current | 90 | Well |
Backlight voltage | No. 27 | ℃ |
Operating temperature | 0+50 | ℃ |
Storage temperature | -10+60 | Cadmium/㎡ |
brightness | 300 |
product description
1. Related information:If the above product parameters are not enough, please contact us to provide you with specific product data sheets and software display debugging parameters.
2. Supply quality assurance:Our product supply cycle promises not less than 5 years, and the product quality can be replaced within 30 days after delivery without damage.3. Wide range of applications:This product is widely used in scooter meters, electric car meters, bicycle meters, outdoor handheld PDAs, medical equipment, electronic cigarettes, automotive electronics and other products.4. After-sale guarantee:We have an excellent after-sales service team, who are professional and skilled, and can quickly and effectively solve all product quality and after-sales problems that trouble you.5. Quick reply:We can accept any feedback from customers. If you have any questions or concerns about our transactions, please contact us by email or online. We will reply quickly within 24 hours.
