128X64 Resolution LCD Display 128*64 Stn Cog

Supplier: Shenzhen Yabin Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms alisa kuang
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

LCD mode:	FSTN/cathode/transmissive	Controller IC:	ST7565R
Origin:	Guangdong, China	port:	Shenzhen
Check out Angie:	6 o'clock direction	range of working temperature:	-20 to +70°C
Module size:	55.2L39.8W5.5(max)H mm	View area:	49.9*24.29 mm
model:	YBC12864AO1	lattice:	128*64 dot matrix
Packaging Details:	1. Paste QC label 2. Anti-static packaging 3. Bubble bag packaging 4. Boxed 128x64 stn cog lcd	Supply capacity:	10000pcs 128x64 stn cog LCD monitor per week
Operating Voltage:	3.3V	payment terms:	L/C, D/P, T/T, MoneyGram, PayPal
Drive mode:	1/65 duty; 1/9 deviation	Storage temperature range:	-30 to +80°C
brand:	YB	type:	center of gravity

128X64 128*64 Resolution Stn Cog LCD Display

Product Description

1. Functions and Features

Product parameters
lattice	128×64 dot matrix
LCD mode	FSTN/cathode/transmissive
Controller IC	ST7565R
drive mode	1/65 duty; 1/9 deviation
Check out Angie	6 o'clock direction
Operating Voltage	3.3V
range of working temperature	-20 to +70°C
storage temperature range	-30 to +80°C
Module size	55.2L×39.8W×5.5(max)H mm
view area	49.9×24.29mm
Effective area	128×64 dots
dot size	0.32×0.38mm
pitch	0.29×0.35mm

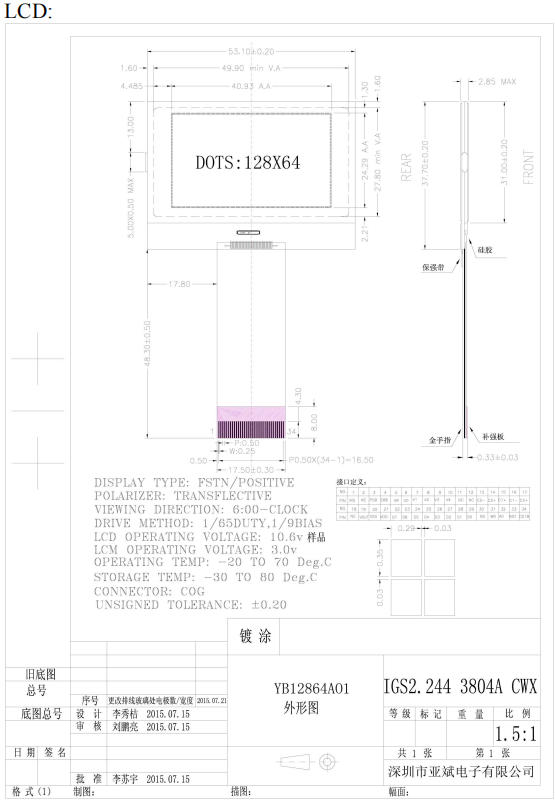

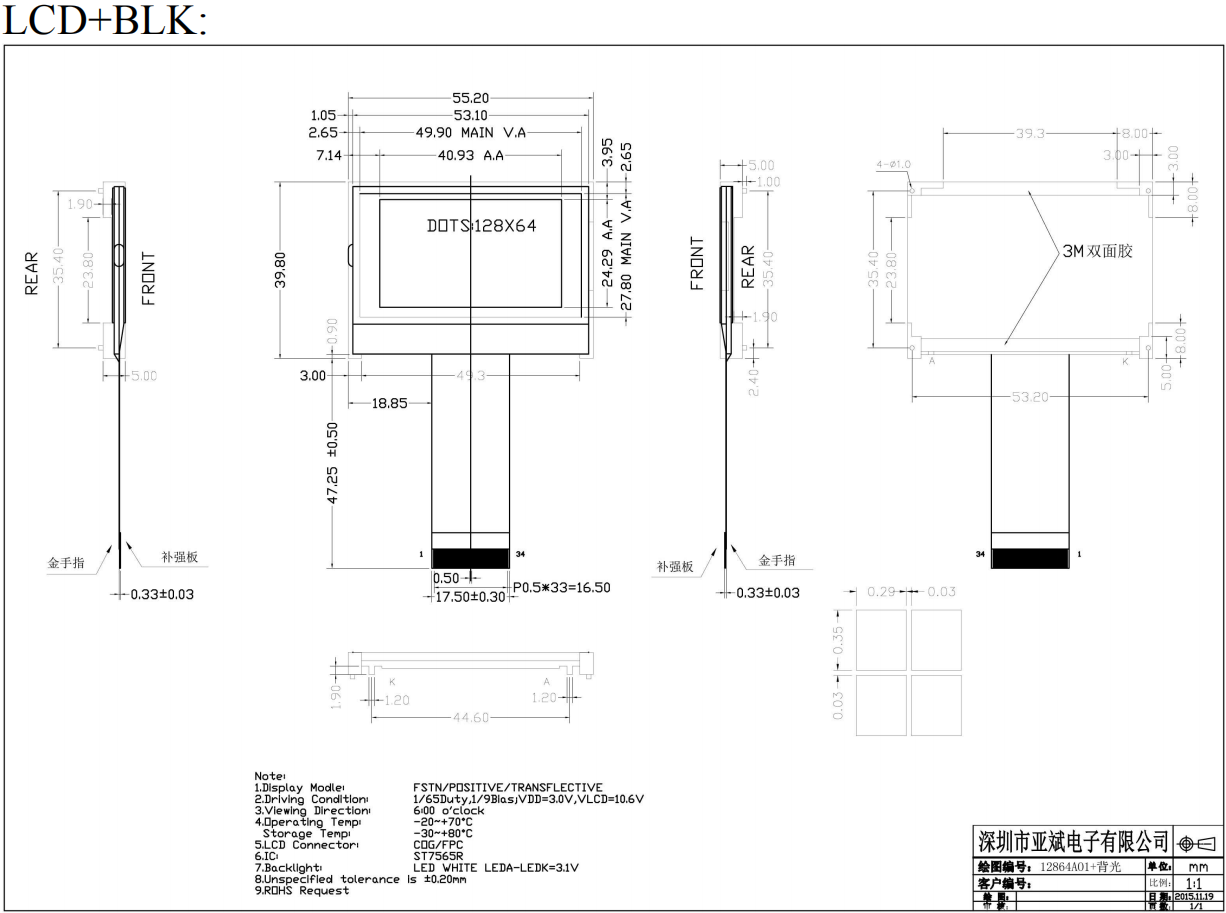

2. Dimensions

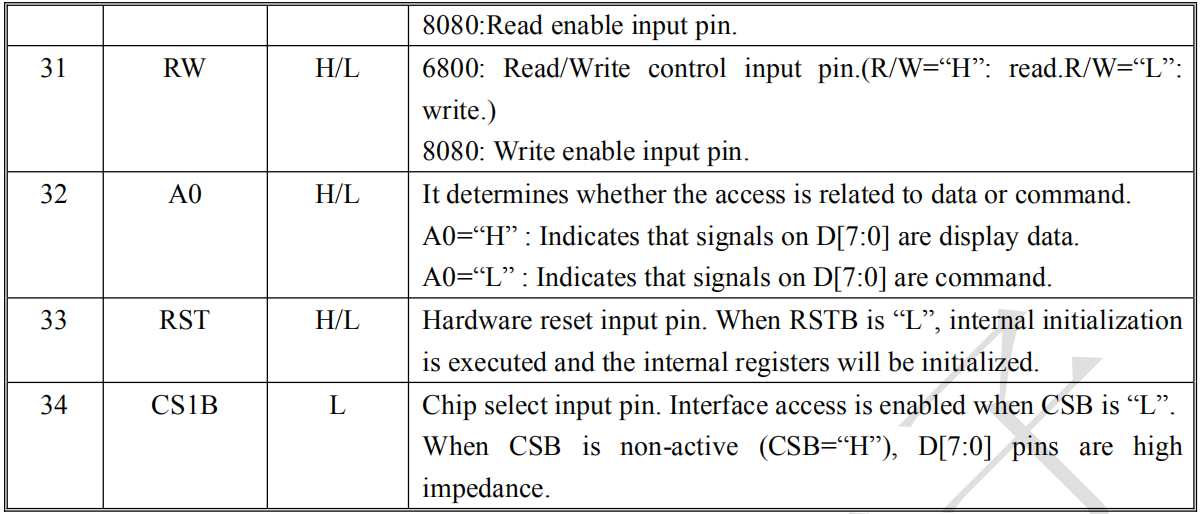

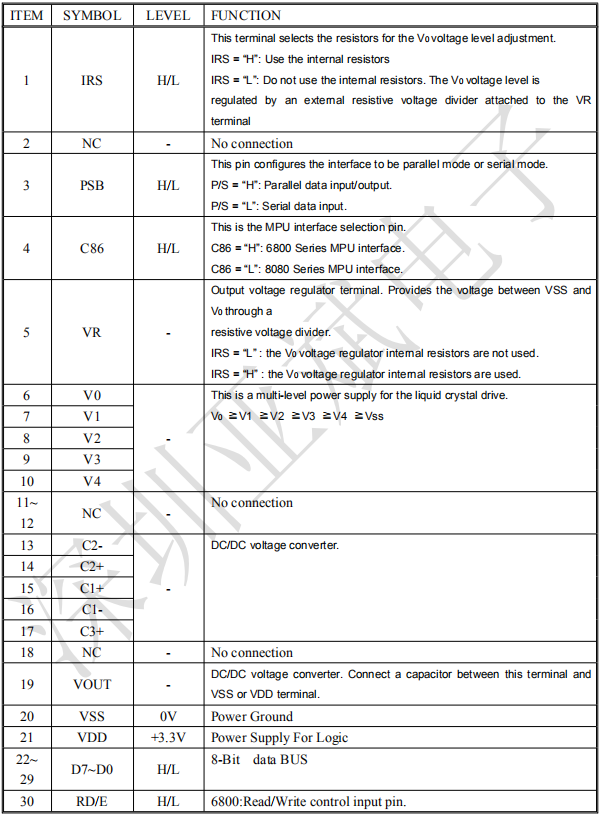

5. Pin description

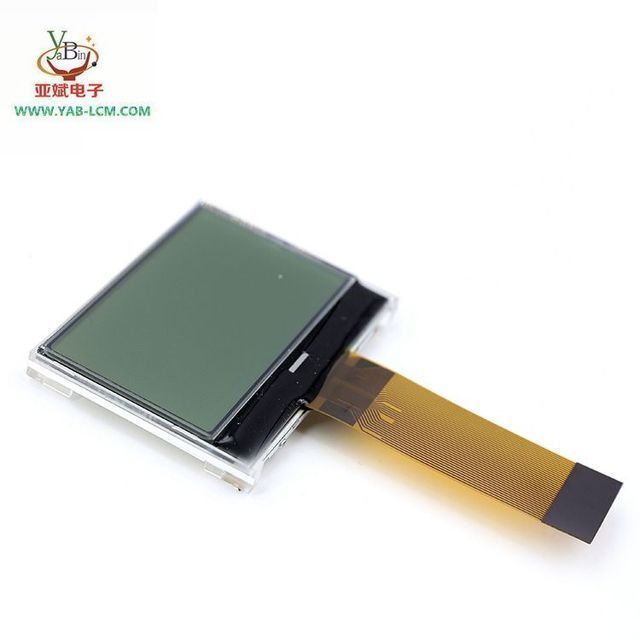

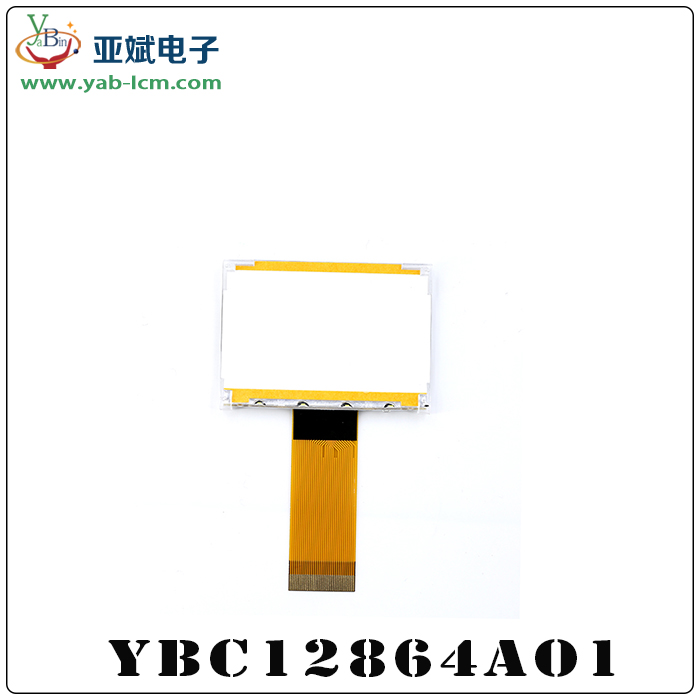

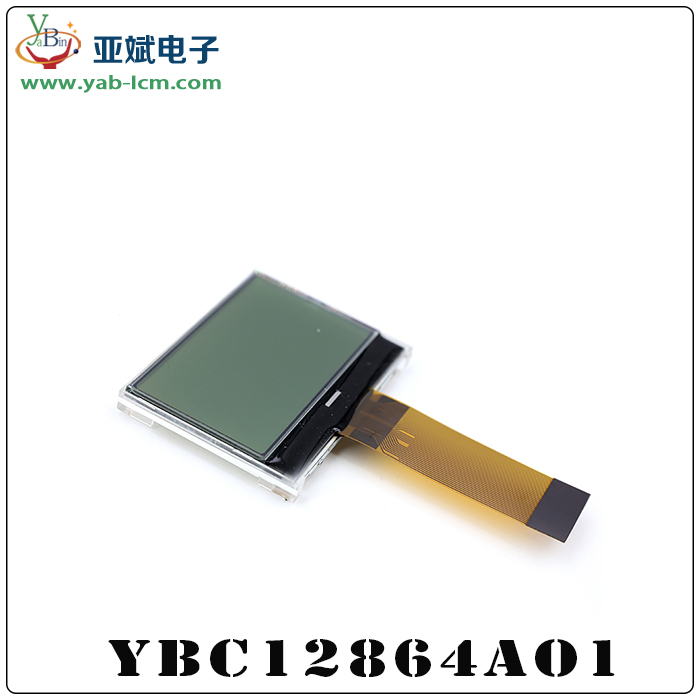

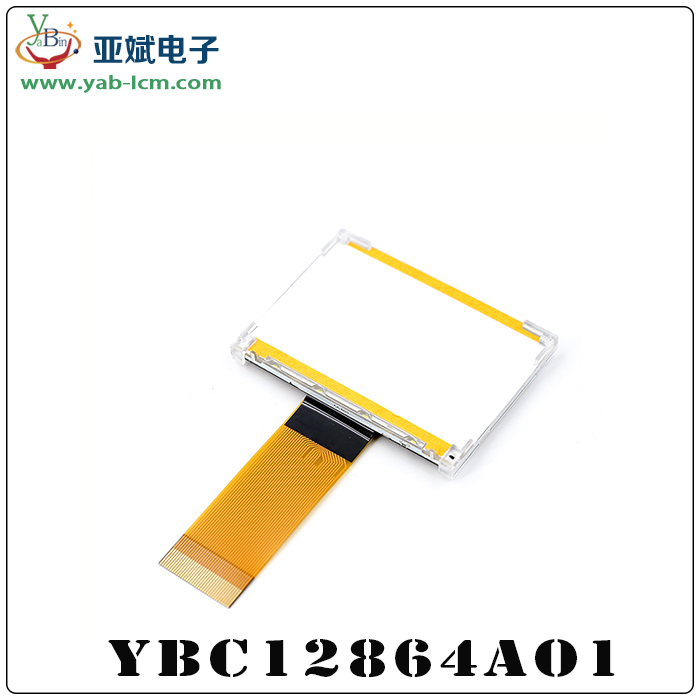

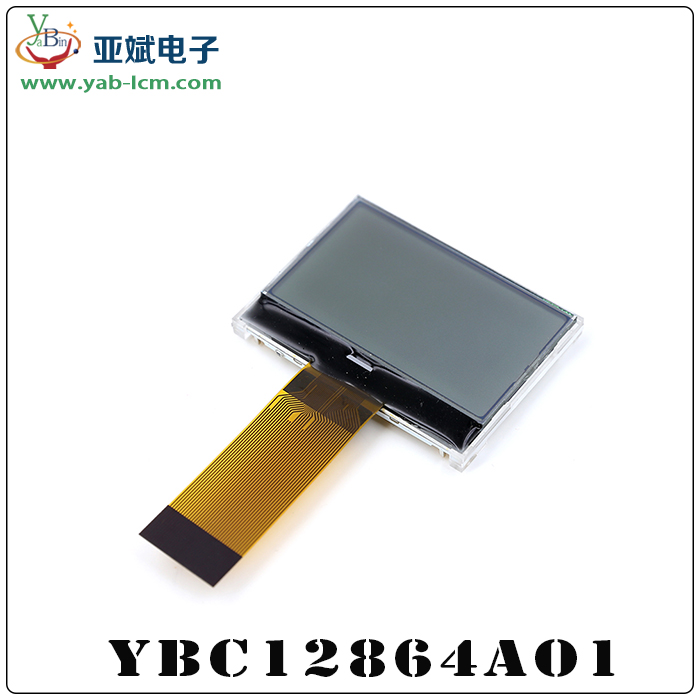

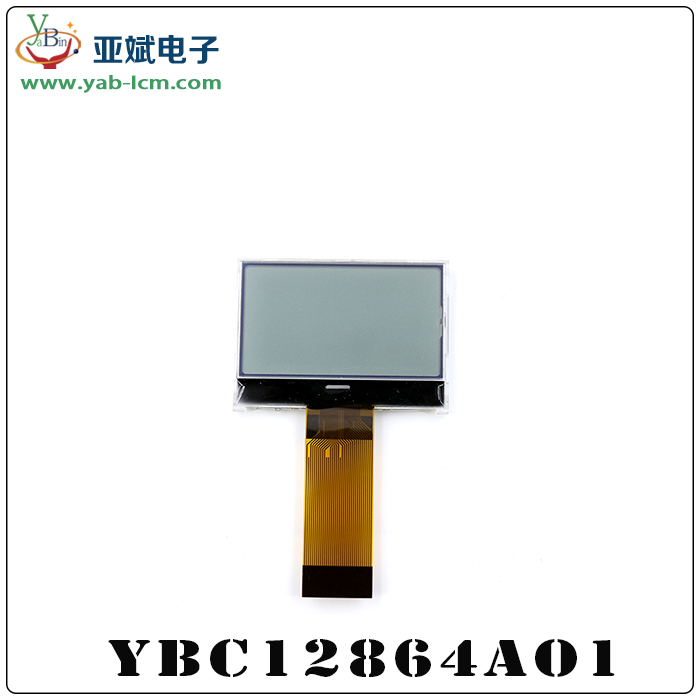

6. Product pictures

about Us

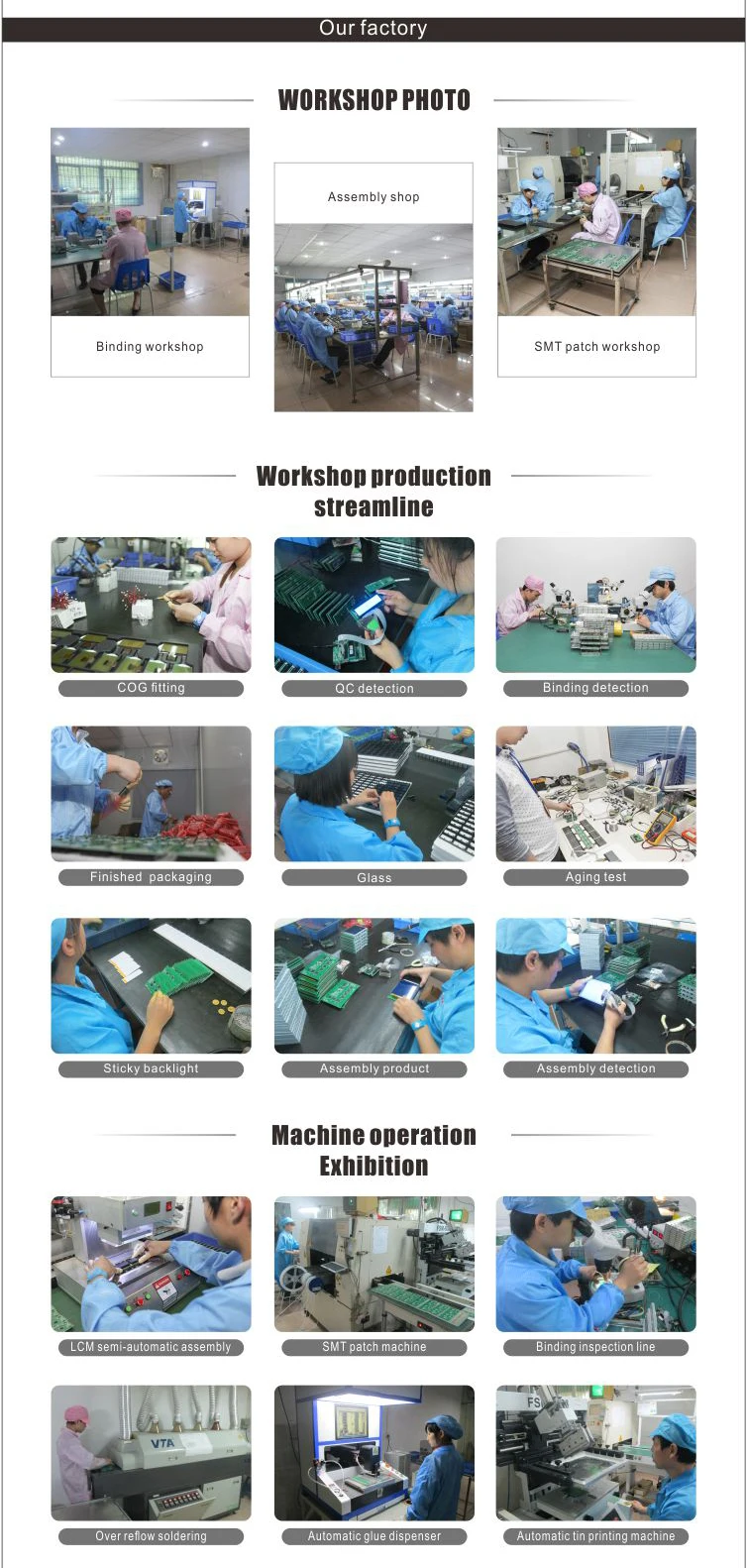

Our factory

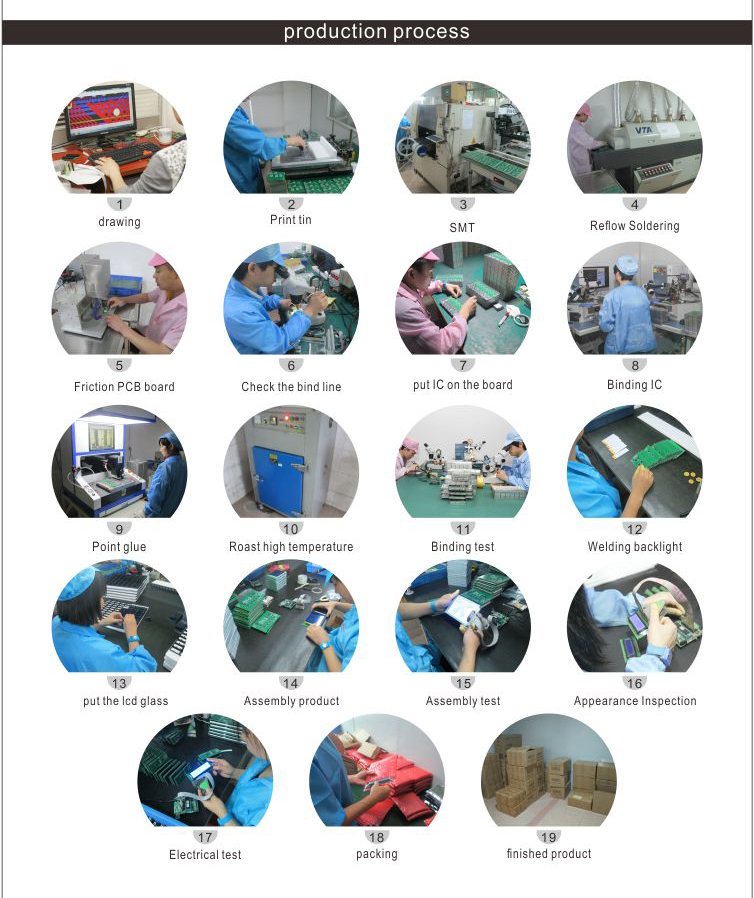

production process

packaging display

Certificate

contact us
