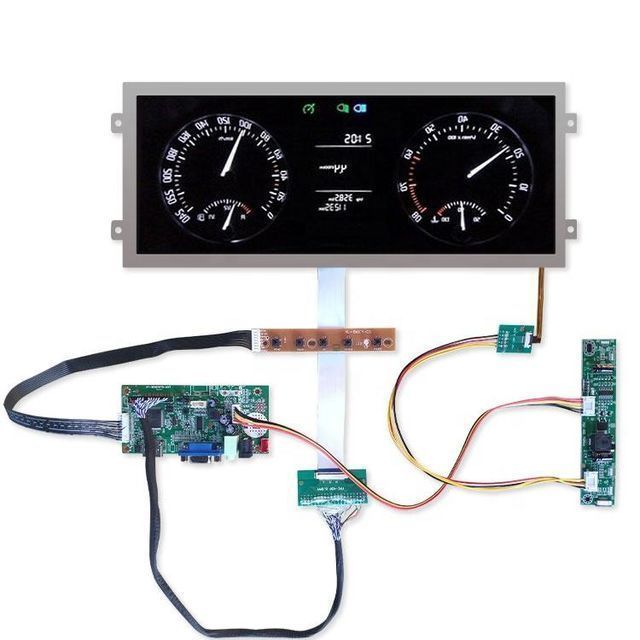

Stretch bar ultra wide ips 12.3 inch monitor 850 cd/m2 high brightness automotive 12.3'' 1920x720 HSD123IPW1-A00 LCD monitor

general characteristics

Diagonal size

12.3 inches

type

LCD module, a-Si TFT-LCD

pixel format

1920(RGB)×720

configuration

RGB vertical stripes

activity area

292.032 × 109.512 (horizontal x vertical)

The outline is dim.

335.8×132.2×13.3 (height×width×depth)

Baffle area

-

treat

anti-glare

brightness

850 cd/m² (typical)

contrast

1000:1 (Typical) (TM)

view directions

symmetry

Response time

18/17 (Typical) (Tr/Td) ms

Viewing angle

85/85/85/85 (typical value) (CR≥10)

operating mode

IPS Pro, Normally Black, Transmissive

support color

16.7 million 70% (CIE1931)

light source

10S5P WLED , 30K hours, no driver

weight

-

designed for

Vehicle display; Outdoor advertising

frame rate

60 Hz

touch panel

No

Interface Type

LVDS (2-channel, 8-bit), connector, 40-pin

power supply

3.3V (typical)

environment

Storage temperature: -40 ~ 95 °C Operating temperature: -30 ~ 85 °C; Vibration level: 2.9G (28.4 m/s2)
