7 inch TFT LCD 1200*1920 IPS tft lcd with MIPI mobile phone LCD screen

Click here to contact

Product details

Display mode:	plain black	Activity area:	94.5 (width) * 151.2 (height)
Supplier type:	customized	Model:	AML070JDI4001
size:	7 inch	solve:	1200*1920
interface:	MIPI	Display size:	7 inch
type:	LCD Monitor	Supply capacity:	1,000,000 pieces per month
port:	Shenzhen/Hong Kong	Panel size:	97.3 (width)159.4 (height)0.767 (depth)
Origin:	Guangdong, China	Viewing angle:	IPS
brand:	Amerin	brightness:	500cd/m2
product name:	7 inch high resolution 1200*1920 IPS tft lcd with MIPI interface	payment terms:	Western Union, T/T, Paypal and Trade Assurance
Packaging Details:	Plastic tray+anti-static foam+paper card+vacuum bag

7 inch high resolution 1200*1920 IPS tft lcd with MIPI interface

Product Description

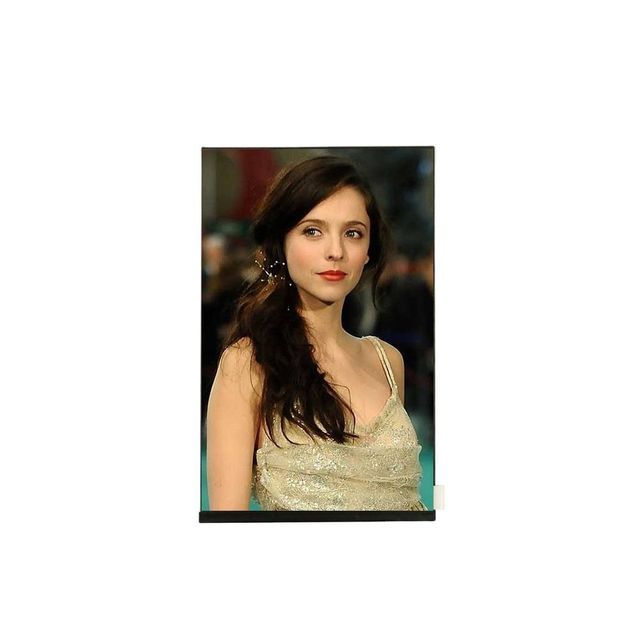

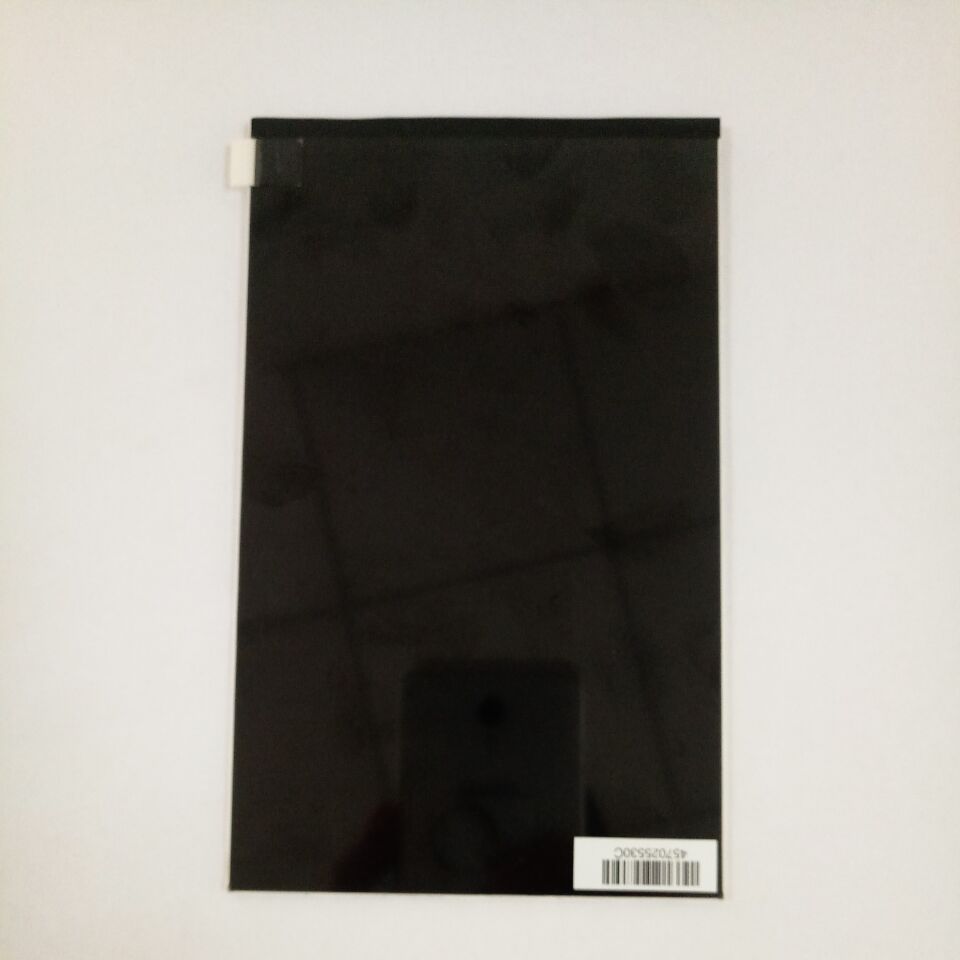

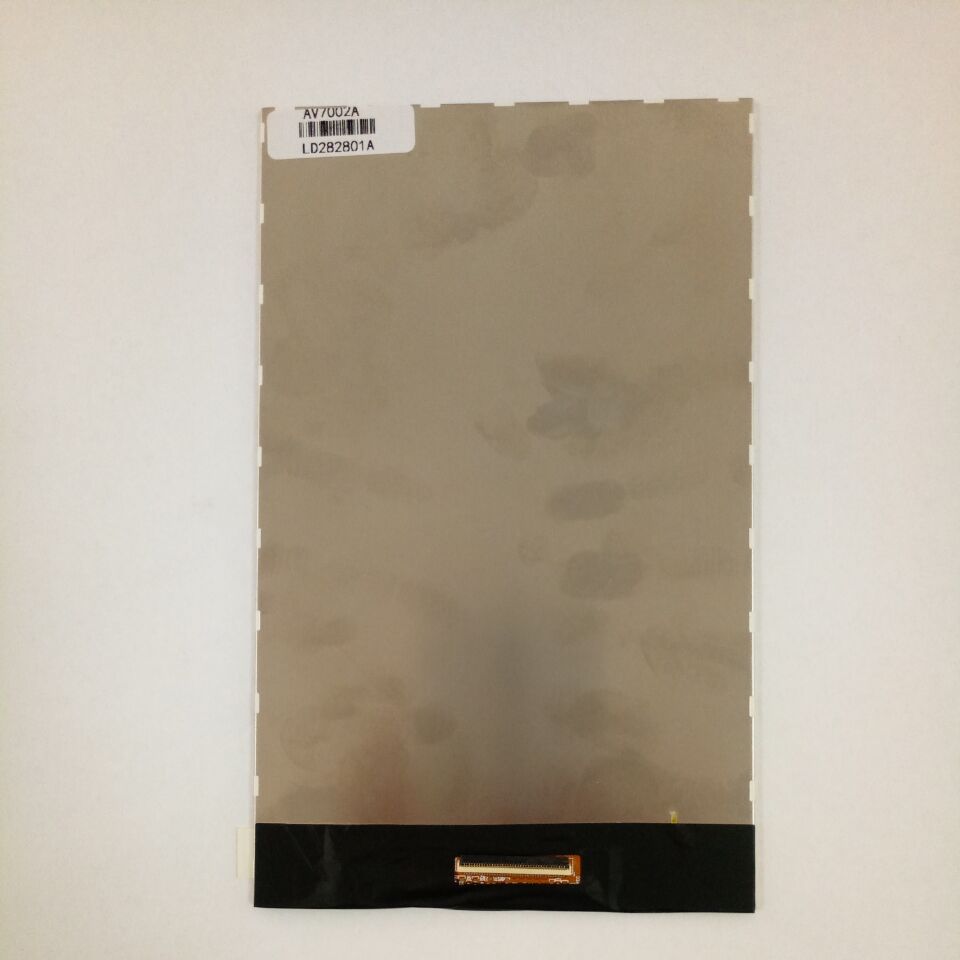

Pictures in kind

general instructions

This model is a color active-matrix TFT LCD that uses low-temperature polysilicon TFTs as switching devices. It consists of a TFT LCD unit,

integrated circuits and flexible circuit boards. It has a 7.02 (10:16) inch diagonal measuring active

Display area with WUXGA (1200 horizontal x 1920 vertical pixels) resolution.

General Specifications

No.	thing	Specification	unit
1	size	7.02 (diagonal)	inch
2	drive element	LTPS TFT Active Matrix
3	solve	1200 × 3(RGB) × 1920
4	display mode	Ever Black
5	Viewing direction (grayscale inversion)	free
6	pixel pitch	0.07875(width) × 0.07875(height)	mm
7	activity area	94.5(W) × 151.2(H)	mm
8	panel size	97.3(W)x159.4(H)x0.767(D)(Typical)	mm
9	surface treatment	hard coat
10	color arrangement	RGB stripes
11	interface	MIPI
12	Panel power consumption	typical value. 0.14 (0.17 max)	W
13	weight	27.17	G

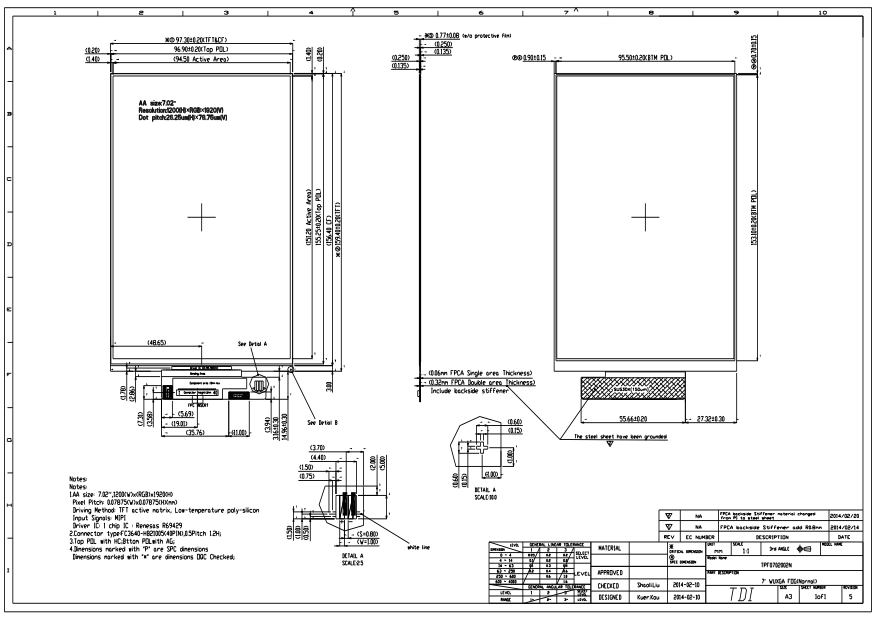

Contour drawing

our service

100% product testing and inspection before shipment.
100% free replacement for defective products.

delivery time
