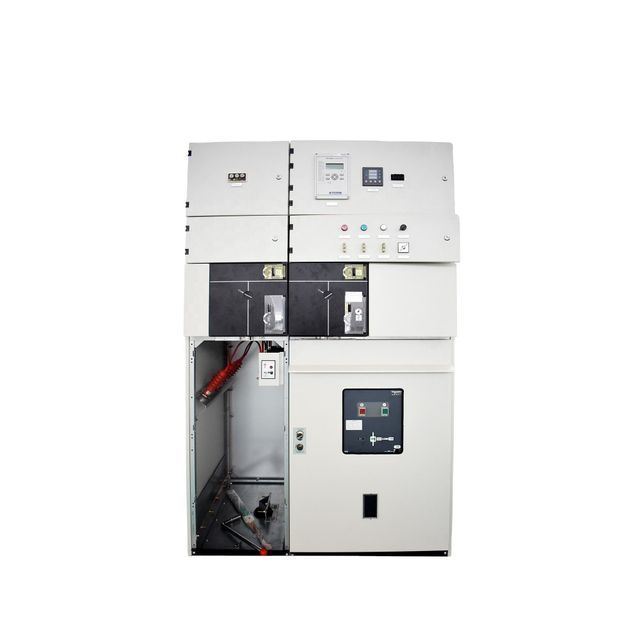

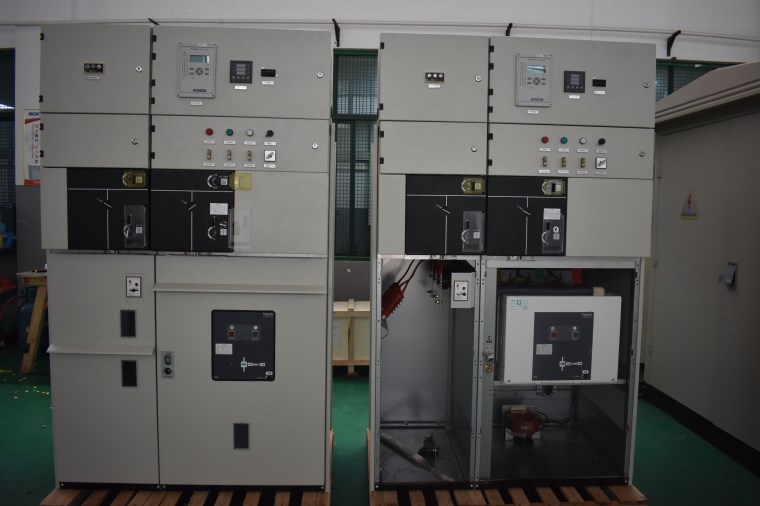

11KV 630A BRSM6-12 SF6 gas insulated ring network switchgear

Product details
port:Ningbo or ShanghaiBreaking capacity:25KA
Supply capacity:1000 sets per monthRated voltage:11KV
Origin:Zhejiang, Chinapayment terms:L/C, Western Union, T/T, MoneyGram
Packaging Details:According to customer requirementsmodel:BRSM6-12/24/40.5
Rated current:630Abrand:Borstein

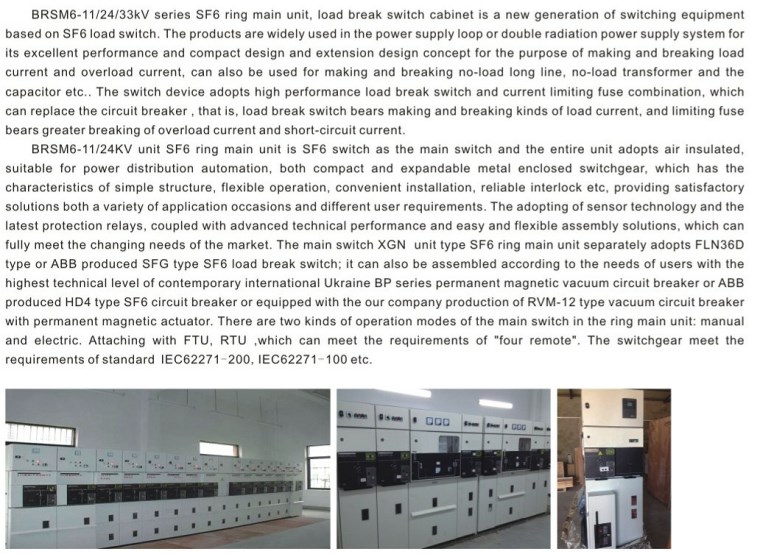

Mainly applicable to urban power grid construction and renovation projects. Industrial and mining enterprises, high-rise buildings and public facilities are used as power distribution, control and protection electrical equipment as loop power supply devices or terminal equipment. Can also be installed in prefabricated substations

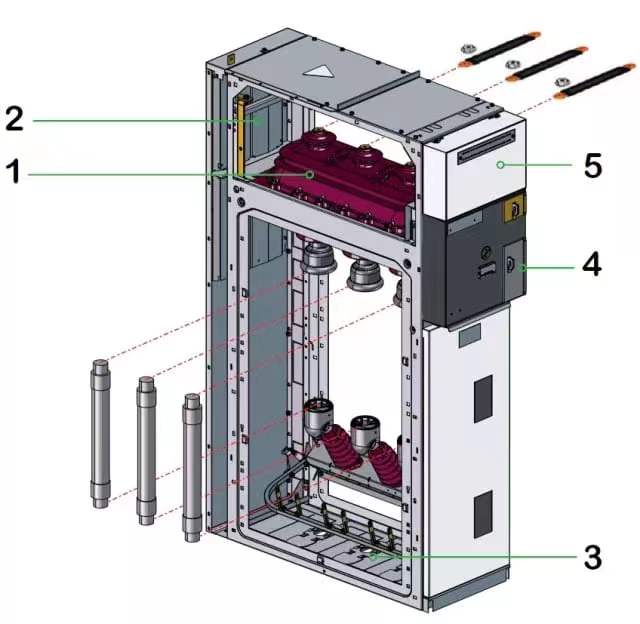

Use SF6 load switch and load switch-fuse combination as the main switch. Equipped with vacuum load switch and spring operating mechanism, it can be operated manually or electrically. The earthing switch and insulating switch are equipped with manual operation mechanism. Small size, high safety



1. Manufacturer of ring cotton unit for many years
2. Easy to install
3. Less maintenance
4. Safe and upgradeable
working environment


1. Altitude: no more than 2500m above sea level;

2. Ambient temperature: -25°C ~ +45°C, the maximum temperature shall not exceed 25°C;

3. Ambient humidity: daily average RH ≤ 95%; monthly average relative humidity ≤ 90%

4. Earthquake intensity: ≤8°;

5. No flammable, explosive, serious pollution, chemical corrosion and severe vibration.

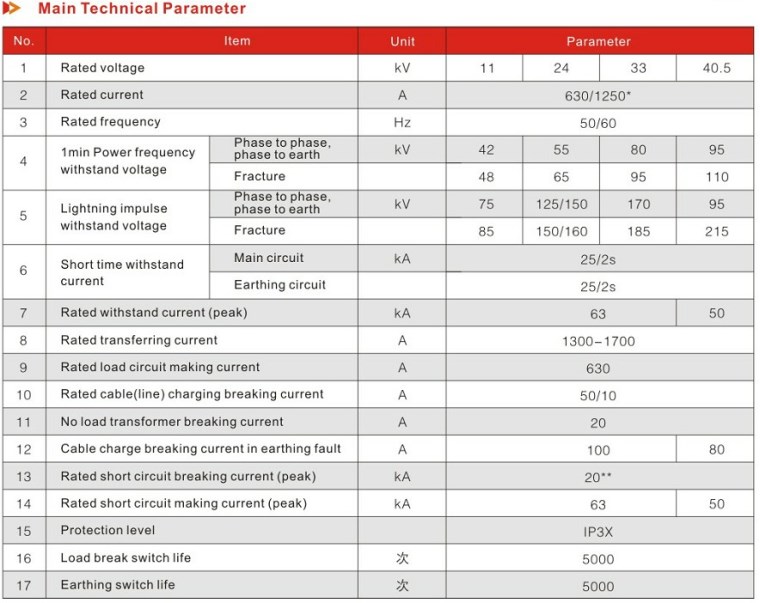

Technical Parameters


about Us

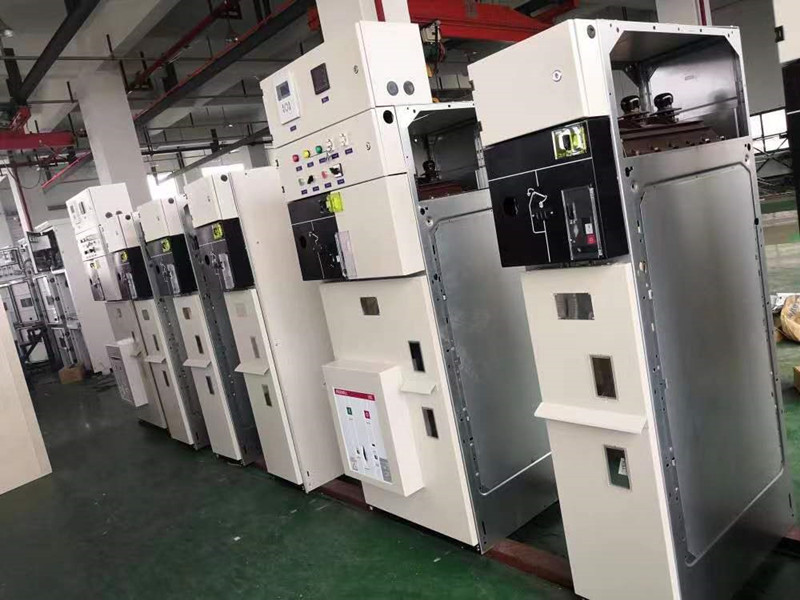

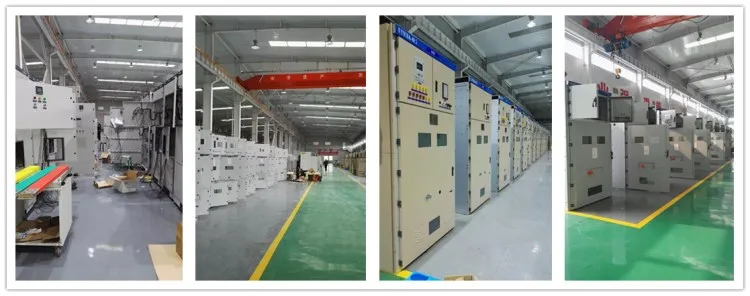

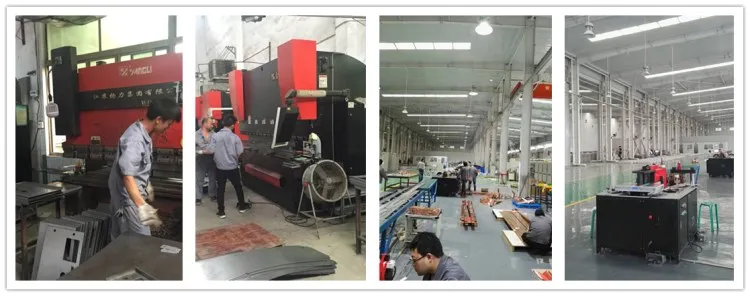

Borstein is a professional manufacturer and exporter of high and low voltage power distribution equipment and switchgear in Zhejiang Province, China, we mainly develop and produce high and low voltage power distribution equipment, switchgear, GIS-gas insulated switchgear, RMU-ring network Cabinets, oil-immersed transformers, step-by-step voltage regulators, SF6 load switches, on-load tap-changers, metal armored withdrawable switchgears, and electrical accessories such as circuit breakers, AC contactors, and thermal overload relays. We provide high quality, cheap price and satisfactory after-sales service. If you have any questions, you can always contact us
