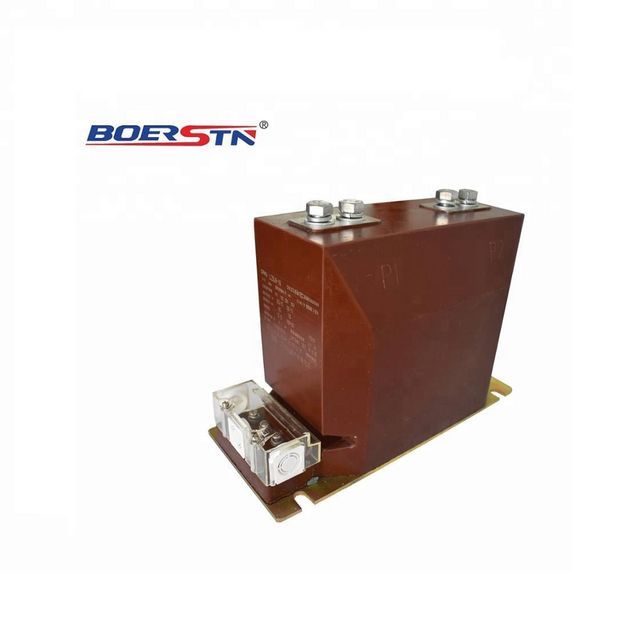

LZZBJ9 -10A 11KV 12KV indoor medium voltage medium voltage resin casting metering protection combined current transformer CT

Supplier: Boerstn Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Steven Ye
Price: $70.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, T/T, Western Union, MoneyGram	port:	China Ningbo or Shanghai port
stage:	three	Packaging Details:	Safe and strong export packaging
product name:	Current Transformer CT	brand:	Burston
Coil structure:	ring	Origin:	Zhejiang, China
model:	LZZB12	Supply capacity:	500 pieces per month
Number of coils:	Autotransformer	Rated voltage:	Up to 12KV
usage:	strength	frequency:	50 Hz

LZZBJ9 -10A 11KV 12KV indoor medium voltage medium voltage resin casting metering protection combined current transformer CT

describe

LZZBJ9 -10A indoor medium-voltage current transformer is a series of well-type resin casting metering protection combined current transformer, used for 50Hz, rated voltage 11kV and below AC power system. The wiring method can be changed according to customer requirements.

refer to	LZZB12-10/175b/4s
Um	12KV
Test voltage	28KV / 75KV
Rated Primary Current - I PN	Up to 3150A
Rated Secondary Current - I SN	5A or 1A
Rated short-time thermal current- I th	100 times my PN
Rated dynamic current (peak) - I dyn	2.5 x I th
number of cores	It must be determined according to the required accuracy level, overcurrent value, and burden
frequency	50/60 Hz
weight	33 kg

Contour drawing

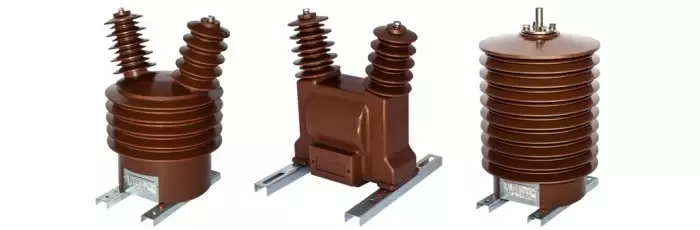

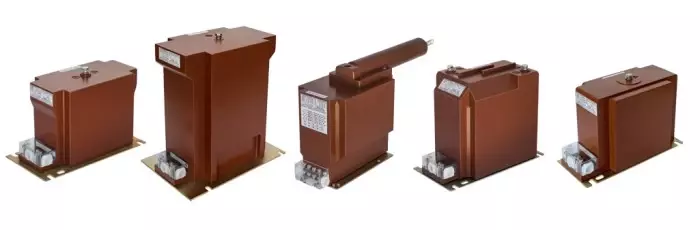

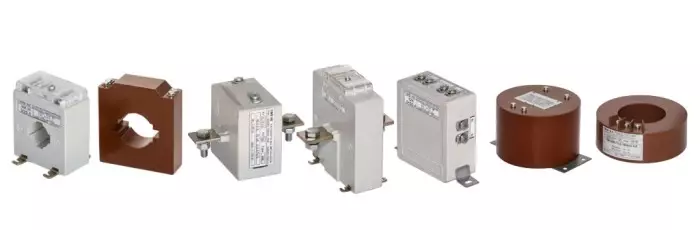

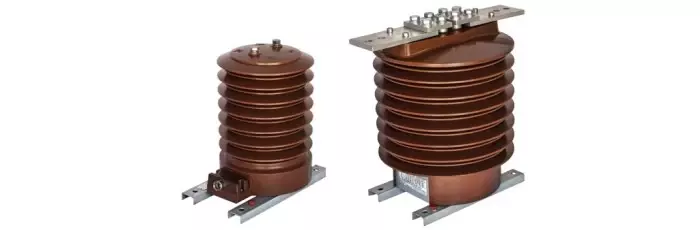

other products

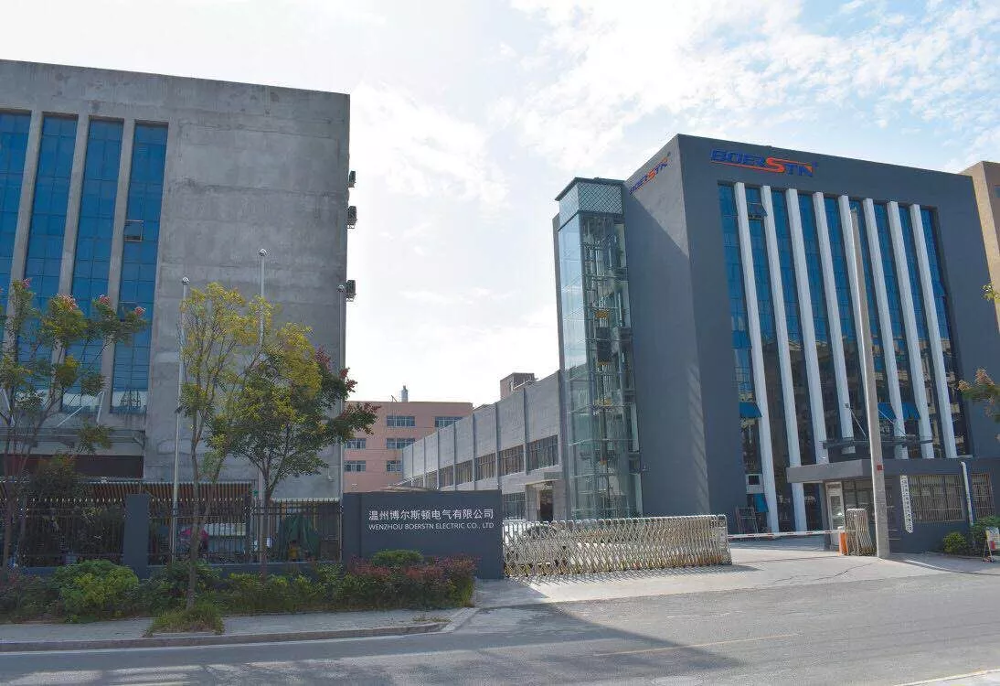

about Us

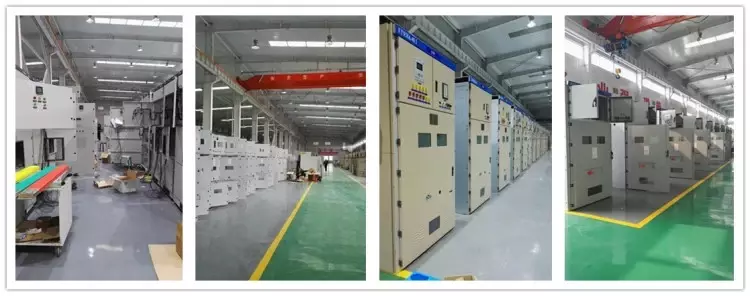

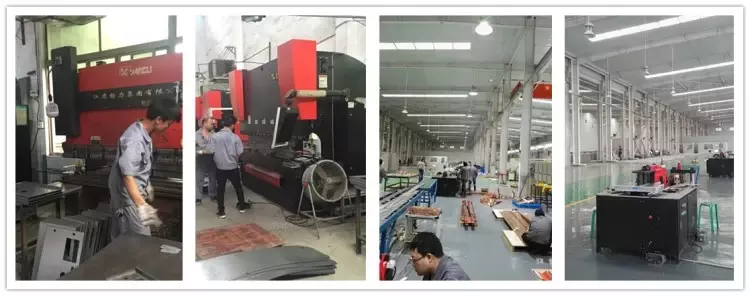

"BOERSTN ELECTRIC" is engaged in the manufacture, development, service, solutions, maintenance and marketing of high-voltage/low-voltage power distribution equipment, switchgear, transformers, substations, etc. globally. As a leading professional manufacturer in China, we mainly manufacture and supply electrical accessories for the following items:

High Voltage & Low Voltage & Medium Voltage Switchgear
Power distribution board (PDB)
Medium voltage solid insulated switchgear (SIS)
Compact substation/complete substation/kiosk substation
Single-phase and three-phase pad-mounted transformers (PMT)
Gas Insulated Switchgear (GIS)
Cable branch box
Blokset Switchboard/Switchgear
Auto Feeder Voltage Regulator
Ring Main Unit (RMU)
Oil-immersed transformers and dry-type transformers
Voltage/current transformer (VT,CT)
Vacuum circuit breakers (VCB), air circuit breakers (ACB), miniature circuit breakers (MCB), molded case circuit breakers (MCCB), residual current circuit breakers (RCCB), fuses, overload relays, contactors, etc.
