11KV 12KV 22KV 24KV SF6 insulated ring main unit power distribution SF6 insulated switchgear
-
Supplier: DECOM ELECTRIC CO., LTD. -
Region: Guangxi, China -
Contact: Ms Lisa Wu -
Price: $1500.00 /unit -
Min. Order: 1 unit
Product details
| type: | SF6 gas insulation | Rated current: | 630A |
| Rated voltage: | 12KV 24KV | color: | silver |
| application: | Power distribution | port: | Guangzhou/Shenzhen, China |
| product name: | SF6 insulated ring network cabinet | Packaging Details: | Plywood boxes |
| Certificate: | ISO9001 | Supply capacity: | 2000 pieces per month |
| model: | GLX24-KKK | Rated frequency: | 50Hz/60Hz |
| Processing: | supply | standard: | IEC62271 |
| Type test report: | KEMA, CESI, TUV, XIHARI | brand: | GYDEC, Galaxy Switch |
| payment terms: | L/C, T/T | Origin: | Guangxi, China |
Product Description

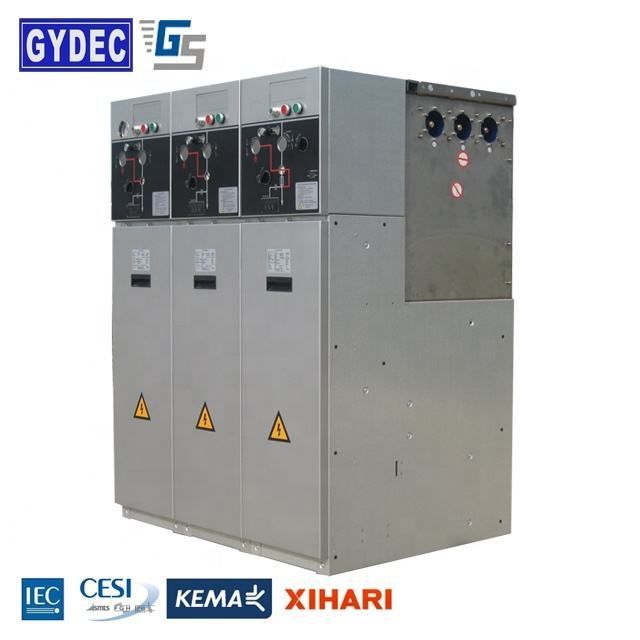

GLX24 series SF6 insulated ring main unit is a scalable SF6 insulated switchgear with rated voltages of 12, 24kV and 40.5kV. All its high-voltage live parts are housed in an airtight gas tank made of 3mm stainless steel. The entire switch assembly is insulated by SF6, free from any external influence, ensuring its high reliability and maintenance-free.
Through plug-in bus extension, GLX24 series ring network cabinets can realize free combination and full modularization. The bus extension has passed the power and thermal stability type test, fully insulated and shielded, and has high reliability and safety.
GLX24 series ring main unit is suitable for all medium-voltage networks up to 40.5kV, all compact power stations, distribution substations in all important industries such as petrochemical, metallurgical and mining, as well as all substations and wind power generation systems.
Through plug-in bus extension, GLX24 series ring network cabinets can realize free combination and full modularization. The bus extension has passed the power and thermal stability type test, fully insulated and shielded, and has high reliability and safety.
GLX24 series ring main unit is suitable for all medium-voltage networks up to 40.5kV, all compact power stations, distribution substations in all important industries such as petrochemical, metallurgical and mining, as well as all substations and wind power generation systems.

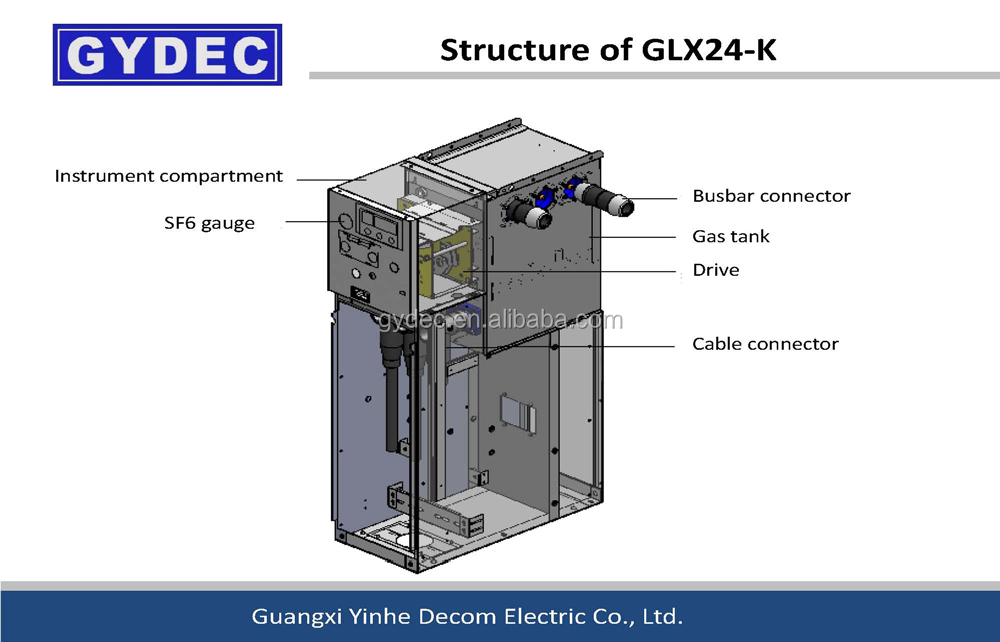

GLX24-K type load break switch unit is used for disconnecting connection of incoming and outgoing cables and busbars, grounding cables and having short-circuit making capability.
Specification
Technical data | load switch GLX24-K | load switch GLX24-K |
Rated voltage (kV) | 12 | twenty four |
Rated current (A) | 630 | 630 |
Nominal frequency (Hz) | 50/60 | 50/60 |
Power frequency withstand voltage (kV) | 42/48 | 50/60 |
Impulse withstand voltage (kV) | 75/85 | 125/145 |
Rated short-time withstand current (kA/s) | 20/3, 20/4, 25/1 | 20/3, 20/4 |
Rated peak withstand current (kA) | 50 | 50 |
Rated short-circuit making current (kA) | 50 | 50 |
Mechanical Durability (Operation) | 5000 | 5000 |
Electrical life | E3 | E3 |
