High pressure reinforced polypropylene filter press PP filter plate

Supplier: Zhengzhou Uniwin Machinery And Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Bruce Xia
Price: $10.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Material 3:	Stainless steel filter plate
Production capacity:	high efficiency	Voltage:	No supply voltage
Supply capacity:	100 sets per month	Board Type 1:	Chamber filter press
Origin:	Henan, China	Packaging Details:	High pressure reinforced polypropylene filter press PP filter plate is wrapped with plastic film and packed in wooden box to avoid damage.
payment terms:	L/C, T/T, Western Union, MoneyGram	strength:	no power
After-sales service provided:	Engineers available to repair machinery overseas	Material 4:	Steel filter plate
Automatic level:	manual	Name:	Polypropylene filter press PP filter plate
Health status:	new	Material one:	PP filter plate
weight:	10-50kg/filter plate	brand:	China Youying
Certification:	EU CE certification	Filter plate size:	870mm, 1000mm, 1250mm, 1500mm, 2000mm
port:	Qingdao, Shanghai, Tianjin Seaport, etc.	Popular countries:	Canada, the United States, the Philippines, Indonesia, etc.
Plate type 2:	Membrane filter plate	Material 2:	Cast iron filter press plate
Dimensions (LWH):	Decide

High pressure reinforced polypropylene filter press PP filter plate

Product Description

Filter plate description:
The filter plate is the key component of the filter press. Used to support filter cloths and store heavier filter cakes. Bad filter plates can cause the following problems:
1. Poor filtration performance.
2. It is easy to break and increases operating costs.
3. The filter cloth may be damaged.
4. Poor workmanship will cause leakage. ETC...
So the quality of the filter plate is very important. Contact us for the highest quality filter press sheets.

Types of filter press plates:
1. According to the fixing method: side beam filter plate, top beam filter plate, vertical filter plate, etc.
2. According to the type of filter plate: frame filter plate, box filter plate, membrane filter plate, special filter plate (such as round filter plate, cotton cake filter plate, etc.).

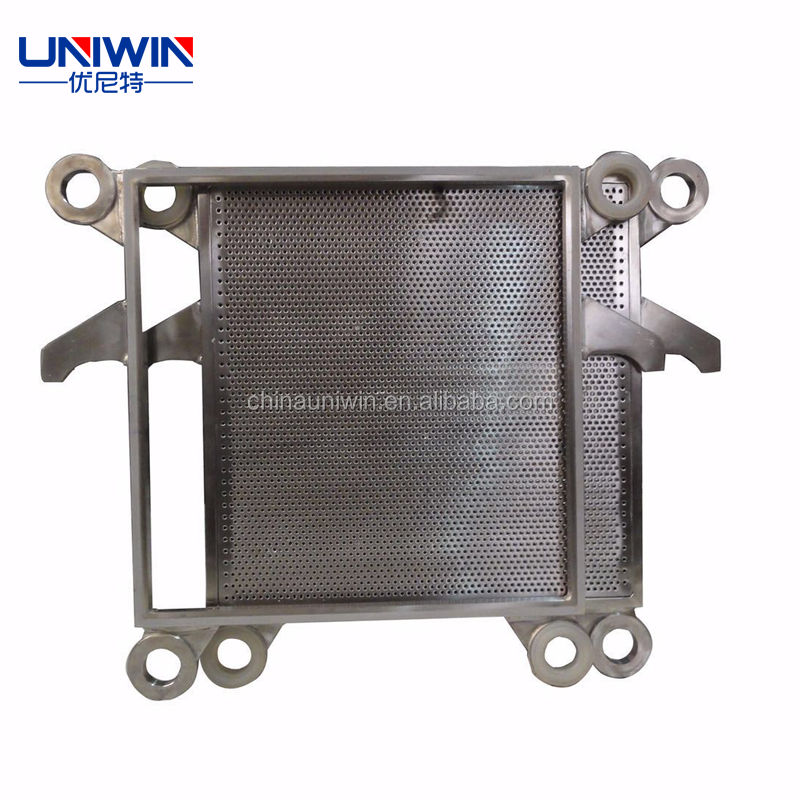

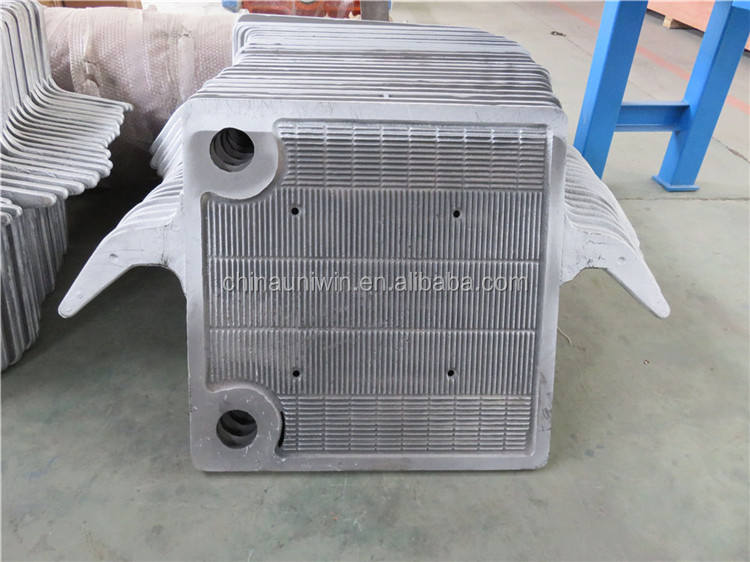

3. According to the material: PP filter plate, cast iron filter plate, stainless steel filter plate, aluminum alloy filter plate, etc...
4. According to the plate size: 320/450/630/800/870/1000/1250/1500/2000 etc...
5. For more information, please contact us...

Technical data

Filter plate parameters:

thing	Dimensions (mm)	Internal Dimensions(mm)	Plate thickness (mm)	Cake thickness(mm)	Filtration area (m2)	Volume (L)
Chamber filter press plate	400*400	350*350	55	25	0.24	2.2
	500*500	450*450	55	25	0.42	5.5
	630*630	560*560	55	25	0.55	7.5

	800*800	700*700	60	30	0.95	15.60
	1000*1000	900*900	60	30	1.56	25.30
	1250*1250	1160*1160	60	30	2.63	39.20
	1500*1500	1400*1400	70	30	4	71
Membrane filter plate	630*630	560*560	60	25	0.55	7.5
	800*800	700*700	65	30	0.95	15.60
	1000*1000	900*900	72	40	1.56	25.30
	1250*1250	78	78	40	2.63	39.20
	1500*1500	1400*1400	85	40	4	7

Various types of filter plates

Depending on the design of the filter press, the filter plate is also different. Filter plate size: 400mmX400mm, 500mmX500mm, 630mmX630mm, 800mmX800mm, 1000mmX1000mm, 1200mmX1200mm, 1250mmX1250mm, 1500mmX1500mm, 1500mmX2000mm, 2000mmX2000mm

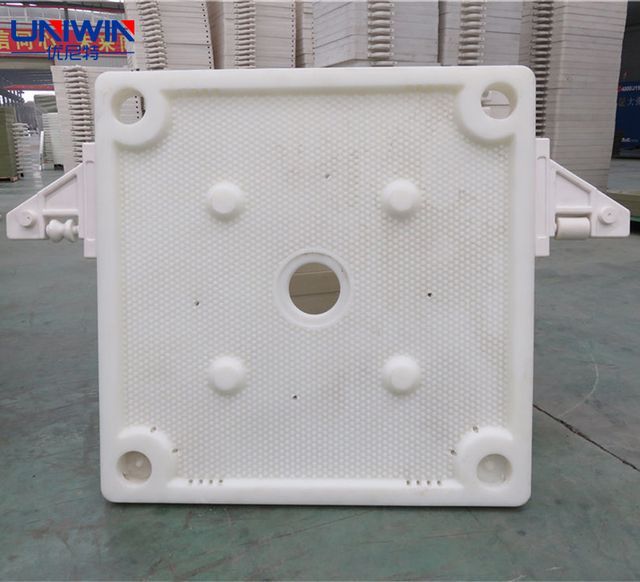

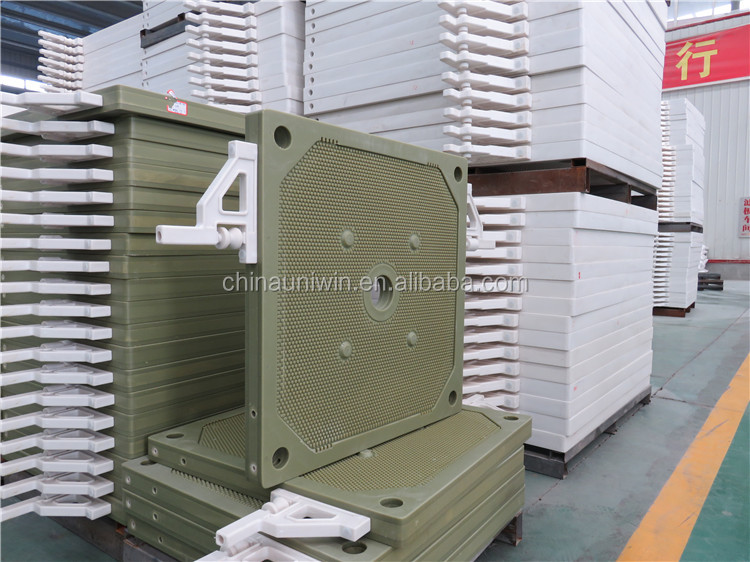

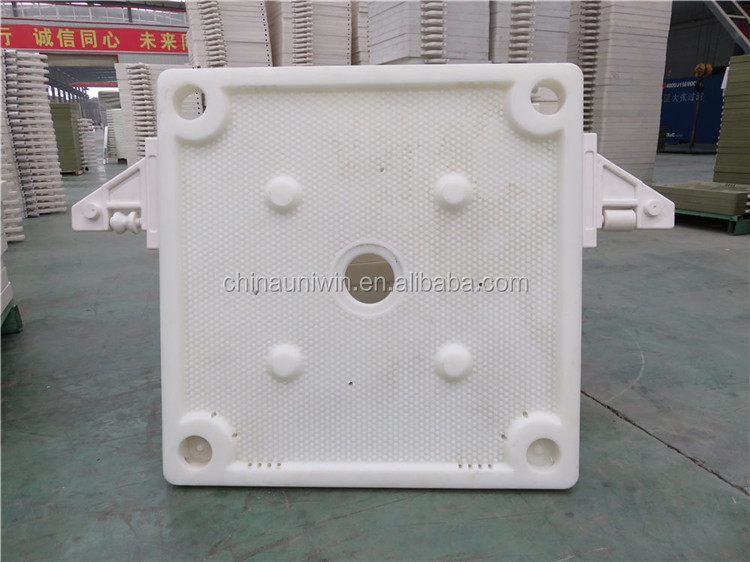

Chamber filter plate:

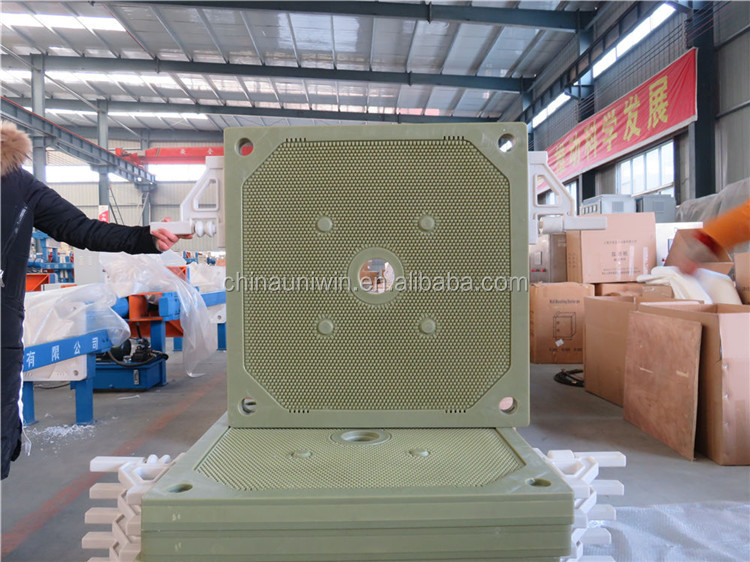

Membrane filter plate:

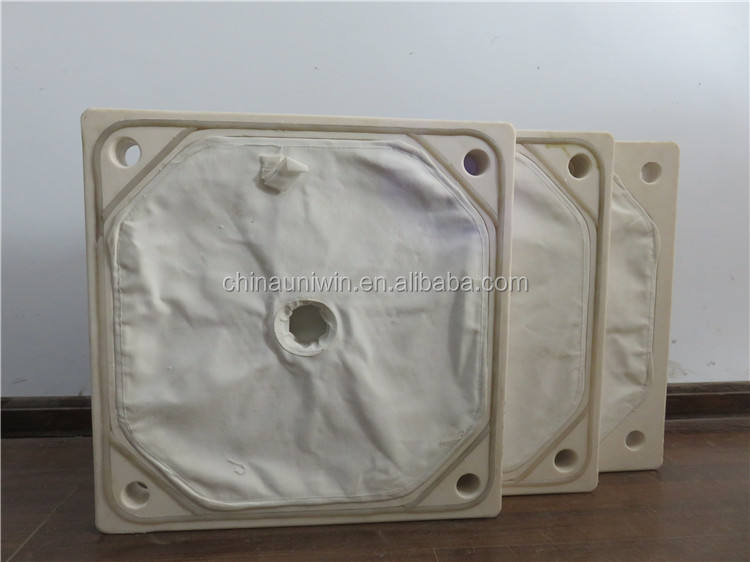

Sealed filter press plate:

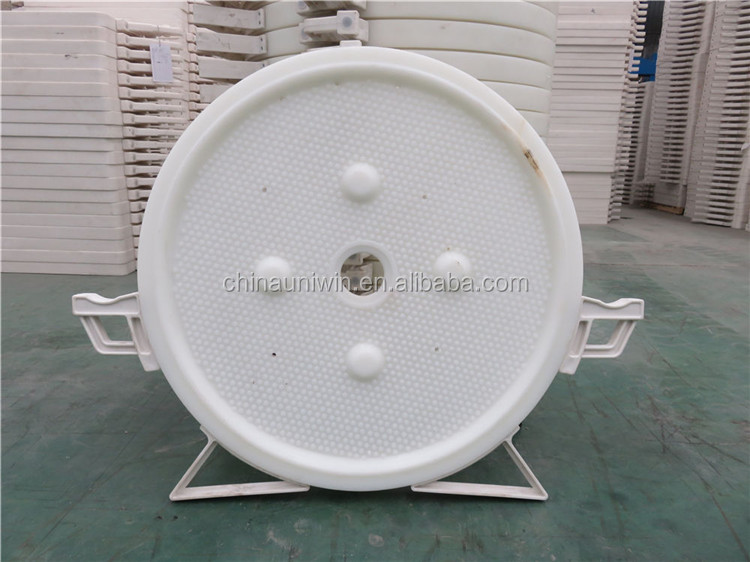

Round filter press:

Used for stone waste water, ceramic waste water, etc., the filtration pressure is 1.0-1.2Mpa, and the moisture content of the filter cake is extremely low.
