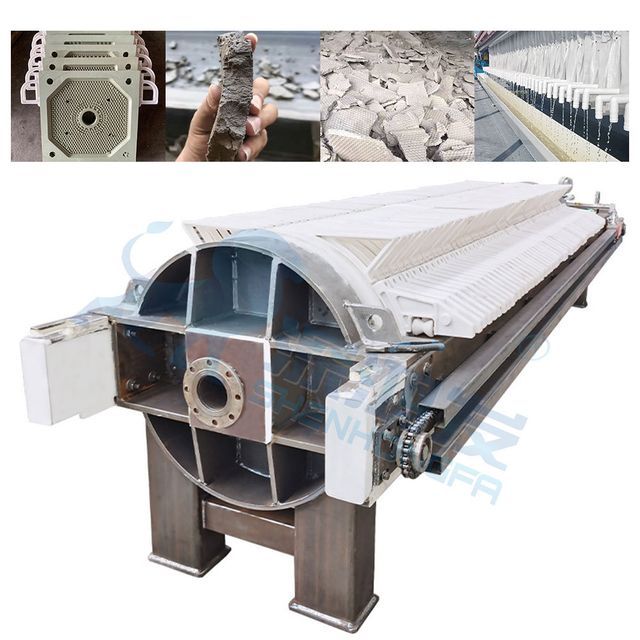

Ceramic round chamber filter press with favorable price automatic customized filter press

Supplier: Shenzhen Hongfa Environmental Protection Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Ada Xu
Price: $980.00 / 1 - 49 sets
$580.00 / 50 - 199 sets
$350.00 / >=200 sets
Min. Order: 1 set

Click here to contact

Product details

color:	client needs	Key words:	Wastewater sludge dehydration equipment filter press
describe:	Solid-liquid separation filter	product name:	Chamber type automatic pressurized manual pull filter press
Warranty:	1 year	brand:	Shen Hongfa
Sales unit:	Single product	Filter area:	70 square meters
usage:	environmental protection	Applicable industries:	Hotels, clothing stores, manufacturing plants, printing shops, construction projects, food and beverage stores, others
Health status:	new	Core component warranty:	1 year
Dimensions (lengthwidthheight):	620011501300mm	Filter plate size:	800*800mm
control:	Hydraulic workstation	Automatic level:	manual
Voltage:	380V/400V/415V	Gross weight of single piece:	30.000kg
Filter plate material:	Highly reinforced PP	Mechanical test report:	if
Place of origin:	Shenzhen	Chamber volume:	880L
Showroom location:	not any	Video outbound inspection:	if
Marketing type:	2020 new products	weight:	4600kg
strength:	4kW	Package preview:
Core components:	Engine, motor	Packaging details:	Filter press airworthy packaging
Single piece packaging size:	50X50X60cm

Why choose our filter press?

1. We offer filter presses in various sizes to meet your needs. From our large 2000mm to 150mm laboratory filter presses.

2. The filter press can also be equipped with automatic cloth washing device, drip tray, pneumatic diaphragm pump, filter plate, oscillation system, etc.

3. Together with the filter press, we can provide complete filter press dehydration equipment, including

Thickeners and all necessary ancillary equipmentplant feed pump,compressor, conveyor and

Even special chemical-resistant coatings.

Every filter press we offer is designed to provide you with sustainable productivity.

Filter press installation flow chart

Technical Parameters

Filtration area (㎡)	Filter plate thickness (mm)	Plate size (mm)	Filter cake thickness (mm)	Chambers number (number)	Total volume(L)	Working pressure(Mpa)	Motor power (kW)	Weight (kg)	Overall dimensions (lengthwidthheight) (mm)
60	72/70	1000	40	38	1190	≤2.0	4	7670	601015601360
70	72/70	1000	40	44	1380	≤2.0	4	8090	644015601360
80	72/70	1000	40	50	1560	≤2.0	4	5810	687015601360
90	72/70	1000	40	56	1750	≤2.0	4	8930	730015601360
100	72/70	1000	40	62	1940	≤2.0	4	9350	774015601360

Application areas

Filter presses are suitable for almost all types of slurries, such as:Ceramic industry, stone industry, glass industry, mining industry, coal washing industry, sand washing industry, paper drawing industry, food industry,Chemical and pharmaceutical industry, electroplating industry, Textile printing and dyeing, leather industry, municipal pulp, etc.

feature

Low residual moisture and high capture rate;

Low energy consumption, reliable and automated operation;
Rugged and durable design suitable for harsh working conditions;

Long service life, high operational availability, and free access to the board set;
Special design for corrosive media;
Modular design, customer-oriented process solutions.
