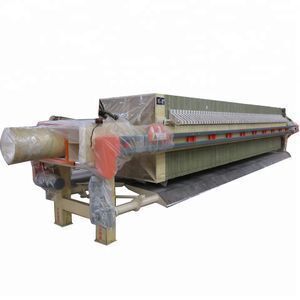

Automatic Washing High Pressure PP Plate Membrane Filter Press

Supplier: Zhengzhou Uniwin Machinery And Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Bruce Xia
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	Customer's requirement;	Production Capacity:	High Efficiency;
Supply Ability:	50 Set/Sets per Month;	Automatic Grade:	Automatic;
Filtrering Method:	Water/Air;	Place of Origin:	Henan China;
Port:	Tianjin Qingdao Shanghai sea port,etc;	Power(W):	2.2-15;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Brand Name:	China Uinwin;
Packaging Detail:	Plastic film wrap with wooden case for US high configuration filter press manufacturer for refining pharmacy food industry.;	Filter area:	30-1000 M2;
Name:	Automatic Washing High Pressure PP Plate Membrane Filter Press;	Delivery Detail:	15-20 Days after receiving deposit for the membrane filter press;
Material of Filter Plate:	PP;	Dimension(LWH):	Decided on model required;
Voltage:	Customer Requirement;	Weight:	3-70Tons;
Type:	Automatice Filter Press;	After-sales Service Provided:	Engineers available to service machinery overseas;
Plate Size:	870-2000 MM;	Certification:	ISO9001 CE;
Plate NO:	23-141 PCS;	Condition:	New;
Filtration Pressure:	0.8 MPa;	Application:	Chemical Pharmaceutical Mine Sludge dewatering;
Warranty:	1 Year;

Automatic Washing High Pressure PP Plate Membrane Filter Press

Product Description

Product Introduction

Membrane filter press is one kind filter press that using the membrane filter plates. In the process of operation, in the end of feeding the material, high hydraulic liquid or gas(0.8-2.0mpa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered, which is usually called membrane squeeze.

The features

* Shorten Filter Time

Compared to Plate and Frame Filter Press, Membrane Filter Press shorten filter time clearly, in the late period of filtering, Plate and Frame Filter Press takes a lot of time to compress water, its filtering efficiency is too low; however, filter with membrane , the cost of time is shorter, efficiency rises a lot.

* Save Electric Power

Save operation power, in the late period of filtering, small flow, high pressure, feeding pump consumes high power; however, filter with membrane, in the condition of high moisture, open air filter to finish this process in a shorter time and save electric power.

* Decrease Moisture Content of Filter Cake

Increasing filter cake dryness and decrease moisture content of filter cake, filter with membrane has a second time filtering on filter cake that was finished by static filtering. Restructuring filter cake and increasing density is for that substitutes a part of moisture content and increases filter cake dryness. According to former experience it can decrease 10%-40% moisture content. For different industries, the lowest moisture content can reach 12.5%.

* PH Valve can be Washed Thoroughly

In the process of working that needs wash acidity and alkaline chemicals of materials repeatedly, Membrane Filter Press can do it better.

* Improve Processing Capacity of Filter Press

Increasing operation elasticity of filter press, especially the operation of washing mud cake.

The advantages

* Shorten Filtering Time

* Decreasing moisture content of filter cake,

* Washing chemicals in the filter cake thoroughly

* Save Electric Power

* High Filtering Pressure

* Good Quality of Anti-corrosion

* Convenient in Fixing

Work Principle

In the process of operation,press system(piston of the oil cylinder or lead screw drive ) push the head plate, compress the filter plate and filter cloth between head plate and end plate, then the filter chamber is formed between the compressed filter plate and filter cloth. Materials that are pushed by the feeding pump enter into each filter room through feeding hole of end plate. In this way, solid particles will be intercepted in the filter room and formed filter cake. And liquid will discharge from the liquid hole through filter cake and filter cloth. After ending of feeding materials, convey air or water into filter plate through distribution tube to expand membrane plate, in this way, filter plate compress materials again in order to decrease moisture content of the filter cake and at the same time increase the dryness of the filter cake.

The diagram of cakeformation of membrane filter press.

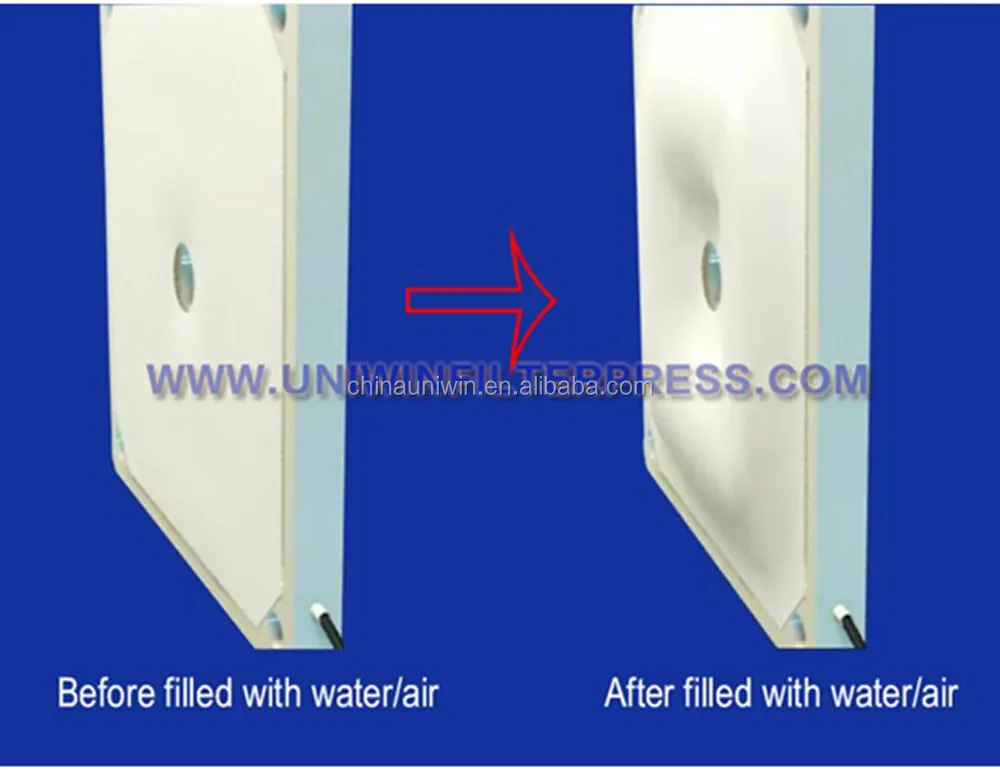

The previous and present change while feeding water or air.

Technical Data

Technical data of the membrane filter press:

Model	Filter area (M2)	Filter chamber volume (L)	Plate NO. (PCS)	Filtration pressure (Mpa)	Weight (Kg)	Dimensions (MM)	Foundation Size (MM)
Model	Filter area (M2)	Filter chamber volume (L)	Plate NO. (PCS)	Filtration pressure (Mpa)	Weight (Kg)	Dimensions (MM)	Foundation Size (MM)
XG30/870	30	498	23	≤0.8	3046	388012501300	2920
XG40/870	40	623	29		3593	427012501300	3300
XG50/870	50	789	37		4057	479012501300	3820
XG60/870	60	955	45		4597	531012501300	4340
XG70/870	70	1121	53		5136	583012501300	4860
XG80/870	80	1287	61		5636	635012501300	5380
XG50/1000	50	776	27		4352	427015001400	3350
XG60/1000	60	943	33		4480	477015001400	3780
XG70/1000	70	1109	39		5263	513015001400	4210
XG80/870	80	1275	45		5719	556015001400	4640
XG100/1000	100	1608	57		6555	641015001400	5490
XG120/1000	120	1941	69		7466	726015001400	6340

Applicable field

Pharmacy Industry

Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood.

Fine Chemical Industry

Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)

Wastewater Industry

Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment.
