ec11 mini rotary encoder ec11 6mm shaft encoder with key Soundwell electronic rotary encoder push pull factory
- 0.17 >=2000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| usage: | Adjust volume, temperature | type: | Rotary encoder |
| Production date code: | customized | port: | Hongkong |
| series: | EC11 | Installation type: | vertical horizontal |
| Origin: | Guangdong, China | describe: | 6mm shaft encoder with switch, ec11 rotary encoder switch |
| Supply capacity: | 10000 pieces per day | output: | pulse |
| Certification: | ISO9001;ISO14001;IATF16949 | feature: | encoder switch |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | model: | EC11 |
| RoHS part: | 100% | Packaging Details: | 1. Standard export carton with inner box 2. 1000PCS per carton 3. Carton size: 46*28*30 |
| reputation: | China's top brands | Long rotation life: | >30,000 cycles |
| brand: | Upwell |
Rotary Encoder Model | EC11 series |
Number of slots | 16/18/20/30/32 |
beans | 8/9/15/16/20 |
Operating temperature | -40℃~85℃ |
service life | 30,000 cycles minimum |
rated power | DC 5V |
Main Specifications of Ec11 Rotary Encoder
aspect | φ11mm | ||||||
rated power | DC 5V | ||||||
Number of slots | 16/18/20/30/32 | ||||||
beans | 8/9/15/16/20 | ||||||
Operating temperature | -40℃~85℃ | ||||||
service life | 30,000 cycles minimum | ||||||
application | Automotive electronics, household appliances and other related electronic equipment | ||||||

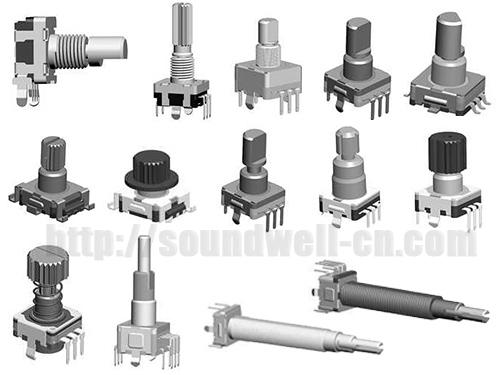

Features | Reliable small encoder; There are many different variants to choose from. | ||||||
Function | Mainly used to adjust volume, temperature, frequency and function switching. | ||||||
Ec11 Rotary Encoder Specifications
1. Mechanical properties
1. Rotation torque: 20~200gf.cm
2. Number of slots: 16/18/20/30/32
3. Shaft swing: 0.20mm Max
4. Shaft clearance: 2°Max
2. Electrical characteristics

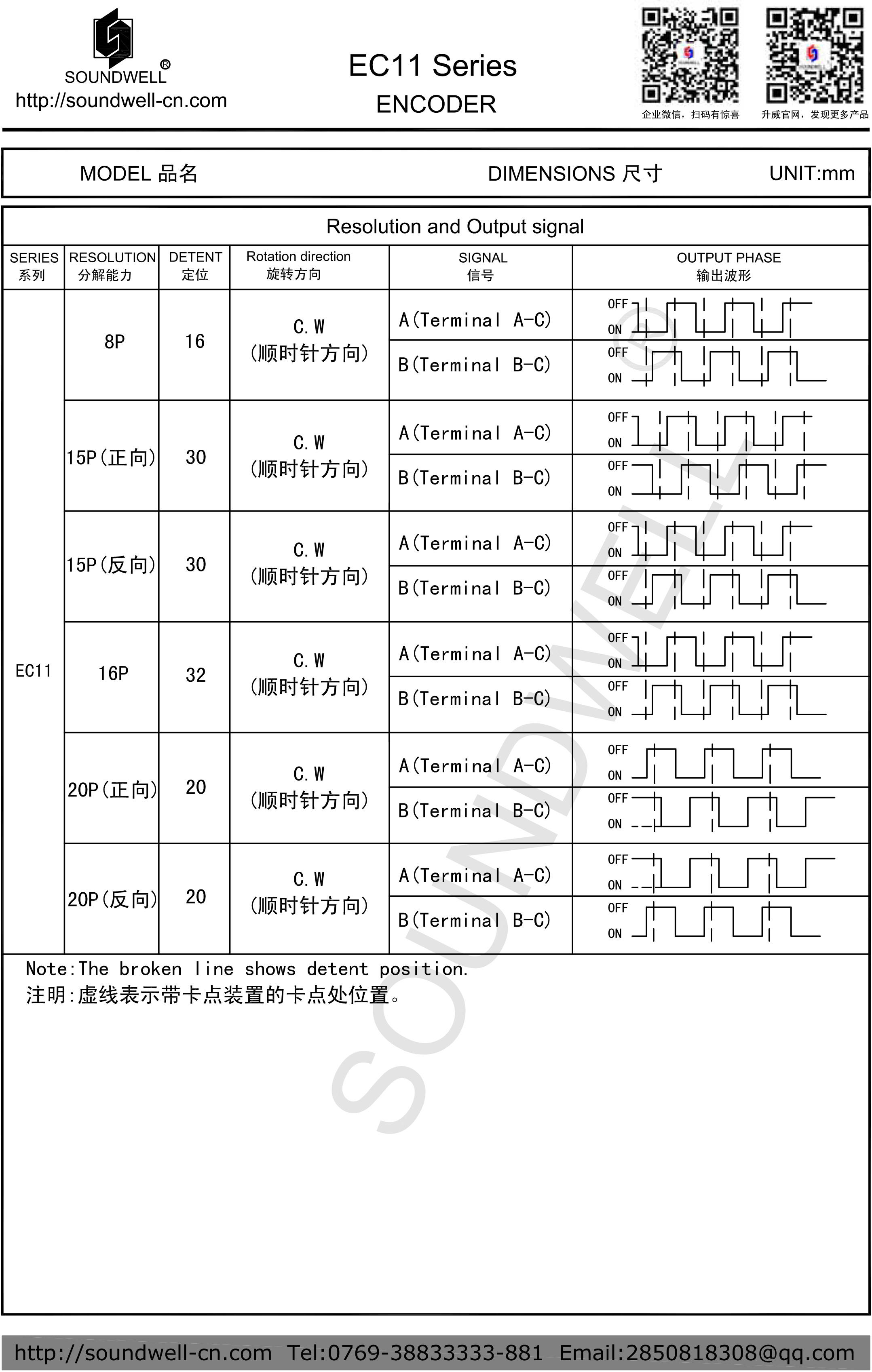

1. Resolution: 8/9/15/16/20 pulses/360°
2. Phase difference: ≥3ms
3. Rated power: DC 5V
4. Insulation resistance: 10MΩ DC 250V for 1 minute
5. Dielectric voltage: AC 50V for 1 minute
3. Endurance characteristics
1. Rotation life: 30,000 cycles Min
2. Push rod life: 20,000 cycles Min

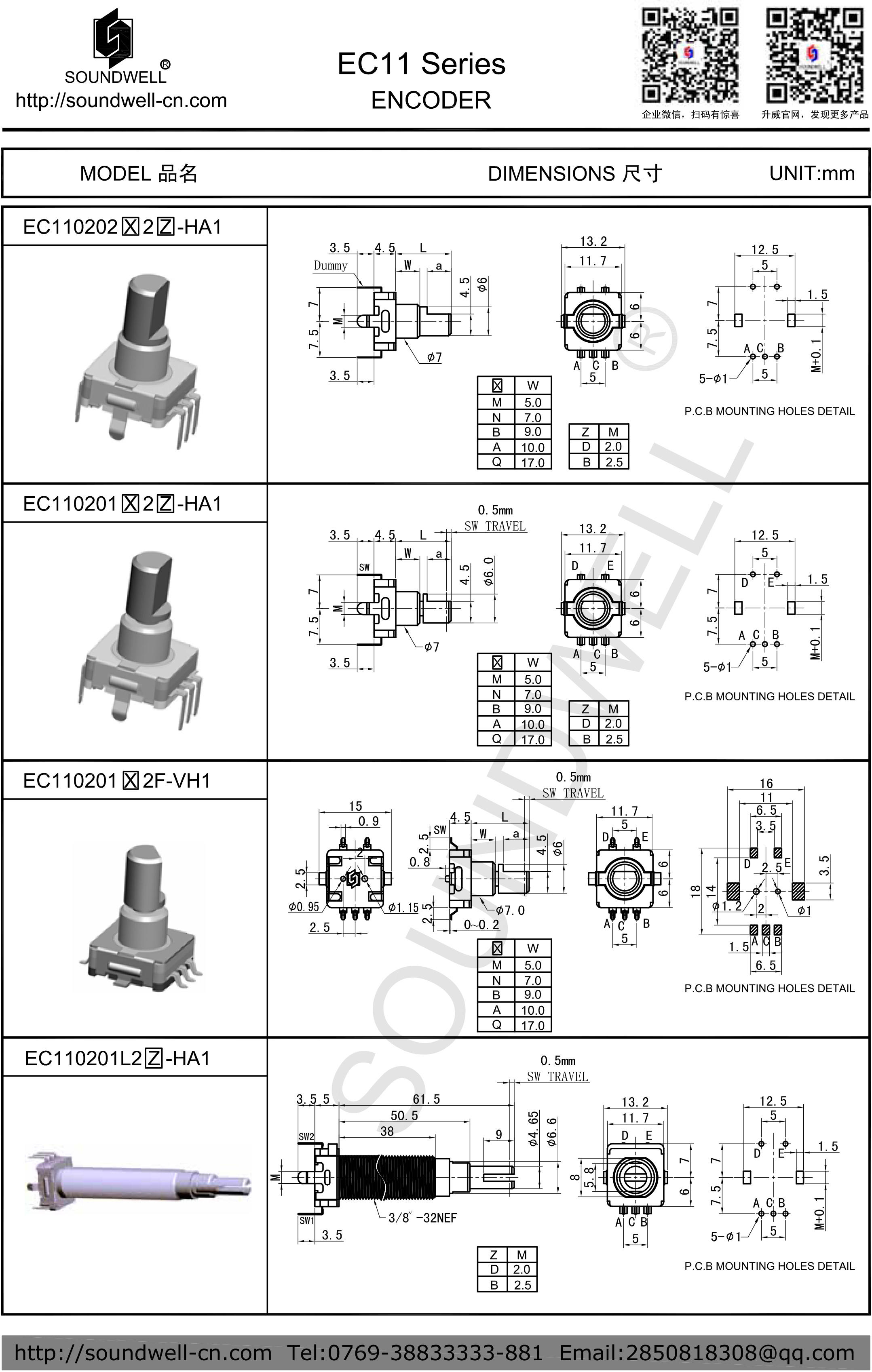

Note: In this catalog, if some parameters or drawings are different from the "Approval Letter", the "Approval Letter" shall prevail.
