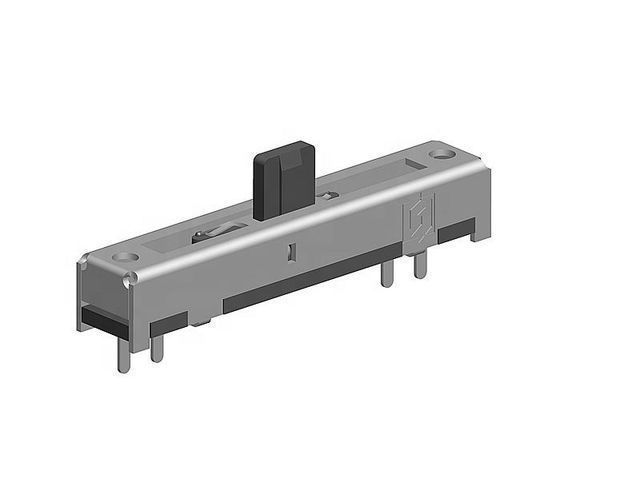

Slide potentiometer SV20-21-NOA0X-HA1
- 0.12 >=2000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| payment terms: | wire transfer | Verifiable Dimensions: | 10mm |
| Packaging Details: | plastic box, carton | model: | SV0506GCAOX-WAO |
| aspect: | 20MM | Potentiometer, slide potentiometer: | 100% |
| RoHS part: | 100% | place of origin; place of origin: | Guangdong, China |
| brand: | prestige | Supply capacity: | 10000 pieces per day |
| port: | Hongkong |
| Encoder model: | SV20 |
| Name: | Stroke Slide Potentiometer |
| Main Specifications: | Slider stroke: 20mm; Resistance tolerance: ±20%; Rated power: 0.1W; Working temperature: -10℃~70℃; Life: more than 10,000 times; |
| Features: | Intermediate products can be positioned for smaller sizes, good sliding handles. |
| application: | This product is mainly used in electronic equipment such as radios, organs, guitars, etc. The main functions are transfer station, volume adjustment, and balance adjustment. |
SV20 Product Specifications
1. Mechanical properties
1. Sliding force: 10~200gf.cm
2. Total stroke slider: 20±0.5mm
3. Stop loss: 3Kgf
4. Shaft pendulum: 2(2XL/25)mmp-p
2. Electrical characteristics
1. Total resistance range: 1KΩ
2. Resistance taper: A/B/C
3. Rated power: 0.1W
4. Insulation resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric voltage: AC100V for 1 minute
3. Endurance characteristics
1. The service life is 10,000 times
Note: If some parameter lr drawings in this catalog are inconsistent with the "Approval Document", the "Approval Document" shall prevail.
