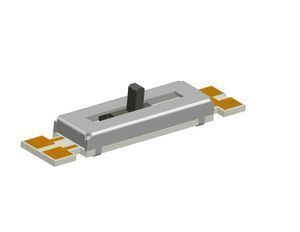

SV1003NAA0X-WAO potentiometer,slide potentiometer,potentiometers
- 0.147 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Dimensions: | 20mm/30mm/45mm/60mm; | RoHS part: | 100%; |
| Payment Terms: | T/T; | Port: | HONGKONG; |
| Accuracy Class: | /; | 10mm slide potentiometer: | 100%; |
| veriable dimension: | 20mm/30mm/45mm/60mm; | slide potentiometer,carbon potentiometer: | 100%; |
| Packaging Detail: | PLASTIC BOX, CARTON; | Supply Ability: | 10000 Piece/Pieces per Day; |
| Brand Name: | SOUNDWELL; | Place of Origin: | Guangdong China; |
| Model Number: | SV1003NAA0X-WAO; | Measuring Range: | /; |
| Encoder model: | SV10 |
| Name: | Travel Slide potentiometer |
| Main Specifications: | Slide stroke:10mm; Resistance Tolerance:±20%; Rated power:0.05W; Operating temperature:-10℃~70℃; Life: more than 5,000 times; |
| Product Features: | Products of high precision, small size, 10mm slide stroke increased adjustability. |
| Applications: | The products are mainly applied to the wire headset, mini speakers, radios and other electronic equipment, the main function is to adjust the volume, pressure and the like. |
SV10ProductSpecifications
ONE,MECHANICAL CHARACTERISTIC
1, Sliding force :10~200gf.cm
2, Total travel slide :10 ±0.5mm
3, Stop strength :3Kgf
4, Shaft Wobble :2(2XL/25)mmp-p
TWO,ELECTRICAL CHARACTERISTIC
1,Total Resistance Range :1KΩ
3,Power rating : 0.05W
4,Insulation Resistance :100 MΩ 1 Min at DC 250V
5,Dielectric Voltage :1 Minute at AC100V
THREE,ENDURANCE CHARACTERISTIC
1,Operation Life 5000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
