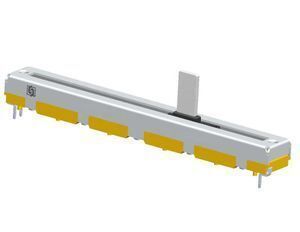

SAXX05NOAZX-HA1slide potentiometer

Supplier: Soundwell Electronic Products Guangdong Co., Ltd.
Region: Guangdong, China
Contact: Mr Angelo Wu
Price: $0.20 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Brand Name:	SOUNDWELL;	RoHS part:	100%;
Payment Terms:	T/T;	Packaging Detail:	PLASTIC BOX, CARTON;
Port:	HONGKONG;	Dimensions:	15mm/20mm/30mm/45mm/60mm;
potentiometer,slide potentiometer:	100%;	Supply Ability:	10000 Piece/Pieces per Day;
veriable dimension:	20mm/30mm/45mm/60mm;	Model Number:	SCA1005NOAZX-HA1;
Place of Origin:	Guangdong China;

Slide Potentiometer Model:	SA1003/SCA1003/SA10005/SCA1005/SKA191/SK10093
Name:	Travel Slide potentiometer
Main Specifications:	Slide stroke:100mm Rated power:0.2W The maximum operating voltage:AC 100V; Operating temperature: -10℃ ~70℃; Sliding life: more than 10,000 times;
Product Features:	100mm adjustable stroke length, stable performance, feel good, can lead wave soldering, push the handle can be with LED, products can be positioned with a midpoint. There are many rich products to choose from, can deal with a variety of different needs.
Applications:	The product is suitable for the mixer, keyboard, guitar and other related electronic devices, primarily as adjust the volume, adjust the tone to adjust the balance and so on.

SA1003/SCA1003/SA10005/SCA1005/SKA191/SK10093ProductSpecifications

ONE,MECHANICAL CHARACTERISTIC
1,Sliding force :15~150gf.cm
2,Click force :80~330gf.cm
3,Total travel slide :100mm
4,Lever Stop Strength :≥3Kgf.cm
5,Lever Wobble (mm p-p) :1.6mm Max.

TWO,ELECTRICAL CHARACTERISTIC
1,Total Resistance Range :1K2,Resistance Taper :B
3,Rating Power :0.2W
4,Max. Operating Voltage :100V AC
5,Residual Resistance:R1,2≤10;R2,3≤20
6,Insulation Resistance :100M 1 Minute at DC 250V
7,Dielectric Voltage :1 Minute at AC 250V

THREE,ENDURANCE CHARACTERISTIC
1,Rotational Life :10,000 cycles Min

Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
