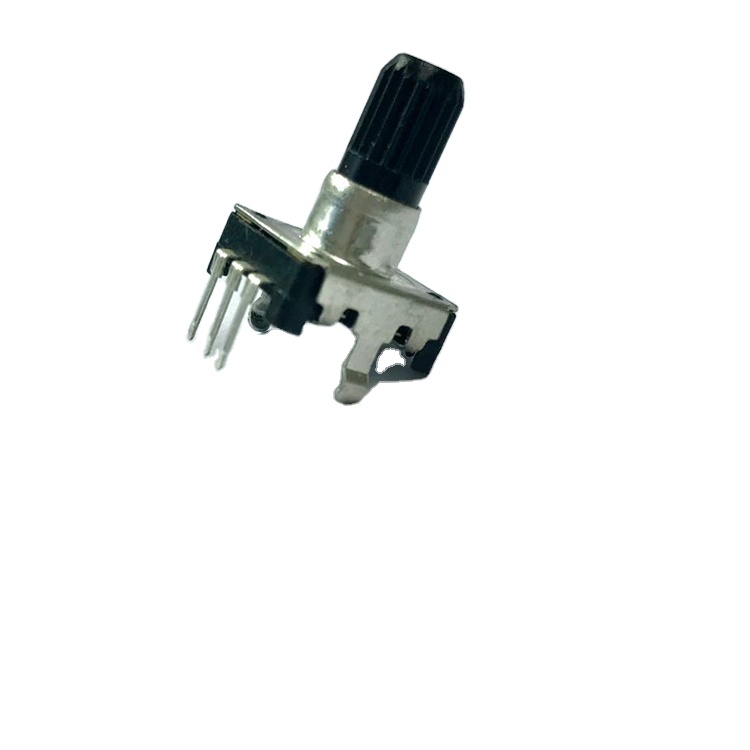

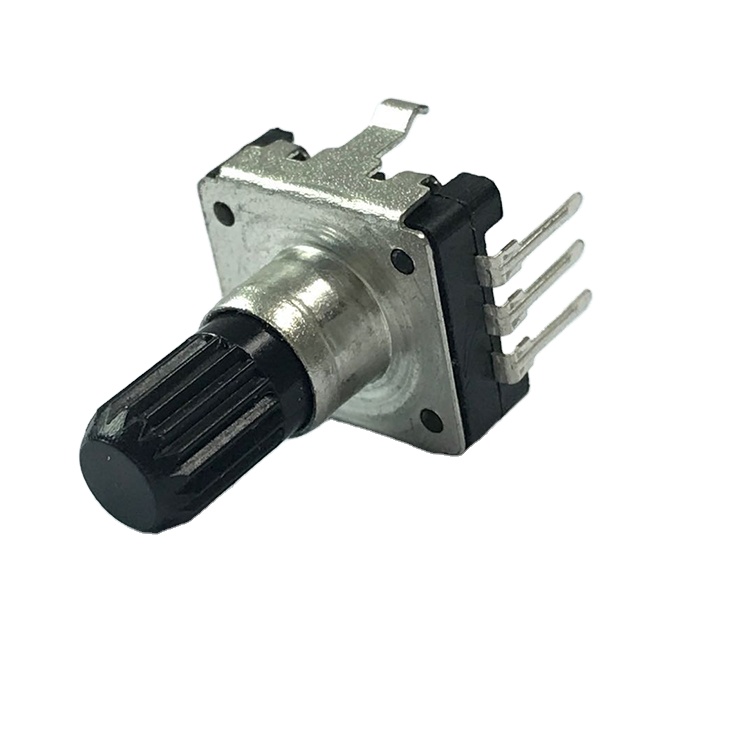

EC12 encoder 24-pulse 12-pulse encoding 360-degree rotary encoder
- 0.21 1000 - 19999 pieces
- 0.19 20000 - 59999 pieces
- 0.16 >=60000 pieces
| Voltage - Power: | DC 5V | Number of pulses (360 degrees): | 12/24 |
| place of origin; place of origin: | Guangdong, China | model: | EC1224-2L-CXX |
| output type: | A, B two-phase output | The number of clicks: | 12/24 |
| Dielectric: | AC 300V for 1 minute | Rotation life: | 30000±200 cycles≤100gf.cm |
| Installation type: | vertical | 360 degrees (endless): | 20-100gf.cm (according to customer requirements) |
| theory: | incremental encoder | payment terms: | L/C, D/P, D/P, T/T |
| Dimensions/dimensions: | 12mm | brand: | LDX |
| describe: | 12 mm encoder | Total rotation angle: | 360 degrees (endless) |
| usage: | Car audio, car air conditioner, car navigation appliances |
|

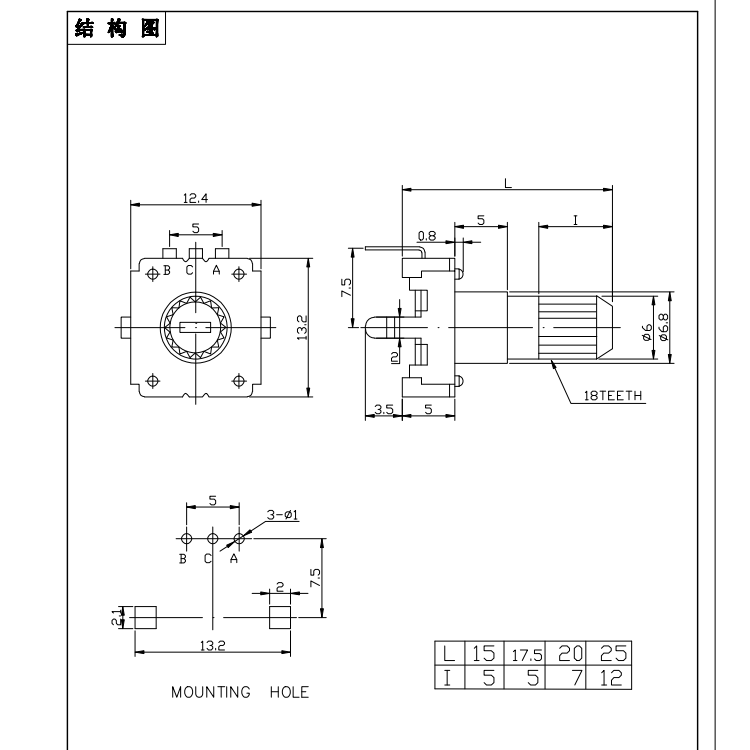

mechanical properties |
|
|
total rotation angle |
360° |
|
Click torque |
20-100gf.cm |
|
The number of clicks |
24 click step angle: 15±2° 12-click step angle: 30±2° |
|
Bushing nut tightening torque |
Minimum 8.0kgf.cm |
|
Shaft play in rotational oscillation |
5° max |
|
electrical characteristics |
|
|
score |
DC 5V, A, B lead 5mA Max, C lead 10mA Max |
|
resolution |
24 pulses/360° 12 pulses/360° |
|
Insulation resistance |
100MΩMin at DC50V |
|
Dielectric |
AC 300V for 1 minute |
|
Endurance traits |
|
|
Rotation life |
30000±200 cycles≤100gf.cm |
|
storage temperature range |
-40℃≈+85℃ |
|
range of working temperature |
-30℃≈+80℃ |
|
Welding characteristics |
Dip soldering≤206℃±5°, within 3S Manual soldering ≤300℃±5°, within 3S |
