0.22 micron and 0.45 micron rating Highly effective capsule ink filter cartridge for Inkjet printer ink and oil filtration

Supplier: Hangzhou Tianshan Precision Filter Material Co., Ltd.
Region: Zhejiang, China
Contact: Ms Fiona Li
Price: $8.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	1 Year;	Type:	Capsule Filter Cartridge;
Size:	2.5", 5", 10";	Outer Diamter:	60mm, 68mm;
Certificate:	ISO9001, SGS, FDA;	Filter media:	PP, PES, PTFE, PVDF, NYLON;
Supply Ability:	500000 Piece/Pieces per Month;	Packaging Detail:	Export standard package: 1pc filter cartridge/ 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton for Inkjet printer filter;
Brand Name:	TS Filter;	Place of Origin:	Zhejiang China (Mainland);
Application1:	ink injection;	Port:	Shanghai or Ningbo;
Material:	PP;	Payment Terms:	L/C,T/T,Western Union,Paypal;
After-sales Service Provided:	Online support;	Application2:	print ink application;
Filtration area:	2000cm2;	Inlet & outlet:	Trip-clamp, hose barb, NPT;

welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.

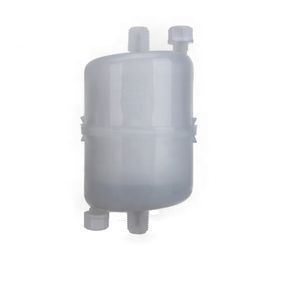

Highly effective capsule ink filter cartridge for Inkjet printer ink and oil filtration with 0.22 micron and 0.45 micron rating

The structure is made of polypropylene materials, and inside part is pleated filter assembled with thermal bonding.

The filter does not contain any adhesives and other chemicals.

Our capsule filter has different material & micron for your options.

They can be also high-pressure autoclave sterilization.

They are suitable for small dose laboratory filtration of liquid or gas, like 1~20 litres.

With PP cage, can be used directly, no need Stainless Steel filter housing and saving cost. Installation is very simple, it's convenient to use, without spillage and leakage; Various type&size connector, e.g. thread, hose barb.

Particularly suitable for pre-filtration and final stage of laboratory filtration with small dose from 1 to 20 liters.

Our capsule filter can ultilize different types of membrane material (PP,PS,PN,PF,PV) as per diffferent application condition, to mee the strict requirements of filtration.

Comprehensive presentation

Specifications

Appliction	PP capsule filter	Prefiltration of reverse osmosis and ultrafiltration
		Aqueous and solvent filtration
		Chemical industry filtration: ink, dye, developer
	PES capsule filter	Larger volume filtration
		Water based solvent filtration in food industry
		The filtration of liquid, small injection and tissue cultures in pharmaceutical industry
	Nylon capsule filter	Larger volume filtration
		Water based solvent filtration in food industry
		The filtration of liquid, small injection and tissue cultures in pharmaceutical industry
	PTFE capsule filter	Corrosive fluid filtration
		Filtration for photoresist in LCD industry
		Gas and air filtration in vent
		Dye filtration in the optical storage industry of CD, DVD production
		Solvents & liquid filtration in the chemical industry, biological pharmacy,laboratory, etc
	PVDF capsule filter	High viscosity liquid filtration
		Viscous liquid filtration in the food industry
		Corrosive liquid filtration in the pharmaceutical industry

Technical Data

Structure	Membrane	Adopt different membrane as per detailed application condition.
	Support media	polypropylene fiber
	Outer cage	polypropylene
	Inner core	polypropylene or Stainless Steel
	Endcap	polypropylene
Pore size	PP) polypropylene	0.10,0.20,0.45,1.00, 3.00,5.00,10.0µm
	(PS) Polyethersulfone	0.10,0.20,0.45,0.65µm
	(PF) Polytetrafluoroethylene	0.10,0.20,0.45,1.00µm
	(PV) Polyvinylidenefluoride	0.20,0.45,1.00µm
	(PN) Nylon	0.10,0.20,0.45,0.65,1.00µm
