High quality rotary vacuum ceramic disc filter for water treatment and solid liquid separation

Click here to contact
Product details
Video outbound inspection:ifWarranty:1 year
Marketing Type:Hot Products of 2019port:Qingdao
Packaging Details:4x 40'HC or 40'OT, or 40'FROrigin:Henan, China
Package preview:Supply capacity:5 sets per month
payment terms:L/C, T/TCore component warranty:1 year
feature:high efficiencyFilter media:Ceramic filter plate
Weight (kg):8000Core components:PLC, bearings, gearboxes, motors, vacuum pumps, ceramic filter plates
Health status:newApplicable industries:Manufacturing plants, food and beverage plants, farms, energy and mining, water treatment, solid-liquid separation
Showroom location:not anyMechanical test report:if
application:filter

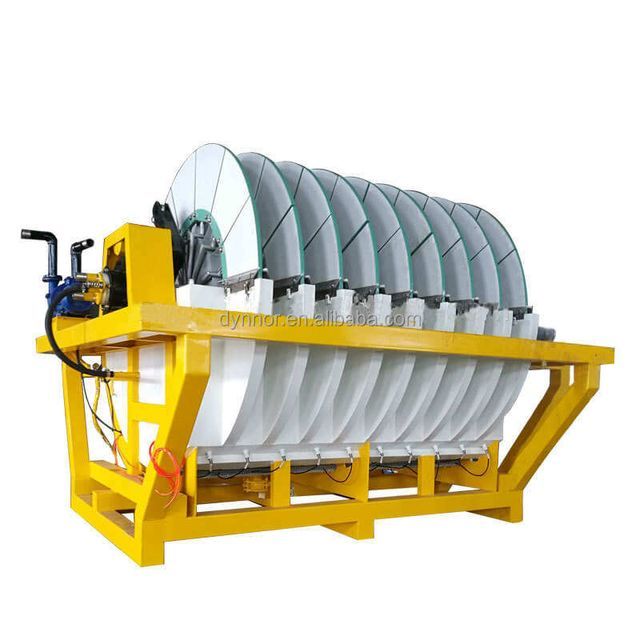

Vacuum Ceramic Disc Filter

Vacuum ceramic disc filter is a high-efficiency and energy-saving filtering equipment, which uses vacuum and microporous ceramic plates for solid-liquid separation. The filter plates are made of white fused alumina, which is resistant to almost all temperatures and corrosive materials and has a long service life. The microwells in the plate allow only liquids to flow through, blocking air and solids. When the ceramic filter plate is immersed in the slurry tank, the filtrate is sucked out and a filter cake is formed on the surface of the plate



Ceramic filters ensure high productivity and excellent process results in mining applications. The equipment can achieve high-efficiency dehydration with a competitive investment budget, low installation and operating costs, and high safety. Our company's products are widely used in the beneficiation and tailings separation of non-ferrous metals, ferrous metals, rare metals and electrolytic slag oxides, chemical industry, environmental protection and other industries. The material fineness ranges from 0.4um to 0.75um and various ultrafine materials.



Typical technical data

Model Filtration area (m2) Filter plate ring Quantity Number of filter plates (pieces) Tank volume
(cubic meter)		 Installed power
(kilowatt)		 Operating power (kW) Dimensions
(L*W*H), (m)
TC-1 1 1 12 0.21 4.5 4.3 1.2*1.5*1.4
TC-4 4 2 twenty four 1 6 5.8 1.6*1.9*2.1
TC-6 6 2 36 1.2 8 7.5 3.0*2.2*2.1
TC-9 9 3 36 1.7 9 8.5 3.0*2.8*2.6
TC-12 12 4 48 2.2 13 12.5 3.6*2.8*2.6
TC-15 15 5 60 3.7 13 12.5 3.8*2.8*2.6
TC-18 18 6 72 3.7 15 14.5 4.1*2.9*2.6
TC-21 twenty one 7 84 4.8 number 17 16.5 4.6*2.9*2.6
TC-24 twenty four 8 96 5.5 17.5 16.5 4.6*2.9*2.6
TC-27 No. 27 9 108 6 17.5 16.5 5.2*2.9*2.6
TC-30 30 10 120 6.7 twenty one 20.5 5.5*2.9*2.6
TC-36 36 12 144 8 33 32 6.0*2.9*2.6
TC-45 45 15 180 10 33 32 6.6*2.9*2.6
TC-60 60 15 180 12.5 47 46.5 6.7*3.3*3.0
TC-80 80 20 240 16.4 53 52.5 8.2*3.3*3.0
TC-102 102 number 17 204 18.5 71 70.5 7.9*3.6*3.3
TC-120 120 20 240 20 80 78.5 8.7*3.6*3.3
TC-150 150 25 360 twenty four 92 91 9.2*3.6*3.3
