Simple Dry Mixed Mortar Production Line Plant

Supplier: Zhengzhou DynNor Industrial Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Leon Liao
Price: $4800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	DINGLI;	Power(W):	7.5-11kw;
Warranty:	12 months;	Dimension(LWH):	2.8x1.1x2.1m;
material size:	0.01-2mm;	Port:	QINGDAO;
construction material:	carbon steel;	Local Service Location:	None;
Weight:	1.2 ton;	Supply Ability:	100 Set/Sets per Month;
Key Selling Points:	Easy to Operate;	Application:	putty, dry mixed powder, adhesive;
Features:	Electric discharging;	After Warranty Service:	Online support,Field maintenance and repair service;
Condition:	New;	Mixer Type:	ribbon mixer;
Applicable Industries:	Manufacturing Plant;	After-sales Service Provided:	Engineers available to service machinery overseas;
shape:	cylinder type;	Certification:	ISO, CE;
Payment Terms:	L/C,T/T;	Place of Origin:	Henan China;
mixing time:	3-6 minutes;	Showroom Location:	None;
Packaging Detail:	nude packing;	Voltage:	380v,415v,480v;
application scope:	dry mortar, putty, tile adhesive and others;

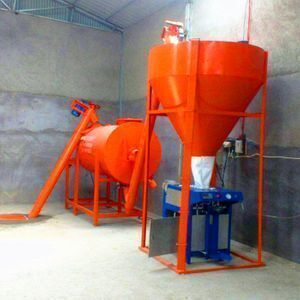

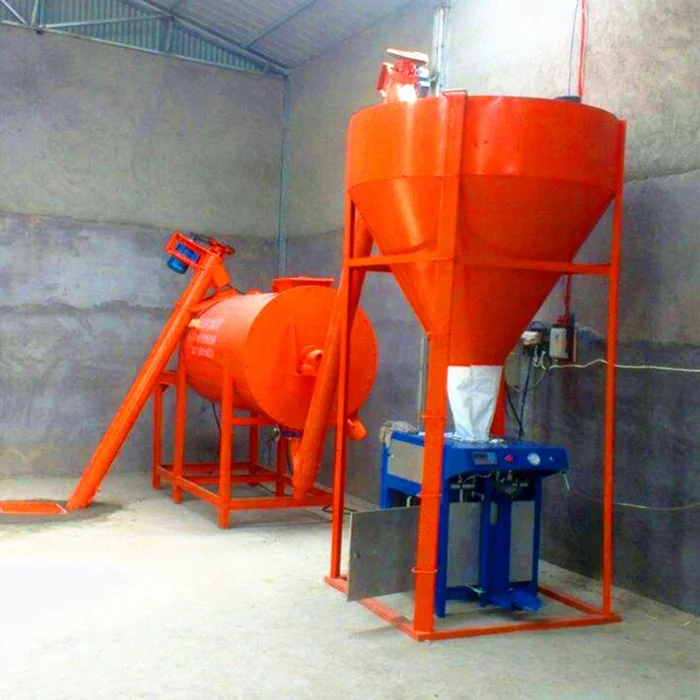

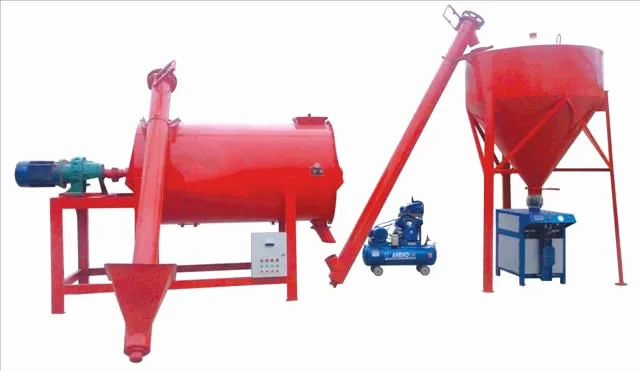

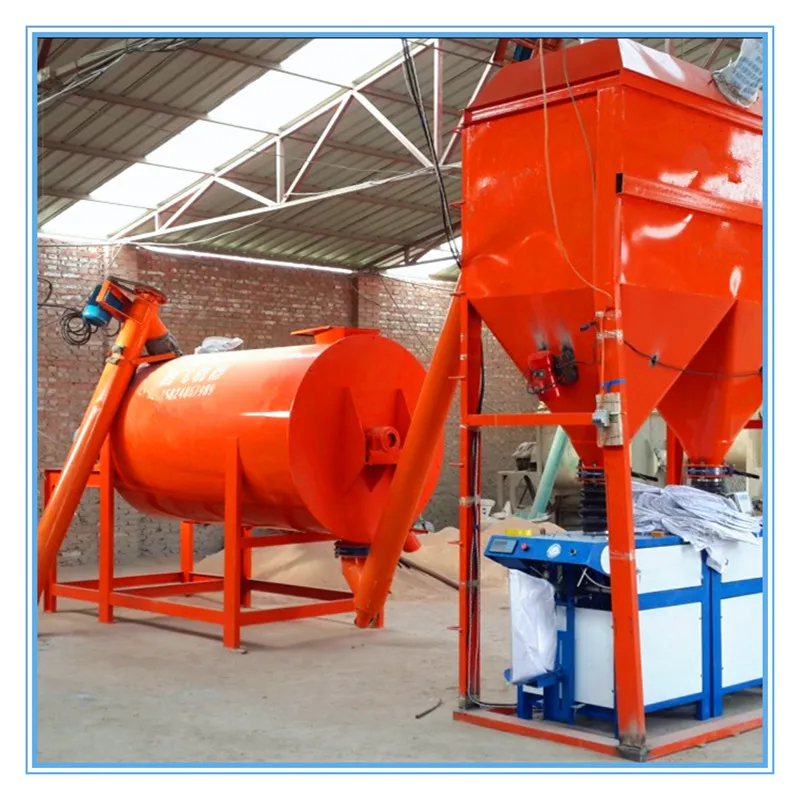

Simple Dry Mixed Mortar Plant

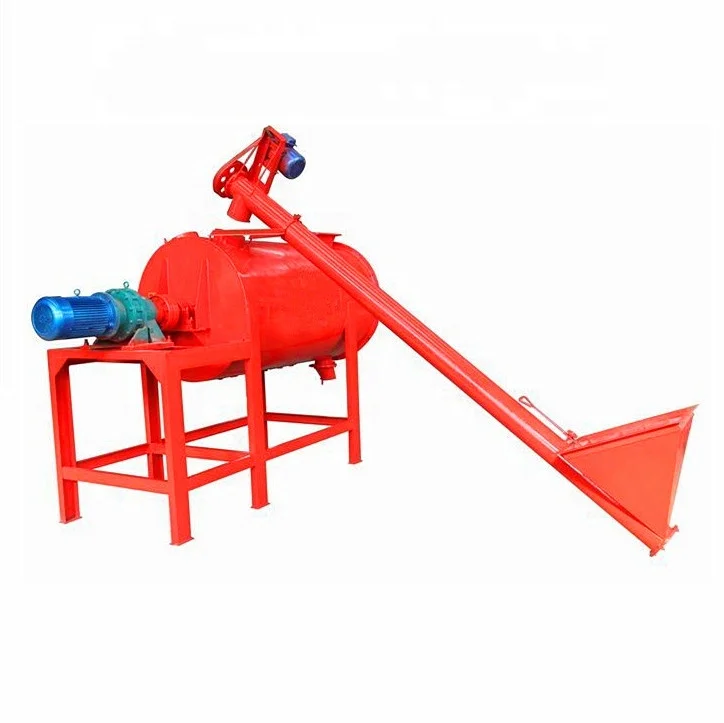

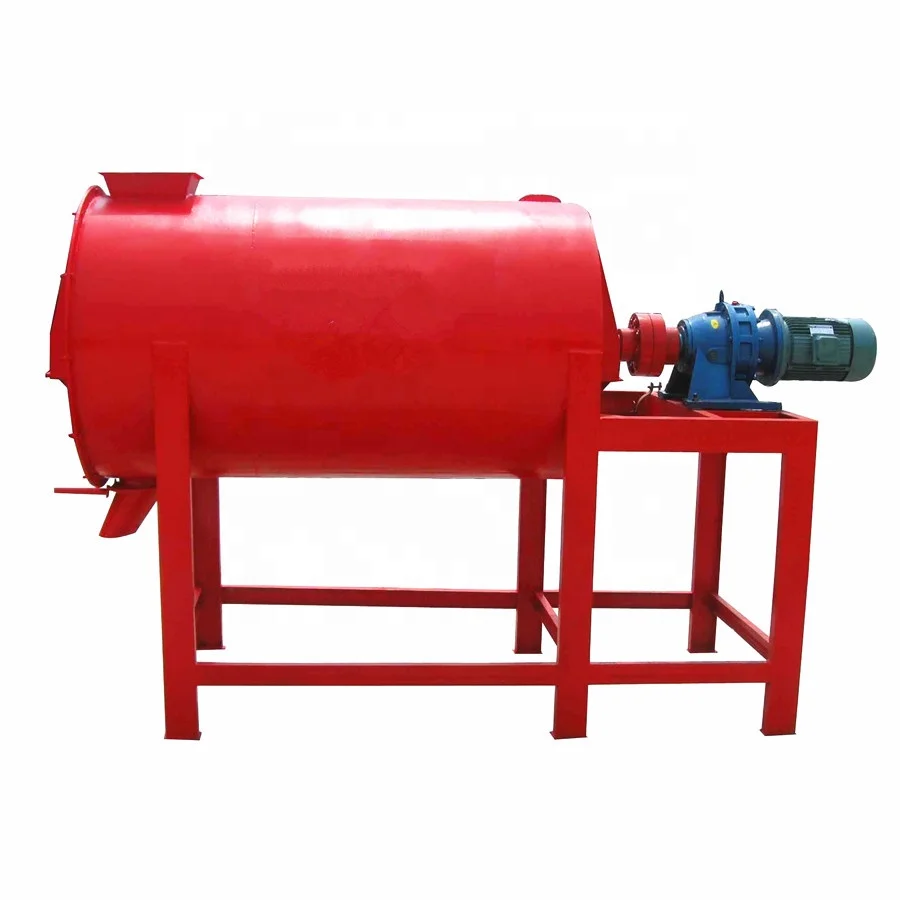

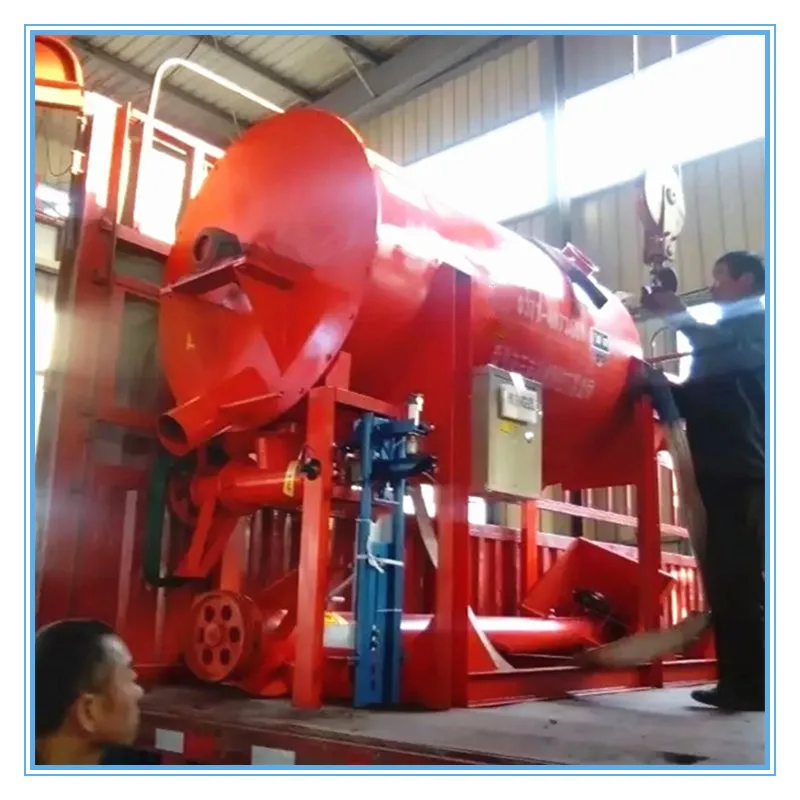

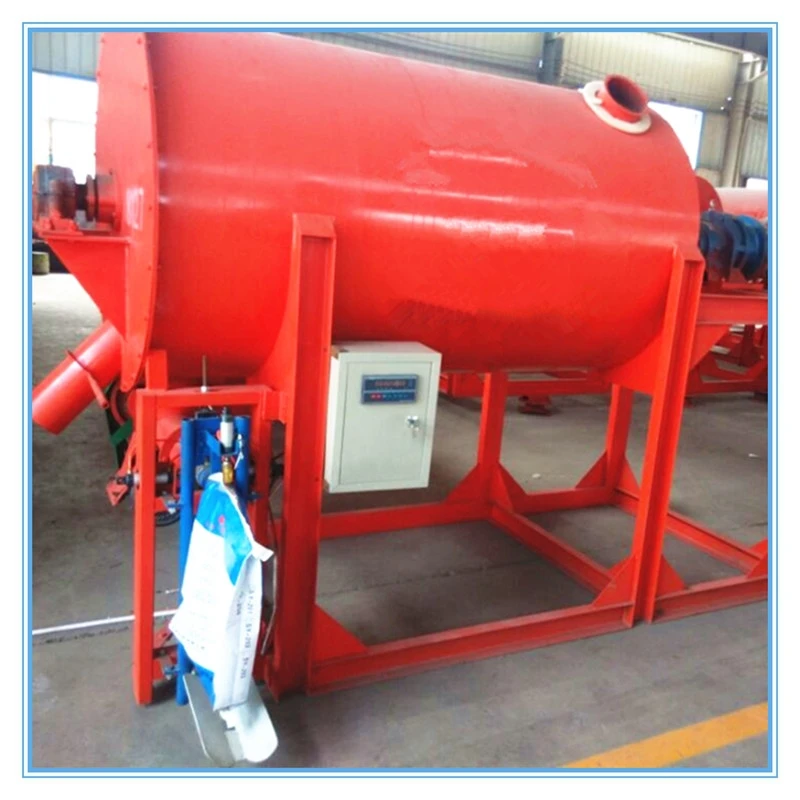

Description of horizontal dry mortar mixer:

Dry mortar mixer is able to meet the performance requirements of dry mortar, dry material, adhesive powder production needs, such as: putty powder, powder coating, masonry mortar, plaster mortar, insulation mortar, decorative mortar needed by the system and so on all kinds of dry powder mortar; And covers an area of small, less investment, quick effect, simple operation, and many other advantages.

Features of Dry mortar mixer:

1. It adopts screw conveyor discharge, discharges fast;

2. The material is flexible, and open valve pocket bag can be used;

3. The basic accurate precision of electric control system can make the finished product packing, save the cost of users to buy automatic quantitative packaging machine;

4. Small investment, quick effect, apply to an individual or a small processing plants.

Detailed introductin of dry mortar mixer:

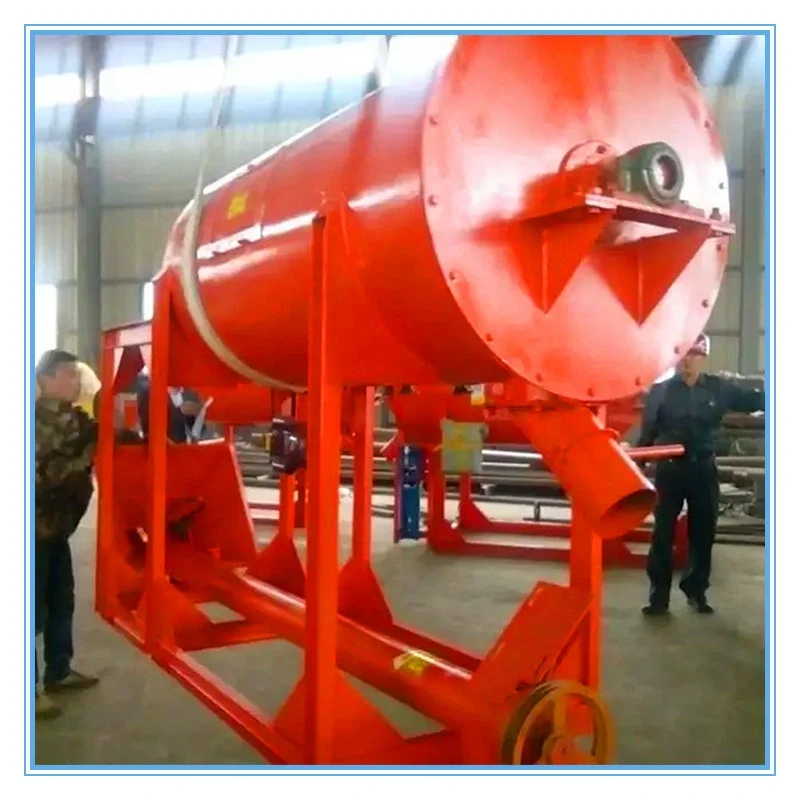

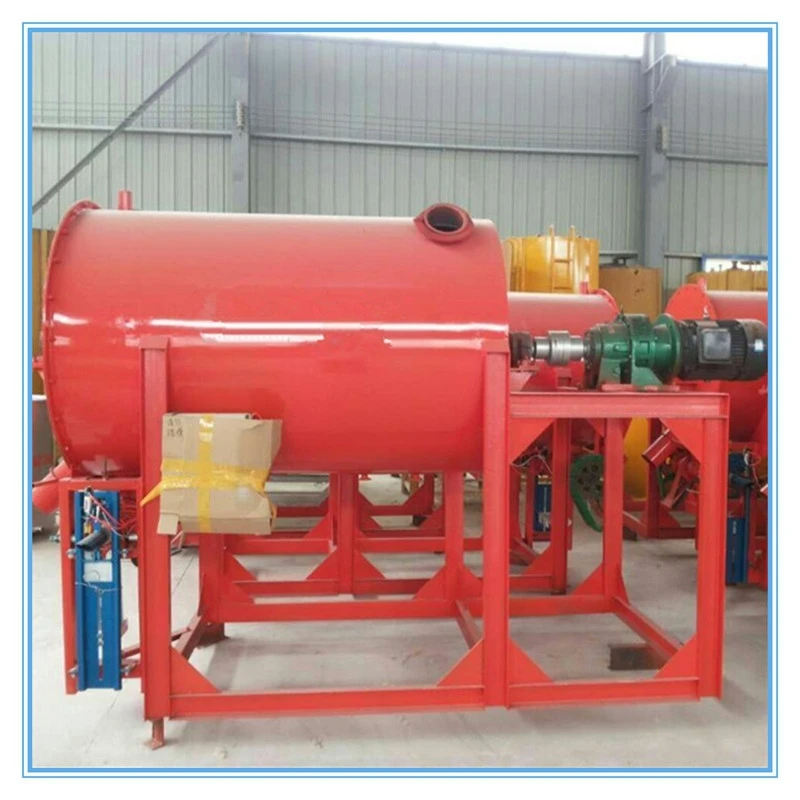

1, this machine is horizontal cylinder, three layers inside and outside whose spiral belt has a unique structure, smooth operation, reliable quality, low noise, long service life, easy installation and maintenance, and has a variety of agitator structure, USES a wide range of multifunctional mixing equipment;

2, fast mixing, high mixing uniformity, especially the viscosity, spiral belt can install scraper, more adapt thickens, paste mixed;

3, under the request of different material mixed (special materials must be clean every time after mixing), with different spiral band structure, heating, drying of model;

4, can be customized according to customer's requirements.

5, horizontal door the body can also be equipped with activity, so that for user to clean.

6 a reliable after-sales service, let customers buy the rest assured, with enjoyable.

Techinical specification of dry mortar mixer:

Model	500	1000	1500	2000	3000
Mixing time (minutes)	10-15	10-15	15-20	15-20	15-20
Motor power (kw)	3	4	5.5	7.5	11
Batch capacity kg(L)	500	1000	1500	2000	3000
rotating speed (r/min)	400	400	400	400	400
Material size(mm)	0.01-2	0.01-2	0.01-2	0.01-2	0.01-2
Eveness degree(CV)	>95%	>95%	>95%	>95%	>95%
