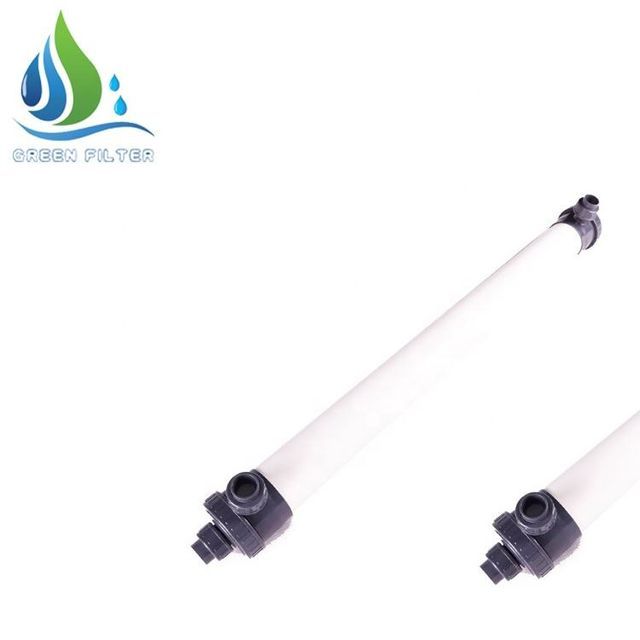

pvdf/pan with empty fiber uf ultrafiltration membrane 4040 industrial water filter price
-
Supplier: Tianjin Green Filter Environmental Protection Co., Ltd. -
Region: Tianjin, China -
Contact: Ms Summer Zhang -
Price: $10.00 /piece -
Min. Order: 1 piece
| Model: | 4040 | Pore Size: | 0.01um |
| Health status: | new | Material: | pan |
| payment terms: | L/C, D/P, T/T | port: | Tianjin/Guangzhou/Shenzhen/Shanghai |
| Membrane area: | 4M2/4.6M2 | product name: | Ultrafiltration membrane 4040 |
| Weight (kg): | 5 | Module type: | Inverted |
| Mechanical test report: | if | Marketing Type: | normal product |
| Function: | pure water cycle | Showroom location: | not any |
| Warranty: | 1 year | Packaging Details: | carton or pallet |
| Origin: | Tianjing, China | Video shipment inspection: | if |
| Supply capacity: | Monthly production of 100,000 ultrafiltration membranes 4040 | Applicable industries: | Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies |
| Core components: | pressure vessel | Housing and Seal Material: | polyvinyl chloride, epoxy resin |
| brand: | green filter | Core component warranty: | 1 year |
| Package preview: |
pvdf/pan hollow fiber uf ultrafiltration membrane 4040 price industrial water filter
|
Model |
PAN-1060 |
PAN-8060 |

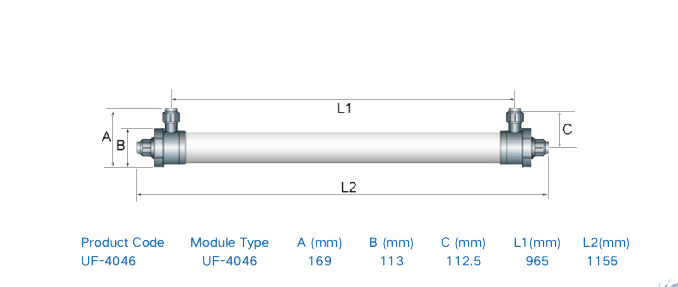

PAN-4046 |
PAN-4040 |
|
Design water flux (L/m2/h) |
40-120 |
40-120 |
40-120 |
40-120 |
|
water production index (SDI15) |
<3 |
<3 |
<3 |
<3 |
|
Filtration Turbidity (NTU) |
"1 |
<1 |
<1 |
<1 |
|
Escherichia coli removal rate (log) |
>6 |
>6 |
>6 |
>6 |
|
Virus clearance rate (log) |
>4 |
>4 |
>4 |
>4 |
|
Membrane |
pan |
pan |
pan |
pan |
|
MWCO (Dalton) |
80,000-10,000 |
80,000-10,000 |
80,000-10,000 |
80,000-10,000 |
|
Hollow Fiber Inner Diameter/Outer Diameter (mm) |
1.0/1.6 |
1.0/1.6 |
1.0/1.6 |
1.0/1.6 |
|
Membrane area (m2) |
50 |
25 |
4.5 |
4 |
|
Maximum feed pressure (MPa) |
0.3 |
0.3 |
0.3 |
0.3 |
|
maximum. trans-membrane Pressure (MPa) |
<0.2 |
<0.2 |
<0.2 |
<0.2 |
|
normal transmembrane Pressure (MPa) |
0.01-0.1 |
0.01-0.1 |
0.01-0.1 |
0.01-0.1 |
|
maximum work temperature (°c) |
40^ |
40℃ |
40 tons: |
40℃ |
|
pH |
Pan 3-9 |
Pan 3-9 |
Pan 3-9 |
Pan 3-9 |
|
back wash pressure (MPa) |
<0.2 |
<0.2 |
<0.2 |
<0.2 |
|
Backwash flux (L/m2/h) |
100-200 |
100-200 |
100-200 |
100-200 |
-
