Patches 3d rubber patch label pvc dispensation pvc rubber patch car pvc rubber ovin

Supplier: DongGuan FuLund Intelligent Technology Co.,Ltd
Region: Guangdong, China
Contact: Mr Jeff Su
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

application:	Production of PVC and silicone products	brand:	Furlong
Warranty:	1 year	payment terms:	L/C, Western Union, T/T, MoneyGram
Core components:	PLC, pressure vessel	Cavity:	single cavity\multi cavity
Power (kW):	10.5	Supply capacity:	200 sets per month
weight:	60	Type of machine:	other
Marketing Type:	normal product	Surface treatment:	texture
port:	Shenzhen	Shaping mode:	injection mold
Origin:	Guangdong, China	Showroom location:	not any
Main selling points:	easy to operate	Dimensions (LWH):	other

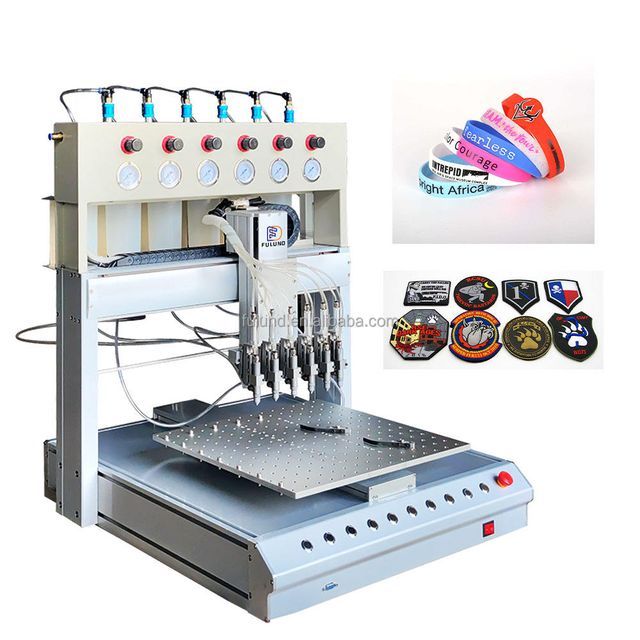

product name:	6 color drop plastic machine	Package preview:
Core component warranty:	1 year	Key words:	Injection Molding Services
Applicable industries:	factory, other	Mechanical test report:	if
Packaging Details:	wooden box	Voltage:	380V/220V
Video shipment inspection:	if	Health status:	new

Fulund has a long history since its establishment in 1999. Due to development needs, the original brand (TYL) will expand the new brand Fulund in 2022. Fulund has customers all over the world, such as international brand shoe manufacturers.
Fulong's main products: hot labeling machine, foam cutting machine, midsole hot stamping machine, tongue transfer hot stamping machine, midsole heat transfer machine, midsole cutting and transfer machine, midsole printing machine, silk screen printing machine, embossing machine, soft rubber equipment, vacuum vulcanizing machine, silicone labeling machine, dispensing machine, etc.

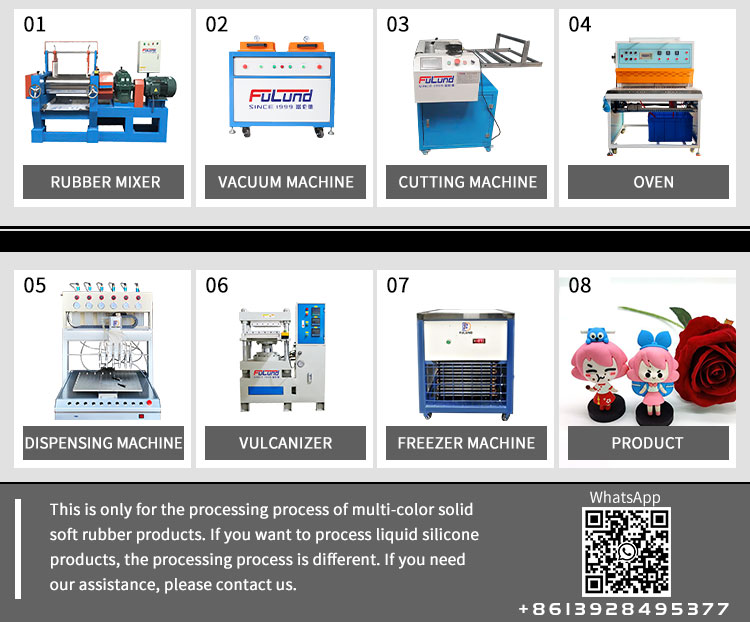

PVC product process flow chart:

1. Mixing:According to the requirements, mix the PVC material evenly in a certain proportion;
2. Vacuum:Use our dedicated PVC vacuum equipment to remove air bubbles;
3. Dispensing:Put the PVC raw material into the dispenser,
4. Drying:After the injection molding table cuts the pieces, it is sent to an energy-saving oven or a mold drying table for drying and finalizing;
5. Filling bottom material:After the forming table enters the automatic base material filling machine,
6. Drying base material:Put the filled base material mold back into the energy-saving oven or baking mold table to dry and shape;
7. Complete:The cooling table takes out the product, cuts off the leftover material, and the plastic part of the PVC product is completed.

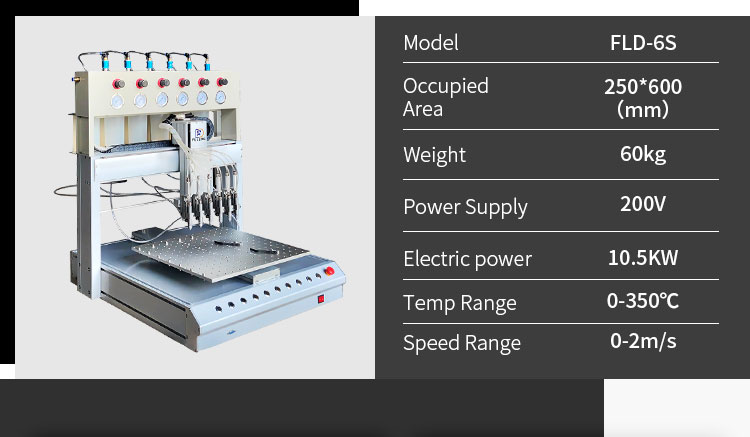

Technical Parameters:

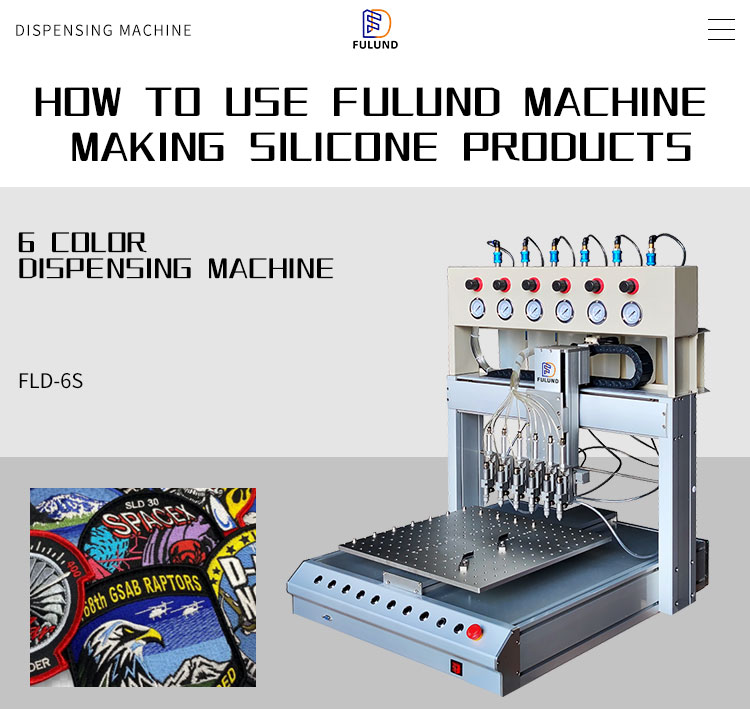

model.	FLD-6S
Voltage	380V/220V
weight	60KG
strength	10.5KW
speed range	0-2 m/s
occupied area	600*250mm
temperature range	0-350℃

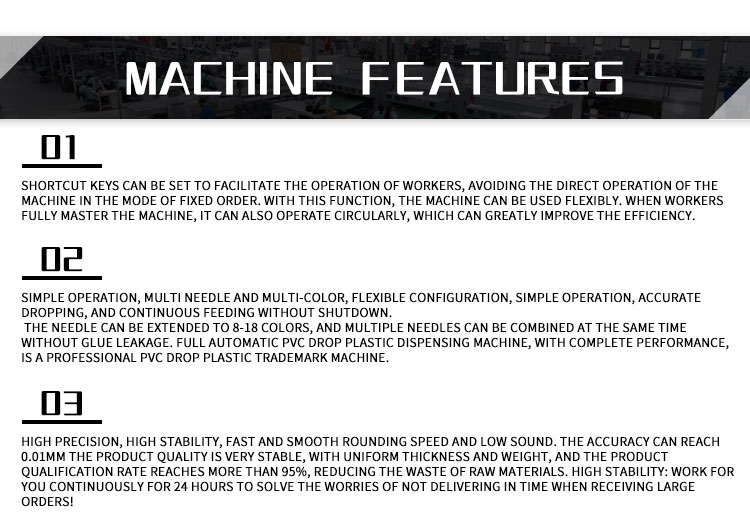

Machine Features:

1: Shortcut keys can be set to facilitate the operation of workers and avoid direct operation of the machine in fixed order mode. With this function, the machine can be used flexibly. When the workers have fully mastered the machine, they can also operate it in a cycle, which greatly improves the efficiency.

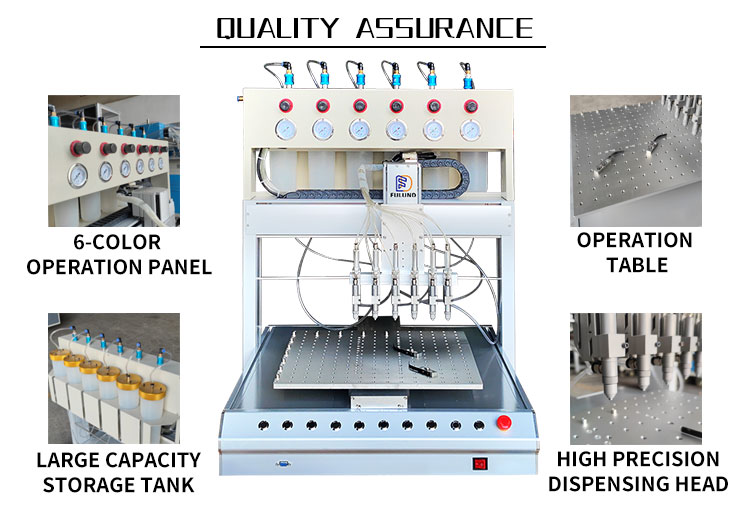

2: Simple operation, multi-needle and multi-color, flexible configuration, simple operation, accurate dripping, continuous feeding without stopping.

The needles can be expanded to 8-18 colors, and multiple needles can be combined at the same time without glue leakage. Fully automatic PVC drop plastic dispenser with complete performance, it is a professional PVC drop plastic label machine.

This machine has the function of synchronous dispensing valve. For example, a single-color trademark can drop 12 dispensing valves at the same time, a double-color trademark can drop 6 dispensing valves at the same time, and a three-color trademark can drop 4 dispensing valves at the same time.

This machine has a function that other similar machines do not have, that is, it can produce 12 different molds at the same time within the range of use of this machine, which greatly improves the power of different molds, and reduces some customers' concerns that if the quantity is small, they You cannot use the dispenser.

3. High precision, high stability, fast rounding speed, smoothness and low sound. The precision can reach 0.01mm, the product quality is very stable, the thickness and weight are uniform, and the product qualification rate reaches more than 95%, which reduces the waste of raw materials. High stability: 24-hour uninterrupted service for you, solving the worries of not being able to deliver goods in time after receiving large orders!

Scope of application:

Drop plastic production of PVC trademarks and soft rubber labels

PVC cartoon and handicraft drop plastic production

Production of PVC shoes, bags and other clothing accessories
