High quality best price JYC-P16 manual hose crimping machine can crimp up to 1 inch with CE

Supplier: Weifang JYC Import And Export Co., Ltd.
Region: Shandong, China
Price: $650.00 / 1 - 9 sets
$550.00 / 10 - 19 sets
$450.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Packaging details:	wooden box	port:	Qingdao
deliver goods:	Crimp stock	Core components:	Engine, pump
Package preview:		Free mold:	6 sets
Showroom location:	not any	Health status:	new
Voltage:	/	Crimping range:	6-25mm
Warranty:	1 year	Model:	P16
Dimensions (lengthwidthheight):	565480400mm	Type of machine:	Hose crimping machine
Main selling points:	Easy to operate	System pressure:	31.5MPa
brand:	JYC	Crimping force:	100 tons
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Core component warranty:	1 year
application:	crimp hose	weight:	35
Place of origin:	Shandong Province, China	Supply capacity:	100 sets per month
Power (kW):	/	The maximum diameter:	1 foot
Applicable industries:	Machine repair shops, construction projects	After-sales service provided:	Free spare parts
color:	blue	Video outbound inspection:	if
Mechanical test report:	if

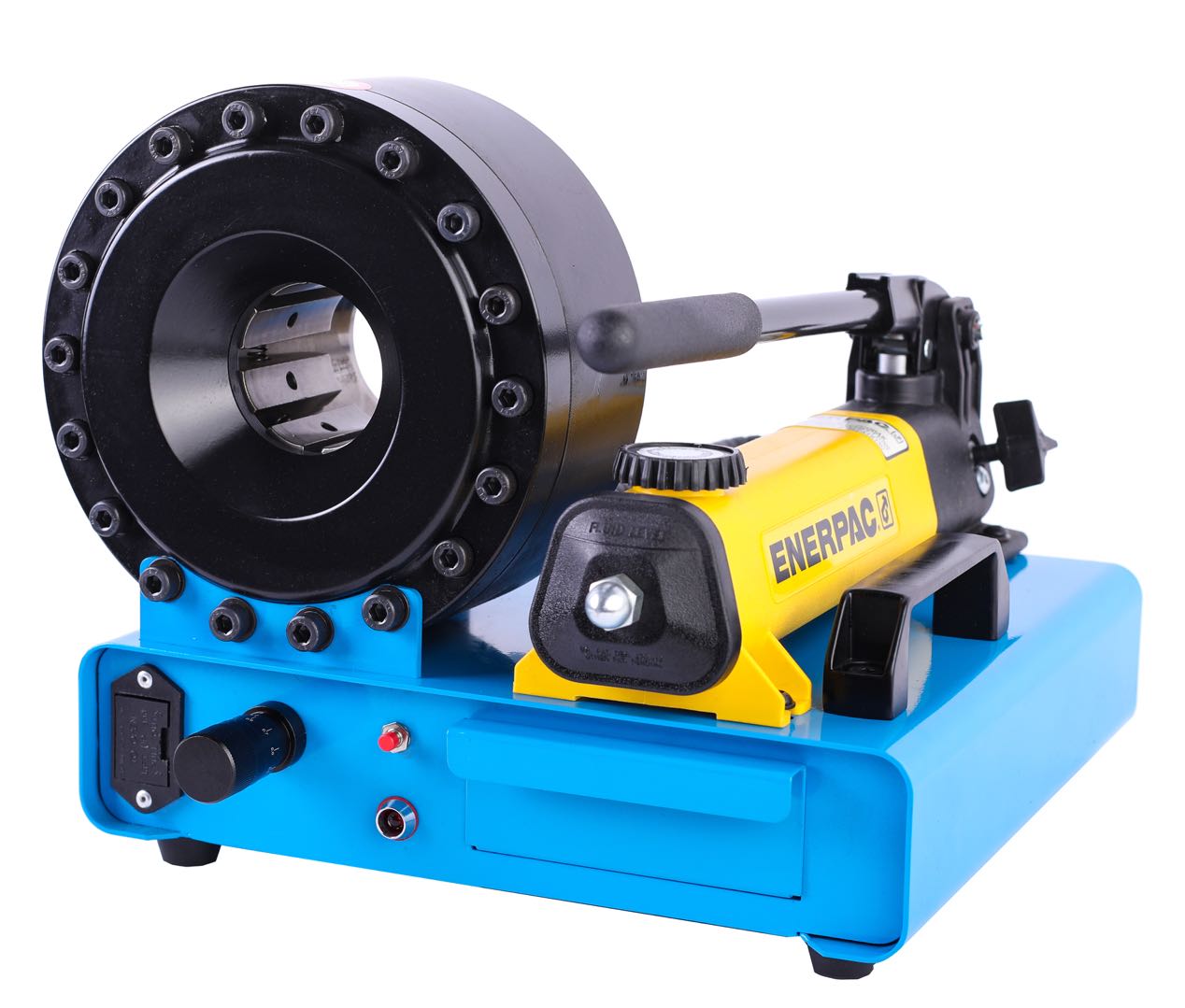

Good factory price manual hydraulic hose crimping machine

1. Suitable for hoses below 1 inch, lightweight, portable and easy to move;
2. The hose after being crimped must not have problems such as leakage, breakage, or oval.
3. This model can be used in extremely cold temperatures
4. Special molds can be provided upon request.

Good factory price manual hydraulic hose crimping machine specifications
Crimping range	6 mm to 51 mm (1/4 in to 1 in)
Mold quantity	6 sets
accuracy	0.01mm
Fuel tank capacity	5 liters
System pressure	31.5Mpa
Mold quantity	14,16,19,23,27,31
Maximum opening tolerance	±30mm
Machine size	565480400mm
net weight	35kg

Main features of 1/4" to 1" hose crimping machine rubber hose making machine

1) The hydraulic cylinder and piston are all made of one-piece precision castings. In contrast to welding processes, hydraulic cylinders and pistons do not deform during manufacture. Both the piston and the mold are moved by hydraulic drive, which has the advantages of stability and high speed, and avoids the occurrence of mold locking phenomenon. The hydraulic cylinder locking system is scientifically designed and can easily withhold various abnormal connector bends.
2) Our crimping machine has two relief valves. The high pressure relief valve works when the pipeline is crimped. The high-pressure relief valve can ensure high pressure and high-quality products, and the low-pressure relief valve works when the mold is opened. The low-pressure relief valve protects the oil seal from excessive pressure, thereby extending its service life.
3) The base has two slopes to ensure uniform pressure, the same pressure on all parts of the product, and equal gaps between product lines, without symmetry.
4) Using high-quality alloy steel materials and unique heat treatment technology to ensure the permanent mechanical accuracy and service life of the crimping machine. The life of the crimping machine is related to materials, heat treatment, machining, assembly and reasonable structure.

The oil pump is set up immersed in the tank, which reduces noise and dissipates heat quickly. The oil pump is driven by an electric motor and drives the piston to move by pumping out hydraulic oil. As the mold base moves forward, the mold exerts pressure on the hose coupling. When the shrinkage rate reaches the preset value, the pressure stops and the solenoid valve reverses. At this time, the piston moves backward, the mold opens, and the work is completed.

Mechanical Parts

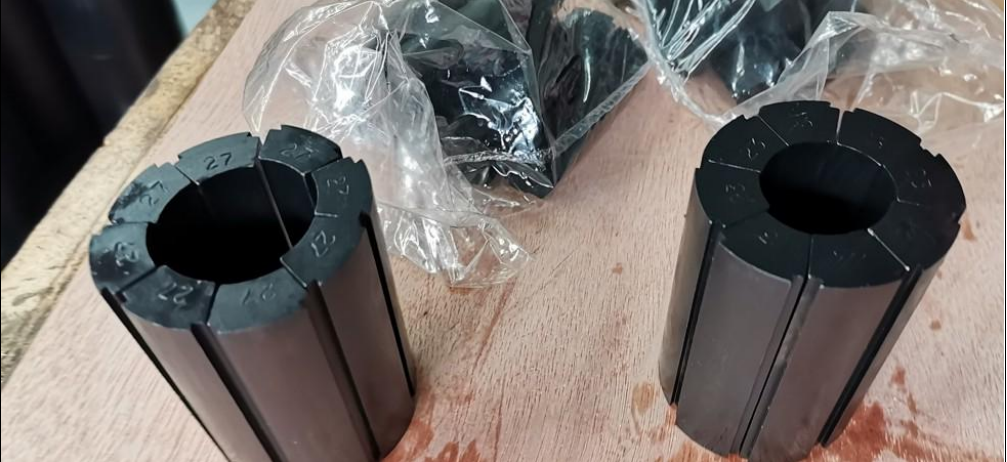

Name: death
Special treatment to maintain stability and strength

Mechanical Parts

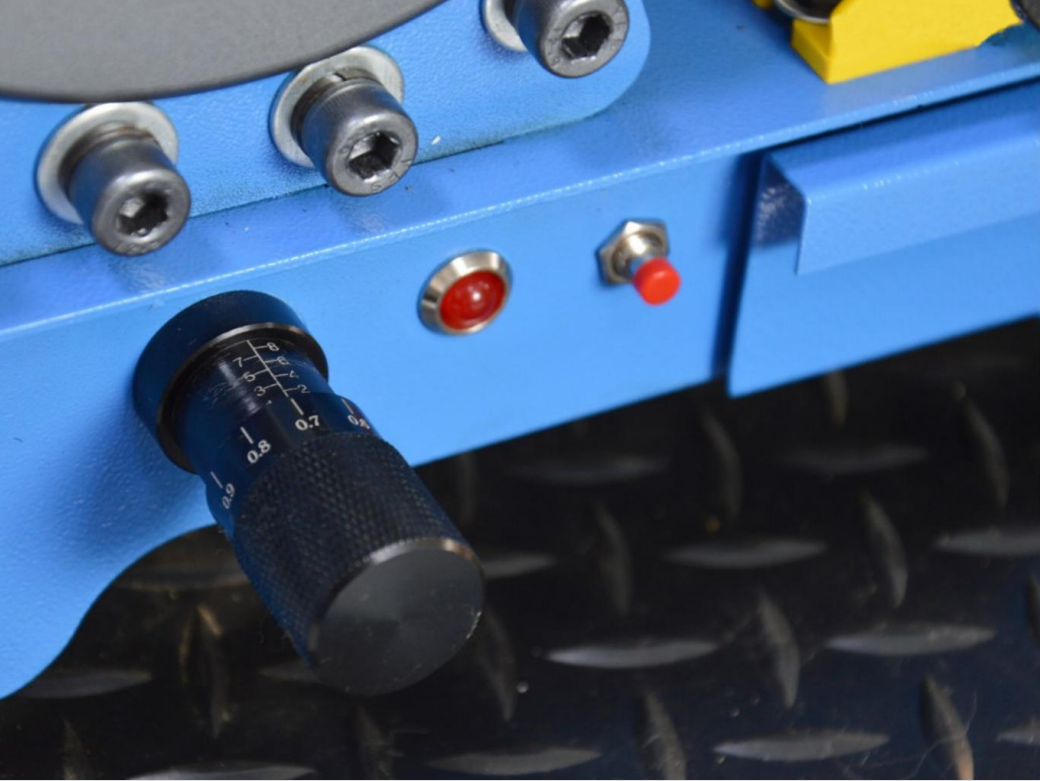

Name: control light

There is a control light to show the crimping status

Mechanical Parts

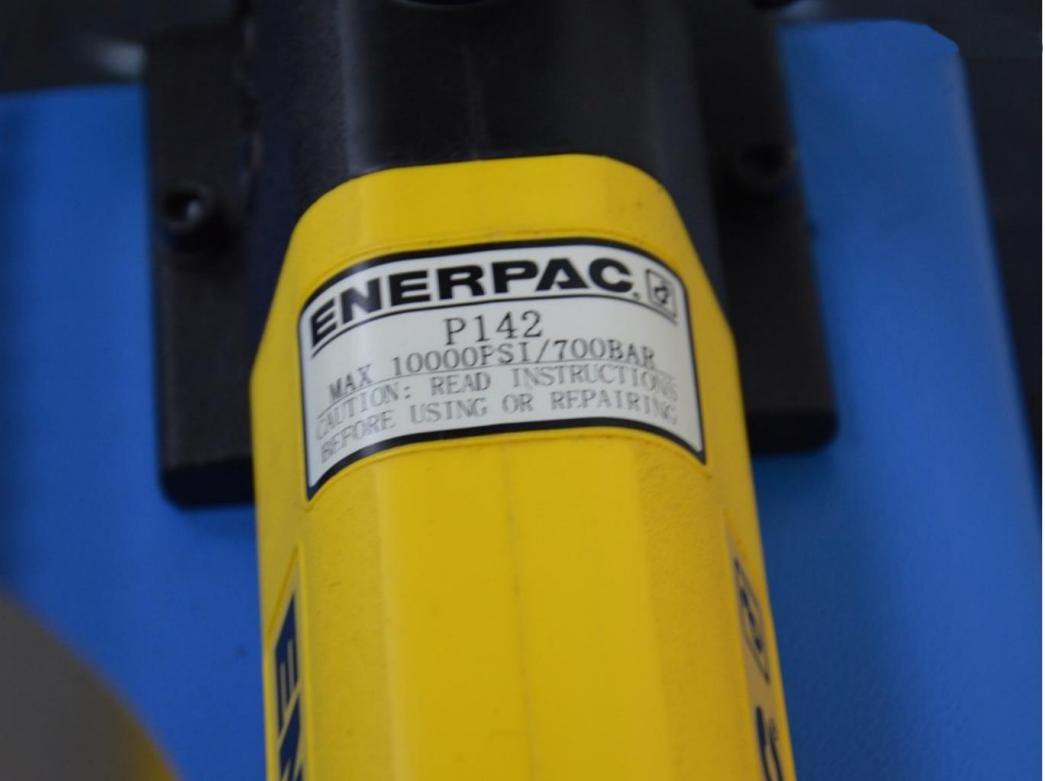

Name: Pump

Original Enerpac pump makes crimping smooth

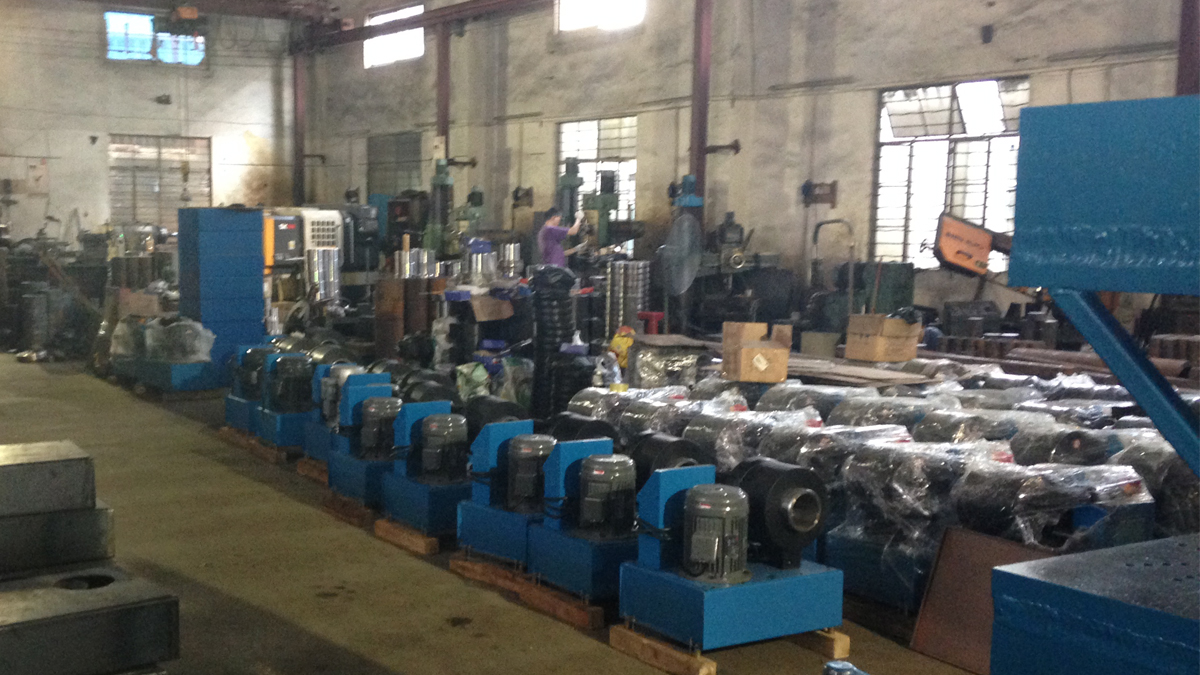

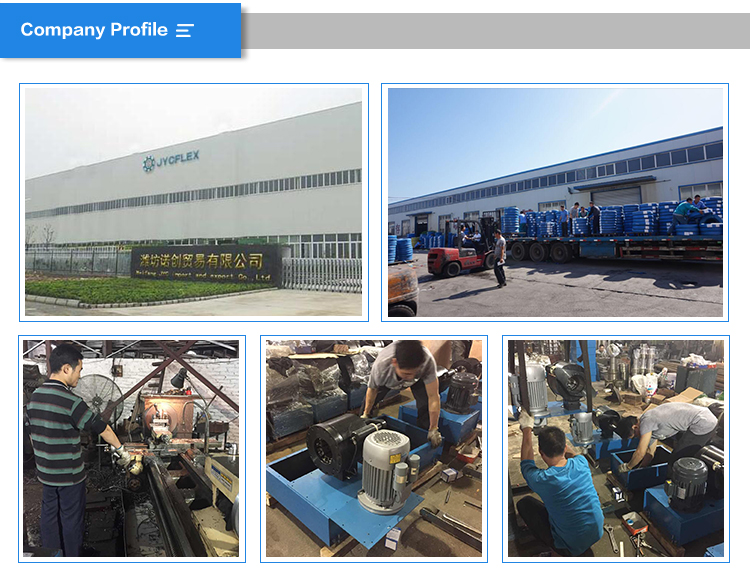

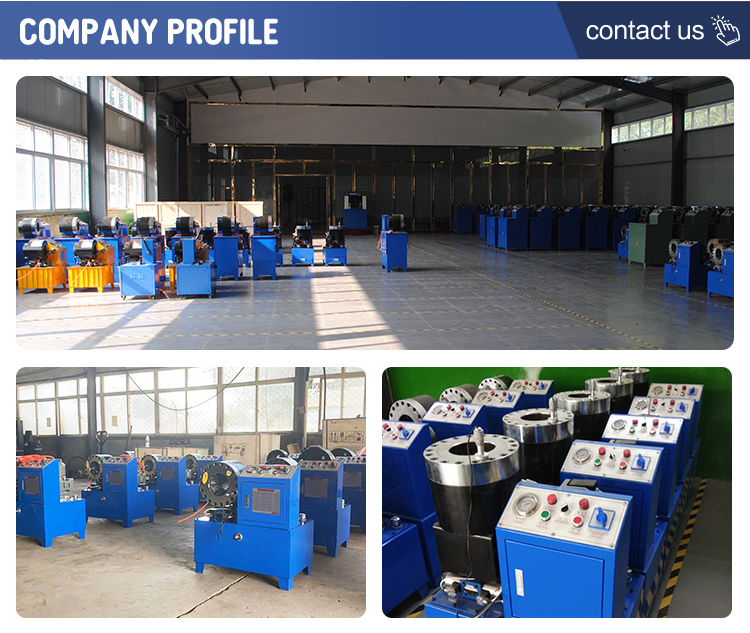

Our business has been established for 16 years! Composed of professional R&D personnel and QC personnel with 10 years of experience. Our hydraulic products will be inspected at every step, then double inspected by QC, and finally packed and shipped to the warehouse. Our hydraulic crimping machine has obtained CE certification. Our factory has advanced industrial production processes, saves expenses, and provides good prices to all customers to win the market! We have a strong desire to cooperate with you, we are experienced and confident that you will be satisfied with our hydraulic products and services. We have customers in the United Kingdom, the United States, Russia, Australia, the United Arab Emirates, Kenya, Bolivia, the Philippines and other places. Send me an email or call me directly, we can't wait to meet you

pre-sale service

* Inquiries and consultation support.
*Sample testing support.
* View our factory.

After-sales service

*24x7 service
* Training on how to install and use the machine
* Engineers can repair machinery overseas.

_Package
size	900 (length) * 680 (width) * 1450 (height) mm
weight	326kg
Packaging details	The normal packaging of 1/4" to 2" 4SP hose crimping machine hose making machine is to use PE film first and then Fumigated wooden boxes or packed according to customer's special requirements.
