Low noise 200 degree heat resistant small size silent metal centrifugal fan
- 20.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

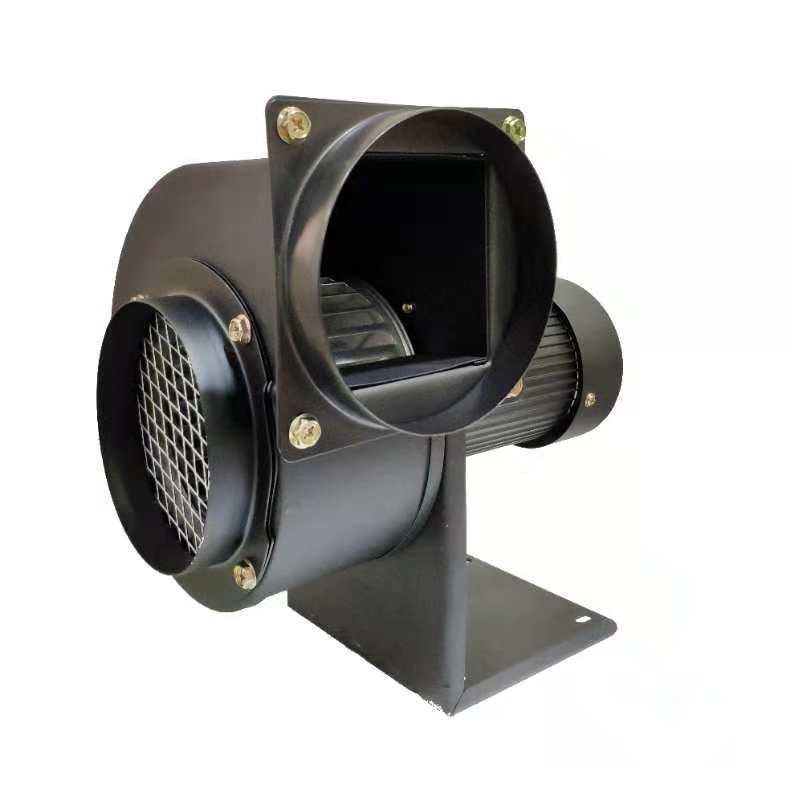

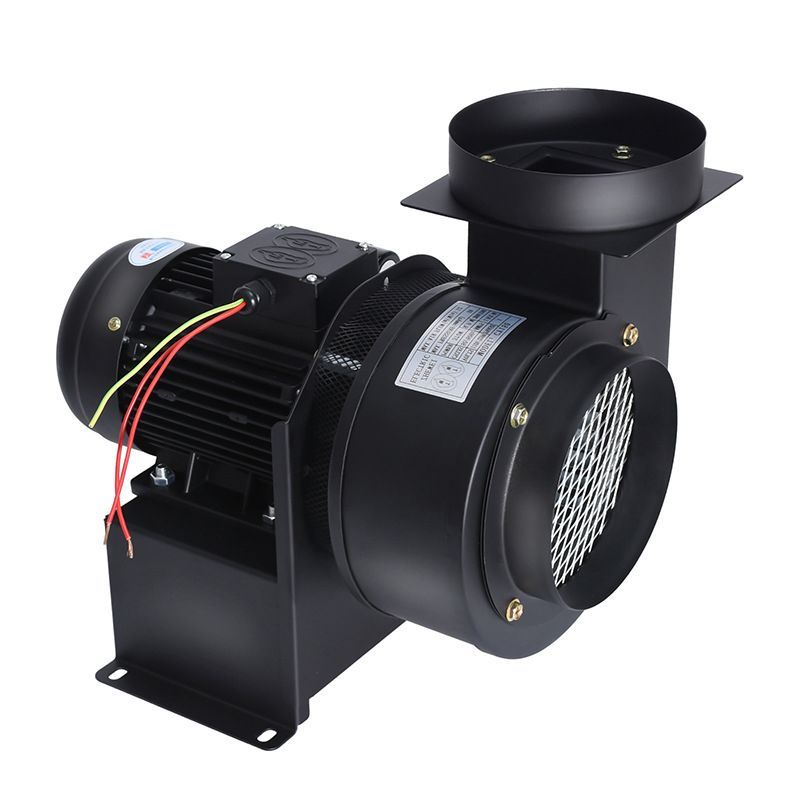

Low noise 200 degree heat resistant small size silent metal centrifugal fan
| Model | Power | Voltage | Airflow | Pressure | Rotation | Inlet/Outlet | Weight | Noise | Dimension |
| CY063 | 13W | 220V/380V | 30m3/h | 68Pa | 2800RPM | 50*50mm | 0.62KG | 40db | 100*100*100mm |
| CY076 | 25W | 220V/380V | 96m3/h | 127Pa | 2800RPM | 75/75mm | 2KG | 43db | 200*150*190mm |
| CY100 | 45W | 220V/380V | 132m3/h | 177Pa | 2800RPM | 75/100mm | 2.3KG | 45db | 200*210*200mm |
| CY127 | 50W | 220V/380V | 198m3/h | 299Pa | 2800RPM | 75/125mm | 3.5KG | 45db | 200*210*230mm |
| CY120 | 120W | 220V/380V | 408m3/h | 384Pa | 2800RPM | 100/100mm | 4.3KG | 51db | 285*230*255mm |
| CY125 | 200W | 220V/380V | 570m3/h | 451Pa | 2800RPM | 125/125mm | 6KG | 51db | 285*240*290mm |
| KL250 | 250W | 220V/380V | 642m3/h | 498Pa | 2800RPM | 100/125mm | 7KG | 60db | 315*240*270mm |
| CY150 | 370W | 220V/380V | 750m3/h | 568Pa | 2800RPM | 150/150mm | 12KG | 70db | 390*280*360mm |
| CY180 | 750W | 220V/380V | 1080m3/h | 941Pa | 2800RPM | 150/150mm | 18KG | 88db | 390*340*395mm |
| CY200 | 1500W | 380V | 2640m3/h | 2950Pa | 2800RPM | 200/200mm | 22KG | 88db | 475*390*410mm |
Note: model CY063 is not heat resistant.
Application: barbecue oven, boiler, exhaust hot gas, hot smoke, ventilation, equipment matching, hot blast stove, industrial
Contact: whatsapp 008618823126158, luomeiele(at)163(dot)com
