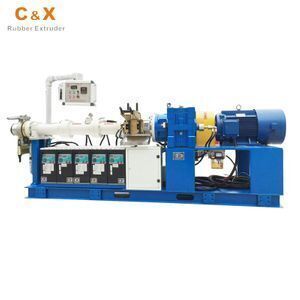

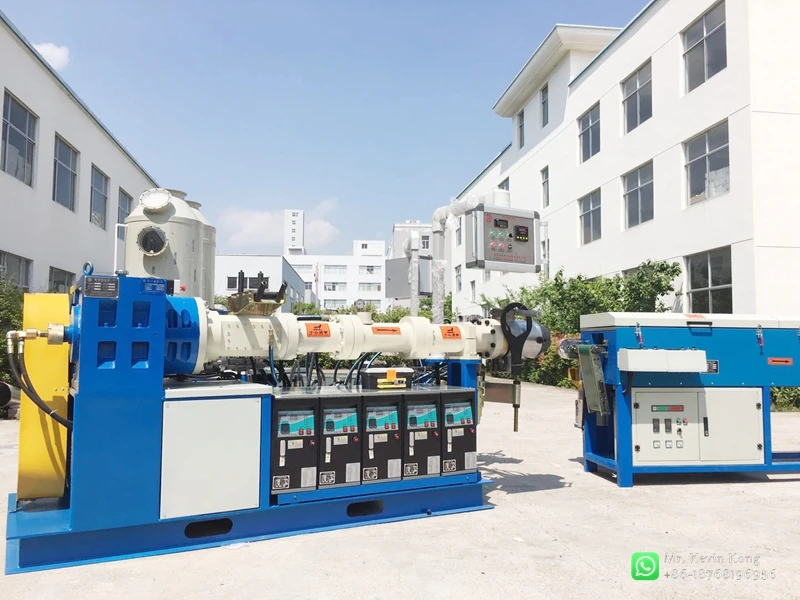

Silicone Rubber Strip Pipe Tube Hose Extruder Machine

Supplier: Taizhou Huixin Rubber&plastic Machinery Co., Ltd.
Region: China
Contact: Mr. Kevin Kong
Price: $41000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T;	Brand Name:	CX;
Weight:	3500 kgs;	After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;
Voltage:	380V;	Product Name:	Silicone Rubber Strip Pipe Tube Hose Extruder Machine;
Warranty:	2 Years;	Year:	As per Customer Order;
Certification:	CE, ISO9001;	Condition:	New;
Dimension(LWH):	320012001620mm;	Port:	Ningbo, China;
Power(W):	55K;	Packaging Detail:	Wooden Box + Container;
Place of Origin:	Zhejiang;	Supply Ability:	20 Set/Sets per Month;

Silicone Rubber Strip Pipe Tube Hose Extruder Machine

Contact: Kevin Kong

Mobile&Wechat&WhatsAPP: +86 18768196956

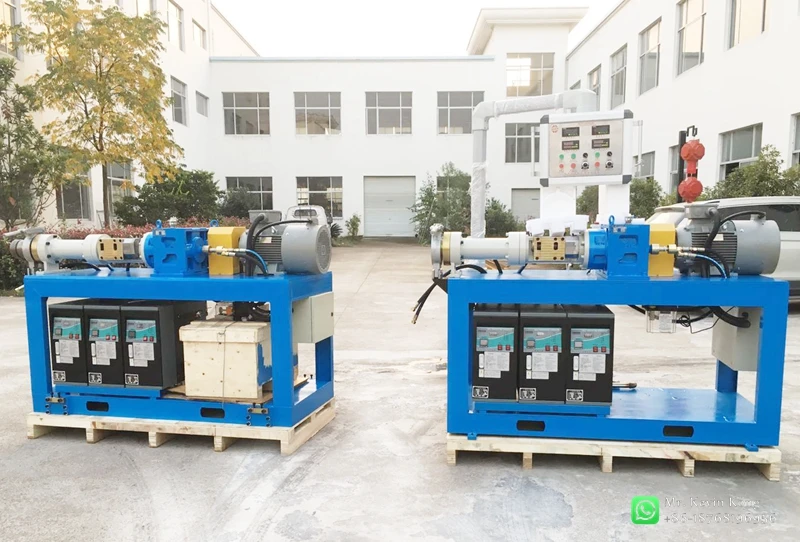

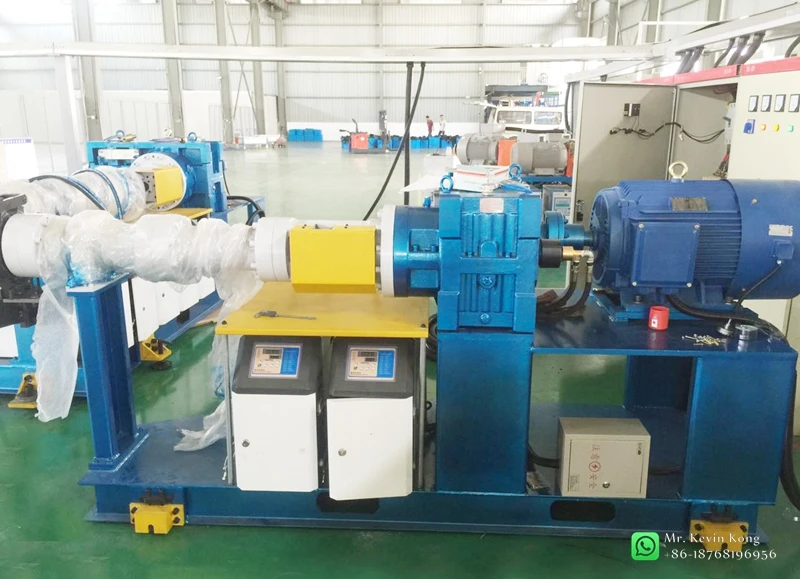

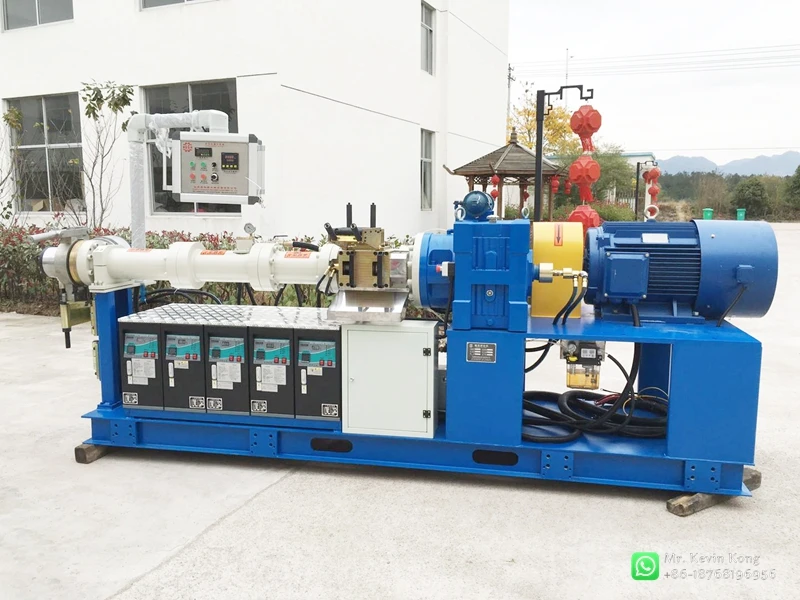

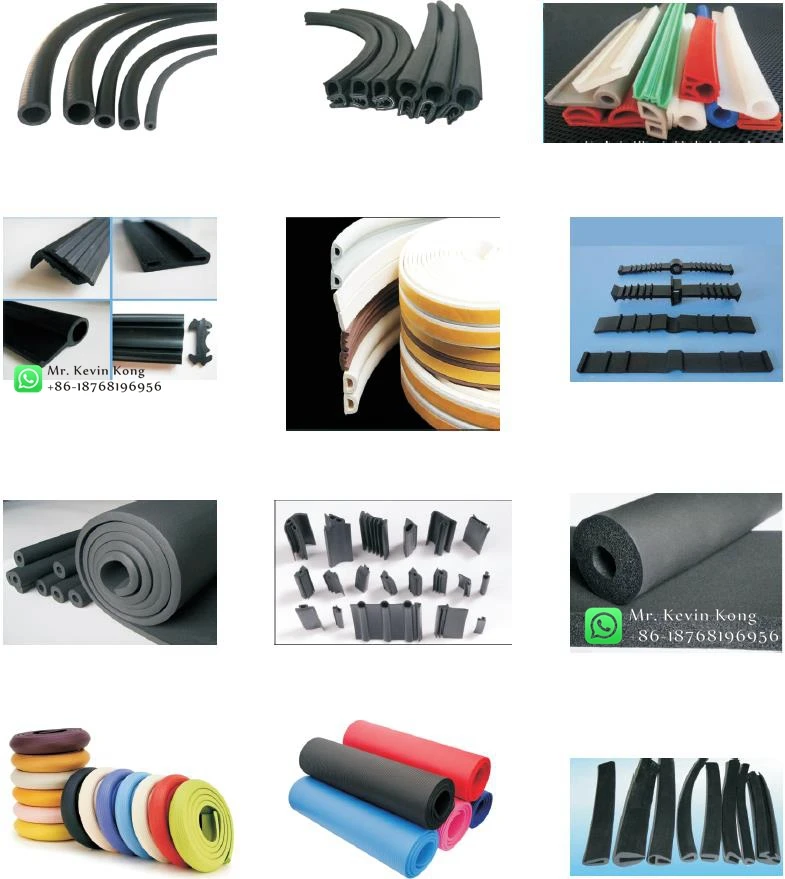

The cold feeding rubber extruder can be used for the shaping various kinds of rubber products, such as out layers of the wire and electric cable and it also can be an equipment to feed compound to the hot open mill and to do the rubber filter extrusion as well.

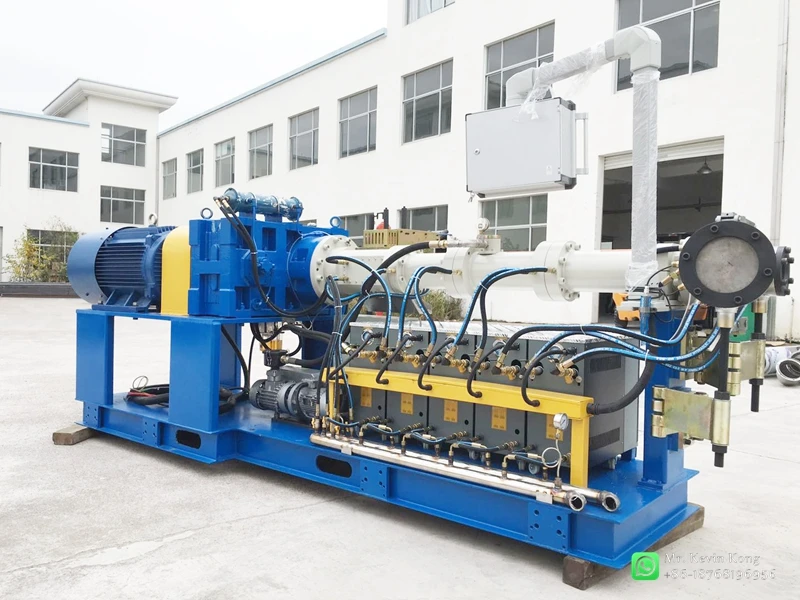

The feature of the equipment is that the fed rubber is not necessary to be hot milled. Pin-barrel type cold feeding rubber extruder is suitable for processing natural rubber and various kings of synthetic rubbers.

Model	Diameter of Screw (mm)	L/D Ratio	Speed of Screw (r/min)	Power (kw)	Max Output (kg/h)	Weight (KG)
150mm 20D (vacuum)	150	20:1	0-45	160	1000	6500
150mm 16D (vacuum)	150	16:1	0-45	132	800	6500
120mm 20D (vacuum)	120	20:1	0-50	110	700	5200
120mm 16D (vacuum)	120	16:1	0-50	110	600	5200
90mm 20D (vacuum)	90	20:1	0-55	55	320	3200
90mm 16D (vacuum)	90	16:1	0-55	55	280	3200
75mm 20D (vacuum)	75	20:1	0-55	37	160	1200
75mm 16D (vacuum)	75	16:1	0-55	37	140	1200

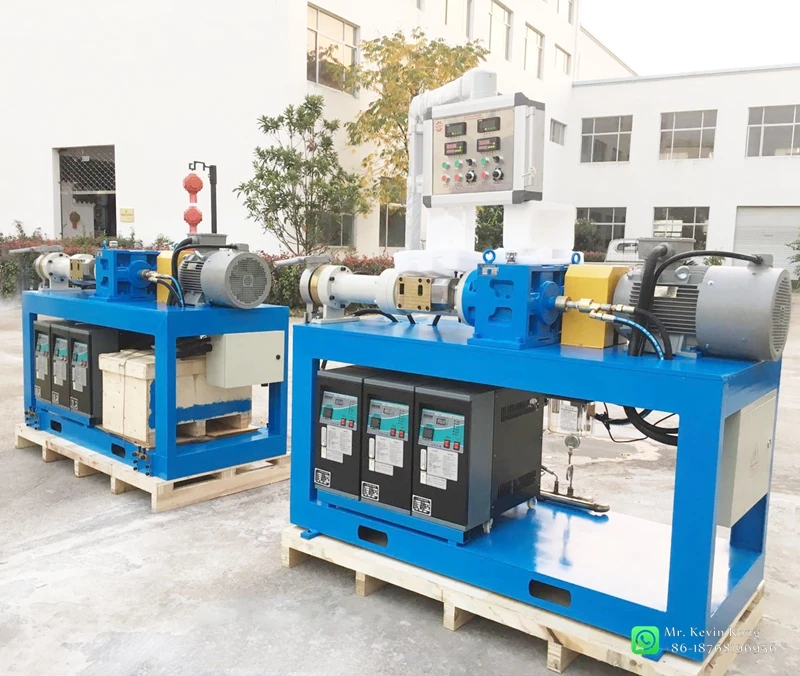

50mm 12D (vacuum)	50	12:1	2-70	7.5	50	600
