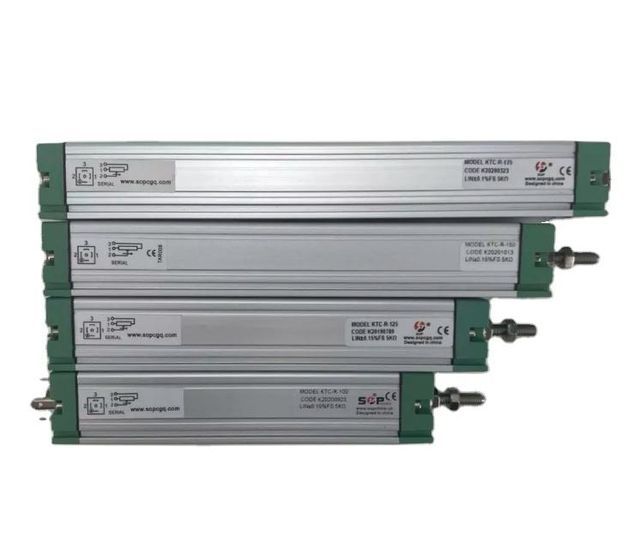

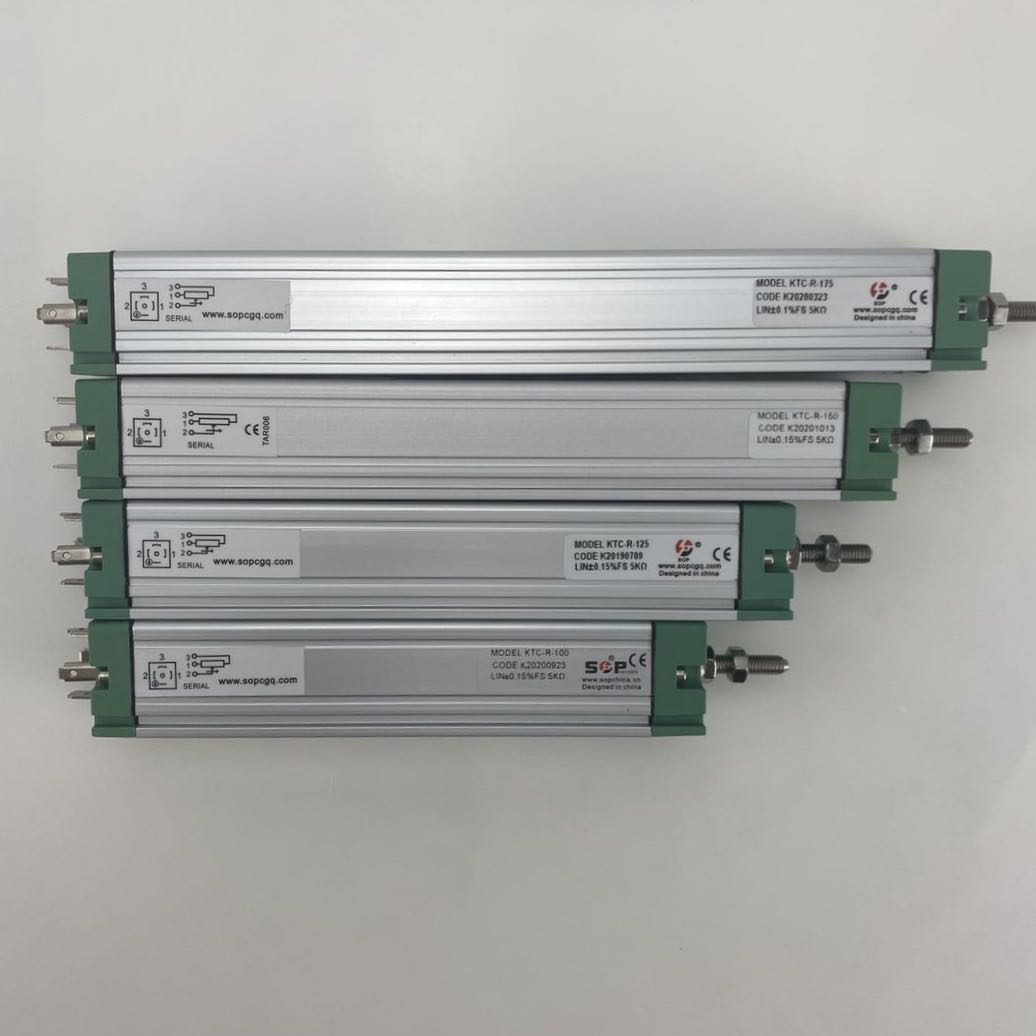

Sop's KTC75-1250mm variable resistance displacement sensor
- 20.00 1 - 19 pieces
- 19.00 20 - 49 pieces
- 18.00 >=50 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | Standard operating procedures | solve: | endless |
| usage: | position sensor | Supply capacity: | 1000 pieces per day |
| port: | Shenzhen/Guangzhou/Shanghai | Origin: | Jiangxi, China |
| Linearity: | ±0.05% | temperature range: | -40~80℃ |
| Repeatability: | 0.01mm | Warranty: | 24 years old |
| theory: | Resistive sensor | model: | KTC-R-75-1250 |
| Measuring stroke: | 75~1250mm | payment terms: | D/P, D/P, T/T, MoneyGram |
| output: | analog sensor | Package preview: | |
| type: | Linear Displacement Sensor | output signal: | resist |
| weight: | 400 grams | Packaging Details: | Wrapped in plastic film, then packed into cylindrical boxes/small boxes |
| Speed of work: | up to 10m/s | Service life: | thirty million |
Product Description

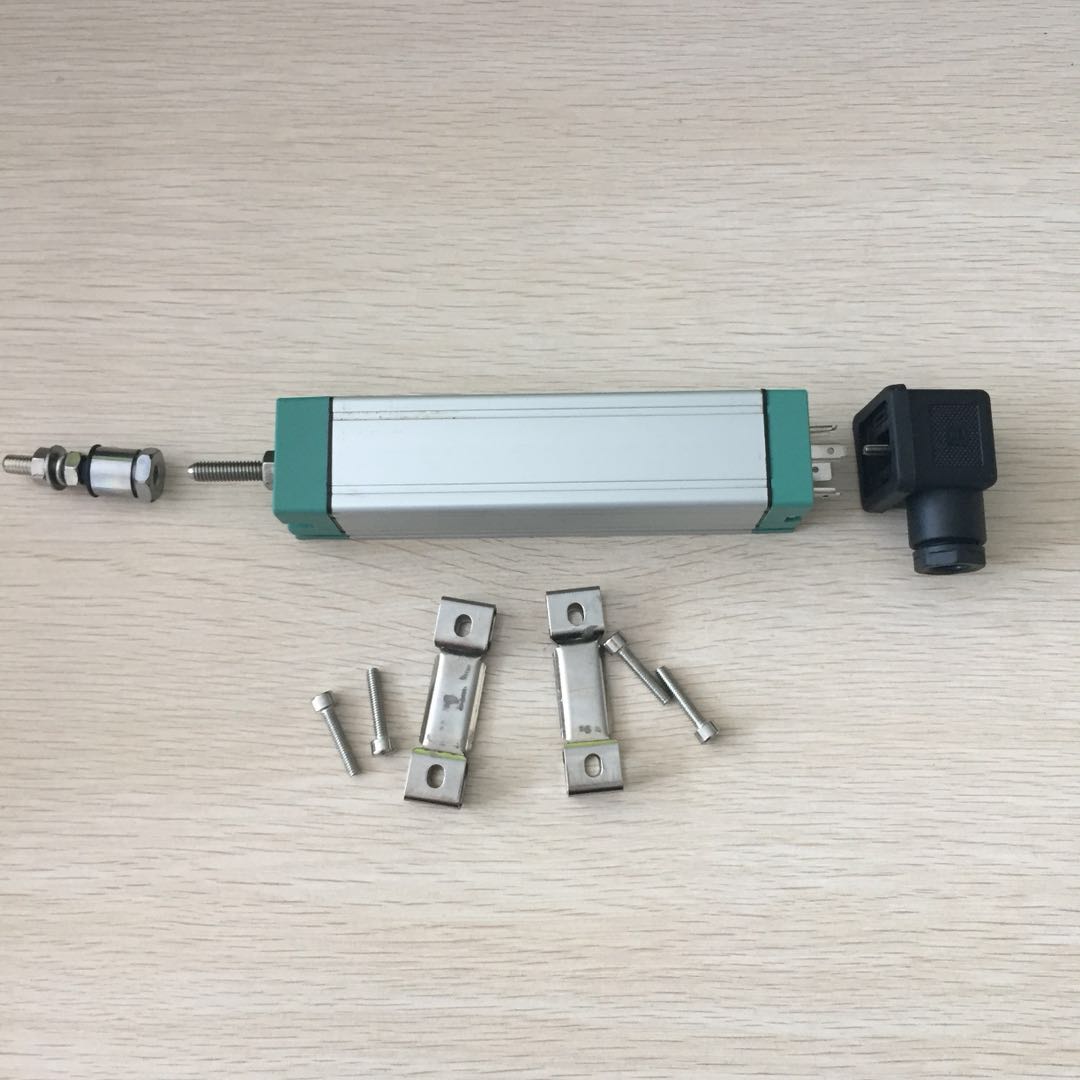

SOP linear position sensors with conductive plastic elements are designed for displacement or length
measured and available in different stroke lengths up to 1250 mm. These sensors offer infinite resolution with a repeatability of 0.01mm and a linearity of up to 0.04%. The KTC series has a solid stainless steel shaft with long bearings in the housing for robust, smooth operation and long life. Improved resistance track connection technology (double trimming technology) ensures higher reliability and linearity, while the multi-finger wiper can stabilize the output signal even under the worst working conditions.
measured and available in different stroke lengths up to 1250 mm. These sensors offer infinite resolution with a repeatability of 0.01mm and a linearity of up to 0.04%. The KTC series has a solid stainless steel shaft with long bearings in the housing for robust, smooth operation and long life. Improved resistance track connection technology (double trimming technology) ensures higher reliability and linearity, while the multi-finger wiper can stabilize the output signal even under the worst working conditions.

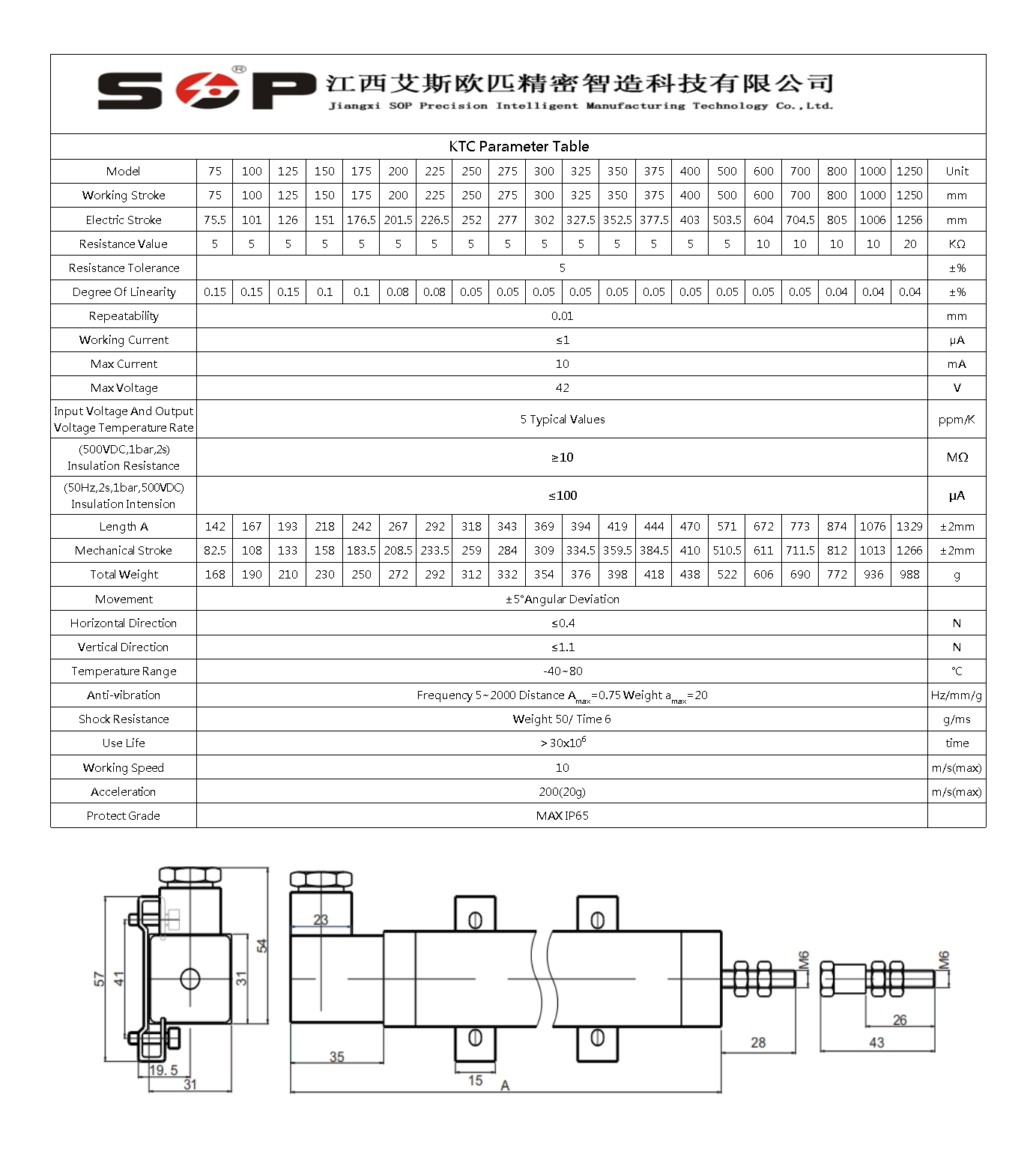

detailed drawing
Product parameters
