KTC Resistive Electronic Scale Linear Potentiometer Displacement Sensor Injection Molding Machine Position Sensor

Supplier: Jiangxi SOP Precision Intelligent Manufacturing Technology Co., Ltd.
Region: Jiangxi, China
Contact: Ms Tina L
Price: $33.25 / 5 - 9 pieces
$30.40 / 10 - 19 pieces
$28.50 / 20 - 99 pieces
$26.60 / >=100 pieces
Min. Order: 5 pieces

Click here to contact

Product details

theory:	Potentiometer	Gross weight per piece:	1.500 kg
type:	Linear displacement sensor	Shaft Material:	Stainless steel
color:	green Black	Packaging Preview:
Protection class:	IP65	Sales unit:	single product
power supply:	12 ~ 24V DC	describe:	Injection molding machine position sensor
Measuring range:	50mm...1250mm	usage:	position sensor
brand:	Standard operating procedures	Single package size:	85X6X6 cm
Packaging Details:	Packed in plastic film, then into paper tubes, then into cartons, custom packaging available	output:	resist
model:	KTC-R-600MM	application:	automated industry
Electrical connections:	Hirschmann connectors or custom length wire exits	Building Materials:	Aluminum alloy
output signal:	Resistance/4-20mA/0-5v/0-10v	place of origin; place of origin:	Jiangxi, China
accuracy:	0.15%...0.04% of full scale

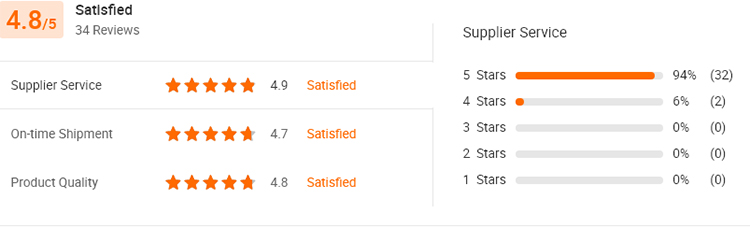

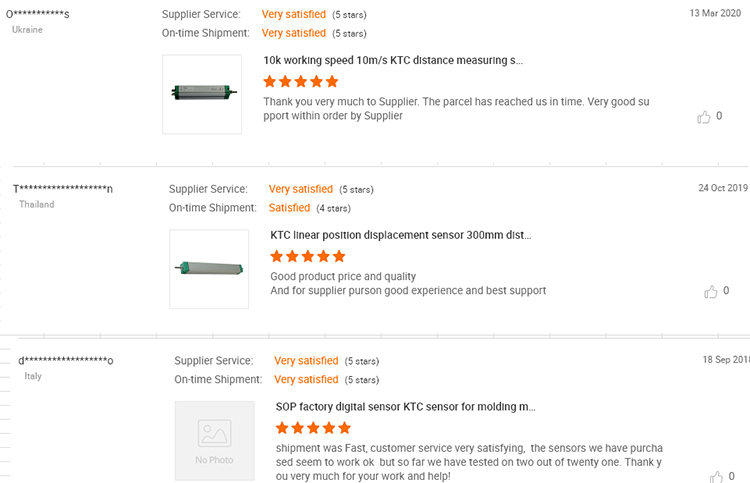

Buyer feedback

Product Description

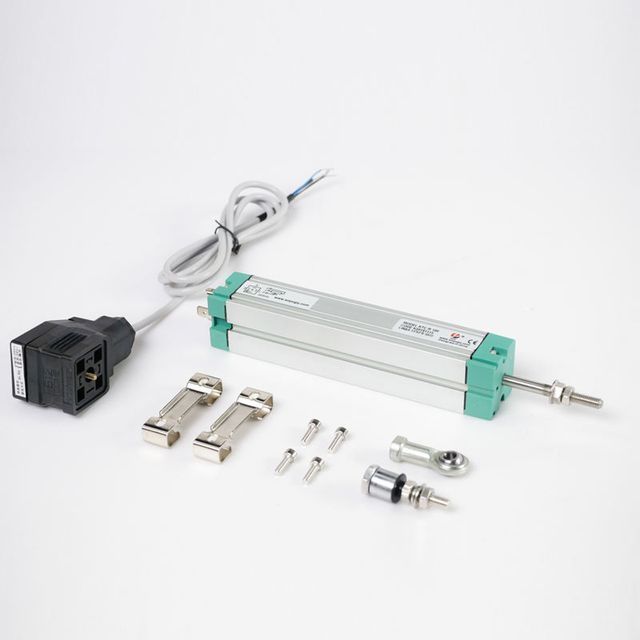

KTC Rod Series Linear Displacement Sensors

KTC tie-rod linear position sensors with conductive plastic elements are designed for displacement or length measurement and are available in different stroke lengths up to 1250mm. The sensor offers infinite resolution with a repeatability of 0.01mm and a maximum linearity of 0.04%.

The KTC series features a robust stainless steel shaft with long bearings in the housing for robust, smooth operation and long life. An improved resistive track connection technology (Dual Trim Technology) ensures a higher degree of reliability and linearity, while multi-finger taps stabilize the output signal even under the most adverse operating conditions.

Industry application

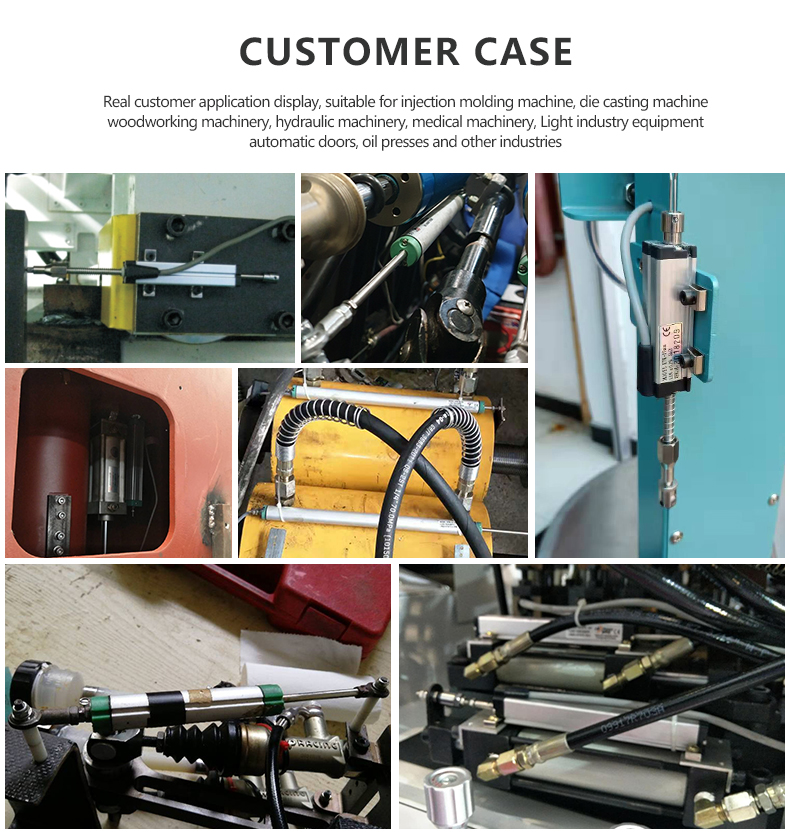

KTC series linear displacement sensors are widely used in the position or displacement measurement of various equipment such as injection molding machines, die casting machines, rubber machinery, woodworking machinery, shoe-making machinery, hydraulic machinery and so on.

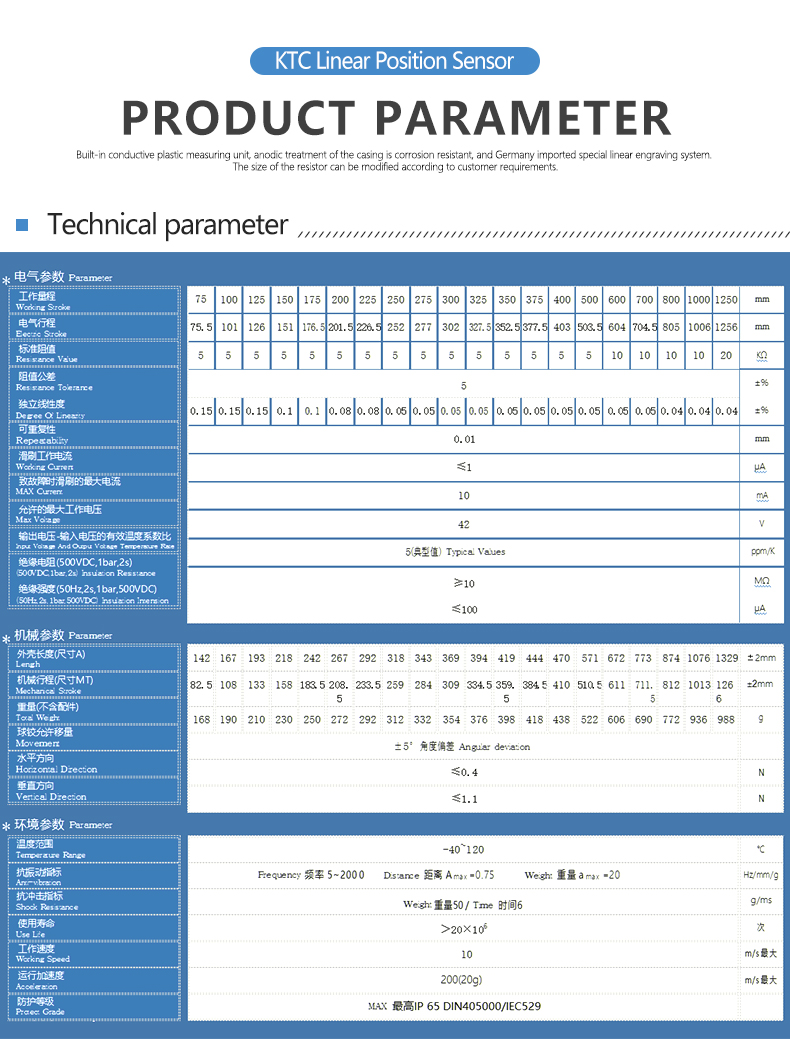

Specification

Model	KTC tie rod series
theory	Potentiometer (conductive plastic)
Measuring range	50...1250mm
output signal	voltage divider	0-5V	0-10V	4-20 mA
voltage	10-30V DC	10...24V DC	24V DC	10...24V DC
Electrical connections	Outlet/Aviation Connector/Din43650 Standard Plug and Socket
color	green Black
United	Ball/Rod End
