Linear Displacement Sensor Transducer Injection Molding Machine Scale 50-1250mm
- 20.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Origin: | Guangdong, China | Packaging Details: | carton |
| usage: | Injection molding machine scale | describe: | Linear Displacement Sensor |
| output: | analog sensor | payment terms: | Western Union, T/T, Paypal |
| port: | Shenzhen | stroke length: | 50-1250mm |
| application: | injection molding machine | model: | Kangtai |
| type: | KTC linear sensor, linear displacement sensor | brand: | Kaixingtong |
| Repeatability: | 0.01mm | Linear Accuracy: | +/-0.05% |

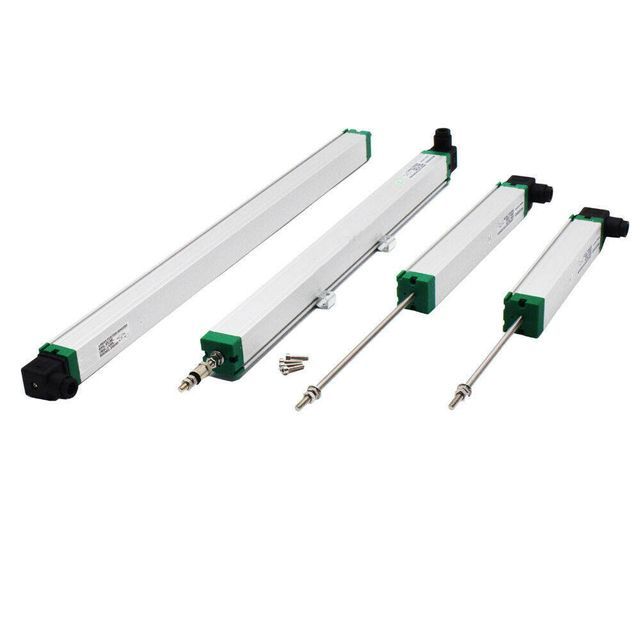

50-400mm KTC linear displacement sensor position sensor electronic ruler for injection molding machine
feature
1. It is a standard linear sensor for direct absolute measurement.
2. The inner board adopts German engraving technology to improve resistance and wiring connection
technology, ensuring high reliability and linearity as well as stable output even in harsh environments
3. High resolution, high repeatability and linear accuracy
4. Complete accessories, can be directly installed on the mechanical system
5. Compatible with some well-known brands
parameter
| KTC series | 75-110mm | 125-175mm | 200-550mm | 600-1000mm |
| Linear Accuracy | +/-0.2% | +/-0.1% | +/-0.05% | +/-0.04% |
| Resistance +/- 10% kΩ | 5 | 5 | 10 | 20 |
| Acceptable Stroke (AE) (mm) | +8mm | |||
| Repeatability | 0.01mm | |||
| Operating Voltage | 24V DC | |||
| solve | endless | |||
| temperature drift | infinitely less | |||
| ambient temperature | From -60 to 125 degrees Celsius | |||
| output type | 0 to working voltage (voltage changes with dynamic change) | |||

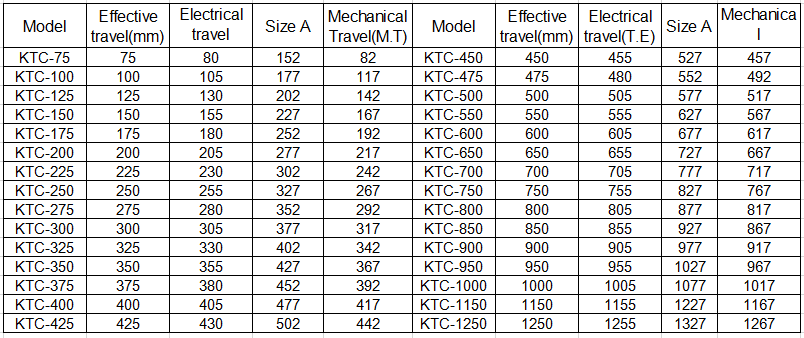

| Mechanical size | Please see mechanical size pictures | |||
packing list:
1* Linear displacement sensor
1* Set of mounting parts (the default joint type is universal joint, please leave a message if you need the joint type)
application
