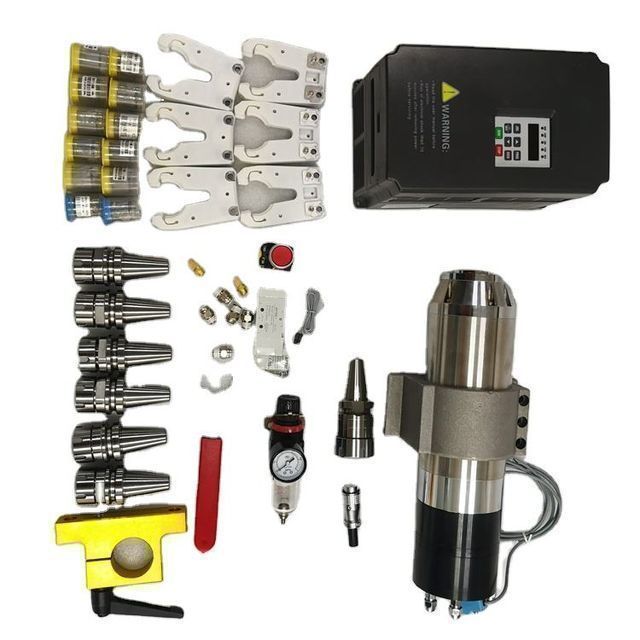

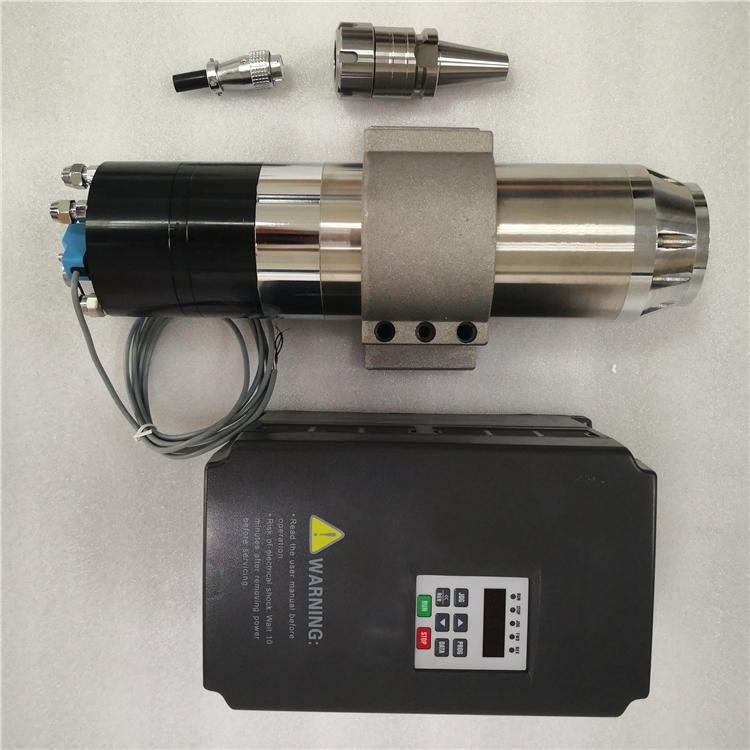

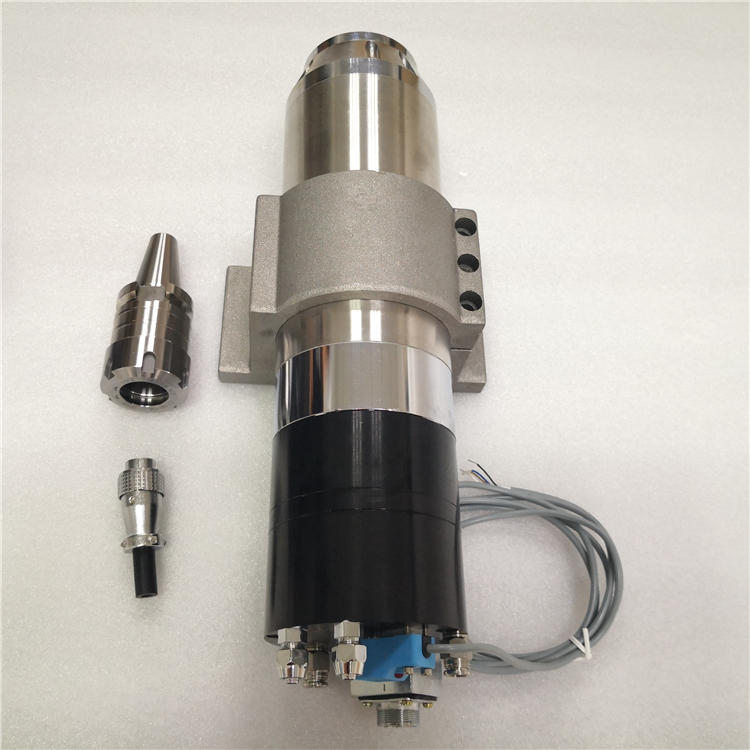

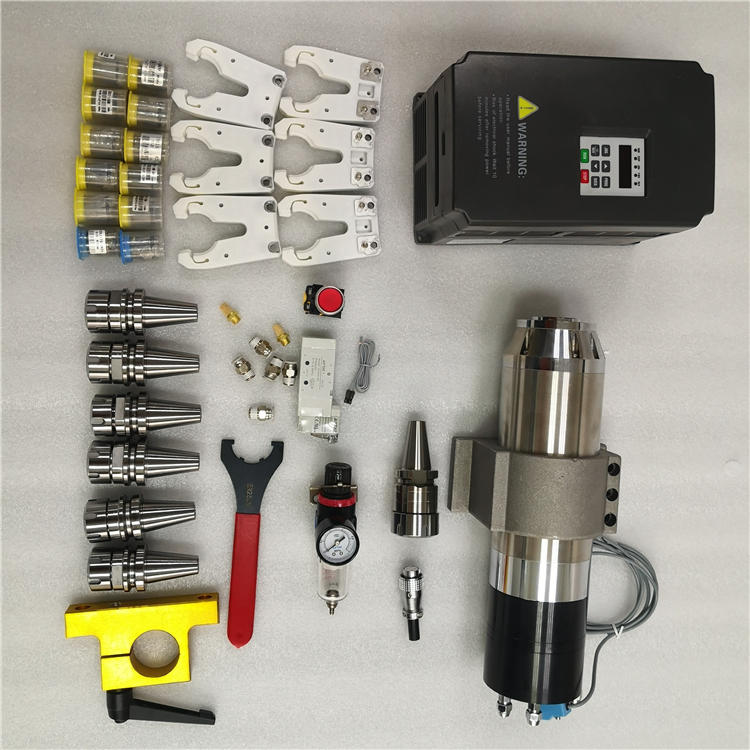

3.5KW BT30 Spindle CNC Engraving and Milling Metal ATC Spindle 3500W ER25 Tool Holder 220v/380v VFD CNC Parts
- 100.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Showroom location: | not any | Mechanical test report: | not available |
| After warranty service: | Video technical support, online support, spare parts | Tool change method: | pneumatic |
| Core components: | bearing | application: | milling |
| After-sales service provided: | On-site installation, commissioning and training, online support, video technical support | Video shipment inspection: | not available |
| Running speed: | 3000-24000rpm | strength: | 3.5kw |
| Warranty: | 1 year | current: | 10A |
| place of origin; place of origin: | Guangdong, China | Applicable industries: | Manufacturing plants, machinery repair shops, retail stores, others |
| Voltage: | 220V/380V | Maximum torque: | Require |
| Maximum Chuck: | ER32 | payment terms: | Western Union, T/T, Paypal |
| Local service location: | not any | Key words: | BT30 spindle group |
| brand: | Kaixingtong | Cooling type: | water cooling |
| frequency: | 400-800 Hz | Packaging Details: | carton |
| State of health: | new | Marketing Type: | normal product |
| Nose joints: | BT30 Tool Holder | product name: | CNC spindle motor |
| drive: | pneumatic |
Specification
strength | 3500w |
speed | 3000-18000rpm |
Rated voltage | 220v/380v |
rated current | 11A/7A |
frequency | 400-600 Hz |
Tool change method | pneumatic |
tool holder | BT30 |
maximum. ER chuck | ER32 |
bearing | ceramic ball bearing |
lubricating | grease |
Spindle diameter | 100mm |
approximate weight | 17 kg |
Warranty | Half a year for bearings, one year for other parts |
Supporting frequency converter | 220V/380V VFD AC Driver |
