BenFa stainless steel wire braiding spindle
-
Supplier: Zhejiang Benfa Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Xianjun Liang -
Price: $24.99 / 1 - 49 pieces
$14.99 / >=50 pieces -
Min. Order: 1 piece
Product details
| color: | rich and colorful | Material: | aluminum |
| Supply capacity: | 1000 pieces per month | brand: | this hair |
| Showroom location: | not any | Maximum torque: | 3.98nm |
| application: | Woodworking engraving, weaving machine | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Health status: | new | Marketing Type: | New Products 2020 |
| Video shipment inspection: | if | Weight (kg): | 2 |
| Core components: | PLC, bearing, gearbox | Mechanical test report: | if |
| drive: | engine | port: | Ningbo, Shanghai, Hangzhou |
| Certification: | CE certification | Running speed: | 55 rpm |
| Applicable industries: | Manufacturing plants, machinery repair shops, construction works | plating: | chrome alloy |
| type: | casting | size: | custom size |
| Warranty: | 1 year | Origin: | Zhejiang, China, Zhejiang, China |

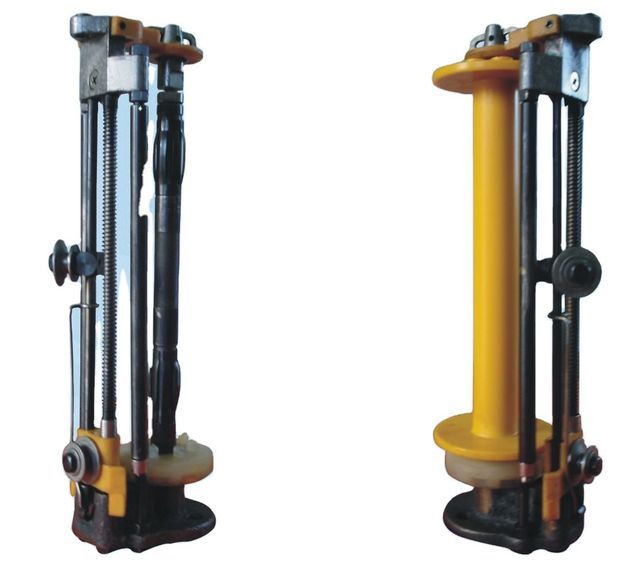

2016 Benfa knitting machine multifunctional steel wool spare parts carrier
When the carrier and spindle of the braiding machine are working

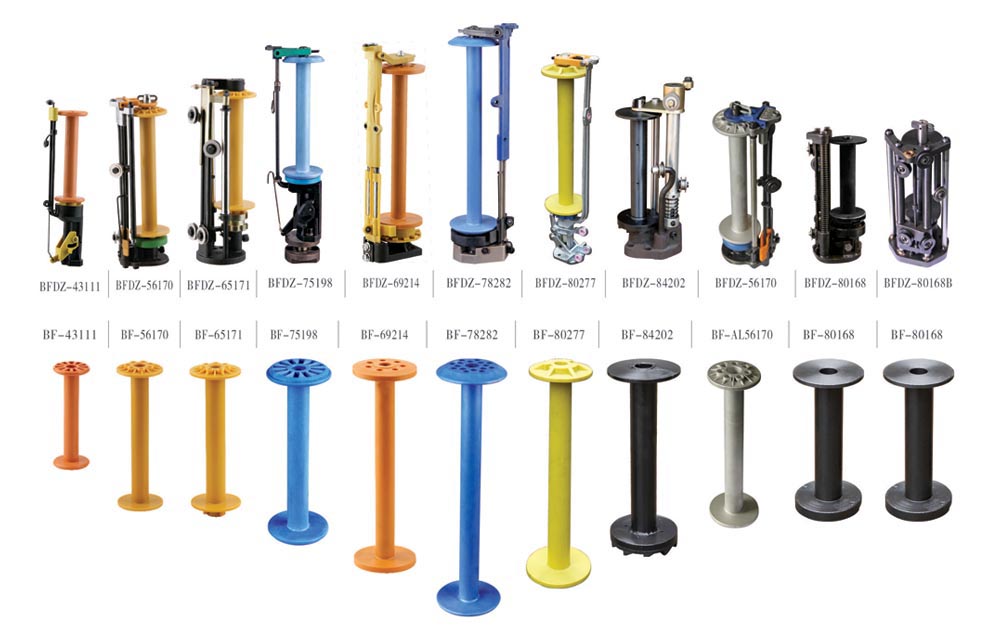

Technical Parameters
| Item/Carrier | Article ID | Measurement | weight | application machine |
| 1 | BFDZ-78282 | φ88×320mm | 550 grams | 140, 160, 200 series braiding machines |
| 2 | BFDZ-69214 | φ 91 × 401mm | 825 grams | 140, 160, 200 series braiding machines |
| 3 | BFDZ-75198 | φ 80 × 220 mm | 600 grams | 140, 160, 200 series braiding machines |
| 4 | BFDZ-65171 | φ 98 × 291mm | 1265 grams | 114, 140, 160 series braiding machines |
| 5 | BFDZ-56170 | φ 78 × 244mm | 803 grams | 114, 140, 160, 200 series braiding machines |
| 6 | BFDZ-43111 | φ 56 × 225mm | 170 grams |
90,110,114 Series knitting machine |
| 7 | BFDZ-80277 | φ 90 × 290 mm | 500 g |
160,200 Series knitting machine |
| 8 | BFDZ-84202 | φ 95 × 220 mm | 3500 grams |
200 Series knitting machine |
| 9 | BFDZ-80168 | φ 90 × 180 mm | 3000 grams |
200 Series knitting machine |
| 10 | BFDZ-80168B | φ 90 × 180mm | 3600 grams |
200 Series knitting machine |
| item/spool | Article ID | Measurement | weight | capacity |
| 1 | BF-43111 | 43×18×111 mm | 28.2 grams | 133 cubic meters |
| 2 | BF-54175 | 54 x 22 x 175 mm | 90 grams | 334 cubic meters |
| 3 | BF-56170 | 56 x 22 x 170 mm | 90.4 grams | 354 cubic meters |
| 4 | BF-65171 | 65 x 25 x 171mm | 115 grams | 466 cubic meters |
| 5 | BF-75198 | 75 x 25 x 198 mm | 158 grams | 773 cubic meters |
| 6 | BF-69214 | 69 x 21 x 214 mm | 124.4 grams | 725.7 cubic meters |
| 7 | BF-78282 | 78 x 22 x 282 mm | 140 grams | 1239.6 cubic meters |
| 8 | BF-80277 | 80 x 28 x 277mm | 135 grams | 1221 cubic meters |
| 9 | BF-84202 | 84 x 32 x 202 mm | 1570 grams | 956 cubic meters |
| 10 | BF-80168 | 78 x 32 x 168 mm | 853 grams | 603 cubic meters |
| 11 | BF-AL56170 | 56 x 22 x 170 mm | 140 grams | 354 cubic meters |
