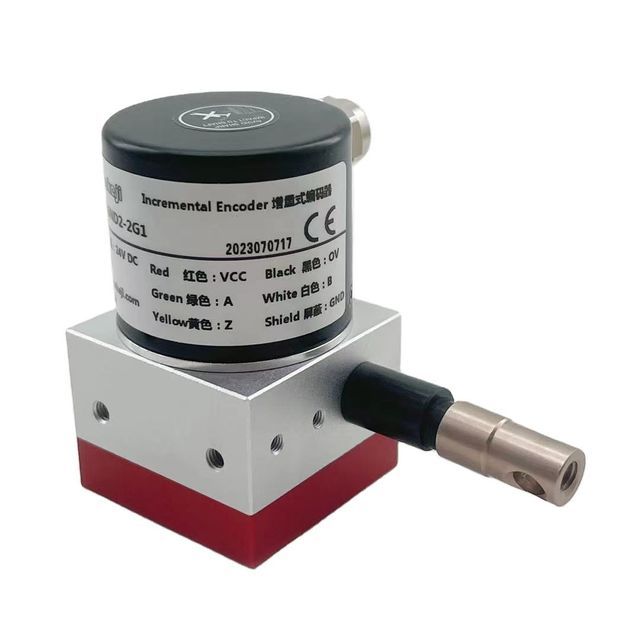

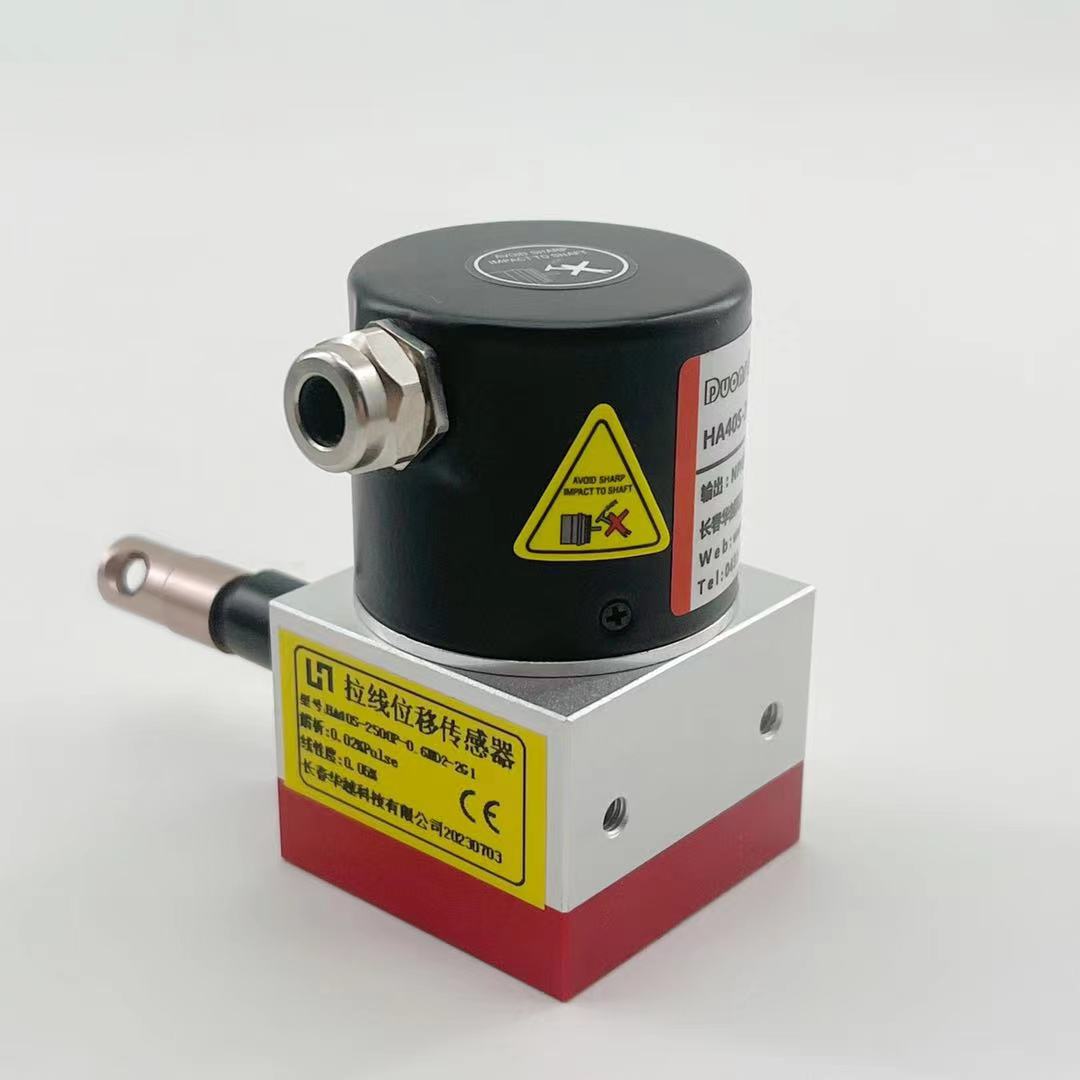

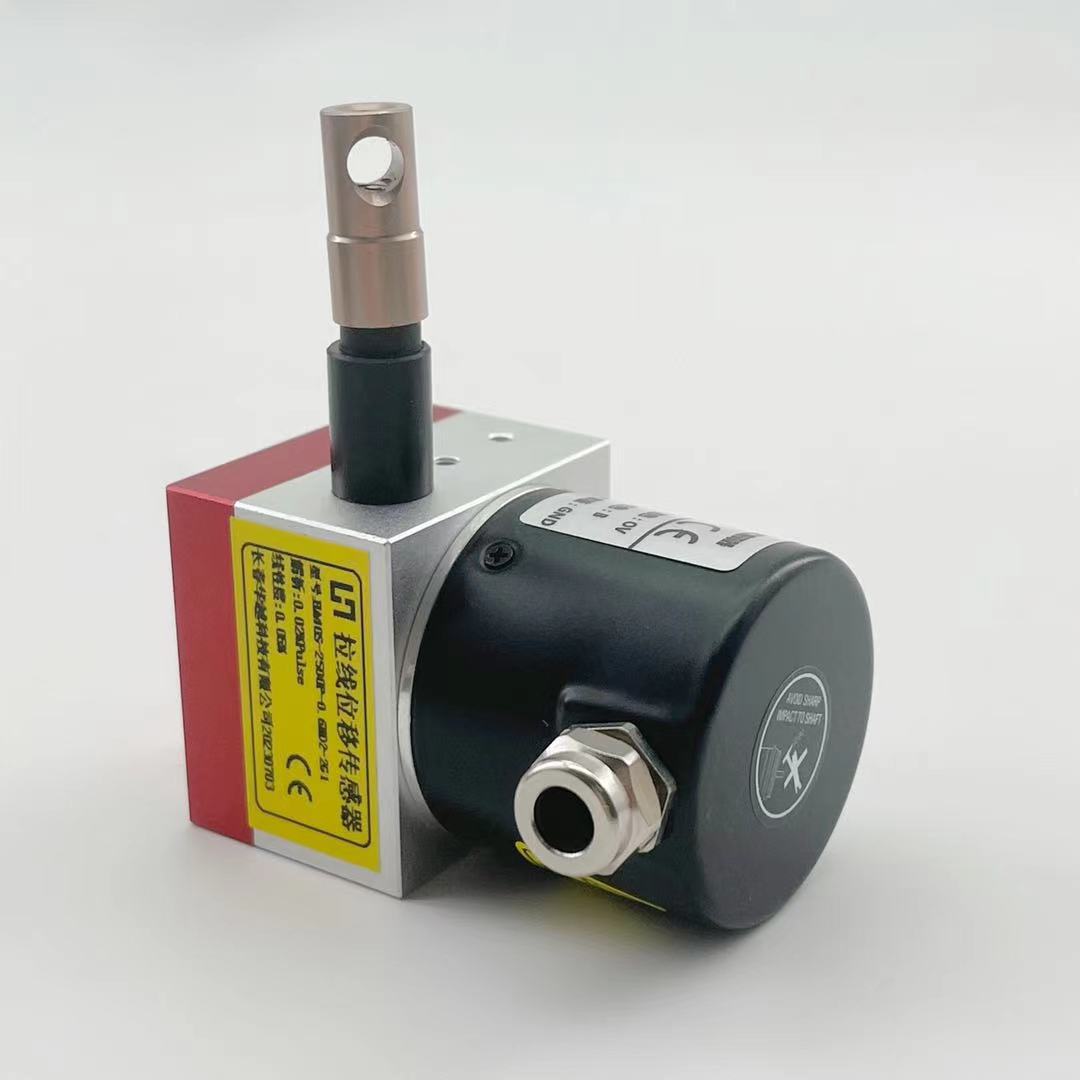

600mm cable encoder 10-10000ppr output pulse NPN PNP push-pull output cable sensor

Supplier: Changchun Huayue Technology Co., Ltd.
Region: Jilin, China
Contact: Ms ruby sun
Price: $34.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

weight:	0.45KG (including packaging weight)	brand:	Huayue
output signal:	D, N, P, T, L	describe:	2-M4 deep 8
Sales unit:	Single product	Gross weight of single piece:	0.350kg
Single piece packaging size:	10X8X8.5cm	Packaging details:	Single package size: 10X8X8.5cm
Linearity:	0.01% full scale	Operating temperature:	-30℃～+90℃
usage:	Measure distance	Wire rope diameter:	0.6mm high flexibility plastic coated steel wire rope
Life:	>200 million times	Installation type:	Screw hole installation

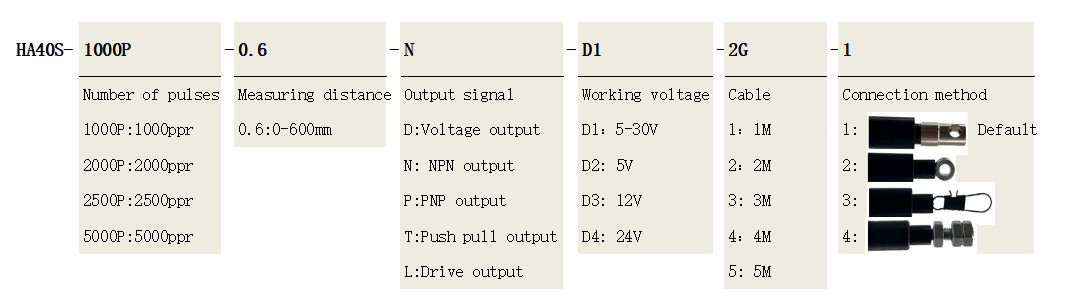

model:	HA40S-	Operating Voltage:	5-30V,5V,-24V
Measuring distance:	0-600mm	Maximum speed:	1000mm/sec
type:	Linear displacement sensor	Package preview:

sensor type	Optical linear encoder
Measuring range	0-600mm

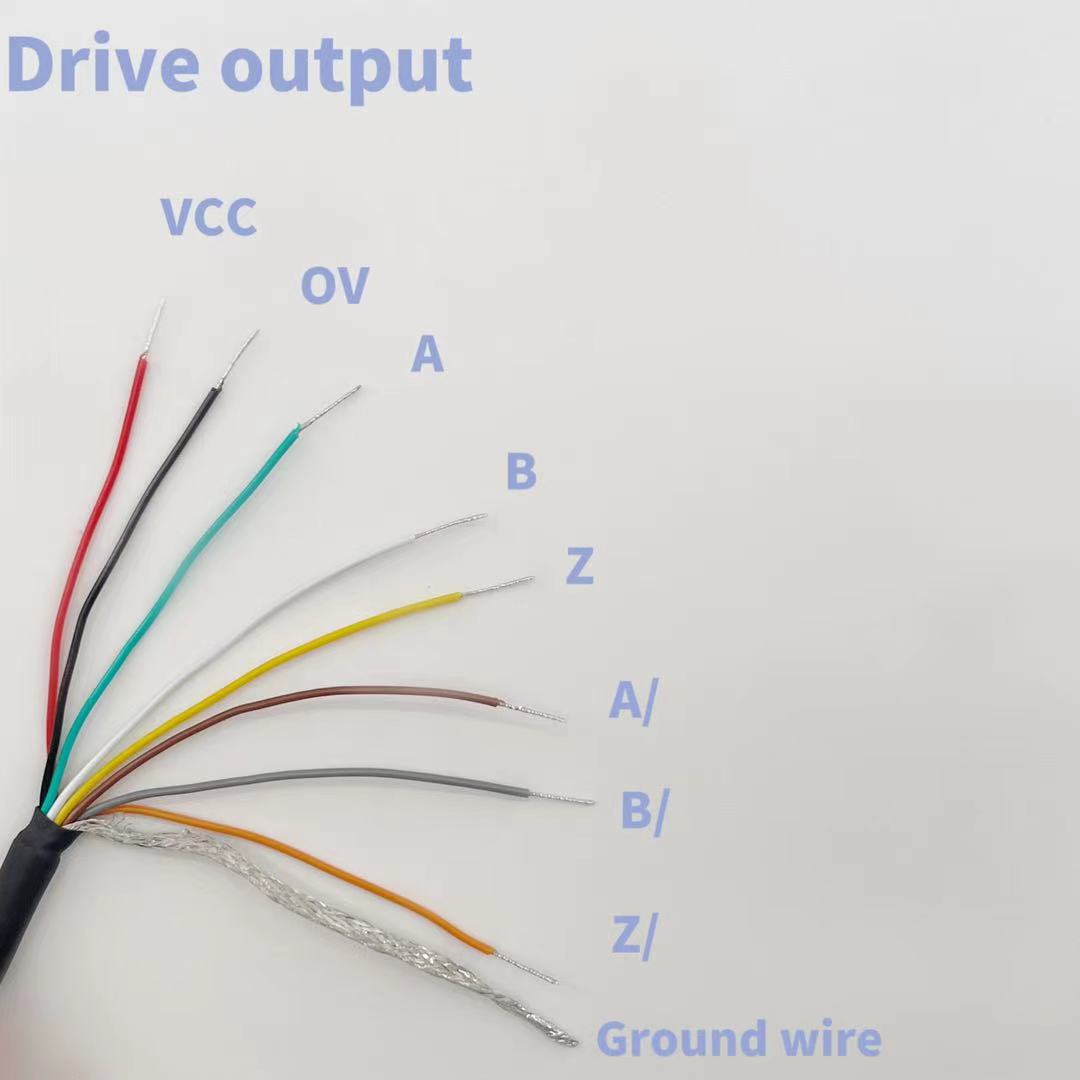

output	Voltage/NPN/PNP/push-pull/drive output
linear accuracy	0.01% full scale
Repeat accuracy	0.05%
Output pulse	Commonly used output pulses: 1000P; 2000P; 2500P; 5000P
Operating Voltage	5V;8~24V;10~30V;12V
Life	>200 million times
Wire retraction force	4N
Wire rope diameter	0.6 mm
Maximum reciprocating speed	1000mm/sec
Protection level of box shell	IP54
Operating temperature	-30℃~+90℃
weight	About 0.45 KG (including packaging); net weight 0.0.30 KG
cable length	Default 2m; optional
building materials	Aluminum alloy, surface oxidation treatment, wear-resistant and anti-corrosion

Q1: How to order our products?
A:1). Please tell us the model and quantity you need and other requirements.
2).We make PI for you.
3).After you confirm the PI, we will arrange the order for you after receiving your payment.
4). After the goods are completed, we will send the goods to you and tell you the tracking number.
5). We will track your goods until you receive the goods.

Q2: Can I have samples for testing?
A: Actually we have a good price principle, when you order in bulk, the sample cost will be returned to you. The price is the same for sets of 1-20 including samples

Q3: Can I add my logo on the encoder?

A: Yes, we can provide OEM and ODM.

Q4: How do I get after-sales service?
A: If the problem is caused by us, we will send you spare parts for free. If it is a human problem, we will also send spare parts, but you should pay. For our range hood motors there is lifetime maintenance.

Q5: Do you have an encoder inspection procedure?

A: 100% self-inspection before packaging
