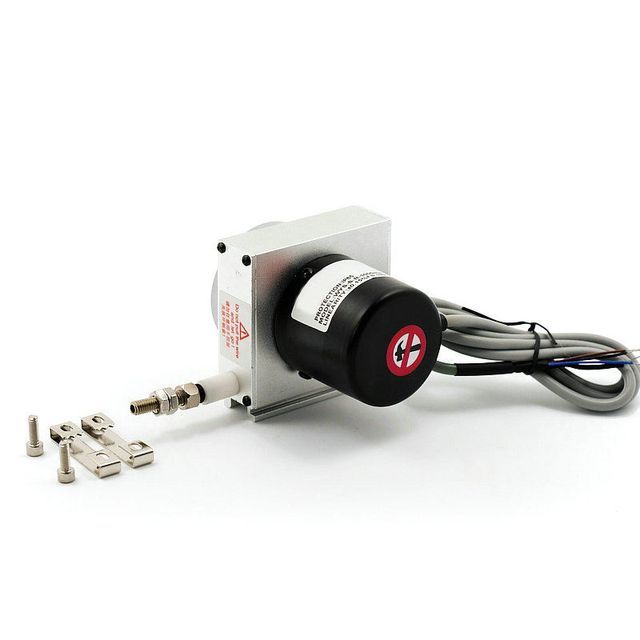

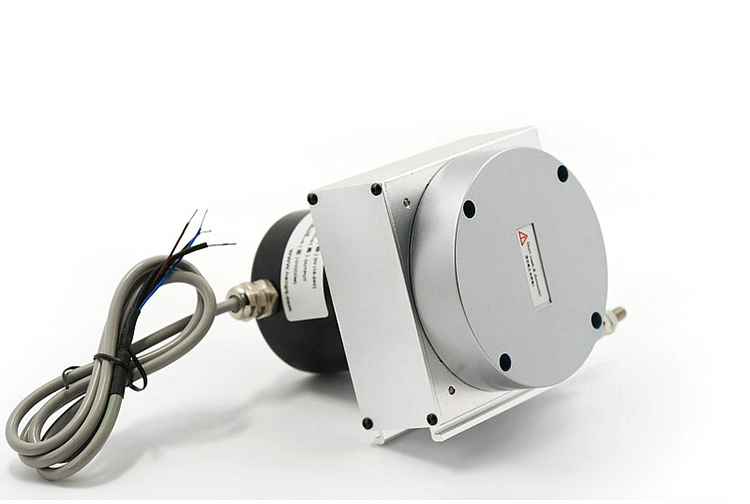

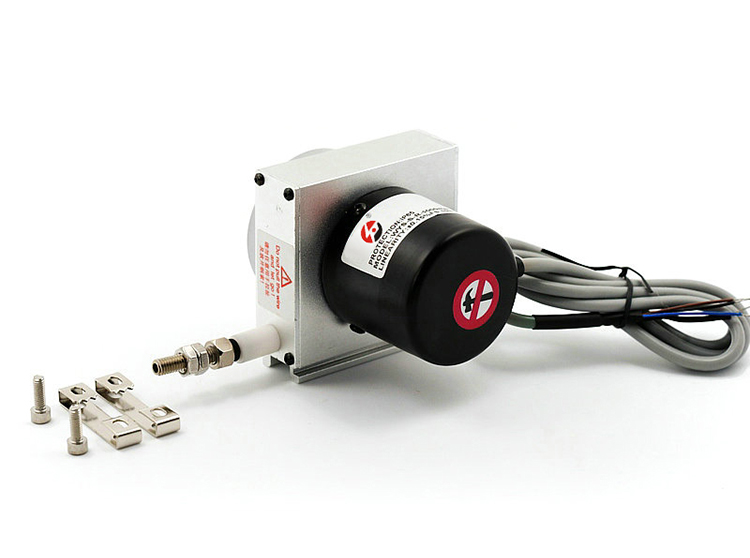

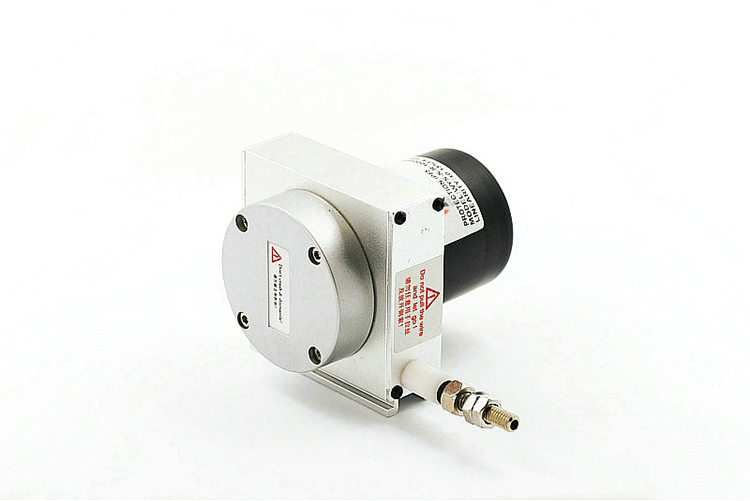

High precision cable displacement sensor for cylinder testing machine
-
Supplier: Dongguan Sop Mechanical And Electrical Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Tina Liu -
Price: $80.00 / 1 - 49 pieces
$60.00 / 50 - 99 pieces
$50.00 / >=100 pieces -
Min. Order: 1 piece
| describe: | position sensor | brand: | Standard operating procedures |
| usage: | position sensor | journey: | 10mm - 100000mm |
| powered by: | 24 volts | size: | S, M, L, XL |
| model: | WPS | thing: | Cable extension sensor |
| output type: | 24 volts | type: | Pull wire displacement sensor |
| Packaging Details: | 1 piece/carton, 10 cartons/carton, 15 cartons/carton | Protection class: | IP65 |
| payment terms: | L/C, T/T, Western Union, MoneyGram | output signal: | Resistance, voltage, current, pulse |
| color: | silver | theory: | Resistive sensor |
| output: | analog sensor | feature: | High precision, long stroke and long service life |
| Origin: | Guangdong, China | Supply capacity: | 300pcs cable extension sensor per week |
| Voltage - Power: | 24 volts | Operating temperature: | -20°C - 80°C |
| Shell material: | aluminum alloy | port: | Shenzhen |
Pull wire displacement sensor for cylinder testing machine
describe:

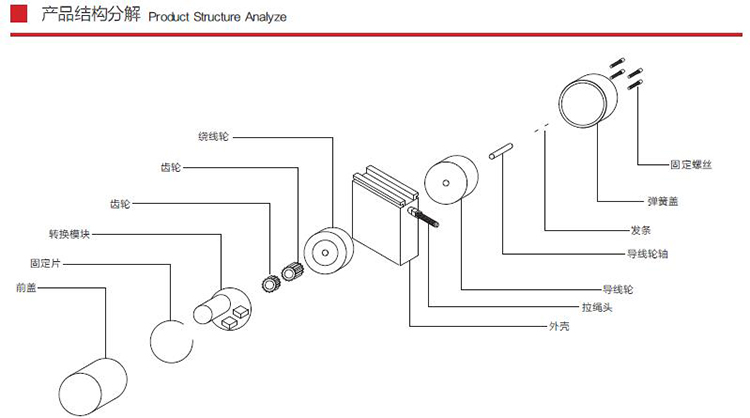

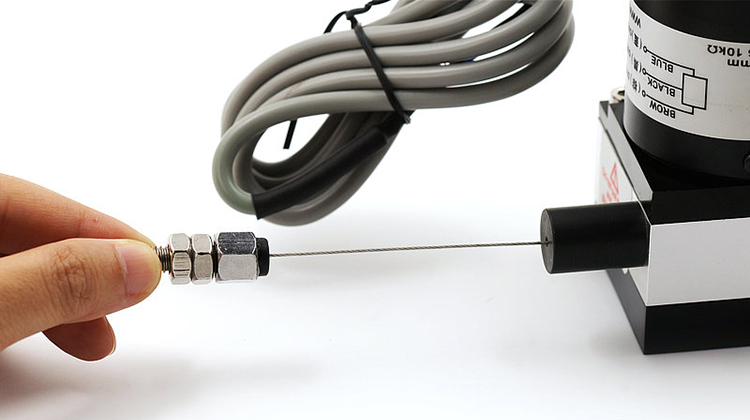

Pull wire displacement sensors are also known as rope sensors or cable elongation sensors. It is an efficient linear displacement measuring device with an ingenious design principle. Through the scientific combination of special steel cables and angle measuring components (potentiometers or encoders), it converts the linear displacement motion of an object into a measurable, linearly proportional motion. Electrical signal, so as to realize accurate displacement measurement data output.

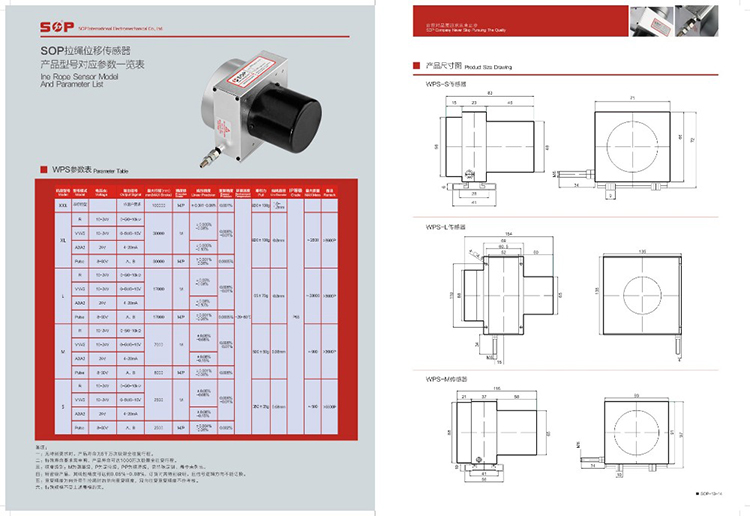

Specification:
| thing | Cable extension sensor |
| stroke length | 100000mm |
| Accuracy class | Medium, Medium, C |
| Linearity |
+-0.005% - 0.08%, +-0.005% - 0.15%, +-0.001% - 0.06% |
| Operating temperature | -20°C - 80°C |
| solve | endless |
| degree of protection | IP65 |
feature:
- Compact size, strong structure, easy installation
- Measuring range up to 100000 mm
- Multiple output signals optional: 4-20mA; 0-5V/0-10V; 0 - 5 / 0 - 10 kΩ; A, B, Z phase
- High reliability and long service life
- IP 65 degree of protection, wide range of applications
Package Included:
- 1 * Cable extension sensor
Each unit is packaged in a square box, custom packaging is acceptable upon request.
Shipping method:
- DHL, UPS, FedEx, etc.
- air transport
- by sea
It depends on the quantity of goods, delivery time, shipping cost and so on.
Why choose us:
1. Quality control; 100% QC inspection before shipment
2. Respond promptly; Any inquiries or questions will be replied within 24 hours
3. Fast production time; Goods will be dispatched within 7 working days
4. After-sales service; Professional team ready to solve your problems
-
