10T Cable Transporter Cable Drum Trailer Cable Drum Trailer

Supplier: Changshu Xinya Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Wendy Jin
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

color:	white, yellow, blue, etc.	Surface treatment:	spray paint
Maximum Coil Diameter (mm):	2300 2800 3300 3500	model:	LZ
brand:	New Asia	payment terms:	L/C, T/T
Shipping Details:	15-20 days after payment	application:	power construction
Supply capacity:	10 sets of 10T cable transporter cable reel trailer cable reel trailer per month	Coil Width(mm):	1250 1450 1750 1850
thing:	10T Cable Transporter Cable Drum Trailer Cable Drum Trailer	diameter:	800-1200 (customized)
Origin:	Jiangsu, China	type:	Cable Drum Trailer
port:	Shanghai	usage:	Other, Trailer Parts
Weight (kg):	900 1500 2300 2800	Packaging Details:	10T Cable Carrier Cable Reel Trailer Cable Reel Trailer PVC Plastic Packaging

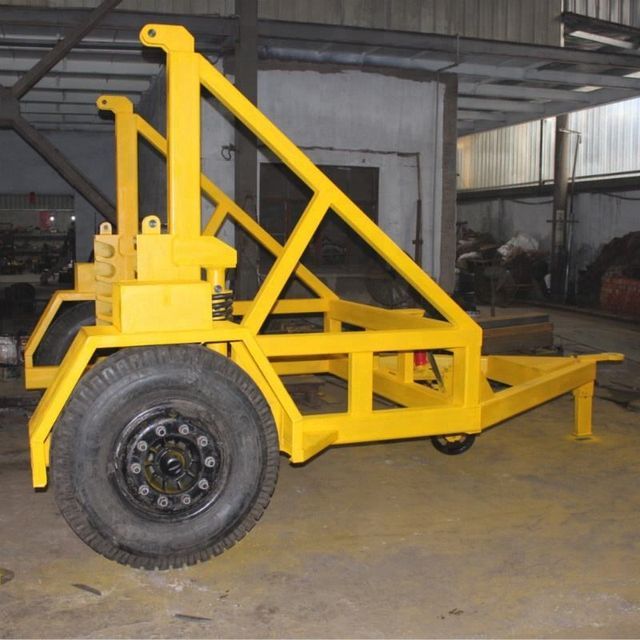

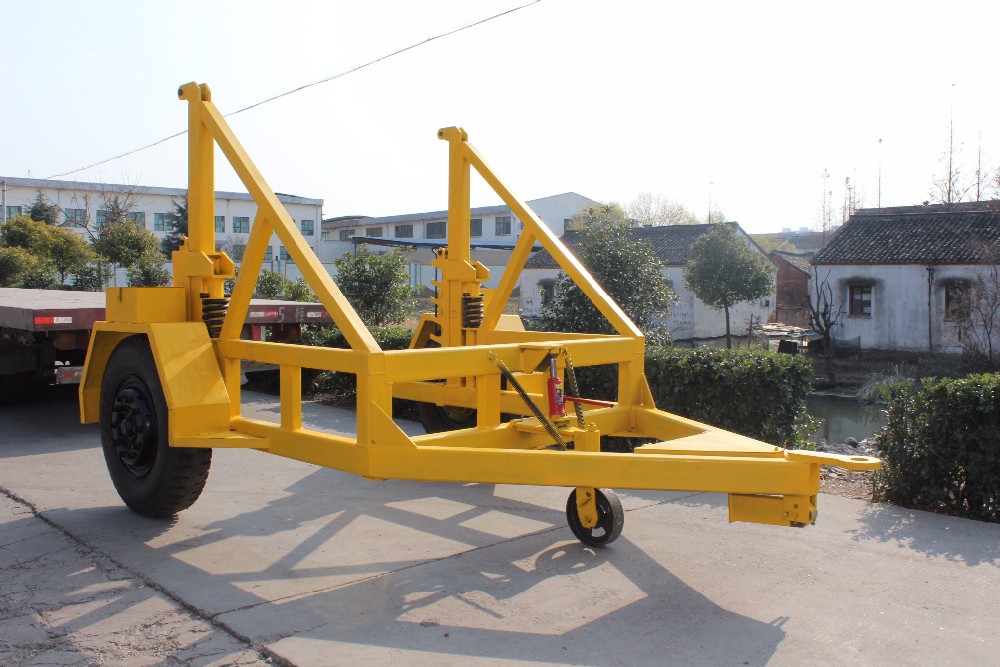

10T Cable Transporter Cable Drum Trailer Cable Drum Trailer

This product is a new generation of cable trailer integrating reel traction, pulling, pushing, guiding and tensioning. Equipped with an automatic braking device, the brake can be effectively braked simply by moving the clutch. Compact design and flexible steering function, can be operated under narrow working sites. Easy to operate and easy to maintain, it is an essential tool for power construction.

Technical data of cable reel trailers, cable reel trailers, cable trays

Model			Maximum Coil Diameter	Wide	length	Wide	High
Model	(T)	(Kilogram)	mm	mm	(mm)	(mm)	(mm)
LZ-3T	3T	900	2300	1250	3800	2300	2200
Land Warfare-5T	5 tons	1500	2800	1450	4000	2600	2500
Land Warfare-8T	8 tons	2300	3300	1750	4300	3200	2700
Land Warfare-10T	10 tons	2800	3500	1850	4300	3400	2800
