Single Nylon Pulley String Pulley Blocks for String Conductors
- 20.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply capacity: | 1000pcs per month Single Nylon Pulley String Pulley Blocks for String Conductors | port: | Shanghai |
| usage: | Stranded aluminum and ACSR conductors | product name: | Single Nylon Pulley String Pulley Blocks for String Conductors |
| Material: | MC Nylon | Packaging Details: | Single Nylon Pulley Threading Pulley Blocks for String Conductors Packed in Cartons |
| specified load: | 5-20 kN | application: | threading |
| Surface treatment: | galvanized | Origin: | Jiangsu, China |
| Certificate: | ISO9001 | payment terms: | L/C, T/T |
| model: | SHDN | Shipping Details: | 10-15 days after payment |
| brand: | New Asia | BaSO4 content: | other |
| Name: | Threading pulley block | CD-ROM read speed: | other |

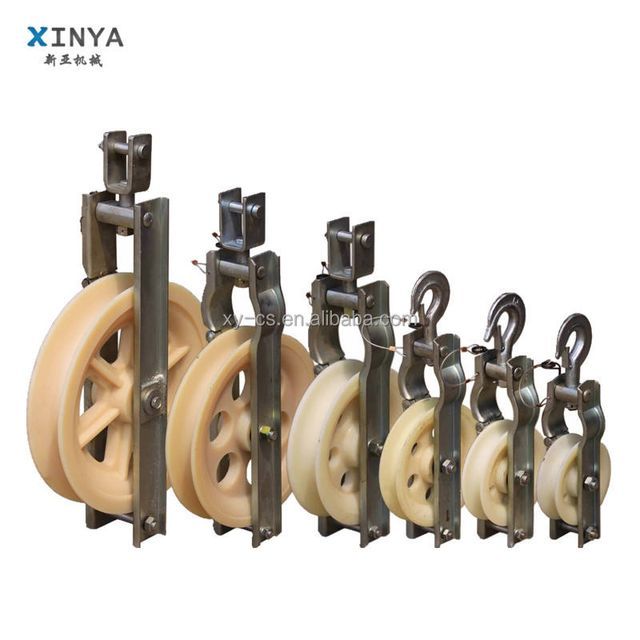

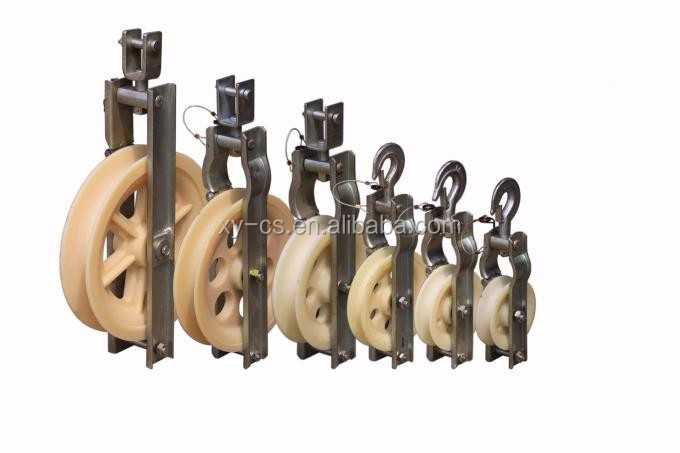

Single Nylon Pulley String Pulley Blocks for String Conductors
The threading wheel is suitable for the threading of single-strand aluminum stranded wire and steel-cored aluminum stranded wire on the tangent structure of overhead transmission lines.
Single pulley threading block
| serial number. | Model | ACSR size range (mm²) | Workload (KN) | Weight (kg) | Pulley material |
| 10171 | SHD-120x30 | 25-70 | 5 | 2 | aluminum |
| 10172 | SHD-160x40 | 95-120 | 10 | 3.2 | |
| 10173 | SHD-200x40 | 150-240 | 15 | 3.8 | |
| 10174 | SHD-200x60 | 150-240 | 15 | 4.2 | |
| 10175 | SHD-250x40 | 150-240 | 20 | 5.2 | |
| 10176 | SHD-250x60 | 300-400 | 20 | 5.5 | |
| 10177 | SHD-270x60 | 300-400 | 20 | 6.8 | |
| 10178 | SHD-320x60 | 300-400 | 20 | 10.5 | |
| 10179 | SHD-400x80 | 400-500 | 20 | 12 | |
| 10191 | SHDN-120x30 | 25-70 | 5 | 1.5 | nylon |
| 10192 | SHDN-160x40 | 95-120 | 10 | 2.4 | |
| 10193 | SHDN-200x40 | 150-240 | 15 | 2.6 | |
| 10194 | SHDN-200x60 | 150-240 | 15 | 3.1 | |
| 10195 | SHDN-250x40 | 150-240 | 20 | 3.7 | |
| 10196 | SHDN-250x60 | 300-400 | 20 | 3.9 | |
| 10197 | SHDN-270x60 | 300-400 | 20 | 4.4 | |
| 10198 | SHDN-320x60 | 300-400 | 20 | 7.5 | |
| 10199 | SHDN-400x80 | 400-500 | 20 | 8 |
application:
Widely used in overhead power line construction. Used to release conductors. It can pass through connectors, swivel joints.
A pulley block composed of multiple pulleys is often used in conjunction with winches, masts or other lifting equipment, and is often used in construction and installation projects such as lifting towers, stringing, and hoisting. It can also be used in lifting projects such as docks, shipyards, and warehouses.
