Concrete Hollow Core Slab Forming Machine And Pillar Machine

Product details

Concrete Hollow Core Slab Forming Machine And Pillar Machine

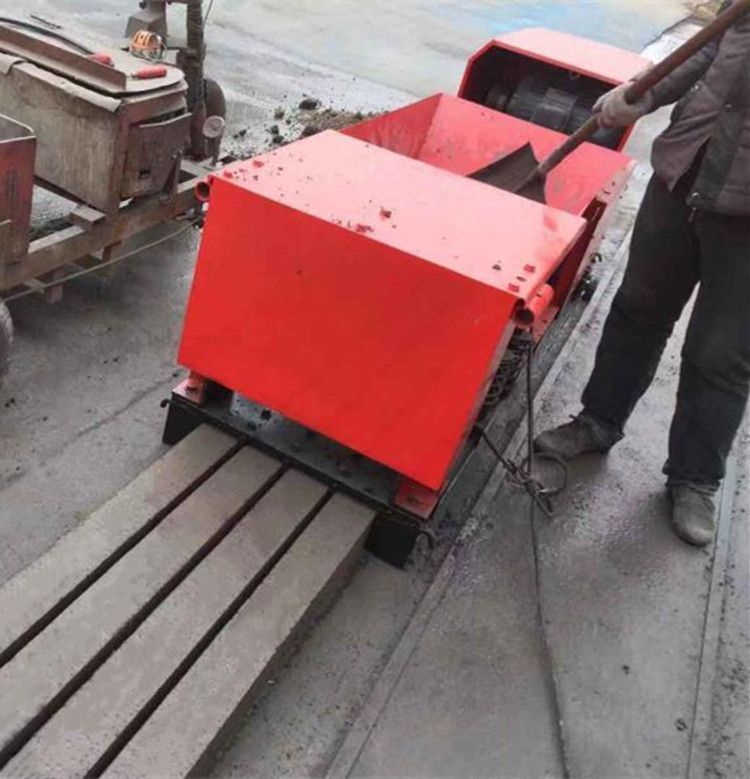

Pillar machine walks automaticly continuous operation, using cement, sand, stone once extrusion vibration molding, plate making speed 1.2-1.5 meters/min, can simultaneously produce 4-6 hollow, solid, reinforced or not reinforced concrete column, wall plate and greenhouse installation skeleton. Pillar machine is widely used in factories, residential houses, greenhouses and vineyards.
FEATURES AT A GLANCE
FEATURES:
1.PACKING DIMENSIONS: Length2400mm*Width1050mm*Height980mm(without hydraulic head)
2.SIMPLE OPERATION
3.LARGER DAY OUTPUT
4.STABLE PERFORMANCE
5. HIGH MECHANIZATION

80*80mm pillar pattern drawing

100*100mm pillar pattern drawing

Raw Material of Concrete Slats Floor

Silica cement, stone, sand , etc.
PRODUCT SPECIFICATIONS
name
model
productivity (m/min)
construction
pillar machine
60×100×4
1.3-1.5m/min
4 holes¢25
pillar machine
80×100×4
1.3-1.5m/min
4 holes¢30
pillar machine
100×100×4
1.3-1.5m/min
4 holes¢30
pillar machine
120×120×4
1.3-1.5m/min
4 holes¢40
pillar machine
80×80×4(5)
1.3-1.5m/min
4 holes(5 holes)¢25
Features of Concrete Slats Floor Mold System Floor Machine:
1.The whole machine adopts ductile iron girders(originally channel steel girders), so that the whole machine will never be deformed, so as to ensure the stability and service life of the whole machine.
2.The forming core tube is made of bearing steel sleeve combination, which can continuously produce concrete members of 20,000 to 30,000 square meters.The auxiliary beam is made of carbide insert welding technology, which has the characteristics of wear-resistant and not easy to damage. Sliding block baffle groove, insert welding hard alloy, wear - resistant, steel wire does not shift, do not hang reinforcement.
3.The key spare parts are selected carefully, the technology is advanced, the performance is reliable, the vulnerable parts wear resistance, long life, so as to save the maintenance cost for the user and reduce the cost.
4.Wide adaptability to aggregate, broken gravel, pebble board performance is good.
PRODUCT CONFIGURATION
High frequency vibration device
Reducer and frame have high temperature quenching treatment
FLOW OF PRODUCTION LINE

User's work site

Our concrete machine accounts for 80% of the Chinese market.
Customer product usage
Finished pillar and fence wall panel production
we also can product lintel,column,beam ,wall panel machines.
