precast concrete wall panel machine building mater hollow core wall panel extruder

Product details

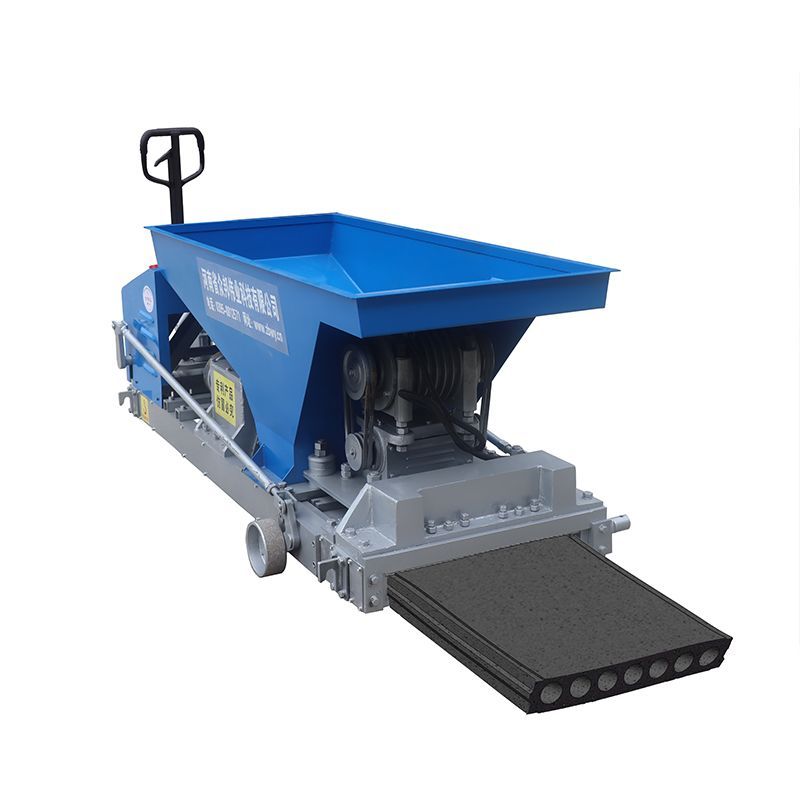

precast concrete wall panel machine building mater hollow core wall panel extruder Hollow Core Wall Panel Machine Board Making Machinery

JQT series lightweight concrete wall panel making machine is a new-type product developed by our company and China Building Materials Academy.This machine adopts the technology of pretensioning steel bar upper and down protective layer.it uses ordinary cement or port-land cement as gelling agent,the low carbon steel wire as reinforce material,expand perlite, ceramsite,slag,fly ash,grain slag,sand as aggregate.The advanced technology has greatly reduced the product cost, improved the product quality and production efficiency,and is the core equipment for the production of lightweight partition wall panel.
FEATURES AT A GLANCE
FEATURES
1.PACKING DIMENSIONS: Length2500mm*Width950mm*Height800mm(without hydraulic head)
2.SIMPLE OPERATION
3.LARGER DAY OUTPUT
4.STABLE PERFORMANCE
5. HIGH MECHANIZATION

Raw Material of Lightweight Wall Panel

Silica cement, slag, slag, water slag, steel slag, industrial ash slag, volcanic ash, fly ash, coal gangue, ceramsite, ceramsite, shale ceramsite, slag, construction waste, domestic waste sintered substance, etc.
The core machine :concrete wall panel making machine

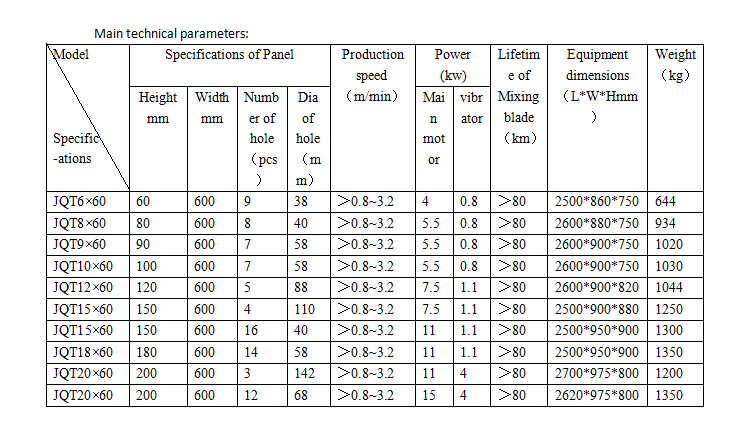

PRODUCT SPECIFICATIONS
No
Item
Data
1
Work principle
Extrusion technology
2
Day capacity/per unit
500-600 m/8 hours
3
Popular Panel Diamension
Thickness 90/100mm*Width 600mm *Length 3000mm(any size)
4
Vibrating device
High frequency or general(Contact us for details)
5
Hole
Circular hole
6
Hollow
Hollow & solid (by exchange augers)
7
Raw material
limestone/sand/stone powder/sawdust/slag/fly ash/tefra/construction waste(any one or more)+cement+water+additive
8
Volume Weight
 For example: ≤90kg/m2 for 90mm slag hollow core wall panel

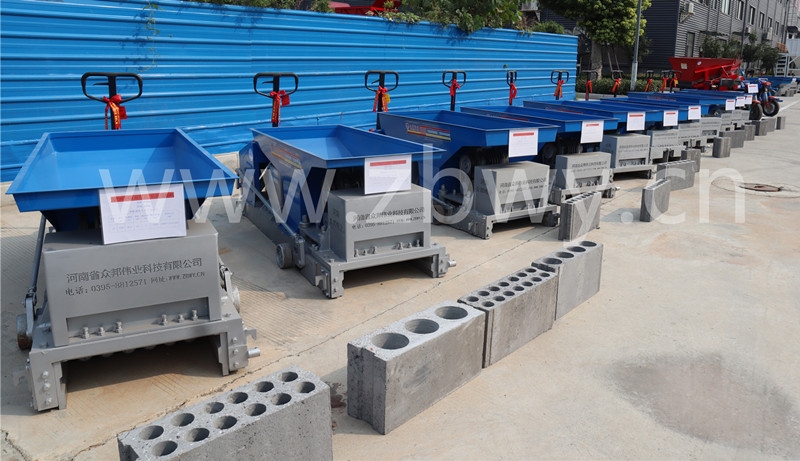

SAMPLE EXHIBITION
Working principle of concrete wall panel making machine:
The machine gathers distributing material, vibrating, forming, and demolding processes of the lightweight partition wall panel into one. The main motor transfers power to the reducer through the belt pulley.The output shaft of the reduction gearbox drives the helical churning knife to rotate in the forming cavity which consists of machine frame
(wall board), vibration machine (vibrator) and pedestal.the lightweight mixtures is transported continuously from hoppers to forming cavities.It is subjected to the dual action of the helical churning knife (augers)extrusion and the vibrator continuous vibration in the forming cavity.with producing resonance, the wall panel can achieve the requirements of shape, size and density through be squeezed and compacted continuously.At the same time, compacted wall panel produces the reaction force to the rotating churning knife, and pushes the extrusion machine forward continuously, thus realizing the continuous production of wall panel. The upper surface of wall panel is polished by the forming scraper at the end of the machine.

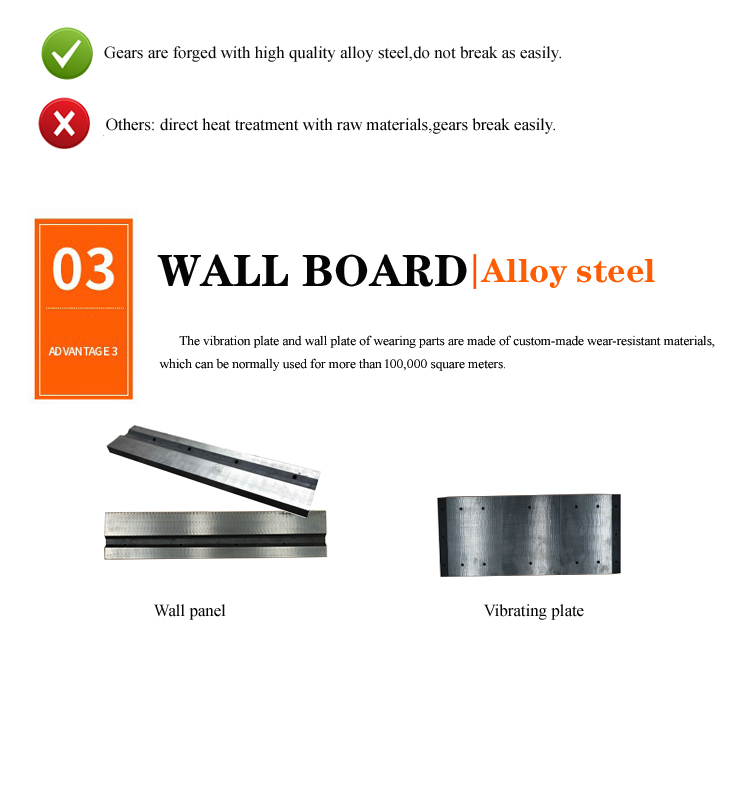

PRODUCT CONFIGURATION

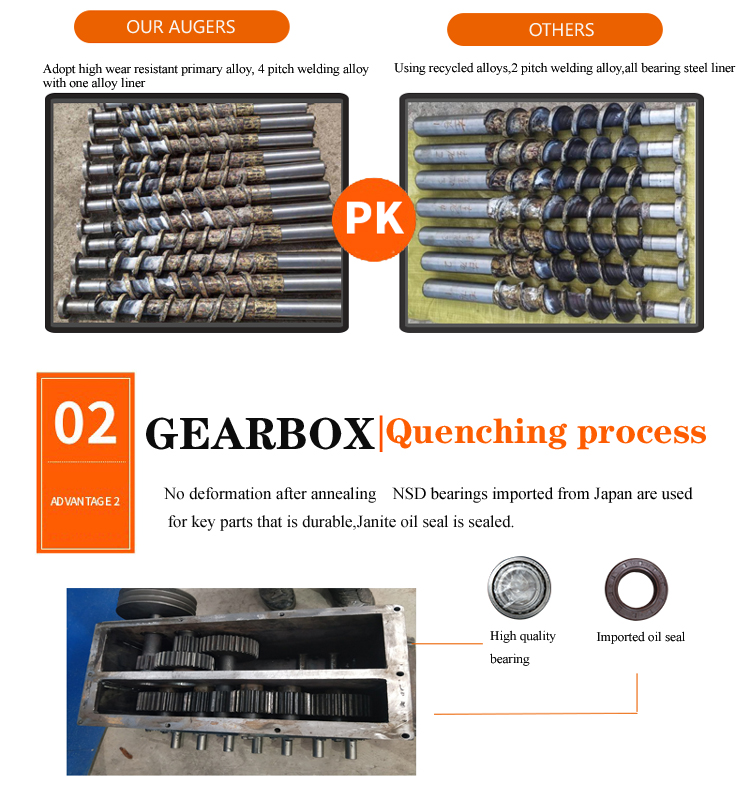

Inner parts of gearbox:gear and gear shaft



Service  Team
We have a professional pre-sale, after-sales service team. Technicians have rich field experience who have served more than one thousand clients.
Pre-Sales Service:1.Inquiry and consulting support 2. project design 3.layout of equipment
After-Sales Service :1.Guiding how to install the machine,2.training how to use and maintenance the machine
3.provide the formula of raw material and upgrade technology 4.Engineers available to service machinery overseas.

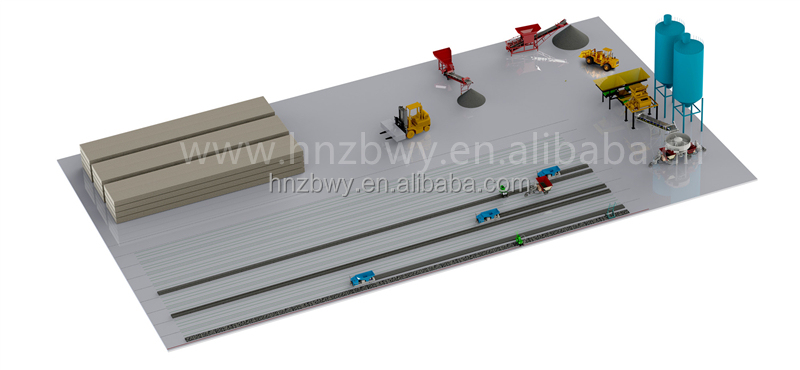

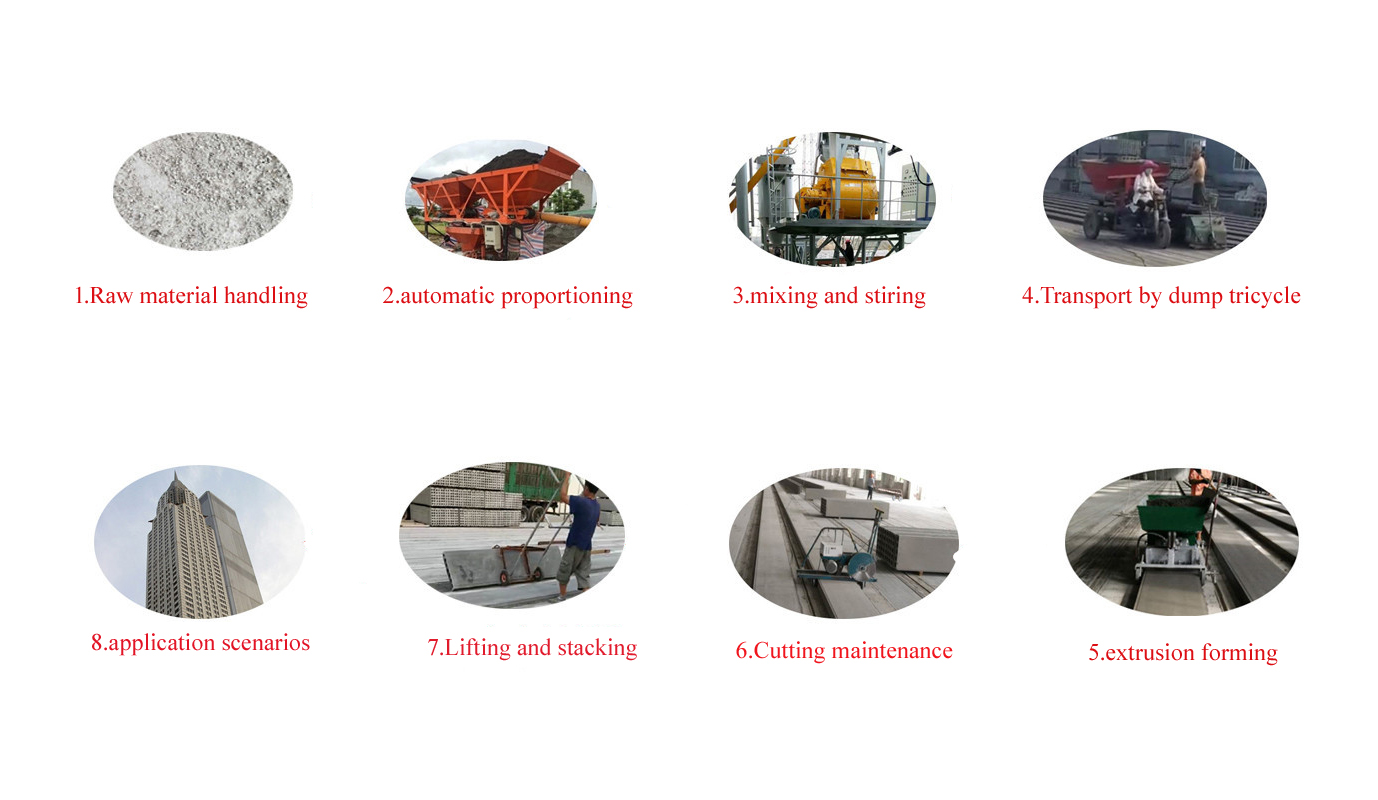

FLOW OF PRODUCTION LINE
Complete auxiliary machinery in above-mentioned production line
1.Raw material crusher + Slag sieve residue machine (choose) 2. PLD batching machine
3. JS concrete mixer +Screw conveyor 4.Electrical dump tricycle 5.Wall panel extrusion machine
6.Concrete cutting machine 7.Wall panel lifting machine 8.wall panel installation machine

01:00

User site

Our concrete wall panel making machine accounts for 80% of the Chinese market.

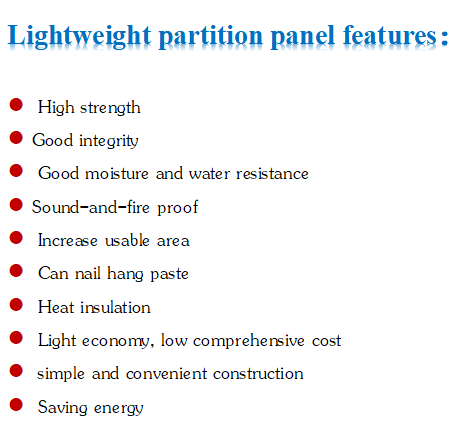

Finished wall panel and their application scenariosLightweight partition wall panel is a new type of lightweight building material, which has the advantages of fire prevention, moisture proof, sound insulation, earthquake resistance, light weight, fast construction, saving indoor area, environmental protection and so on. It can be widely used in office, business, residential buildings of household division room, corridor, kitchen, bathroom internal partition wall .

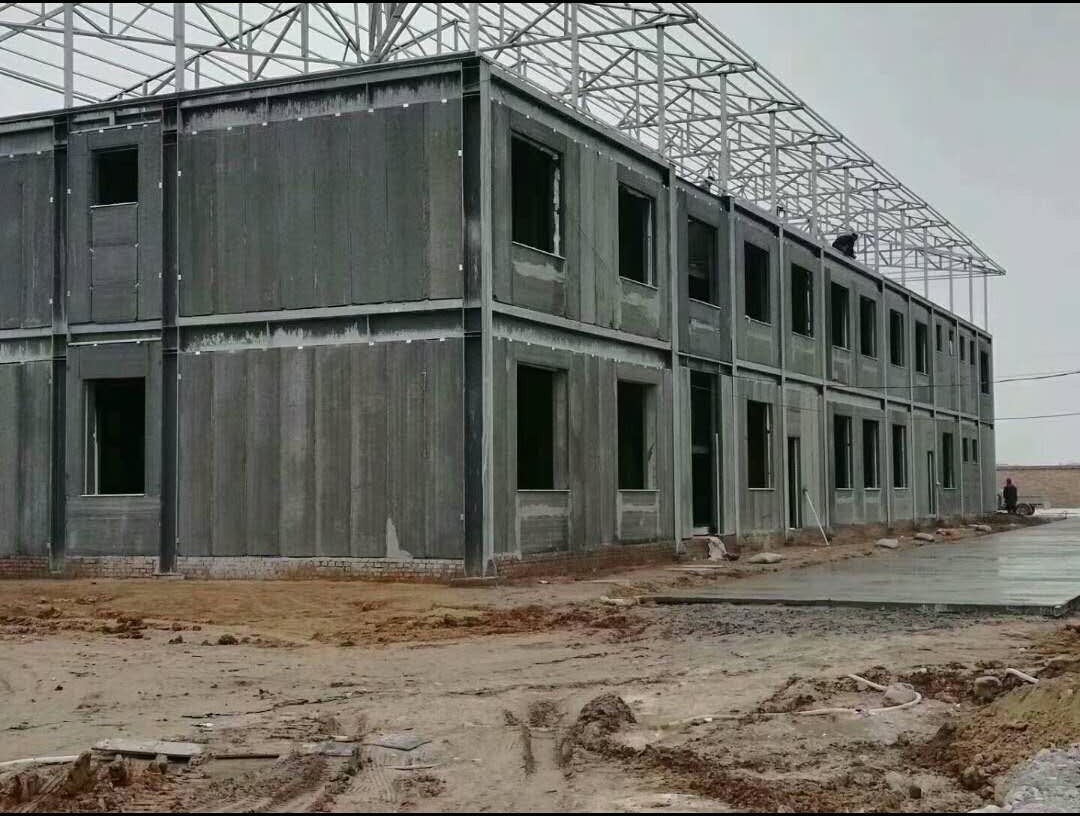

Partition of residential building,hotel,Hospital
Factory staff dormitory
Our Chinese invention patent and utility model patent
At present, there are 10 Chinese invention patents and 155 utility model patents.

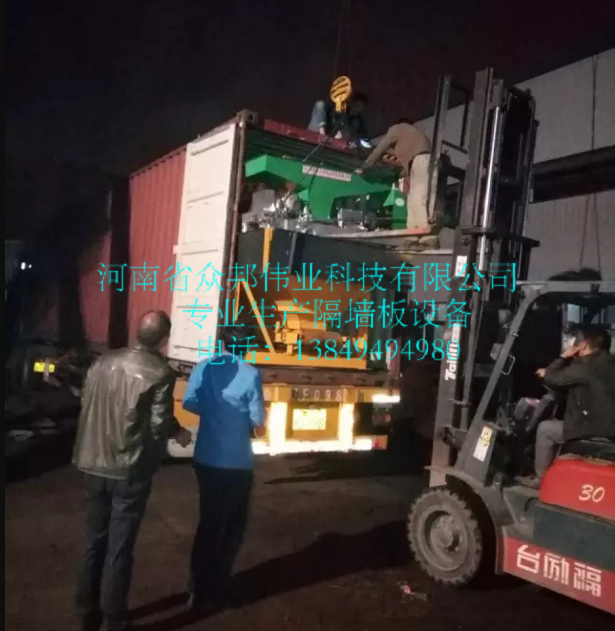

SHIPPING AND PACKING

Ocean shipping Package:We can provide fumigation wooden box packaging products.
Standard container Packing :Wire cables are used for fastening the machine on the trailer or inside the container.
