Asphalt road crack sealing machine with 100L hot melt kettle

Supplier: Changzhou Jiehe Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Linda Zhang
Price: $4740.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Conduct oil:	15L(4 us gal);
Dimension(LWH):	190010501300MM(748413512in);	Product name:	Asphalt road crack sealing machine with 100L hot melt kettle(JHG-100);
Packaging Detail:	Iron frame + Solid carton or according to customer requirement Shipping dimensions(mm):198011101430 Shipping weight(kg):305 8 sets in a 20ft container normally;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:	CE;	Place of Origin:	Jiangsu China (Mainland);
Comnbuster:	Italian Riello combuster;	Power(W):	2200W;
Port:	Shanghai ,Ningbo port;	Supply Ability:	100 Set/Sets per Week;
Hot melt kettle volume:	100L(26 us gal);	Weight:	265KS(584Ib);
Warranty:	1 Year;	Feeding pump:	oil circulation heating pump;
After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Feeding mouth size:	280380mm(1115 inches);
Temperature control system:	Automatic control by computer;	The length of electric heating tube:	5/6/7M(16/20/23ft);
Engine output power:	50HZ;	Brand Name:	JIEHE;
Stirring Method:	Automatic mixing style;

Asphalt road crack sealing machine with 100L hot melt kettle(JHG-100)

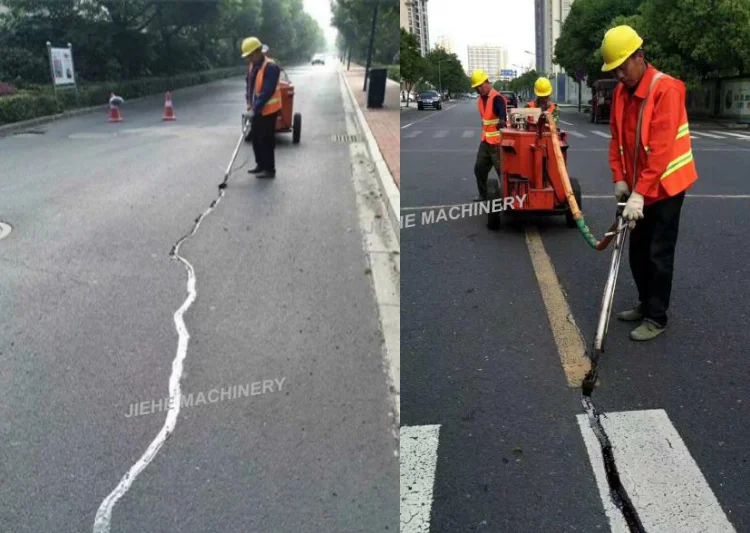

Cracking in pavements occurs when a stress is built up in a surface layer that exceeds the tensile or shear strength of the pavement causing a fissure or crack to open. Crack sealing and crack filling are methods which can be used to repair these cracks in pavement surfaces. The cause of the crack and its activity play a dominant role in determining the success of crack sealing or filling operations.

JIEHE has 3 models of crack sealing machines,100,160,200 liters model.The specialty of JIEHE crack sealing machines :

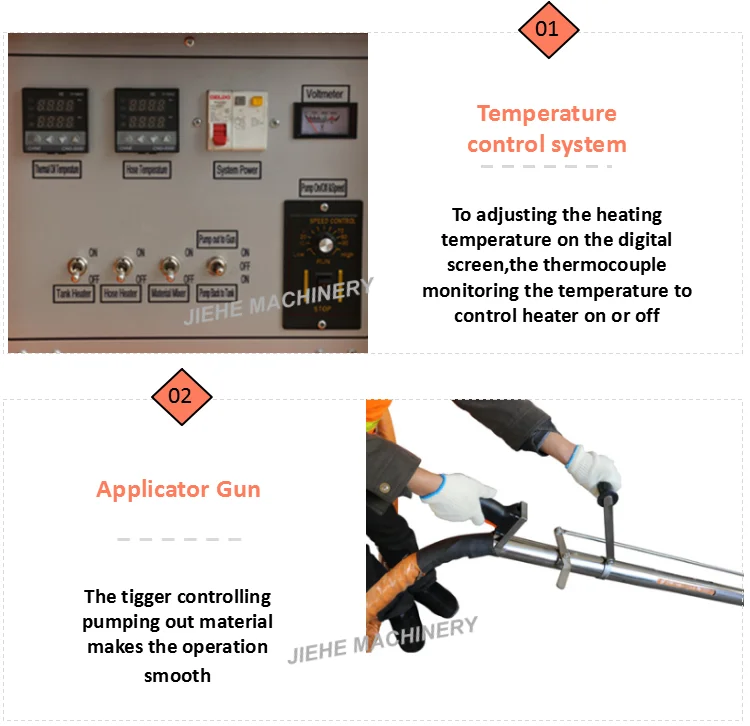

Temperature Controlling System: The thermocouple monitors the crack filling material temperature,the burner turns off and on to keep material heated at the adjusted temperature.This system avoid material to get overheated and reduce the material waste.

Heating System:Diesel heating thermal oil,thermal oil heating the crack filling material

JIEHE crack sealing machine series will be your best choice!

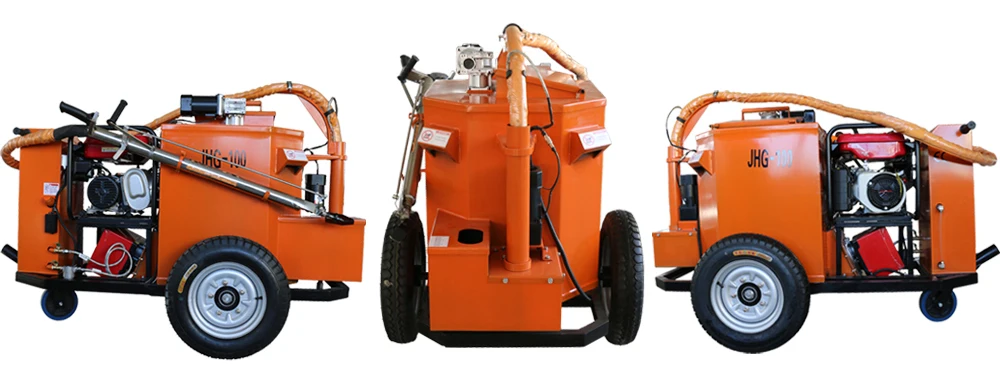

Side Front Side

Product detail

Parameter

MODEL	JHG-100
Generator	Honda 2.2KW,230V 4000RPM(50HZ)
Generator Fuel	Gasoline
The Length of The Tube	*5/6/7M(162023ft)*
Melter Volune	100L(26.4 US gal)
Thermal Oil	15L(4 us gal)
Mixing	Automatic
Pump	Gear Pump fpr pumping out and back
Burner(Heater)	Italian Riellio
Burner(Heater) Fuel	Diesel
Average Material Heating time	40 Minutes
Recommended Pouring Temperature	185℃ (365℉)
Maximum Safe Heating Temperature	200℃ (392℉)
Heat Preservation Box Temperature	80℃ (176℉)
