Pothole Repair Asphalt Milling Crack Sealing Machine
- 4650.00 set
| Condition: | New; | Dimension(L*W*H): | 1900*1050*1300MM(748*413*512); |
| Brand Name: | JIEHE; | Core Components: | Engine; |
| Place of Origin: | China; | Marketing Type: | Hot Product 2021; |
| UNIQUE SELLING POINT: | High operating efficiency; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Packaging Detail: | The shipping cost offered base on by sea , if you need to by air or by express please contact supplier Plywood or according to the customer requirement Shipping dimensions(mm):1900*1050*1300 40 sets 1 container 20 sets 1 container; | Weight: | 265; |
| Local Service Location: | United Kingdom,Germany,Viet Nam,Russia,Spain,Australia,Kenya,Chile,Ukraine; | Machinery Test Report: | Provided; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Supply Ability: | 100 Set/Sets per Month; |
| Applicable Industries: | Construction works ; | After-sales Service Provided: | Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
| Port: | Shanghai/Ningbo/Qingdao/Shenzhen port; | Engine: | Honda Gasoline; |
| Heater: | Italian Riello; | Showroom Location: | United Kingdom,United States,Viet Nam,Argentina,Chile,Australia; |
| Melter Volume: | 100L/26.5us gal; | Heating Time: | 40min; |
| Package Dimensions: | 1900*1050*1300mm; | Net Weight: | 265kg; |

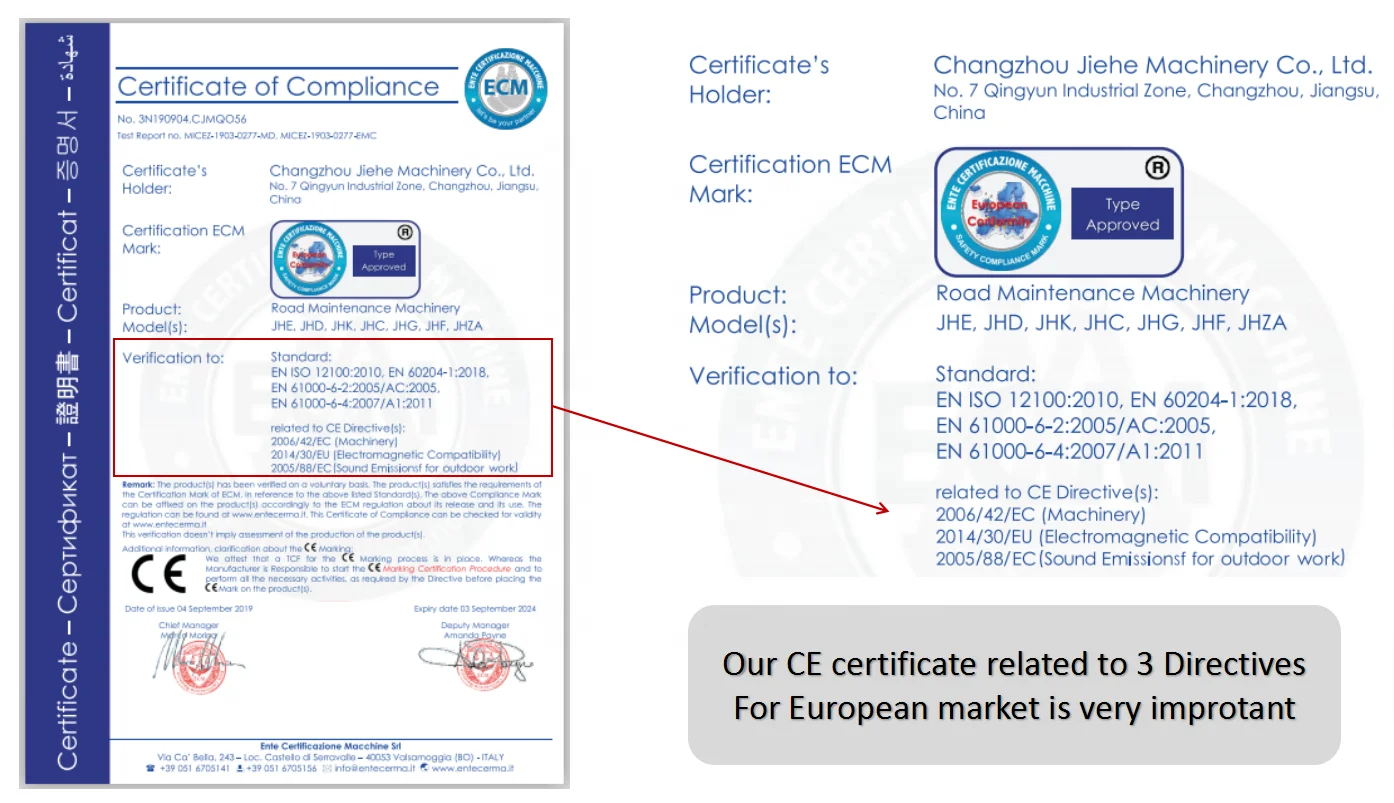

| Warranty of core components: | 1 Year; | Certification: | CE; |
| Themal Oil: | 15L; | Warranty: | 1 Year; |
| Power: | 2.2kw; | Generator Speed: | 4000rpm; |
| Pump: | Gear pump; | Length of Electric Heating Tube: | 5,6,7m; |
| Video outgoing-inspection: | Provided; | Package Preview: | ; |
Pothole Repair Asphalt Milling Crack Sealing Machine
→view all
PRODUCT CATEGORIES
Cracking in pavements occurs when a stress is built up in a surface layer that exceeds the tensile or shear strength of the pavement causing a fissure or crack to open.
JIEHE JHG-100 road crack sealing machine adopts Italy Riello Heater, mainly used for irregular cracks of asphalt pavement,concrete pavement, bridge expansion joints, sewer, gas pipe buried and paving road links waterproof processing.
Product Detail:
| Model | JHG-100 |
| Generator | HONDA 2.2KW, 230V, 50Hz |
| Generator Speed(rpm) | 4000 |
| Length of Eletronic Heating Tube(m) | 5 |
| Themal Oil(L) | 15 |
| Mixing Type | Automatic |
| Melter Volume(L) | 100 |
| Pump | Gear Pump |
| Pumping System |
Speed Controller on Control Panel Controlling Pump Out or Back |
| Heater | 50,000 kcal Italian Riello Heater |
| Temperature Controlling System | Automatic |
| Heating System | Diesel heat thermal oil, thermal oil heat material |
| Heating Time(Min) | 40 |
| Net Weight(kg) | 265 |
| Package Dimensions(mm) | 1900*1050*1300 |
Quality Assurance: 12 Months
Send Inquiry<<<
Detail Show:
Feature
1) Use imported Italian Riello heater, which has good performance.
2) Temperature Controlling System, Which protect the material and away from clogging.
3) With mixing system, the asphalt crack repair machine makes the heat even and fast.
4) Control Box control the asphalt crack filler machine is very easy and clear.
5) Constant temperature control, material output and input all by constant temperature control.
6) Chimney extends electronic heating tube life.
7) The material output speed is adjustable;
8) The discharge pipe adopts electric heating system, which effectively eliminates the condensation problem of the crack sealing material in the hose and reduce the clog.
